TLP Series

Heavy-Duty Power. 5-Stage Telescopic Lift.

Lengths

12–16 FT

Side Heights

2–4 FT

GVWR

14,000 LBS

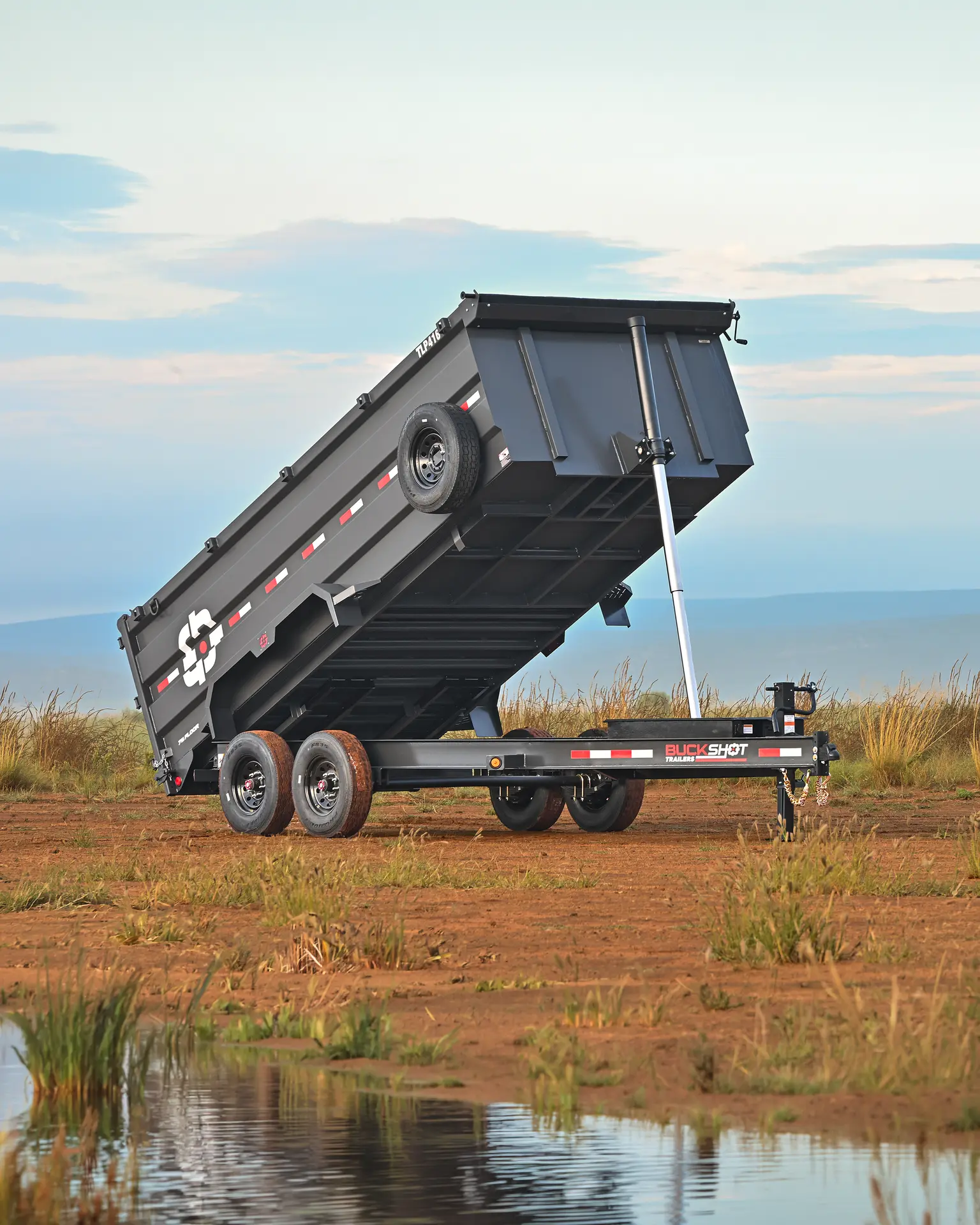

Buckshot TLP Series

Built to lift. Built to last.

Find a Dealer

TLP Series

Heavy-Duty Power. 5-Stage Telescopic Lift.

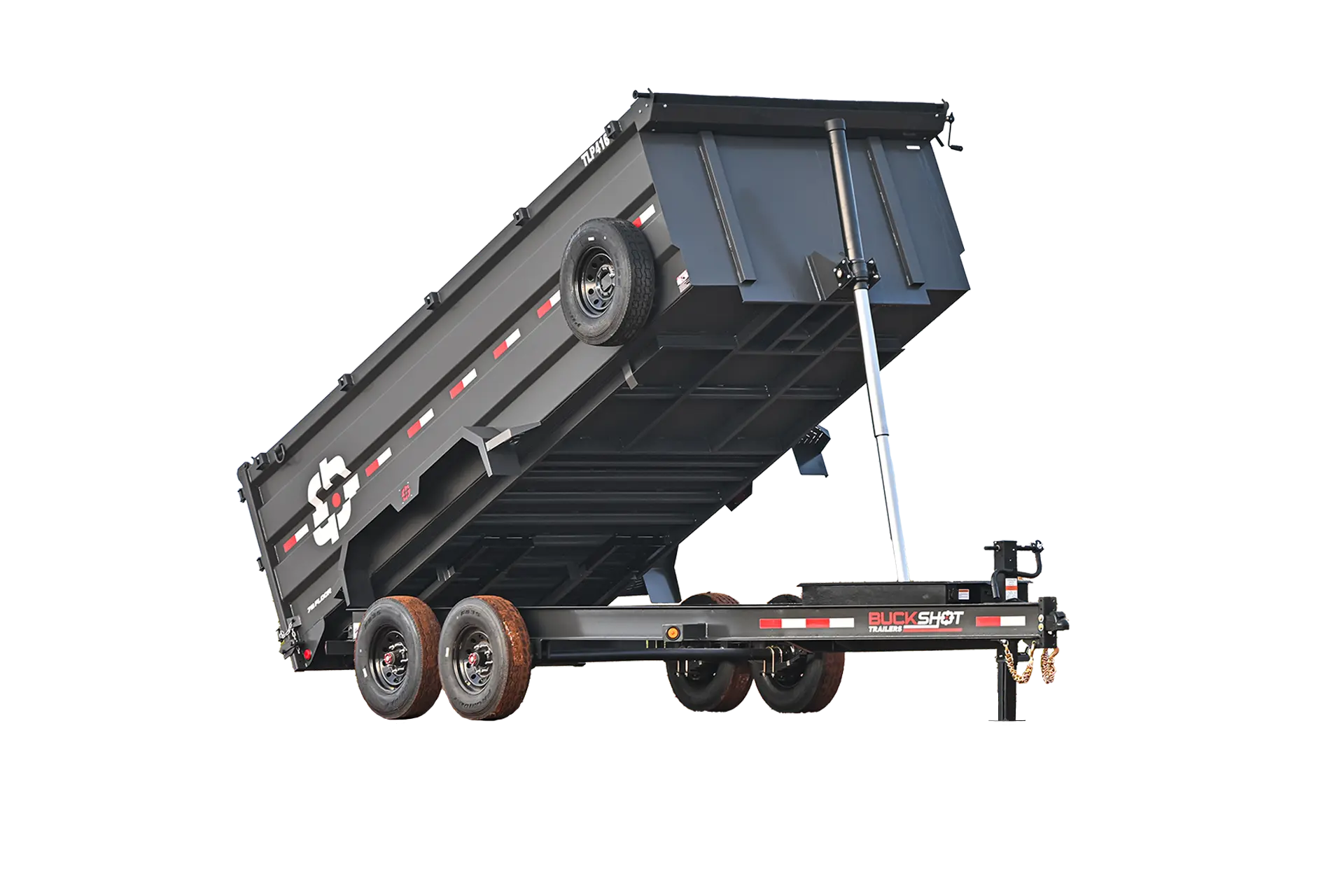

TLP Model Line

Product Highlights

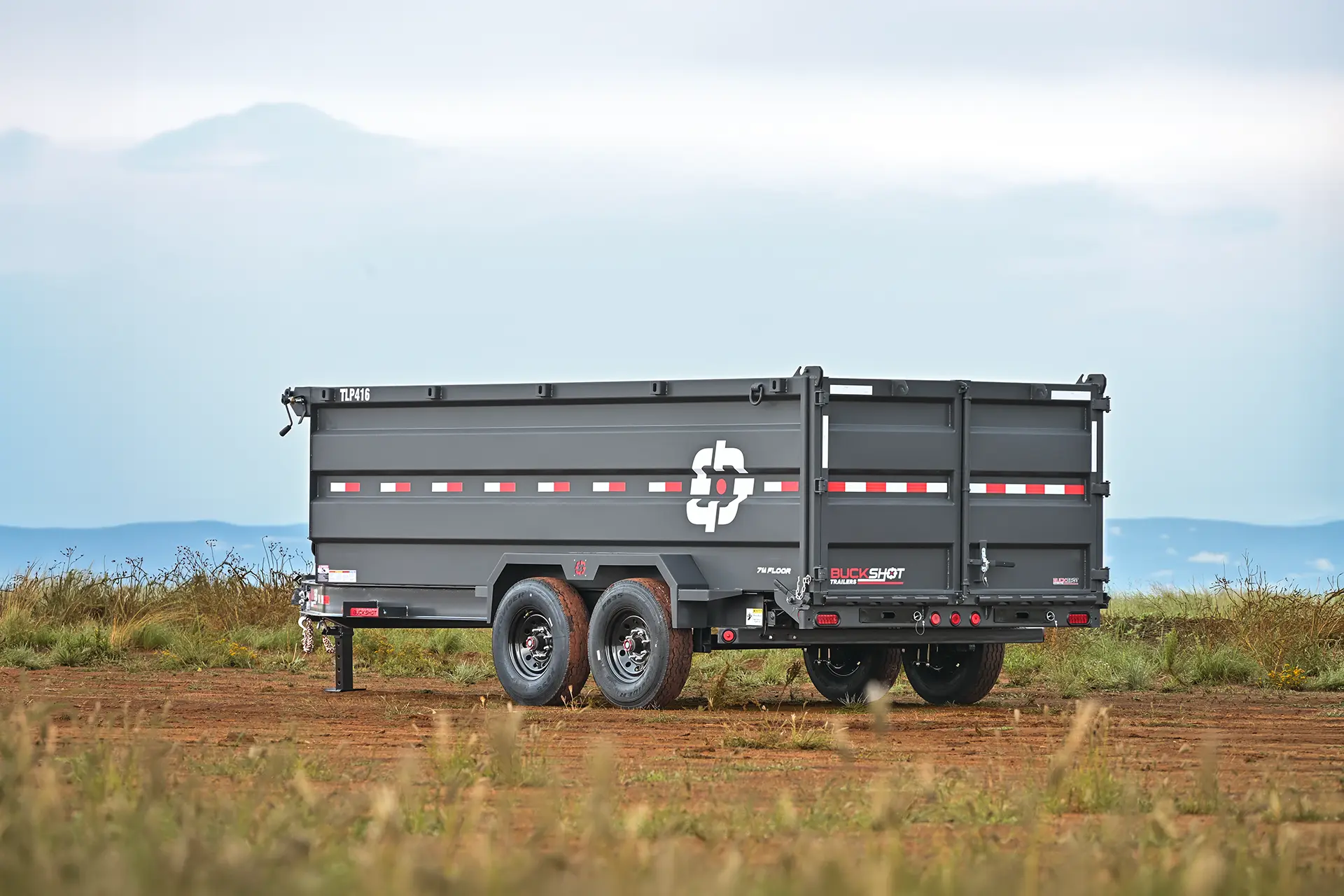

Introducing the TLP Dump Trailer – Telescopic Power, Built to Work!

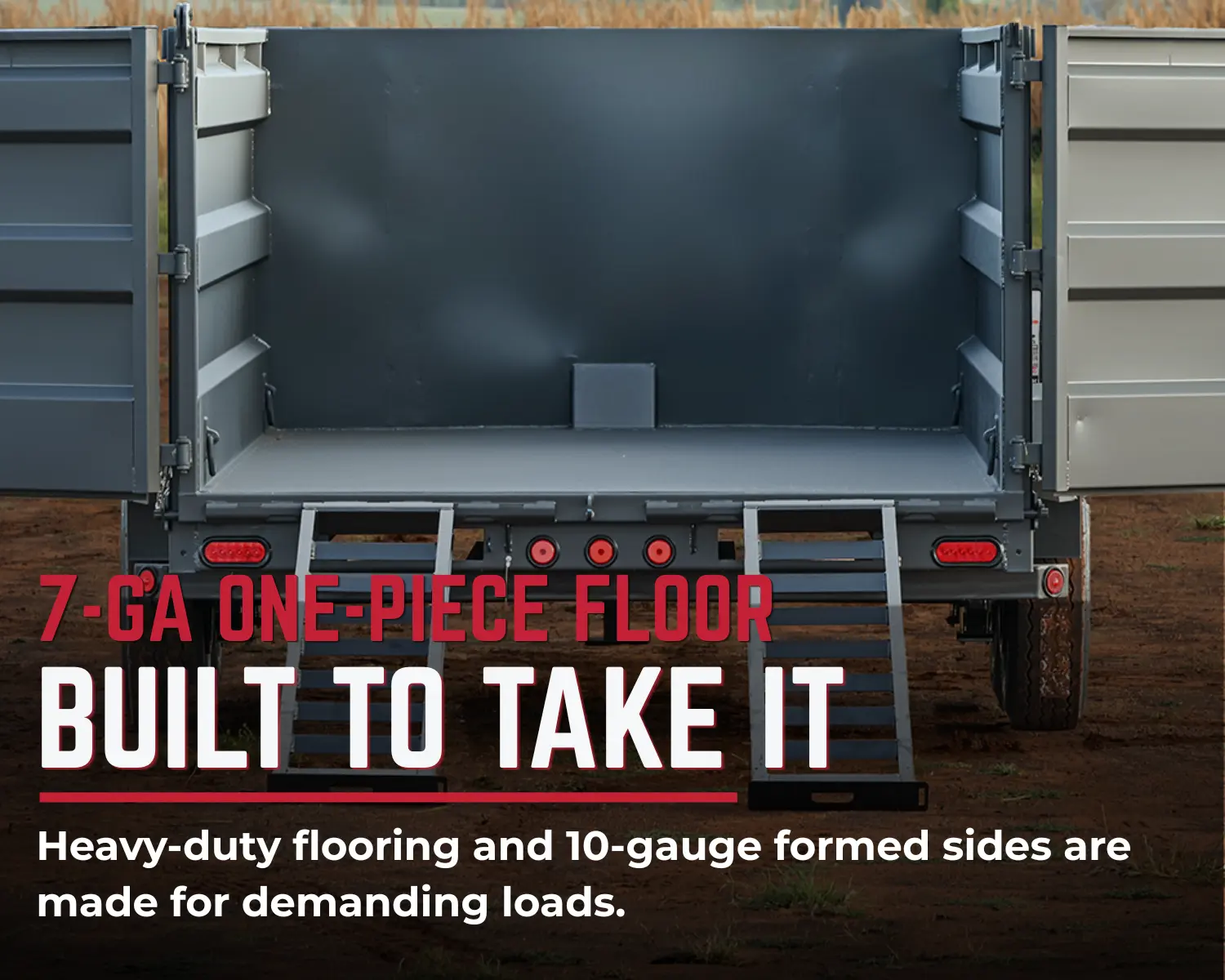

The TLP Dump Trailer delivers heavy-duty dumping performance in a dependable bumper-pull configuration, combining a rugged frame with a powerful telescopic lift system. Built with an 8" I-beam main frame, one-piece I-beam tongue, 7GA one-piece floor, and 10GA formed sides, it’s ready for demanding hauling jobs.

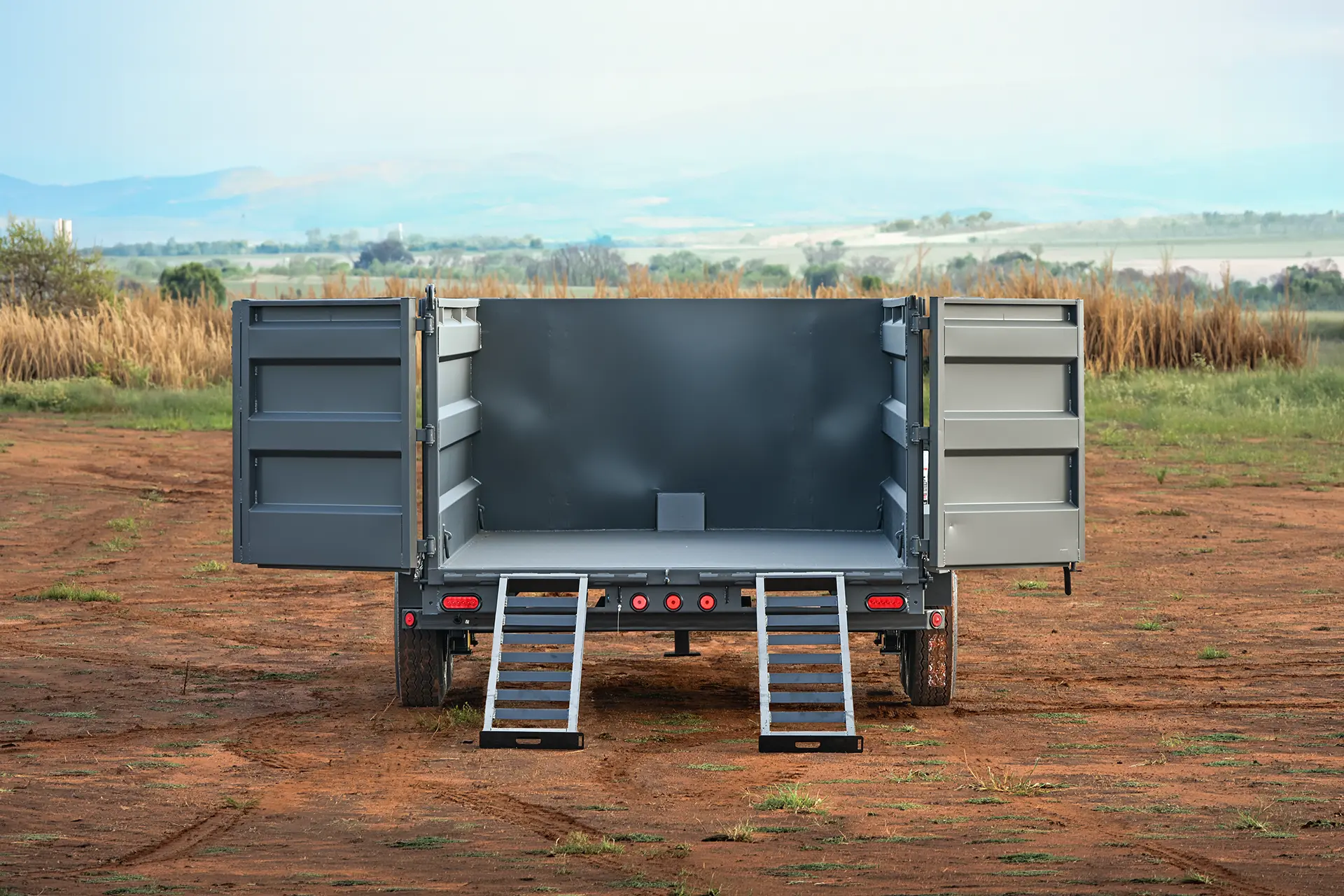

With an 83" bed width, 6' slide-in ramps, and four welded D-rings inside the bed, loading and securing equipment is simple. A 3-way spreader gate and standard manual tarp kit add versatility and everyday convenience.

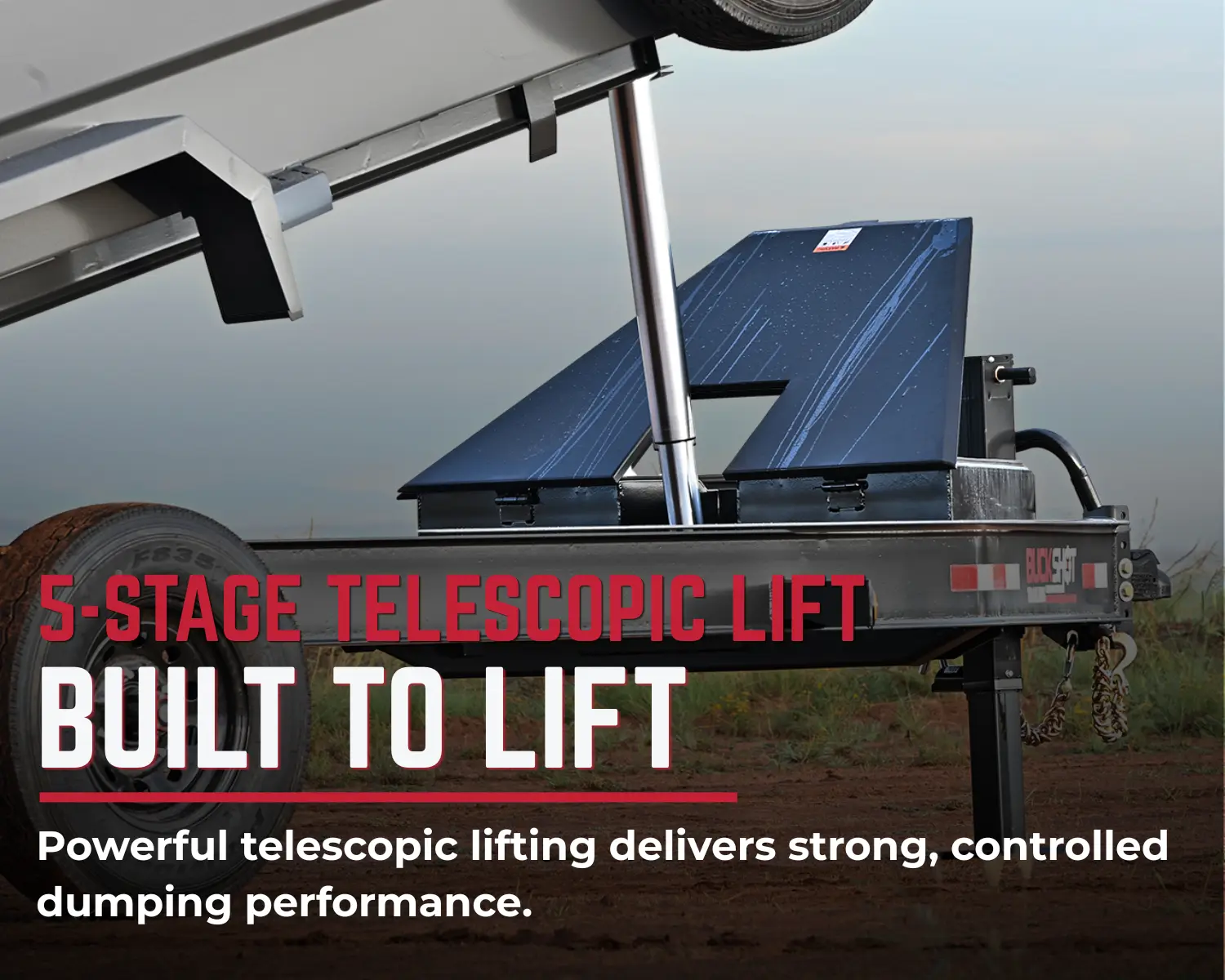

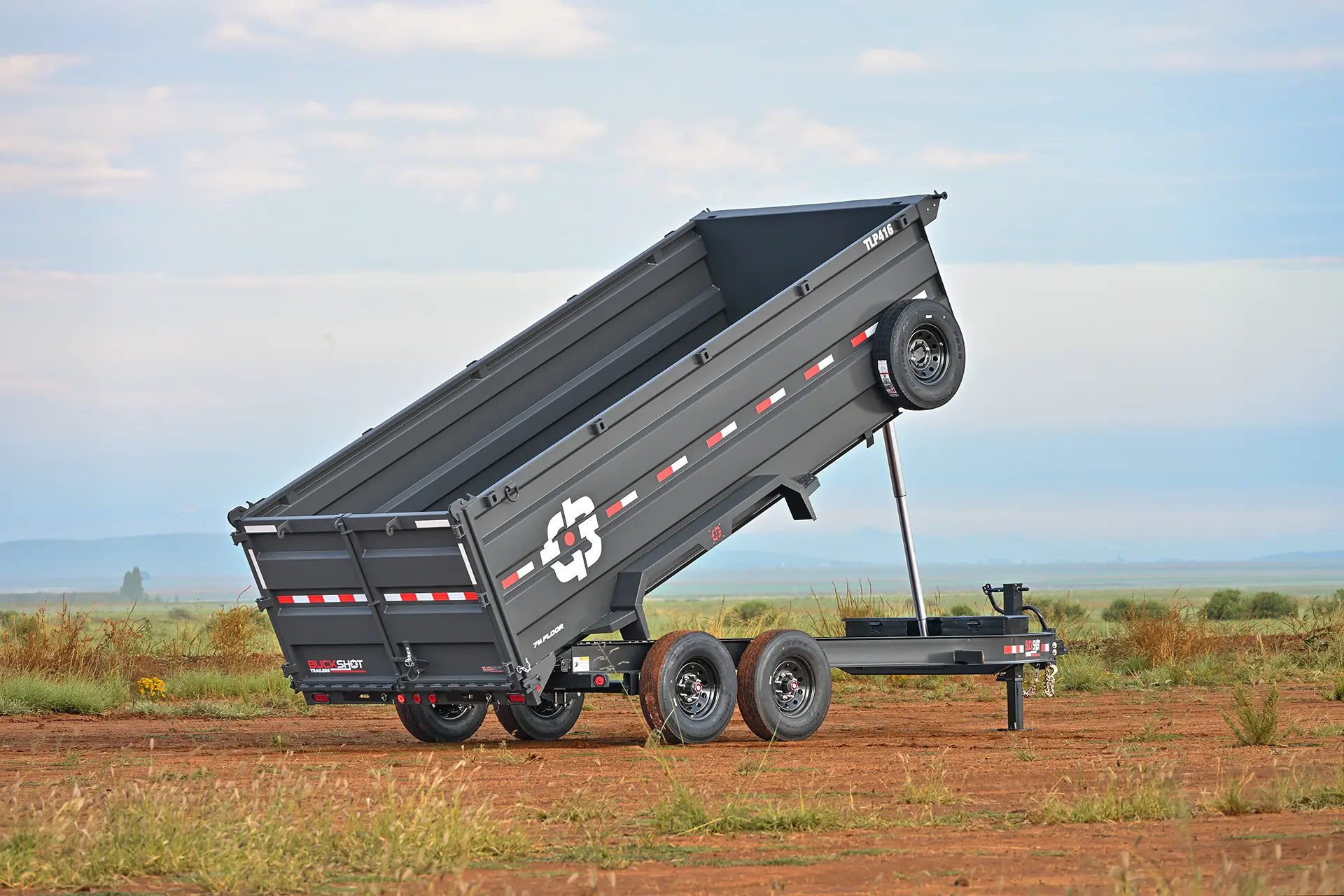

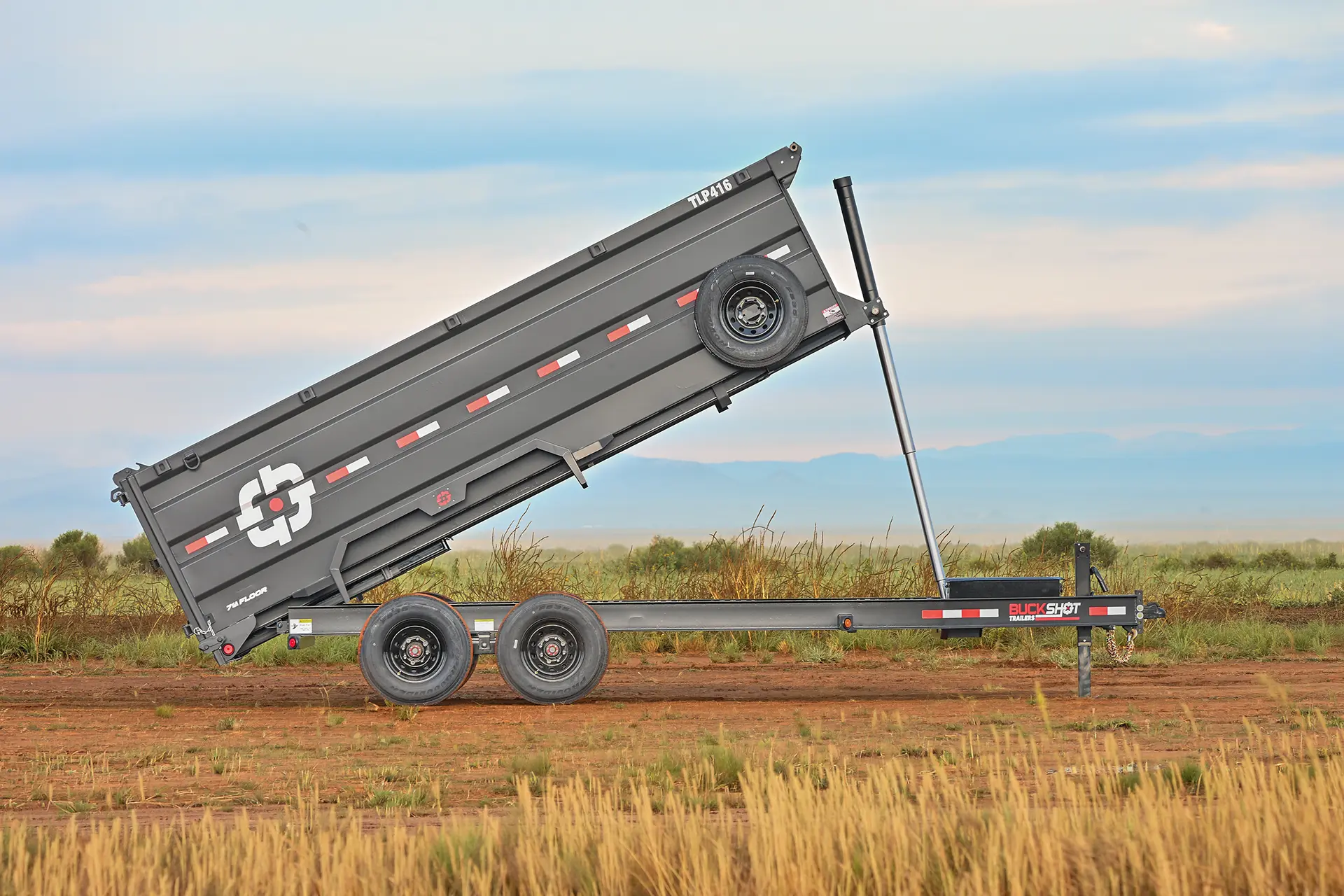

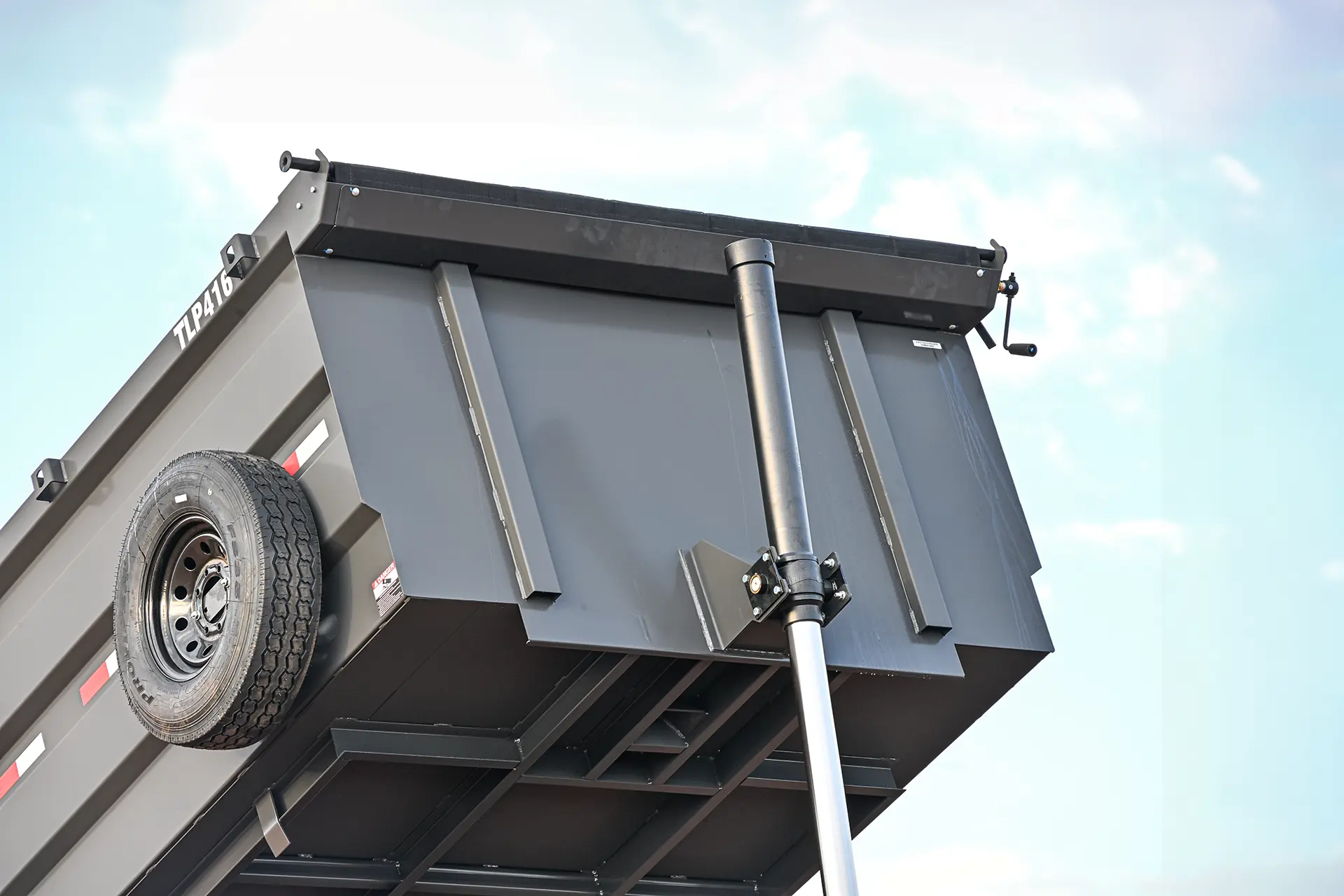

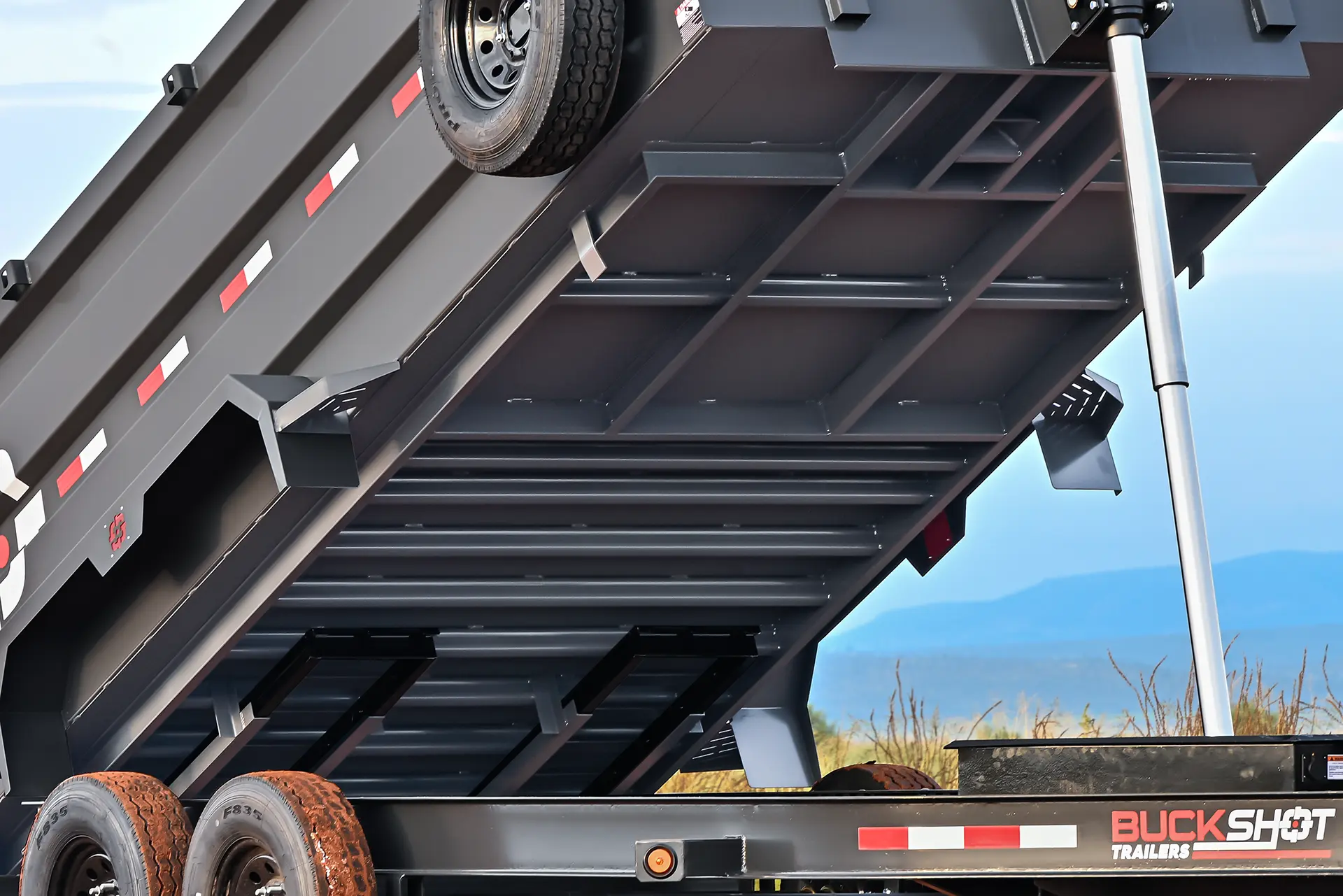

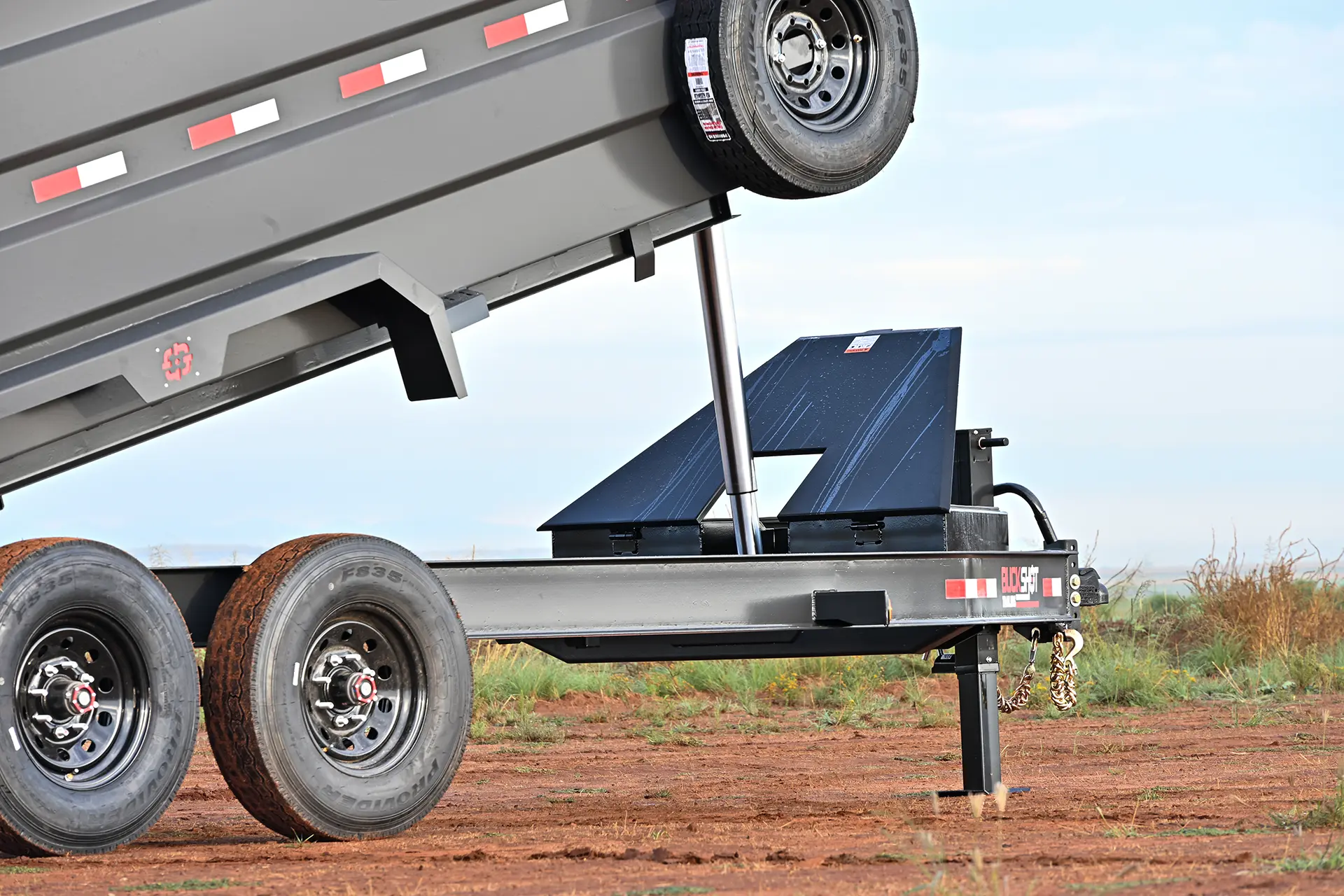

The heart of the TLP is its 5-stage telescopic cylinder, powered by a 12V hydraulic power up / power down system for strong, controlled dumping performance.

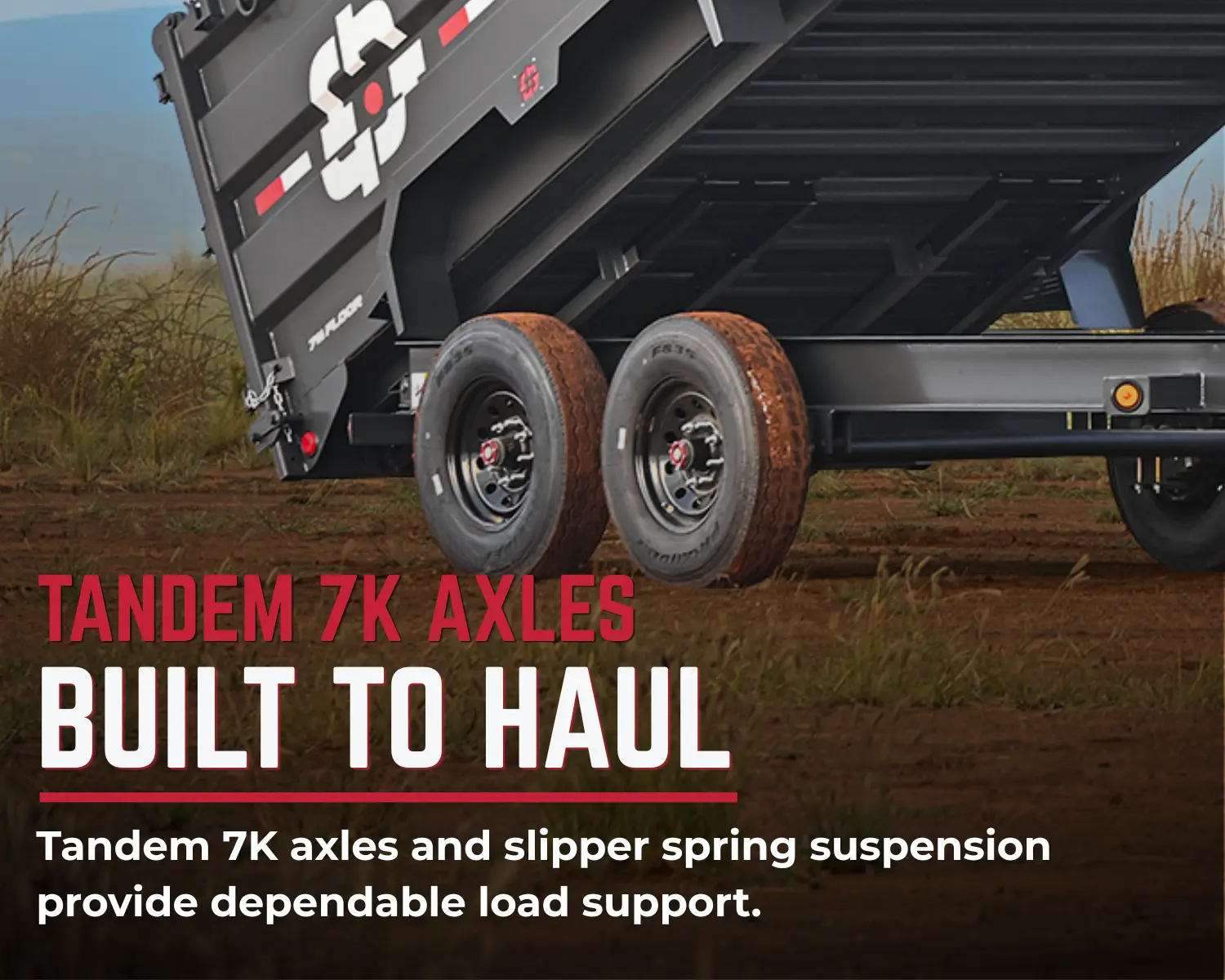

It rides on tandem 7K electric brake E-Z Lube spring axles, slipper spring suspension, and ST235/80R16 10-ply tires, delivering a 14,000 lb GVWR for dependable load support.

DOT-approved LED lighting, an all-weather wiring harness, and a 7-way RV connection help keep the trailer ready for daily work.

Finished steel blasted and powder coated, the TLP Dump Trailer is built for operators who need a tough bumper-pull dump with serious lifting power.

🔥 Strong, dependable, and built to dump! 🚛

Standard Features

Frame and Structure
Tongue	One-Piece I-Beam
Main Frame	8" I-Beam
Floor	7 Gauge One-Piece Floor
Sides	10 Gauge Formed Sides
Side Heights	24", 36", or 48" Depending on Model
Crossmembers	3" Channel (3.50 lbs/ft) at 16" Spacing
Bed Width	83"
Hitching and Towing
Coupler	Adjustable Auto-Latch 2-5/16" Bumper-Pull Coupler
Jack	1 Side-Wind Spring-Loaded Drop-Leg Jack, 12,000 lbs
Safety Chains	2 × 3/8" Grade 70 Safety Chains with Clevis Hooks
Ramps	6' Slide-In Ramps
Spare Tire Mount	Weld-On Spare Tire Mount; Spare Tire Not Included
Bed and Gate Features

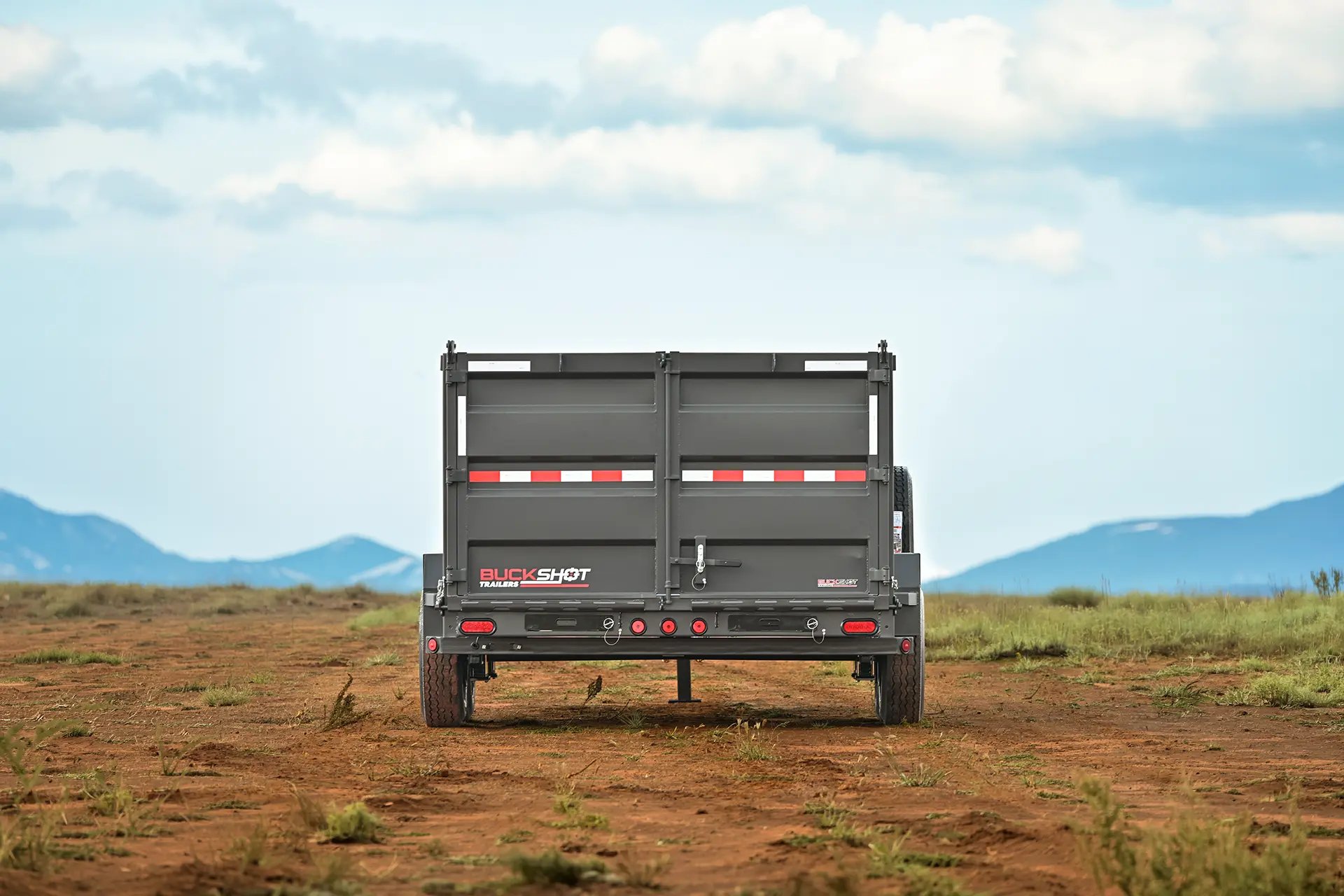

Gate	3-Way Spreader Gate
Tarp Kit	Manual Tarp Kit
D-Rings	4 D-Rings Welded Inside Bed
Flooring	7 Gauge One-Piece Steel Floor
Lift System and Hydraulics
Lift System	5-Stage Telescopic Cylinder
Hydraulic System	12V Hydraulic Power Up / Power Down
Toolbox	Lockable Toolbox
Wheels and Suspension
GVWR	14,000 lbs
Axles and Brakes	2 × 7K Electric Brake EZ-Lube Spring Axles
Suspension	Slipper Spring Suspension
Tires	ST235/80R16 10-Ply Tires, 3,520 lbs Each
Bolt Pattern	8 on 6.5"
Wheels	16" Black Mod Wheels
Electrical and Lighting
Lighting	DOT-Approved LED Lights
Wiring Harness	All-Weather-Proof Wire Harness
Plug	7-Way RV Connection
Finish and Warranty
Finish	Steel Blasted
Paint	Powder Coated
Structural Warranty	3 Years
Paint Warranty	1 Year
ADD-ON OPTIONS
Hydraulics	Single Hydraulic Jack
Coupler	3" Pintle Eye – Channel-Mount, 21,000 lbs
Ramps	Heavy-Duty Ramp Upgrade
Side Extensions	24" Side Extensions for 14' and 16' Models
Tarp	IRONTARP Kit Upgrade
Rear Support	2 Rear Support Legs with Pins
Remote	TUFF Wireless Remote – 2 Button
Remote	TUFF Wireless Remote – 4 Button
Tire Upgrade	ST235/80R16 14-Ply Tire Upgrade
Wheels	10-Ply or 14-Ply Aluminum Wheel Packages
Spare Tire	10-Ply, 14-Ply, or Aluminum Spare Tire Options
Axle Upgrade	Tandem 8K Oil-Bath Spring Axles with 14-Ply Tires
Lighting	2 × 5" Ultra-Bright LED Pod Flood Lights
Solar	7.5-Watt Solar Battery Charger
