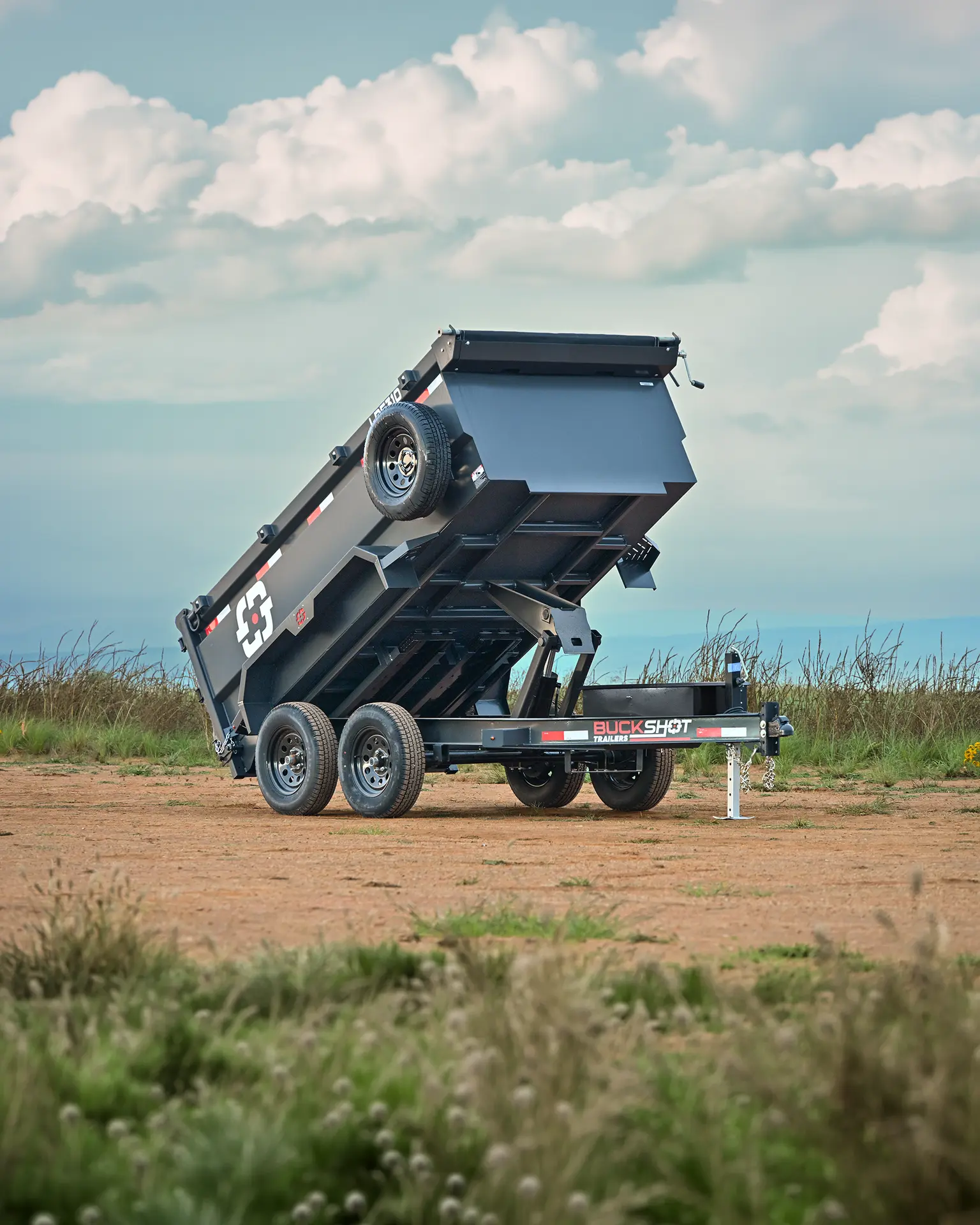

LPE Series

Compact Bumper Pull Dump Trailer · 8–10 FT · 7,000 LB GVWR

Lengths

8–10 FT

Side Heights

1–4 FT

Depending on Model

GVWR

7,000 LBS

Buckshot LPE Series

Built to haul. Built to last.

Find a Dealer

LPE Series

Compact Bumper Pull Dump Trailer · 8–10 FT · 7,000 LB GVWR

Gunmetal Gray

Lengths

8–10FT

Side Heights

1–4FT

Depending on Model

Axle Count

GVWR

7,000LBS

Width

60IN

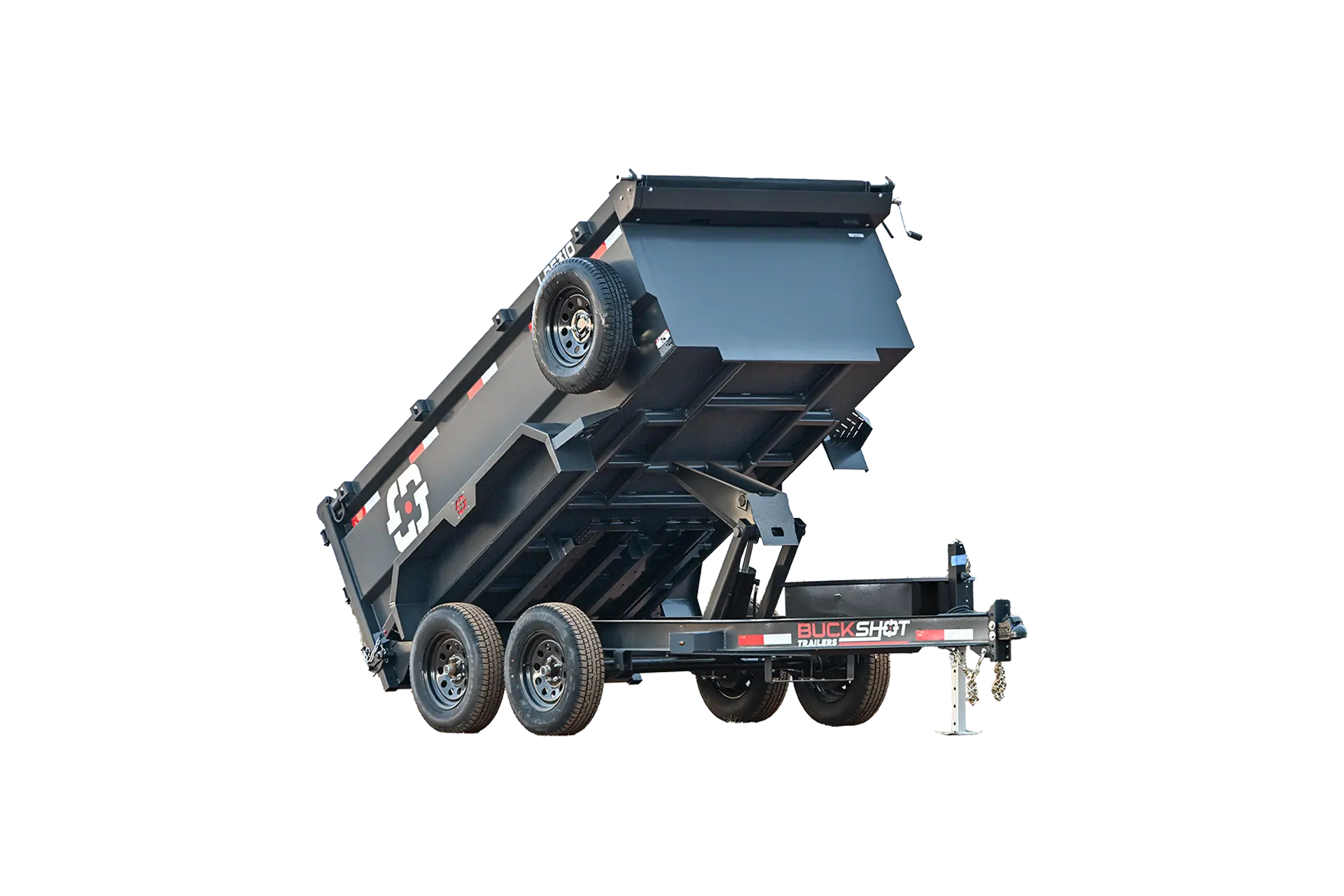

LPE Compact Bumper Pull Dump Trailer

LPE Series Highlights

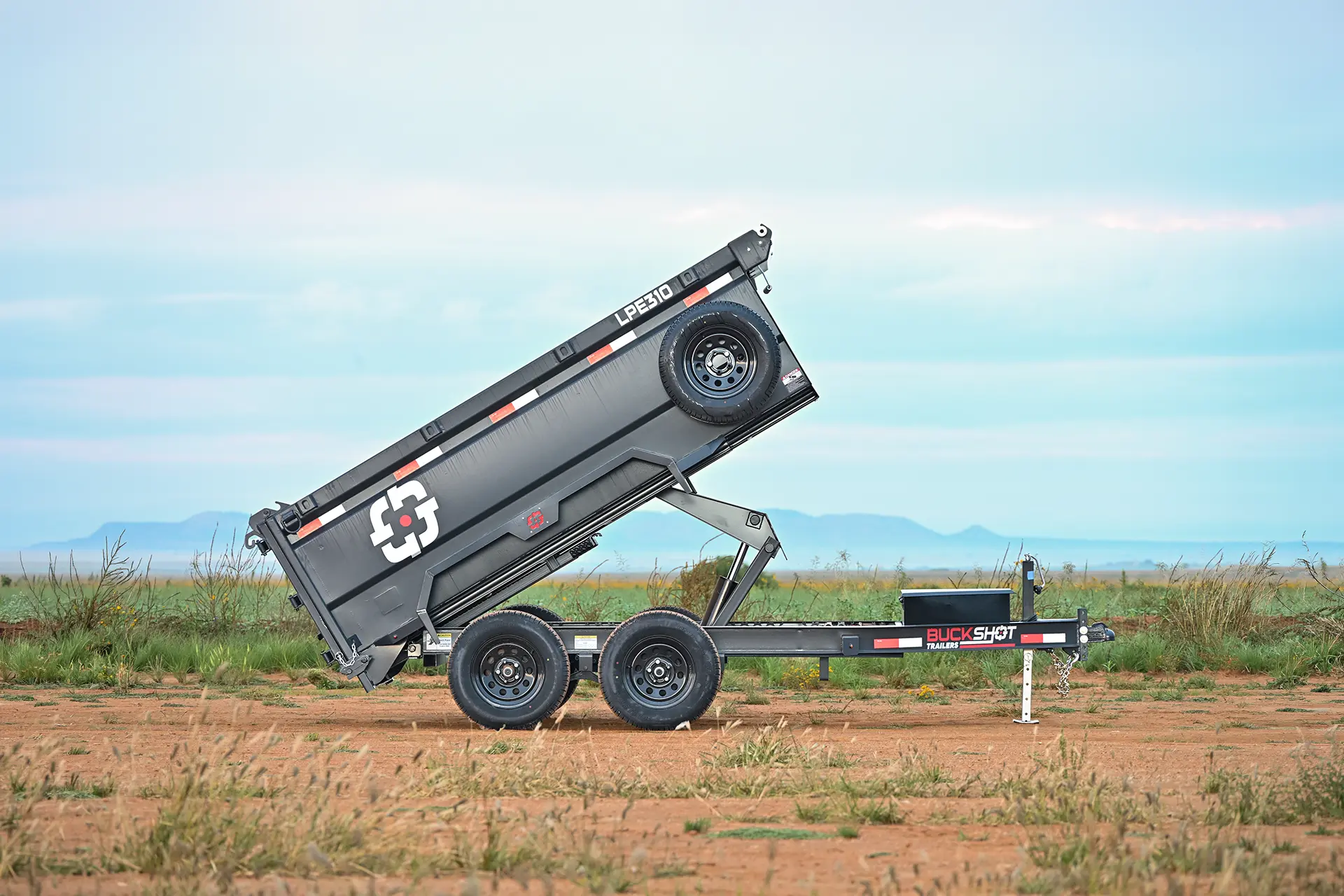

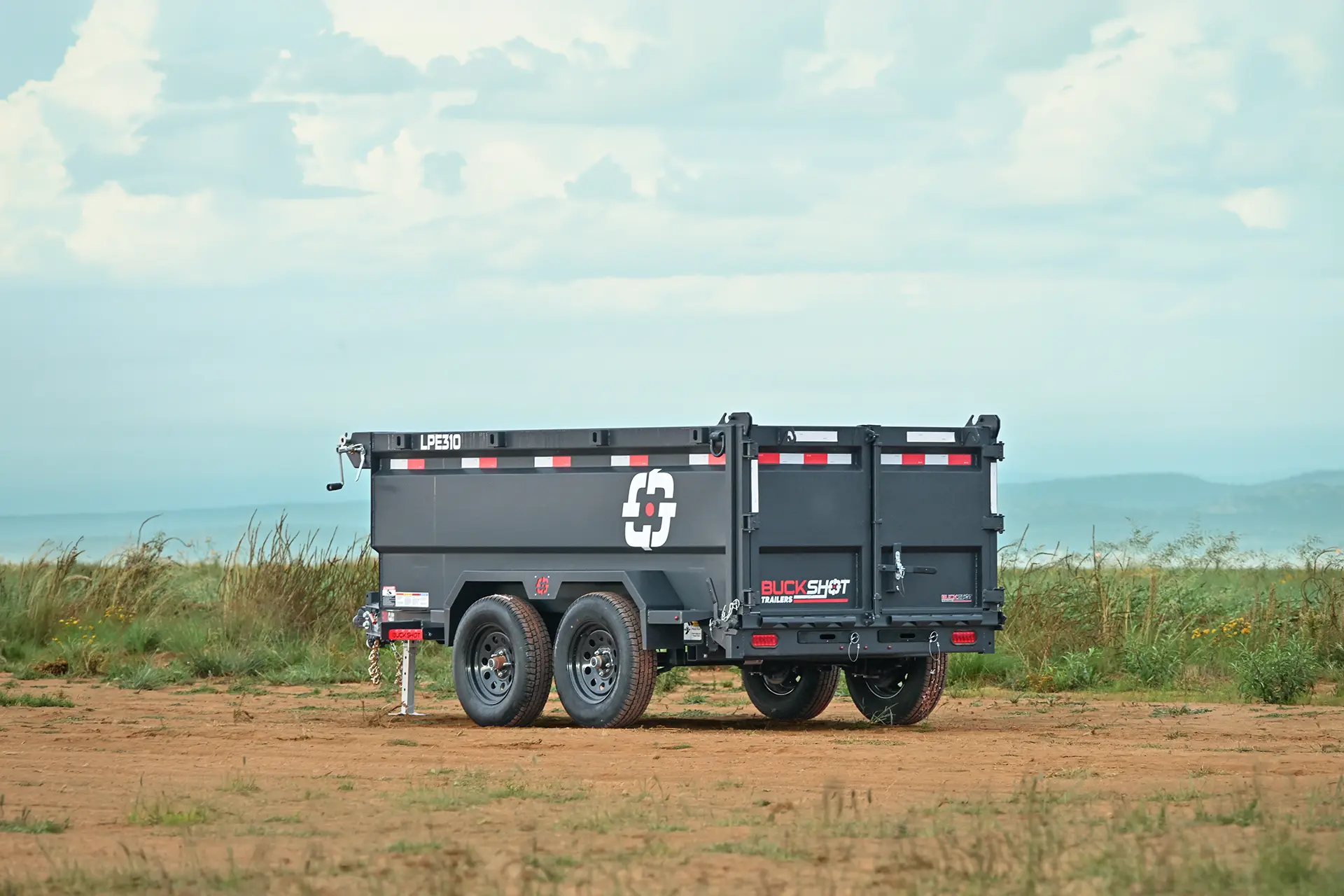

Buckshot LPE Dump Trailer – Compact Size. Built for Everyday Work.

The Buckshot LPE Dump Trailer brings practical hauling and dumping capability to a compact bumper-pull design. Available in 8′ and 10′ lengths, the LPE gives operators six model choices for everyday jobs.

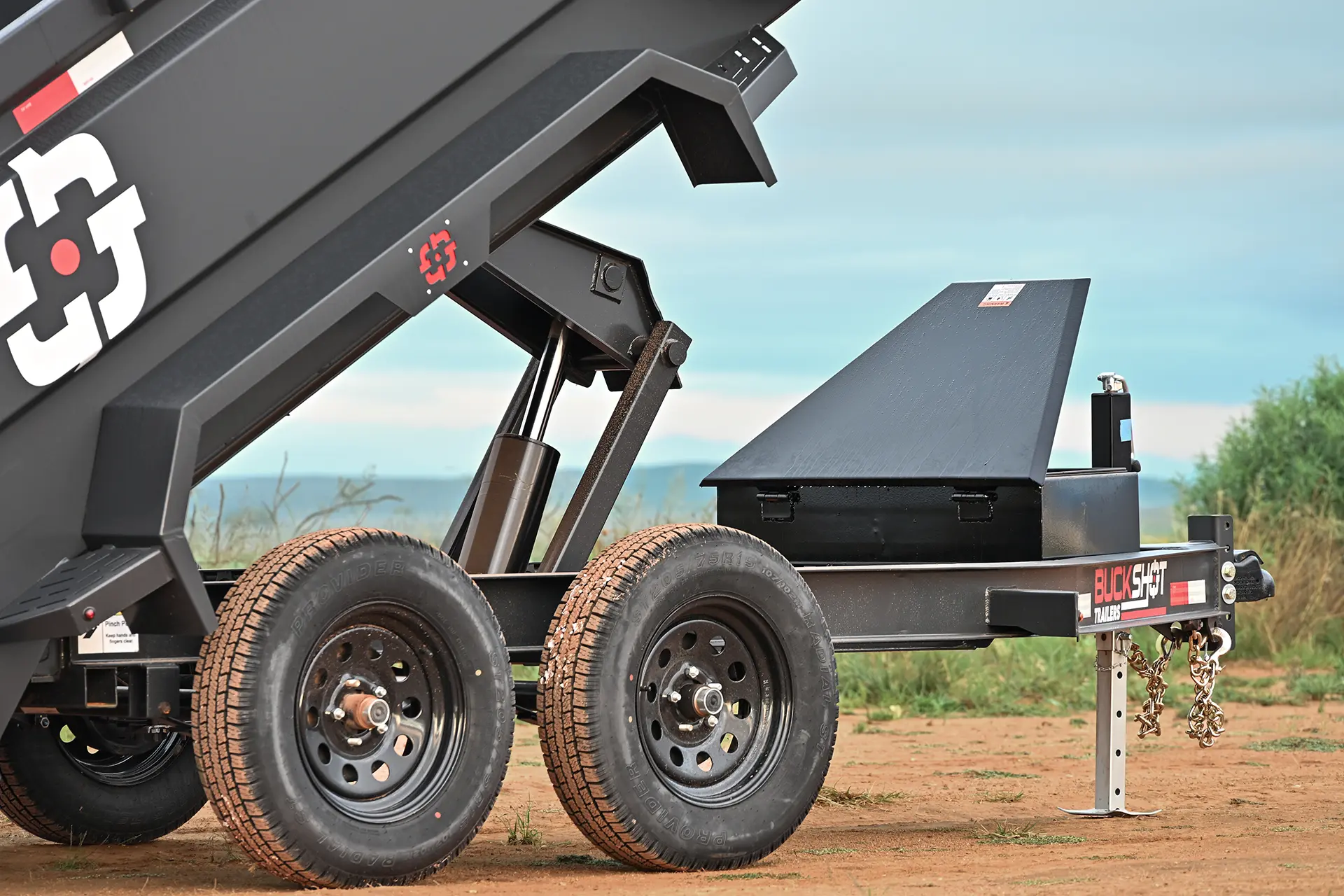

Its one-piece I-beam tongue, 6″ I-beam main frame (8.5 lbs/ft), and 10-gauge steel floor and formed sides provide a sturdy foundation for hauling materials and equipment.

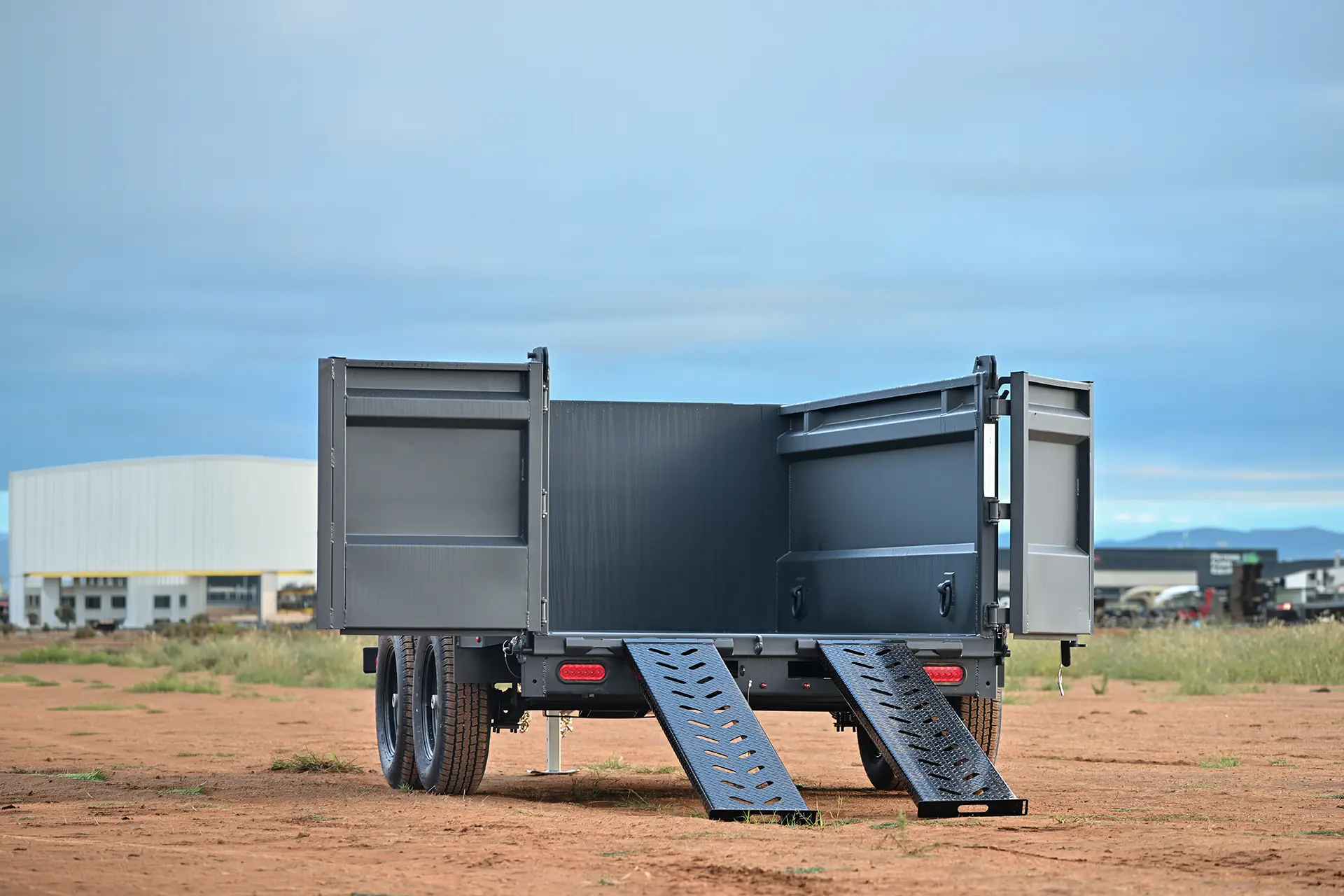

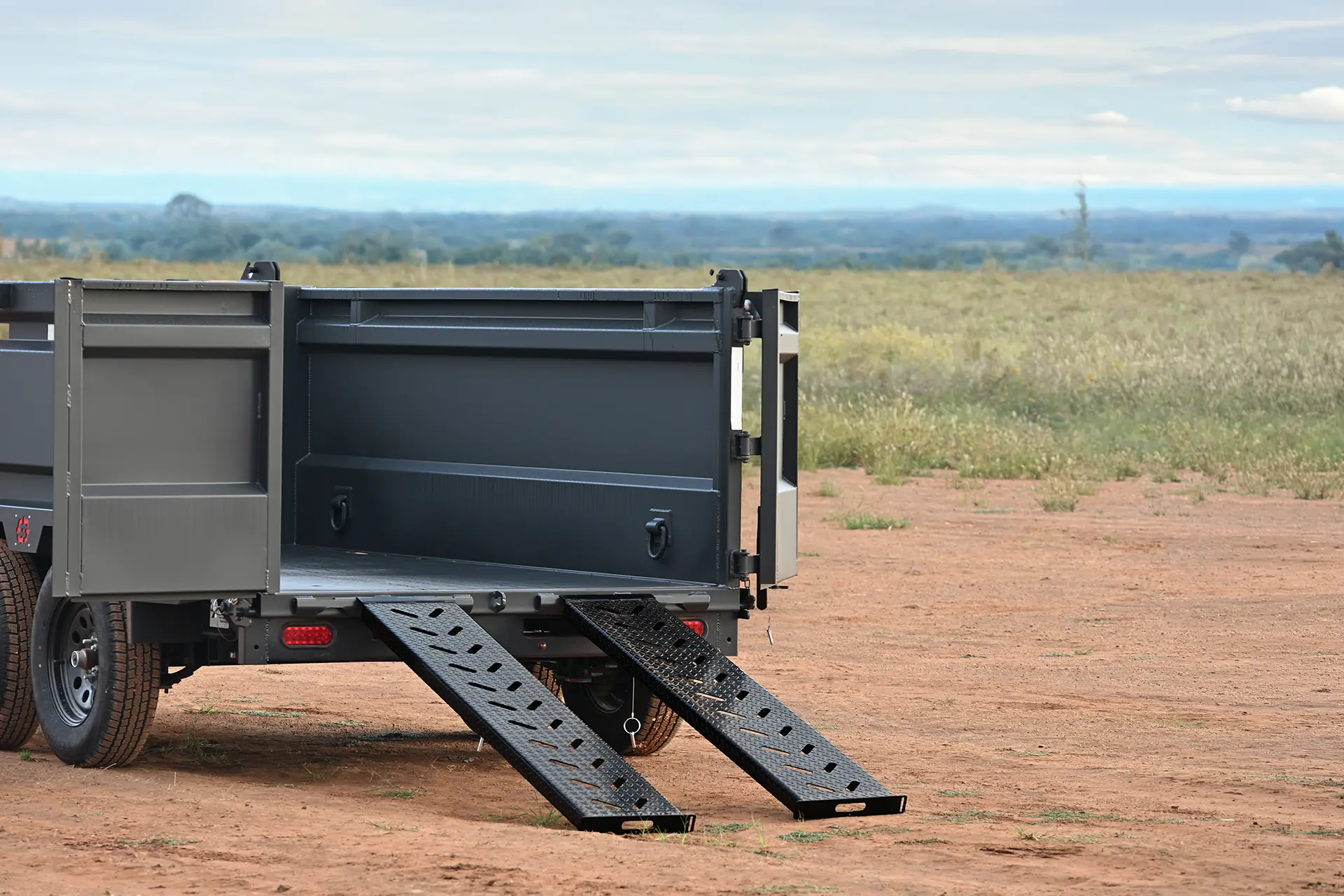

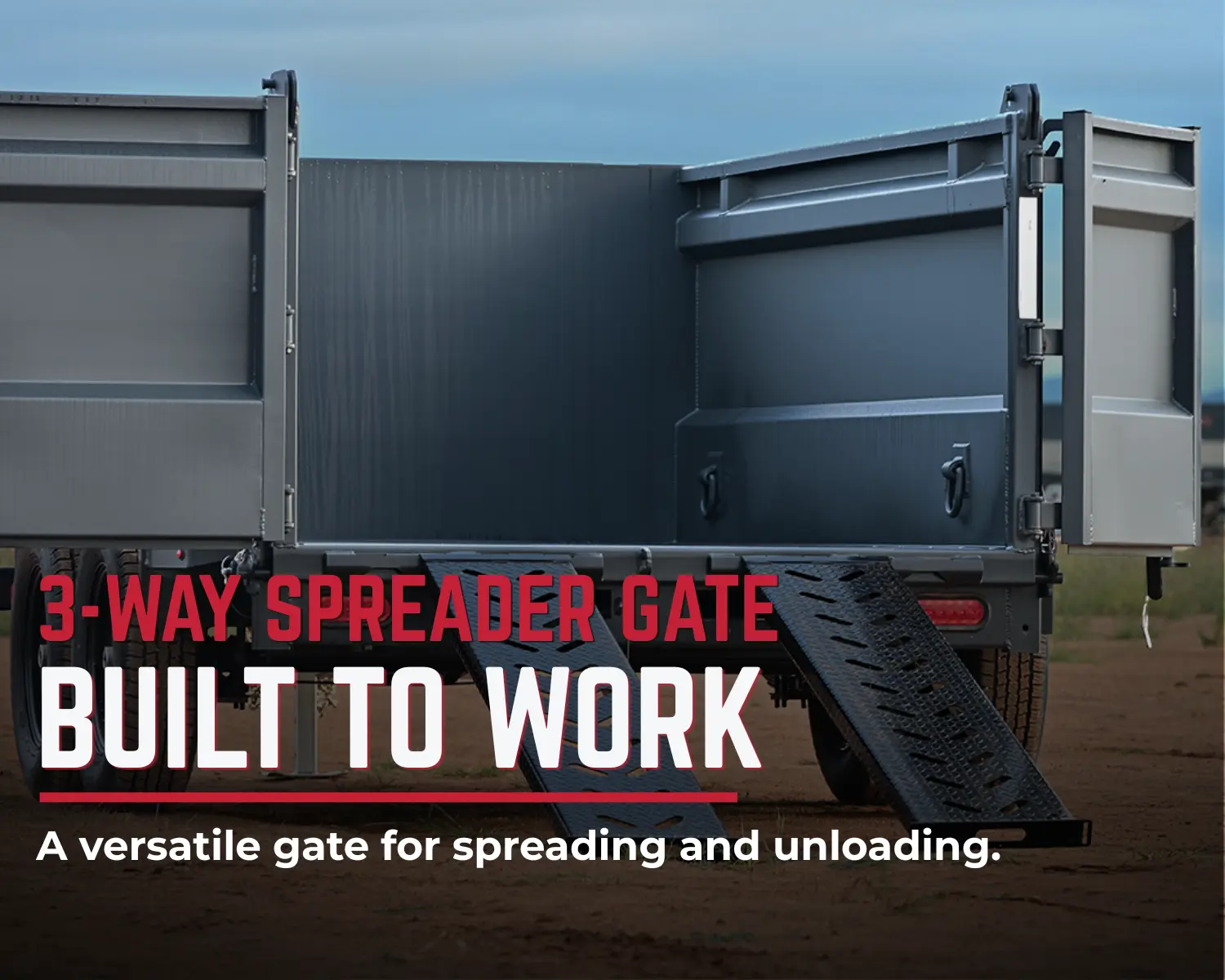

5′ slide-in ramps, a 3-way spreader gate, four D-rings welded inside the bed, and a standard manual tarp kit add flexibility for loading, securing, and unloading.

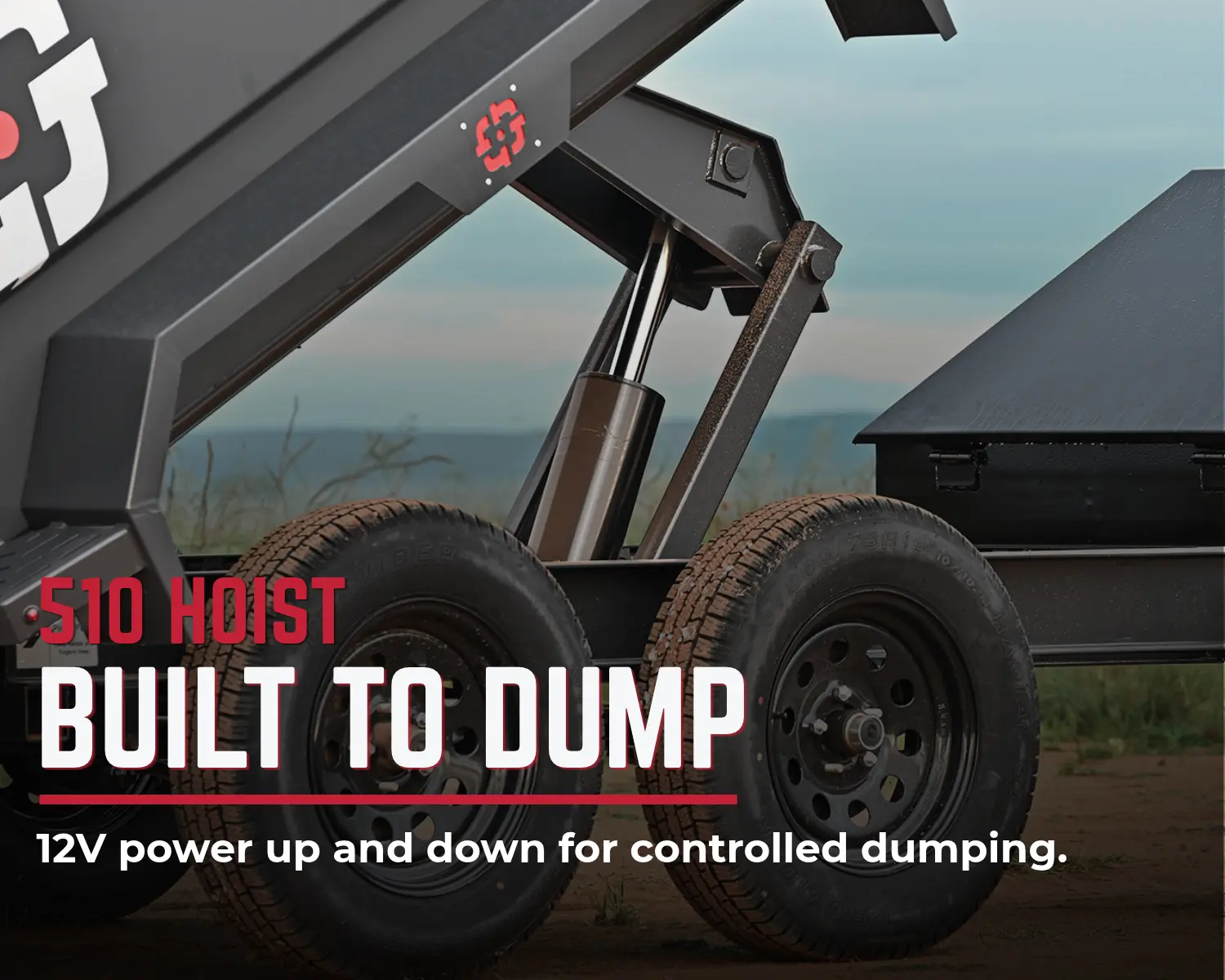

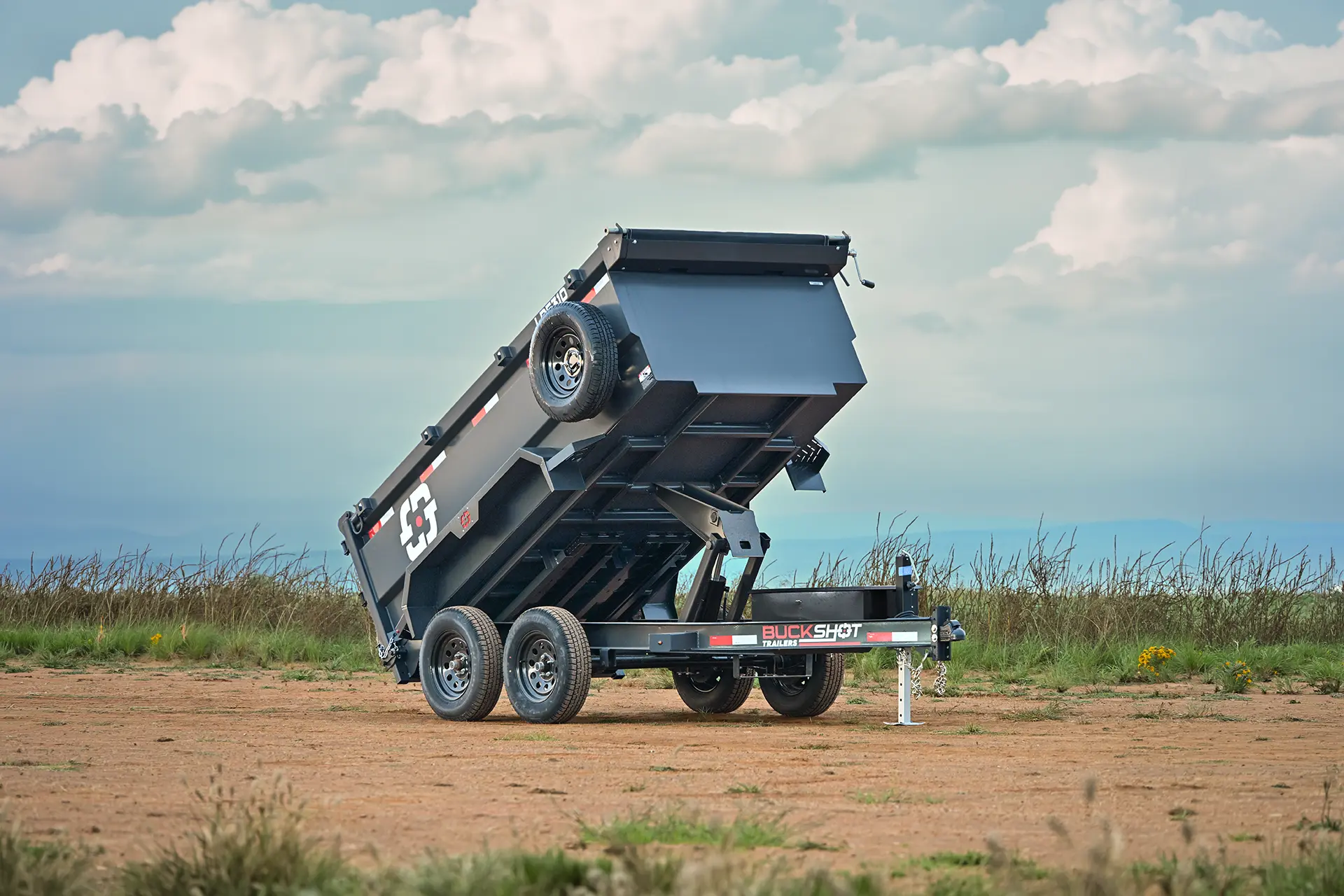

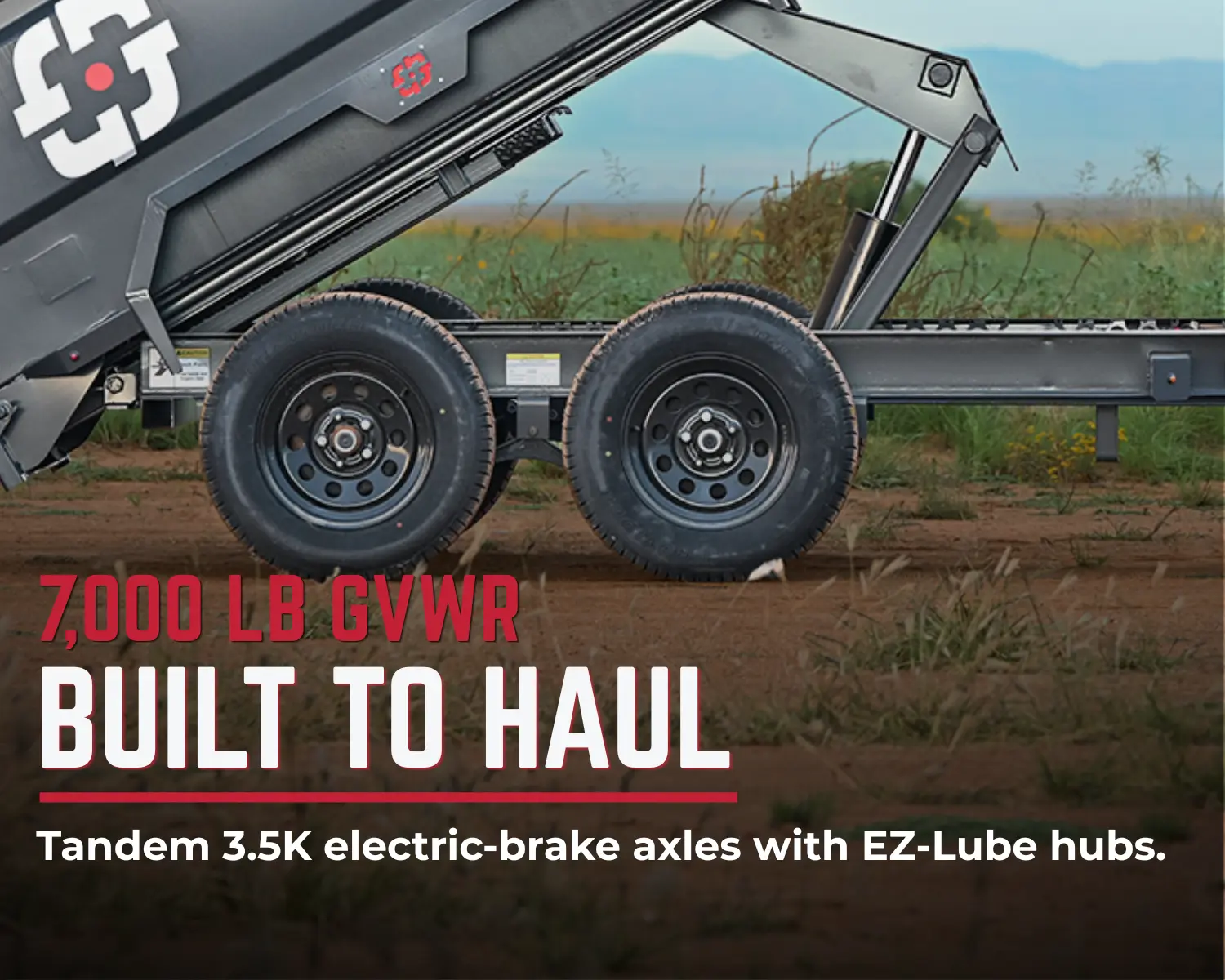

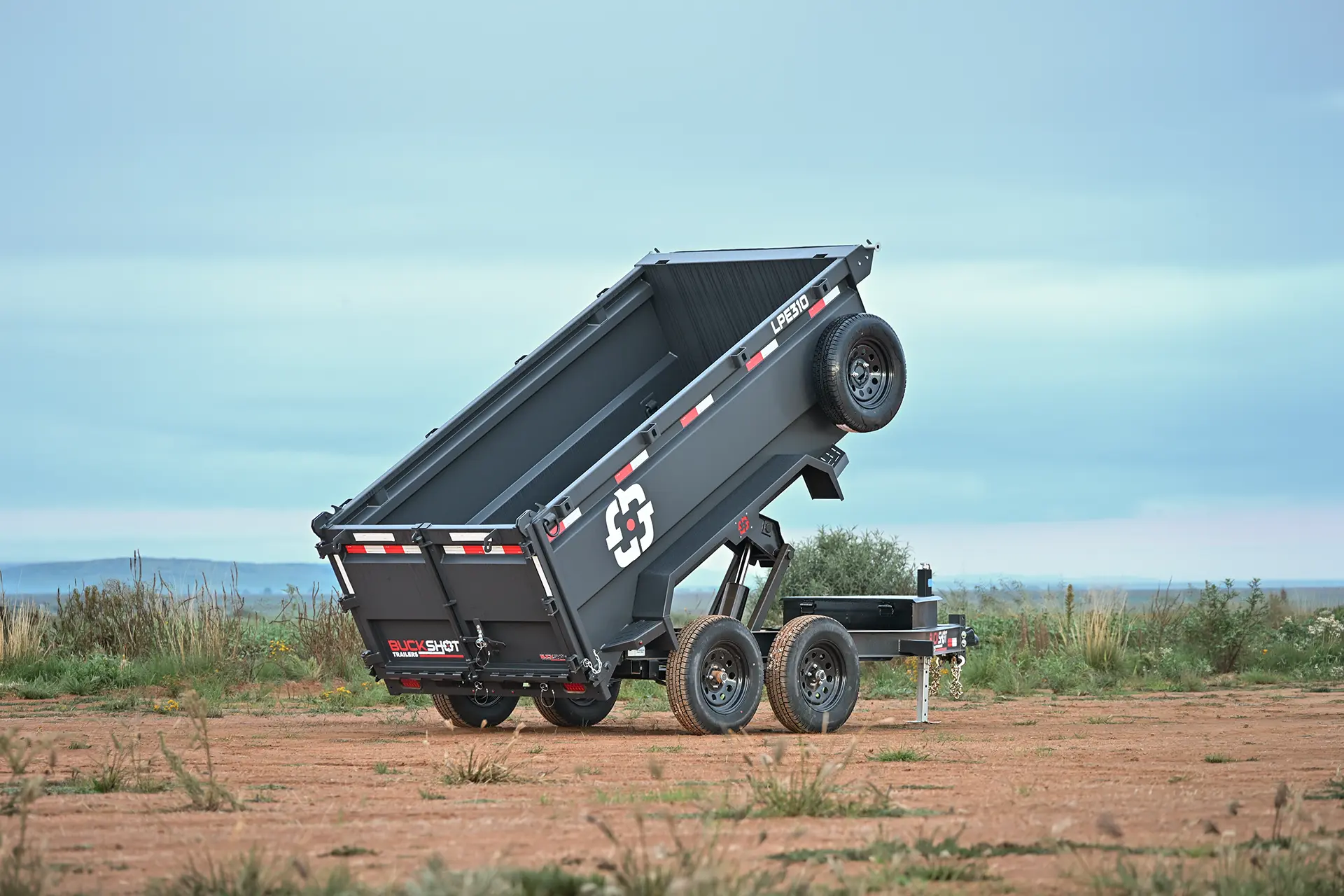

Dumping is powered by a 510 hoist and 12V hydraulic power up/power down system. The LPE rides on tandem 3.5K electric-brake EZ-Lube spring axles and carries a 7,000 lb GVWR in its standard configuration.

With DOT-approved LED lights, an all-weather 7-way RV wiring harness, and a steel-blasted, powder-coated finish, the LPE is ready to haul, dump, and get back to work.

Standard Features

Model Information
Model Line	Buckshot LPE
Trailer Type	Bumper Pull Dump Trailer

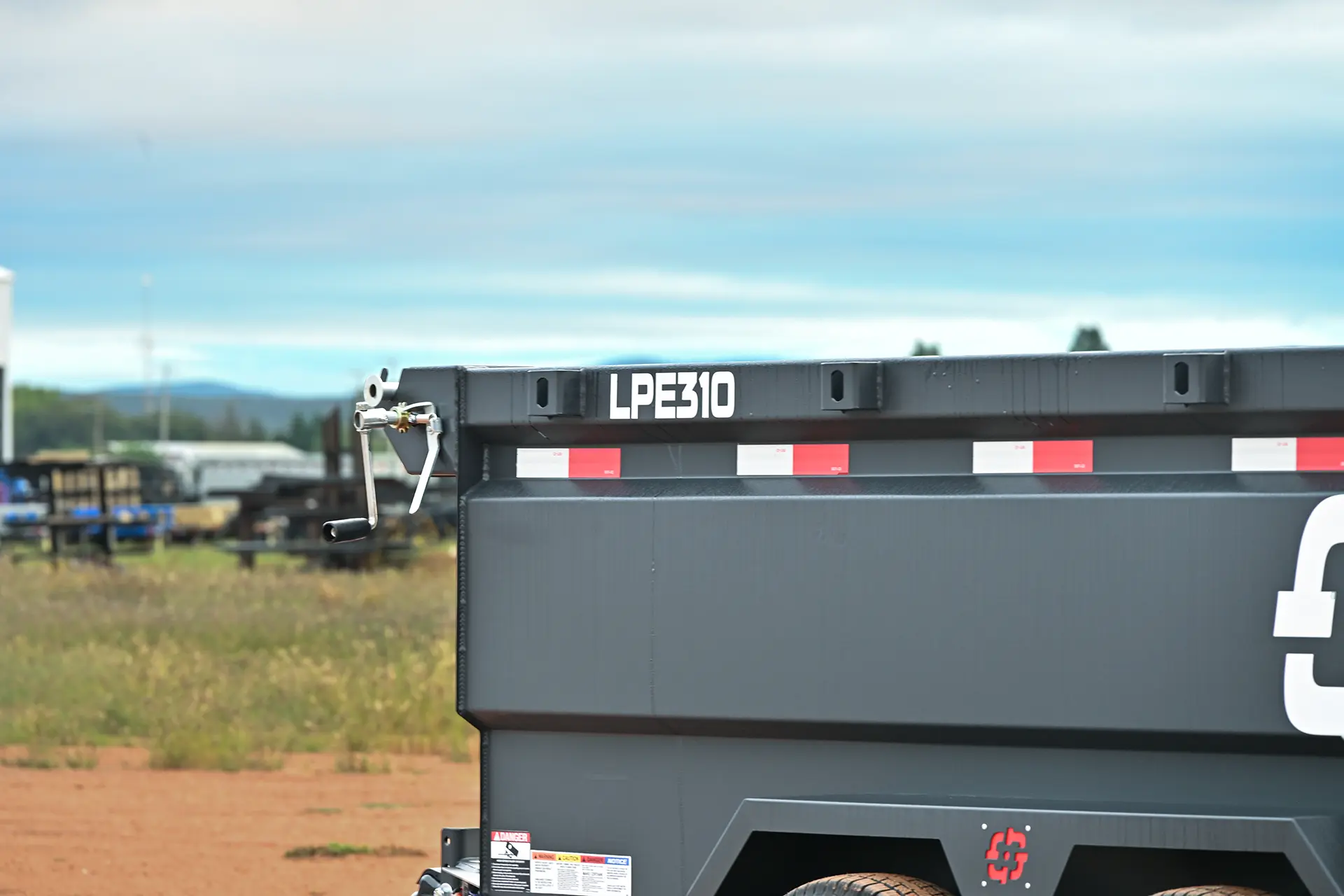

Available Models	LPE18 and LPE28 (8') LPE110, LPE210, LPE310, and LPE410 (10')
Frame and Structure
Tongue	One-Piece I-Beam
Main Frame	6" I-Beam – 8.5 lbs/ft
Floor	10-Gauge Steel Floor
Sides	10-Gauge Formed Steel Sides
Crossmembers	3" Channel (3.50 lbs/ft) at 16" Spacing
Hitching and Towing

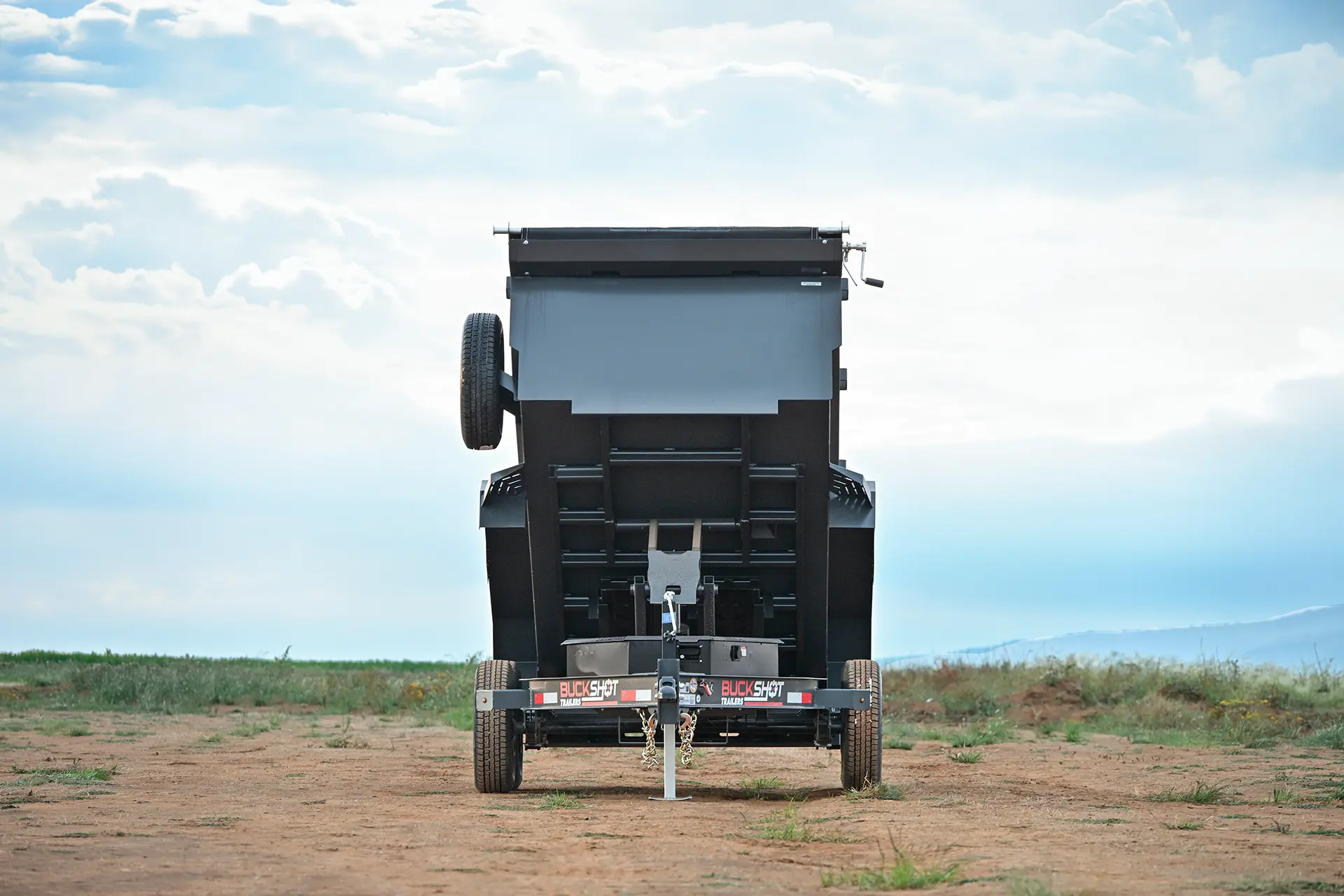

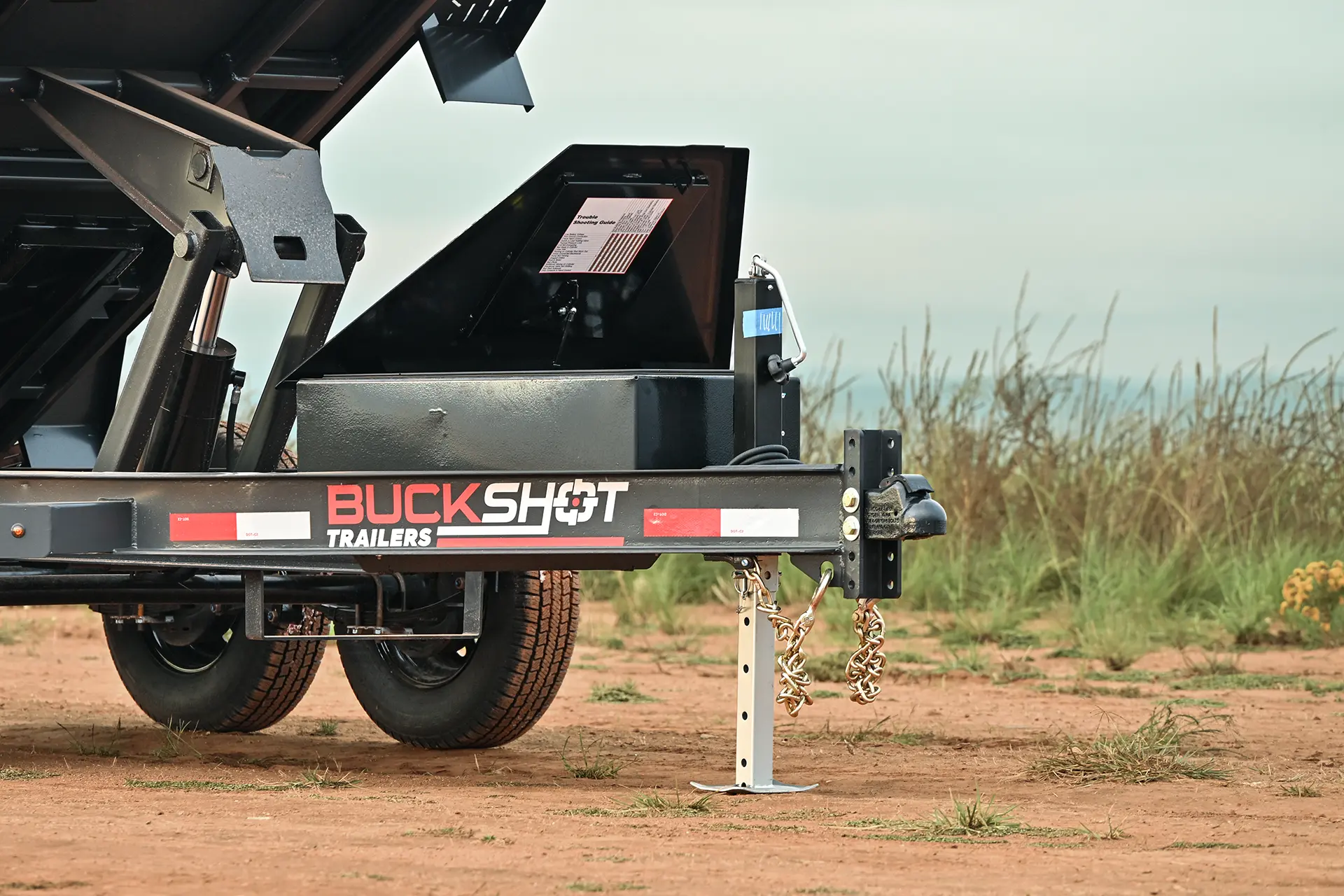

Coupler	Adjustable Auto-Latch 2-5/16" Bumper Pull Coupler
Jack	1 Top-Wind Drop-Down Jack Leg – 8,000 lbs
Safety Chains	2 × 1/4" Grade 70 Safety Chains with Clevis Hooks

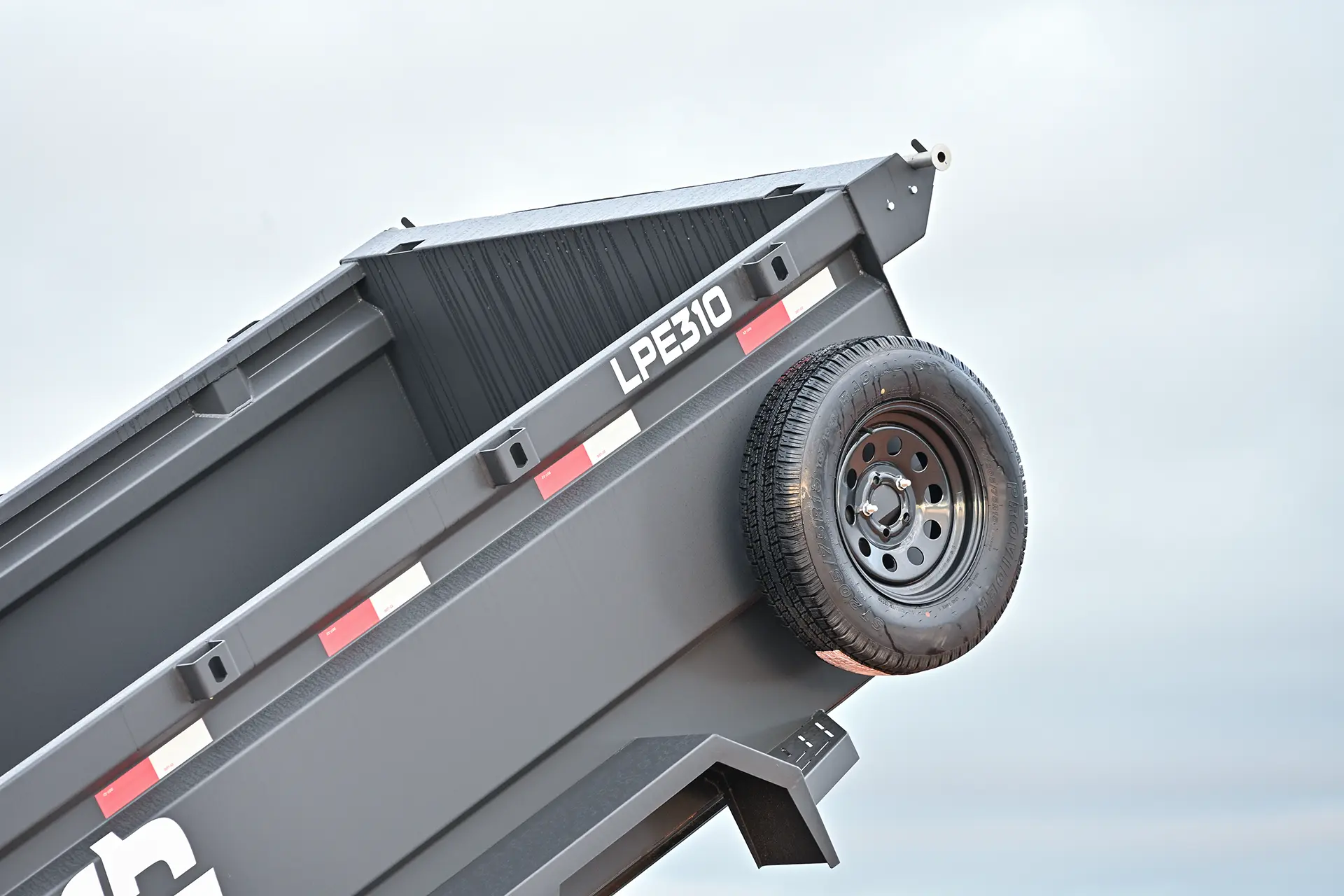

Spare Tire Mount	Weld-On Spare Tire Mount – Spare Not Included
Toolbox	Lockable Toolbox
Bed and Gate Features
Ramps	5' Slide-In Ramps
Gate	3-Way Spreader Gate
Tarp Kit	Manual Tarp Kit
D-Rings	4 D-Rings Welded Inside the Bed
Lift System and Hydraulics
Lift System	510 Hoist
Hydraulic System	12V Hydraulic Power Up / Power Down
Wheels and Suspension
GVWR	7,000 lbs Standard
Axles and Brakes	2 × 3.5K Electric-Brake EZ-Lube Spring Axles
Suspension	Double-Eye Spring Suspension
Tires	ST205/75R15 8-Ply – 2,150 lb Single-Tire Rating
Bolt Pattern	5 on 4.5"
Wheels	15" Black Mod Wheels
Electrical and Lighting
Lighting	DOT-Approved LED Lights
Wiring Harness	All-Weather Wire Harness
Connection	7-Way RV
Finish and Warranty
Finish	Steel Blasted
Paint	Powder Coated
Structural Warranty	3 Years
Paint Warranty	1 Year
ADD-ON OPTIONS
Side Extensions	12" Side Extensions for 10' Models
Rear Support	2 Rear Support Legs with Pins
Remote	TUFF Wireless Remote – 2 Button
5.2K Axle Upgrade	2 × 5.2K Electric-Brake EZ-Lube Spring Axles with 225/75R15 10-Ply Tires – 10,400 lbs GVWR
3.5K Axle Spare Tire	205/75R15 6-Ply Spare – 5 on 4.5"
5.2K Axle Spare Tire	225/75R15 10-Ply Spare – 6 on 5.5"
Lighting	2 × 5" Ultra-Bright LED Pod Flood Lights
Solar	7.5-Watt Solar Battery Charger
