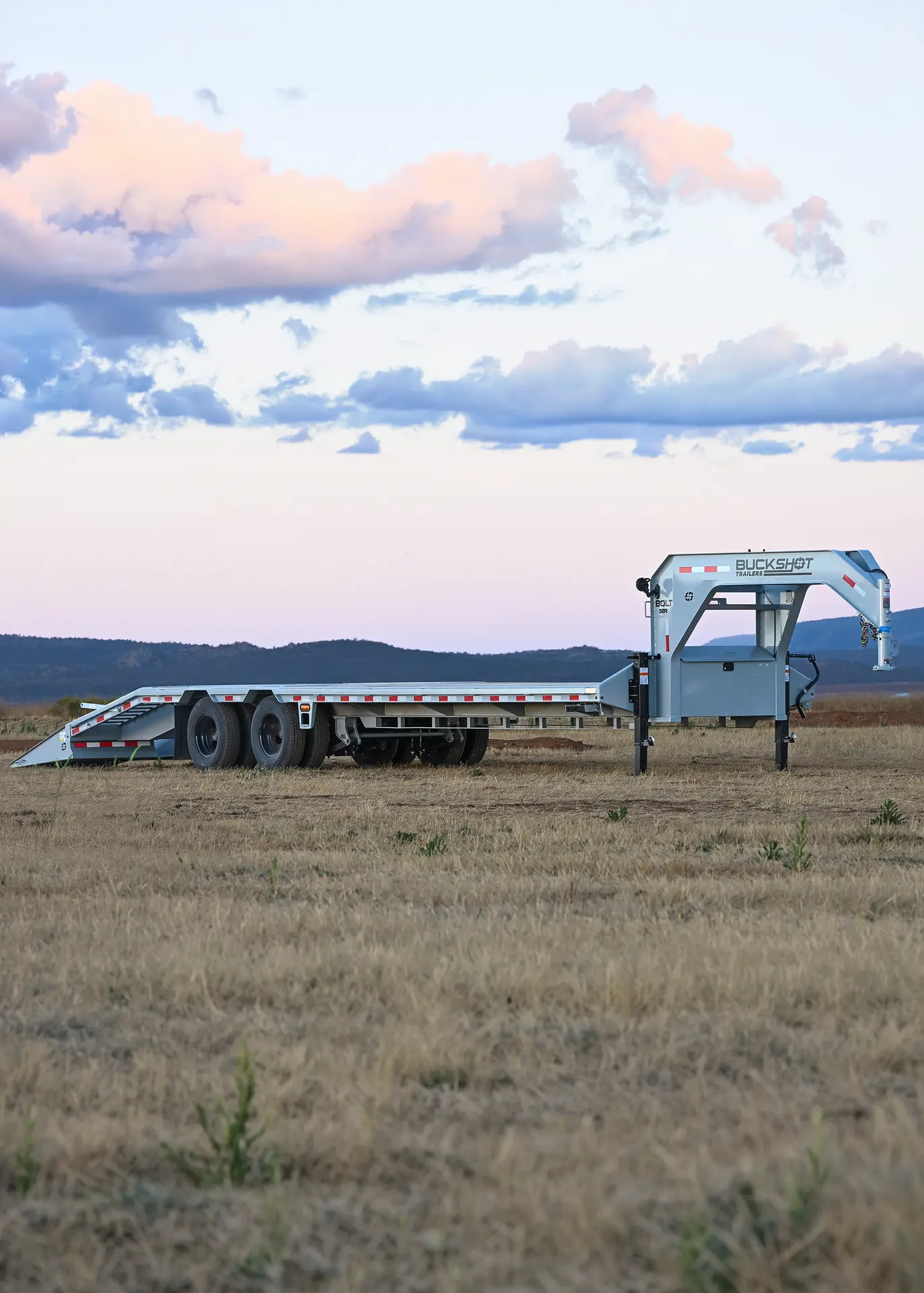

Buckshot BOLT-R Series gooseneck deckover trailer

BOLT-R Series

Gooseneck Deckover with AR Mega Ramps

Lengths
25–40 FT
Width
102 IN
GVWR
15,400 LBS

Buckshot BOLT-R Series

Built to haul. Built to last.

Find a Dealer

BOLT-R Series

Gooseneck Deckover Trailer with AR Mega Ramps and 7K Axles

BOLT-R Series gooseneck deckover representative 360 view in Munsell Gray

BOLT-R Model Line

Product Highlights

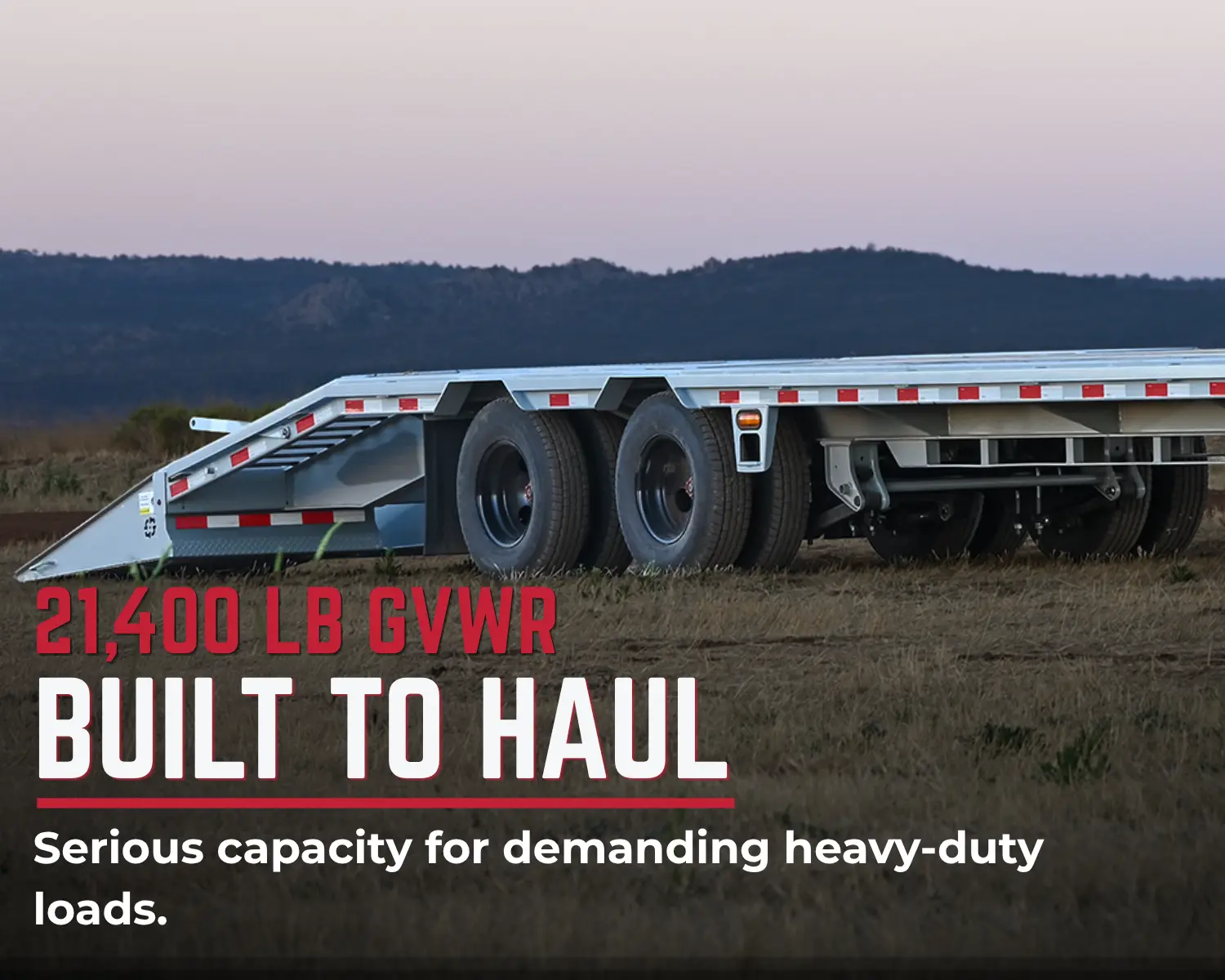

  • BOLT-R gooseneck deckover trailer product feature

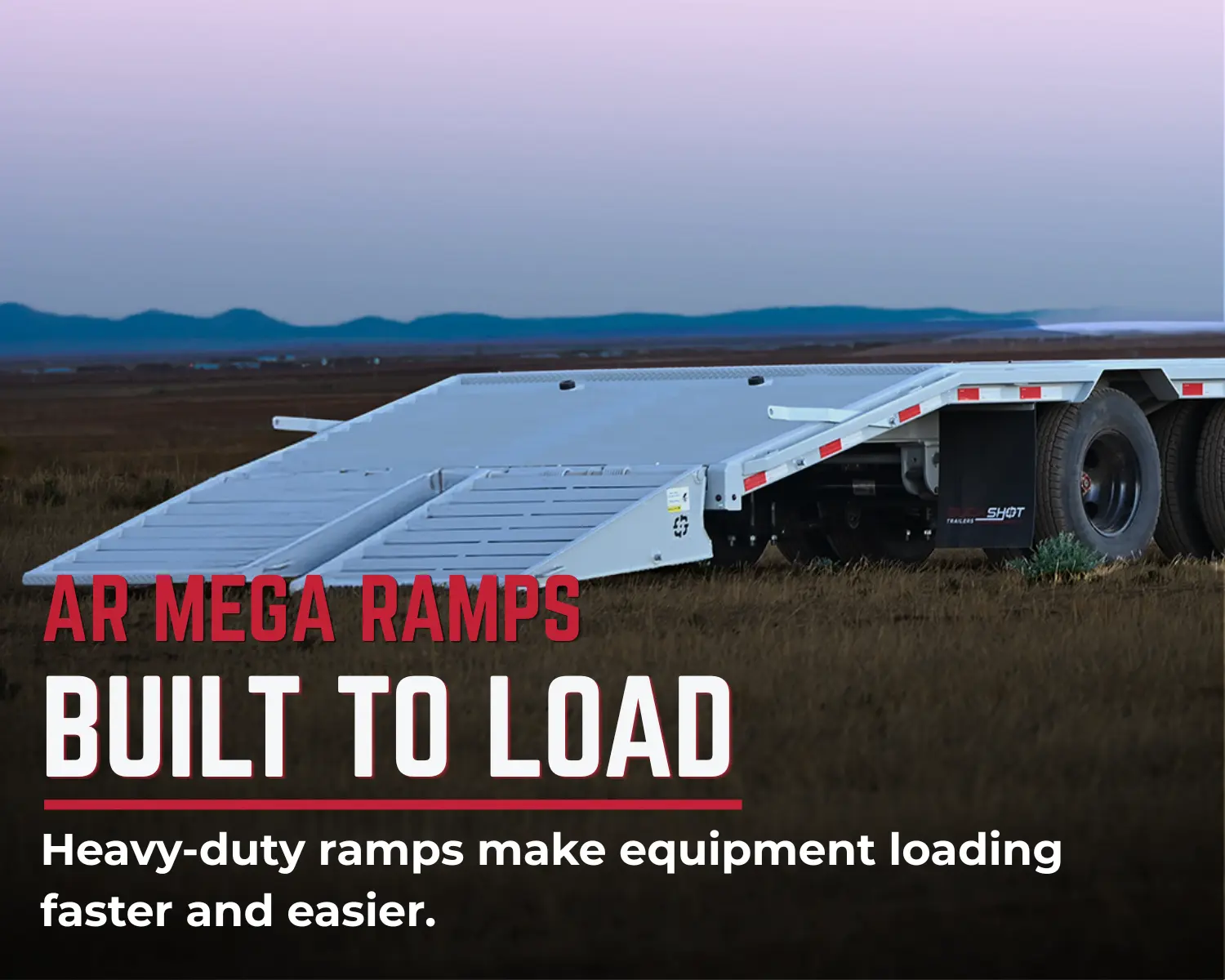

  • BOLT-R deckover trailer construction detail

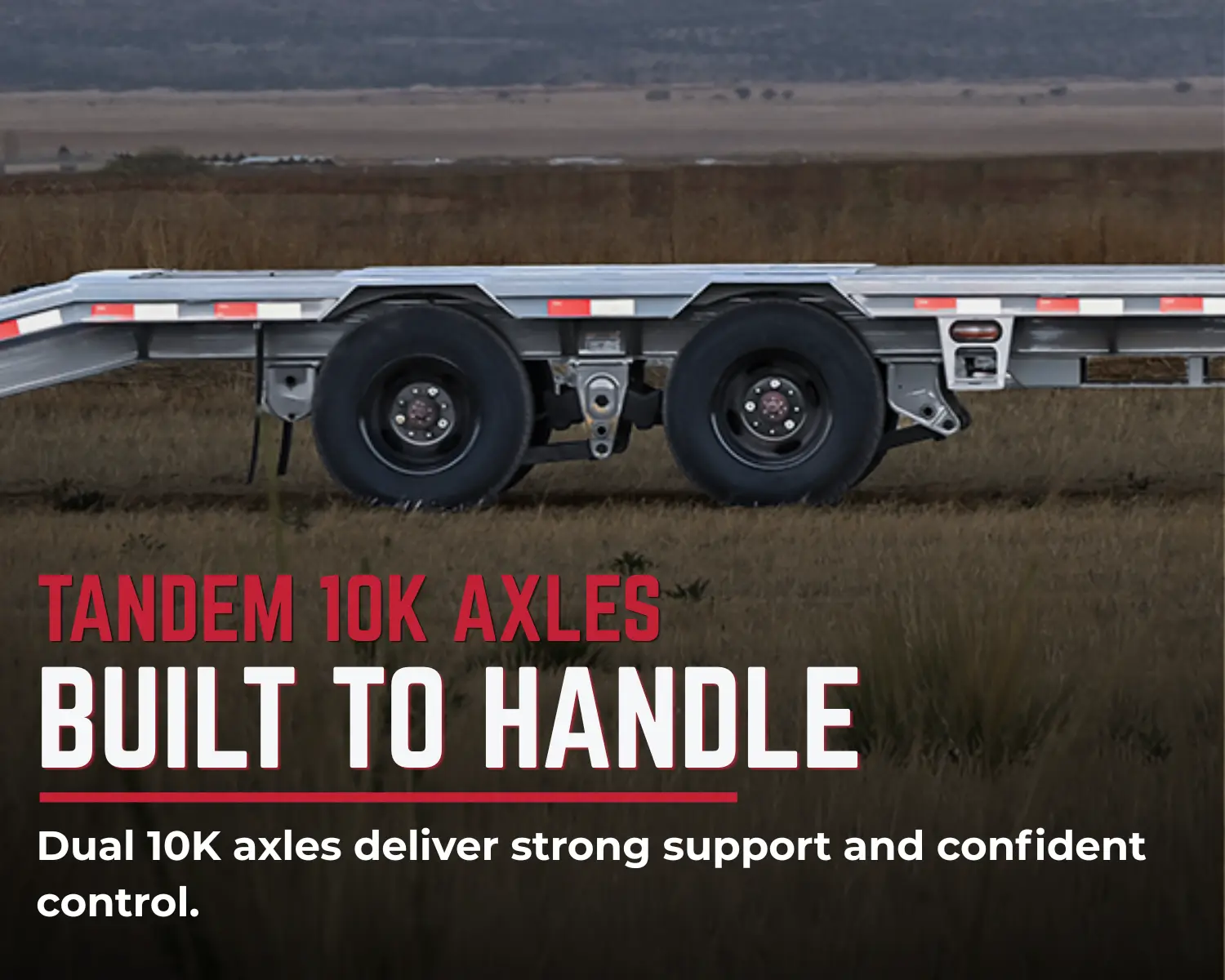

  • BOLT-R deckover trailer AR Mega Ramp detail

Buckshot Deckover Trailer: Built Tough, Engineered for Heavy Hauling!

Introducing the Buckshot Deckover Trailer, the pinnacle of strength and functionality in the trailer industry. Constructed with a 3/16" engineered steel gooseneck and a 12" wide flange I-beam frame (14 lb/ft), this trailer is built to deliver unmatched stability and support for a variety of loads. Its 34" deck height is topped with a 2" x 8" treated pine wood floor, ensuring a solid and durable foundation for your cargo.

Versatility is enhanced with 42" x 53" foldable steel ramps, along with front and center steps for easy access. For secure transport, the trailer includes a rub rail, stake pockets, and pipe spools. The towing experience is optimized with a 30,000 lb adjustable coupler (2-5/16") and two 12,000 lb drop-leg jacks.

On-road performance is guaranteed with 10k electric brake axles, multi-leaf spring suspension, and ST235/80R16 10-ply radial tires on 16x6 black mod steel wheels. The trailer also features lifetime LED lighting, a sealed and molded wiring harness, and a 7-way female connector with adapter, all DOT-compliant.

Sandblasted and powder-coated for maximum durability, this Deckover trailer is your reliable partner for transporting heavy loads with confidence and ease. 🚚🔧

Standard Features


Frame and Structure
Model Bolt R (Fold-up Ramps) Bolt S (Straight Deck)
Length 25", 28", 30", 32", 34", 36", 38", 40"
Gooseneck 3/16 Sheet Metal Engineered Gooseneck
Frame 12" x 14 lb. I-Beam Main Frame | TwistGuard™ standard on 30' and up
Flooring 2" Treated Pine Lumber Deck
Crossmembers 3" Engineered Channel Crossmembers on 16" Centers
Fenders Diamond Plate Low-Pro Fenders
Stake Pockets Stake Pockets along both sides (Quantity depends on length)
Rub Rail 2" Rubrail
Pipe Chain Spools Included
Hitching and Towing
Coupler [Q] GN 2-5/16" Ram Coupler (30,000 lb.)
Safety Chains 3/8" Grade 70 Safety Chain w/Clevis hook (2 each)
Jacks Spring Loaded Drop Leg Jacks (12,000 lb.)
Ramp Options
Ramps 42" x 53" Sheet Metal Fold Up Ramps
Steps Retractable Step on Both Sides
Wheels and Suspension
Axles (2) 10,000 lbs Axles Electric / Spring
Suspension HDSS Adjustable Suspension
Tires ST235/80R16 Radial Tires 10 ply (3,080 lbs.)
Electrical and Lighting
Lighting DOT Approved LED Lighting
Wiring Harness All-Weather Wiring Harness (7-way RV)
Additional Features
Breakaway System Electric Breakaway Kit w/ Charger
Battery Interstate Deep Cycle Battery
Storage Standard Toolbox
Tie-Downs Flat iron rails with stake pockets
Tail 5' Dovetail w/ 2 Flip-over Ramps
TwistGuard™ TwistGuard™ Standard on 30' and Up
Finish and Paint
Finish Sand Blasted
Paint Powder Coated
Add-on Options
Warrior Cargo Winch With Top Riser Tool Box
Side-mount Toolbox (45" x 13")
Top Riser Tool Box
Custom Color
12,000 LBS Axles
Slide Track Option
Spare Tire
Side LED Pod Light
