AR-XD Series

Triple-Axle Gooseneck Dovetail Equipment Trailer

Lengths

36–40 FT

Width

102 IN

GVWR

23,100 LBS

Buckshot AR-XD Series

Built to haul. Built to last.

Find a Dealer

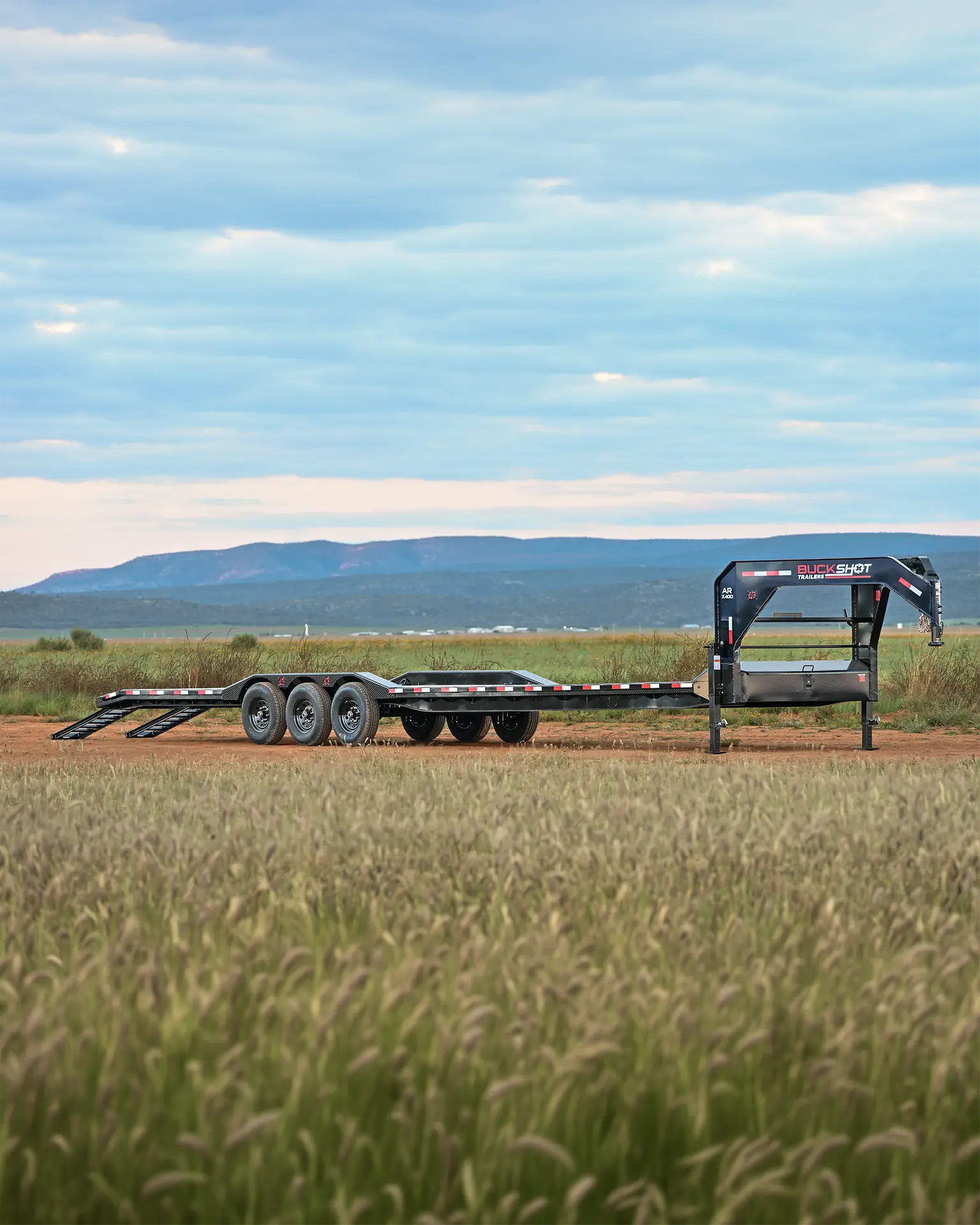

AR-XD Series

Gooseneck Dovetail Equipment Trailer with Triple Axles

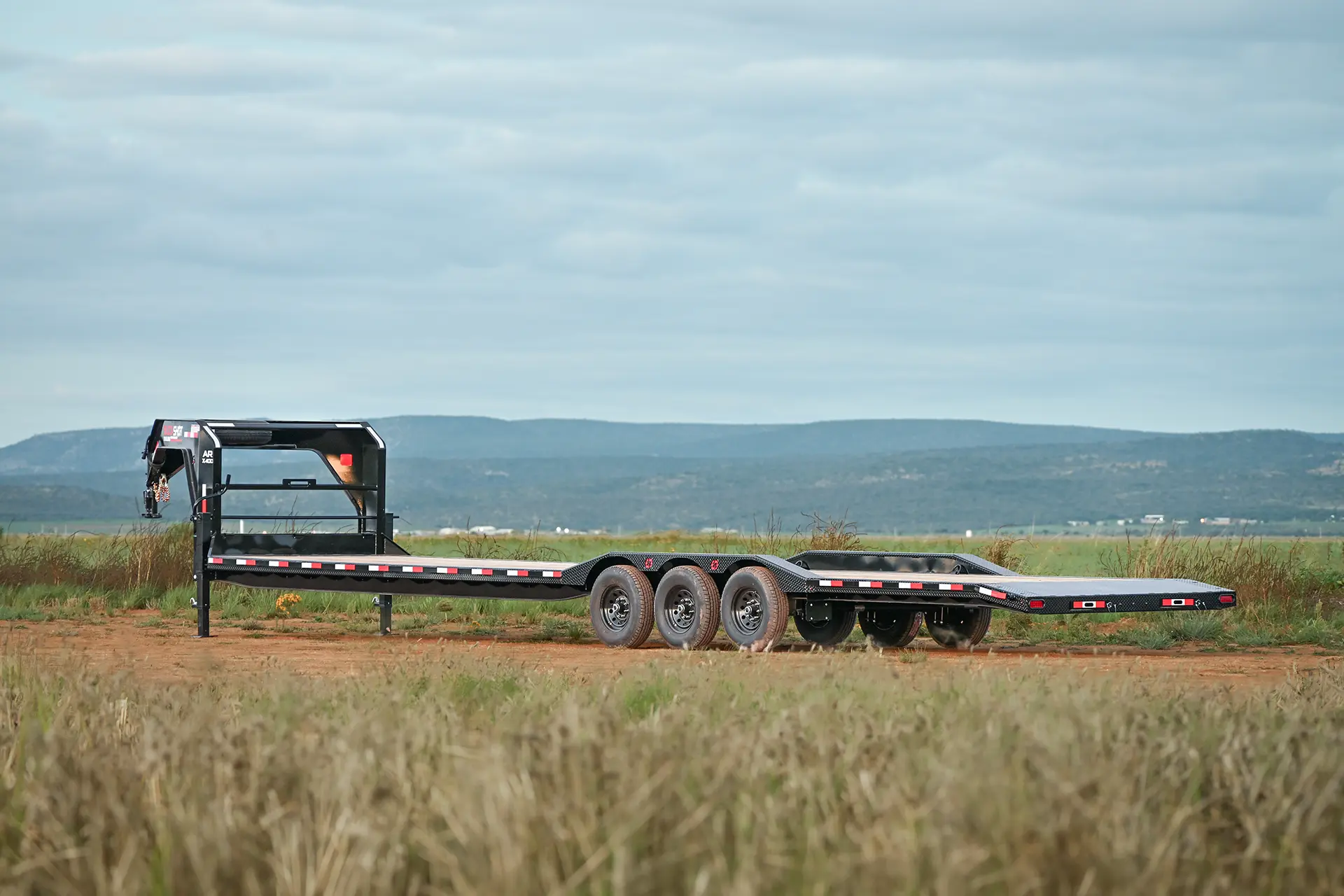

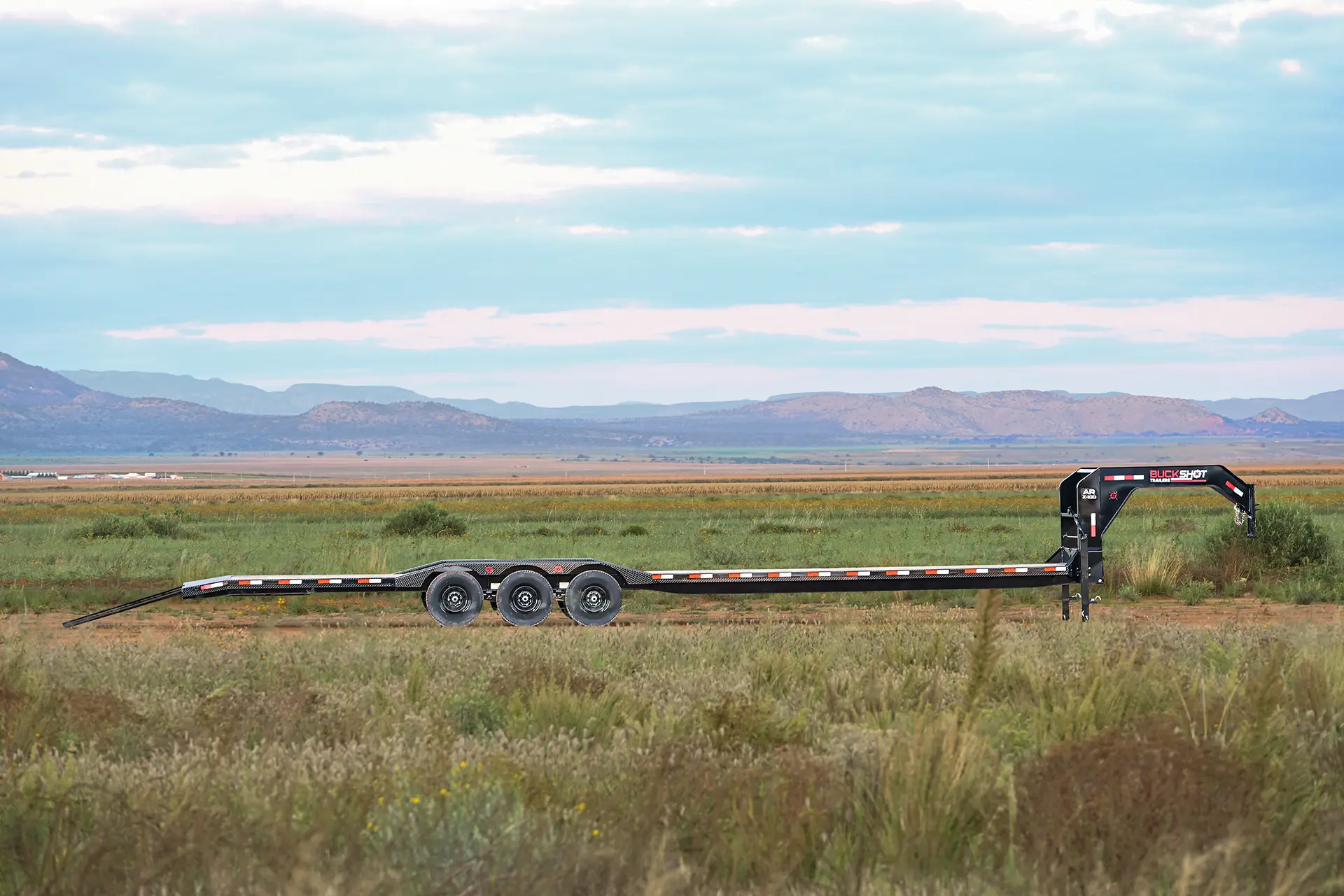

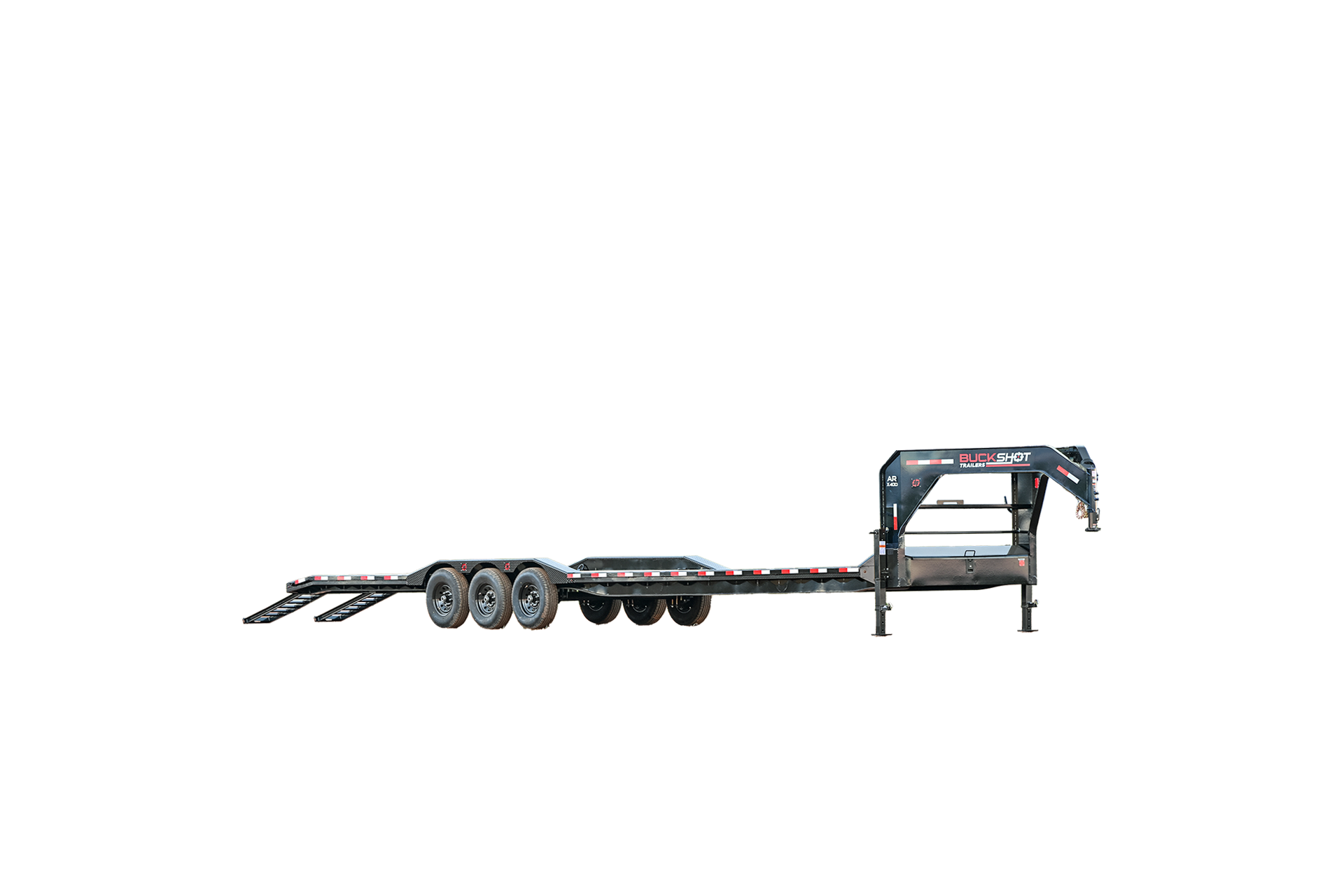

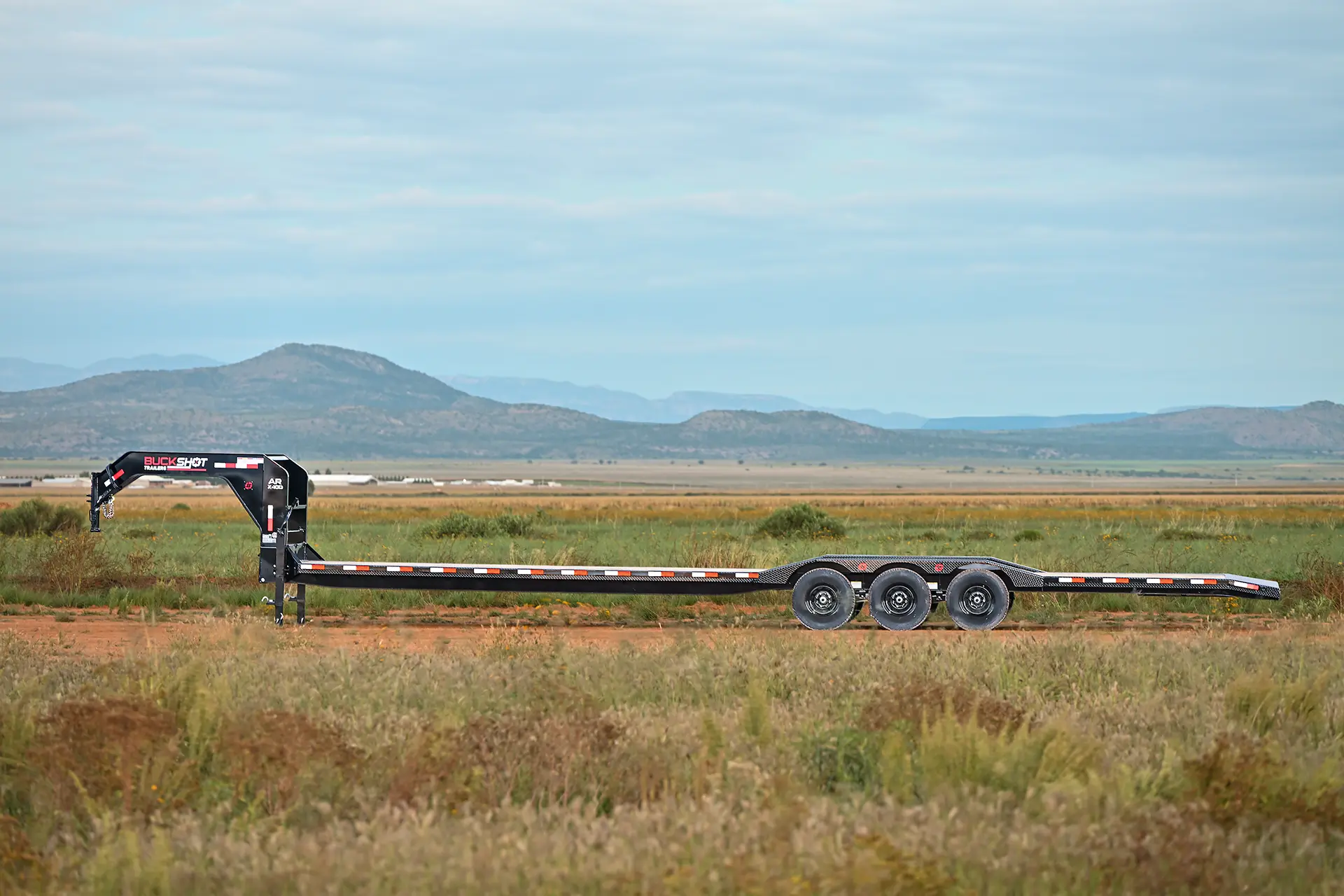

Buckshot AR XD triple-axle gooseneck dovetail equipment trailer in GunMetal Gray

AR XD Model Line

Product Highlights

Buckshot AR XD Equipment Trailer – Triple-Axle Strength for Demanding Loads!

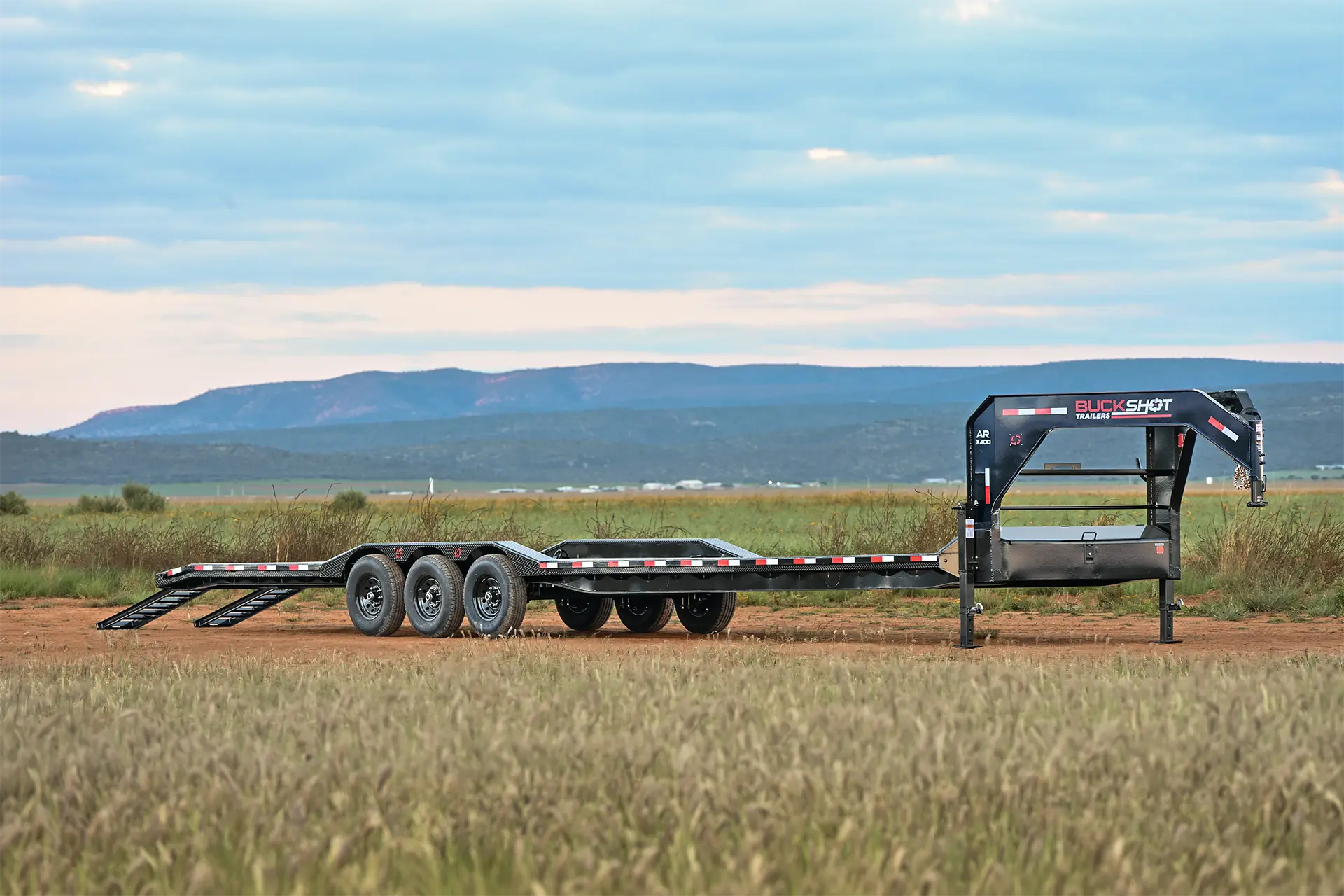

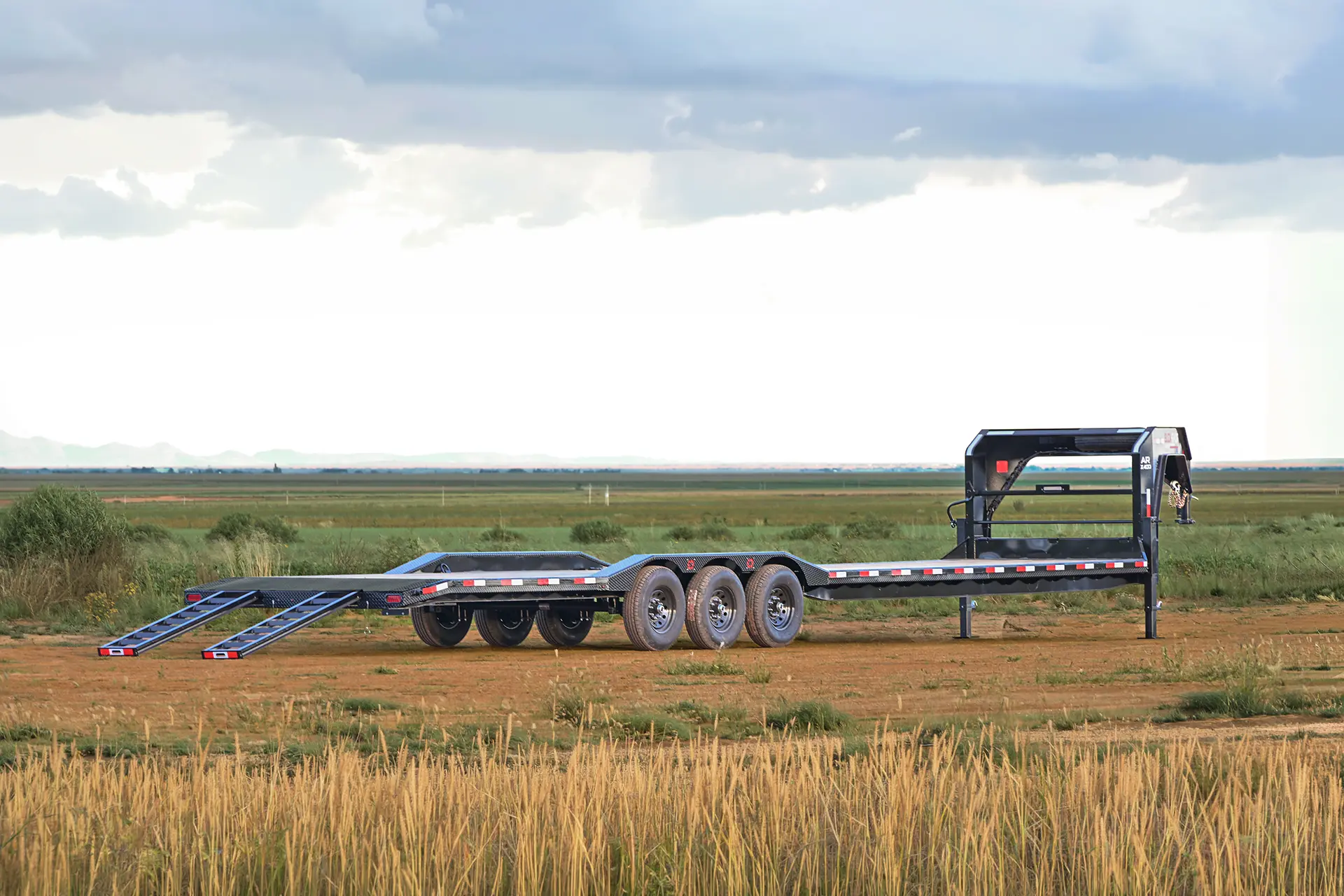

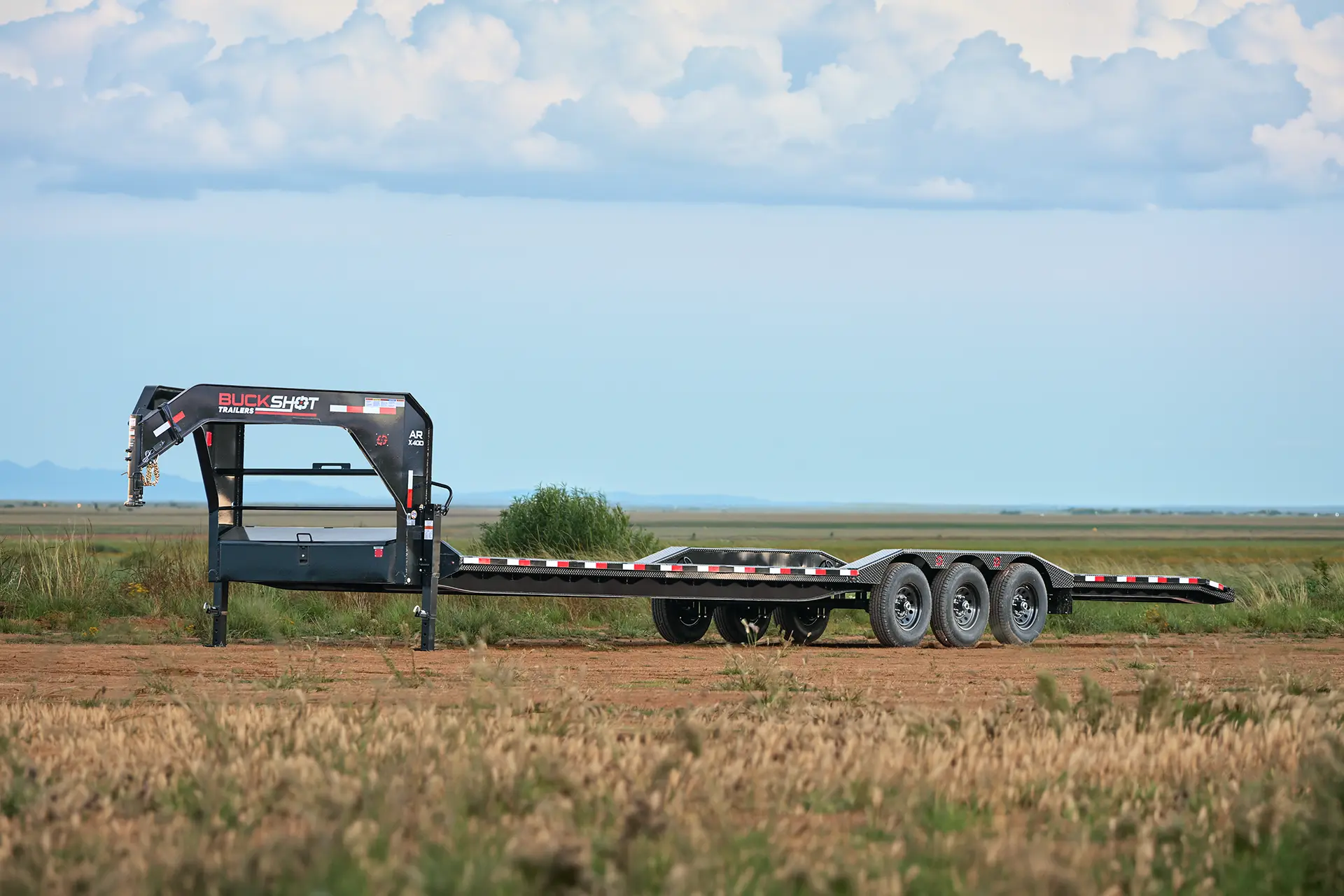

The Buckshot AR XD Gooseneck Equipment Trailer is built for serious equipment hauling. Available in 36′, 38′, and 40′ lengths, its triple-axle configuration carries a 23,100 lb GVWR.

An engineered gooseneck and 8″ engineered I-beam frame with a 10″ belly provide a strong foundation. The 102″ wide deck features treated pine flooring, drive-over diamond-plate fenders, and a 2′ dovetail with slide-in ramps for loading equipment.

With a 27″ deck height, four welded D-rings, E-track ratchet slots, an adjustable 2-5/16″ gooseneck coupler, and dual drop-leg jacks, the AR XD is equipped for demanding work. DOT-approved LED lights, an all-weather 7-way RV wiring harness, and a steel-blasted, powder-coated finish complete the trailer.

Standard Features

Model Information
Model Line	Buckshot AR XD
Trailer Type	Triple-Axle Gooseneck Dovetail Equipment Trailer
Available Models	AR X36D (36'), AR X38D (38'), AR X40D (40')
GVWR	23,100 lbs
Frame and Structure

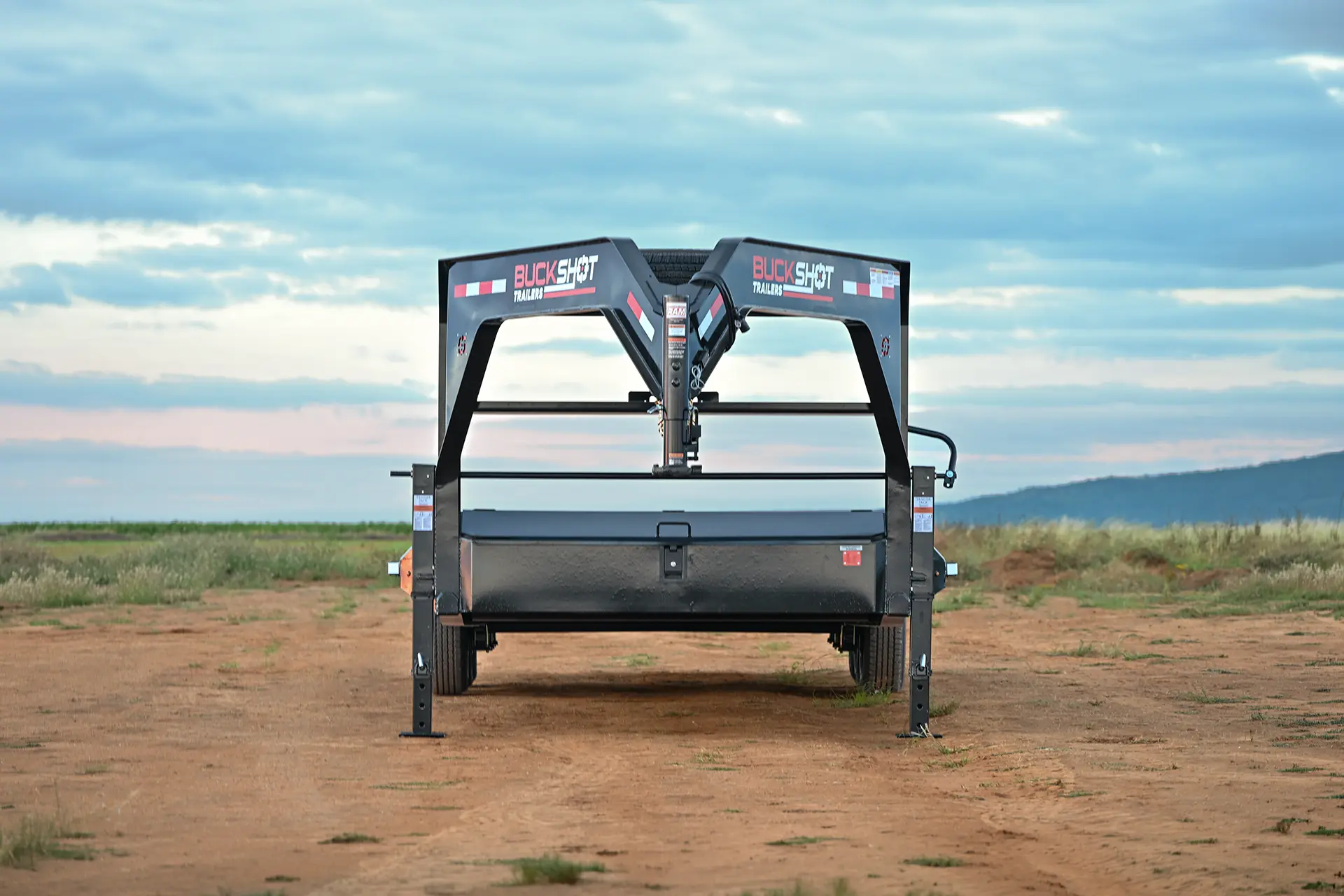

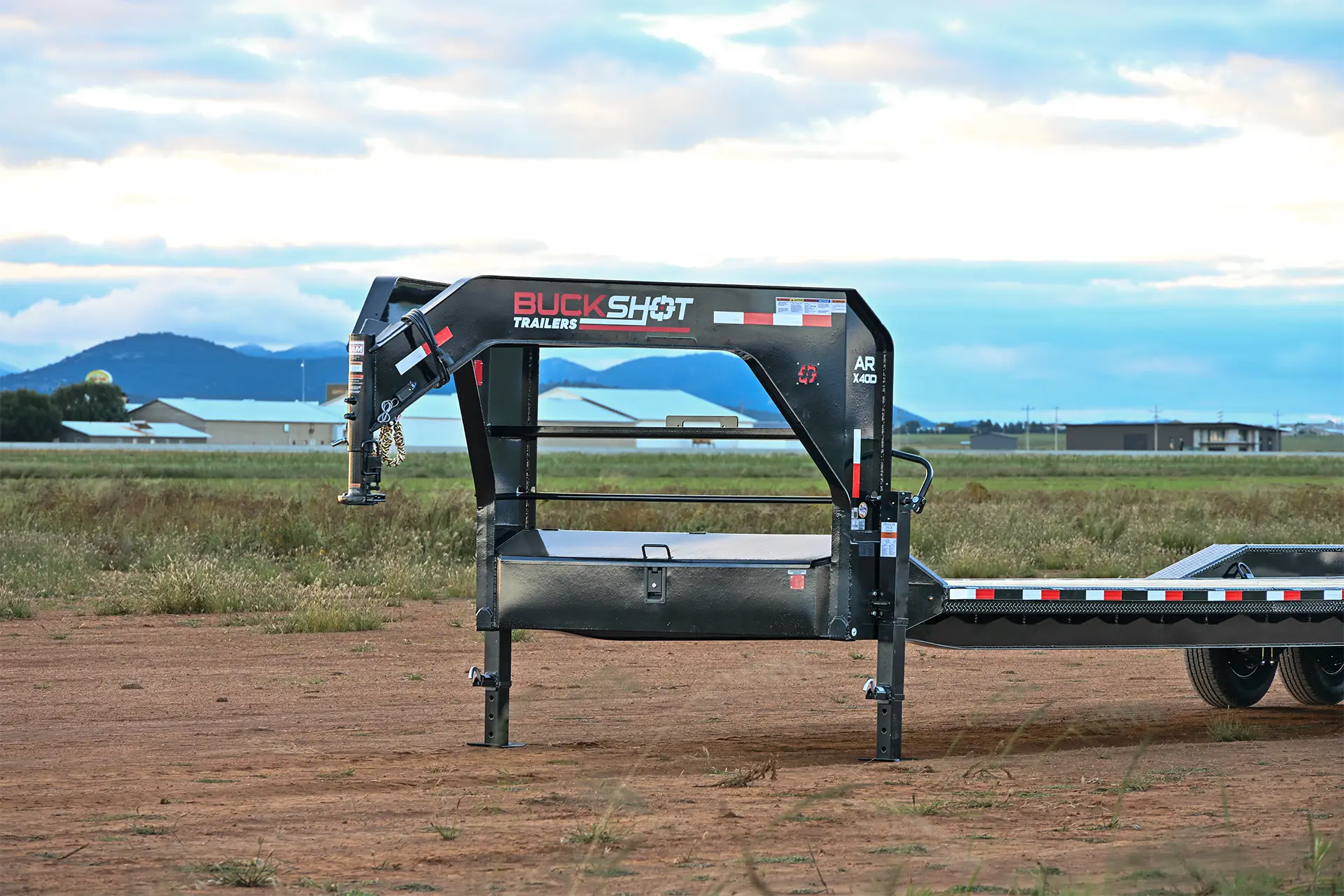

Gooseneck	Engineered Neck
Main Frame	8" Engineered I-Beam with 10" Belly
Crossmembers	3" Channel (3.50 lbs/ft) – 16" Spacing
Sides	3/16" Formed Plate with 2" Rub Rail
Deck and Loading

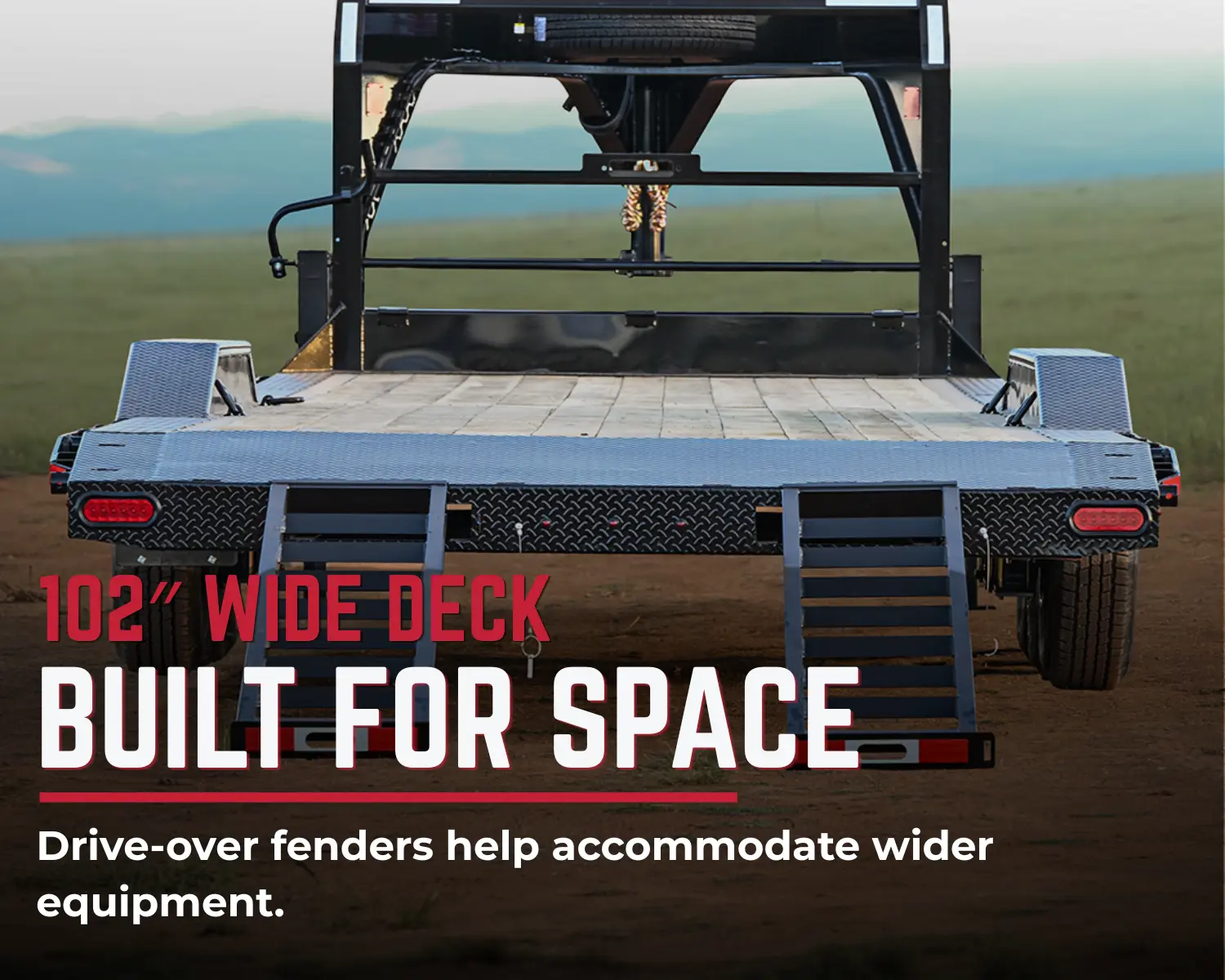

Deck Width	102"
Width Between Fenders	83"
Deck Height	27"
Flooring	Treated Pine Lumber Deck

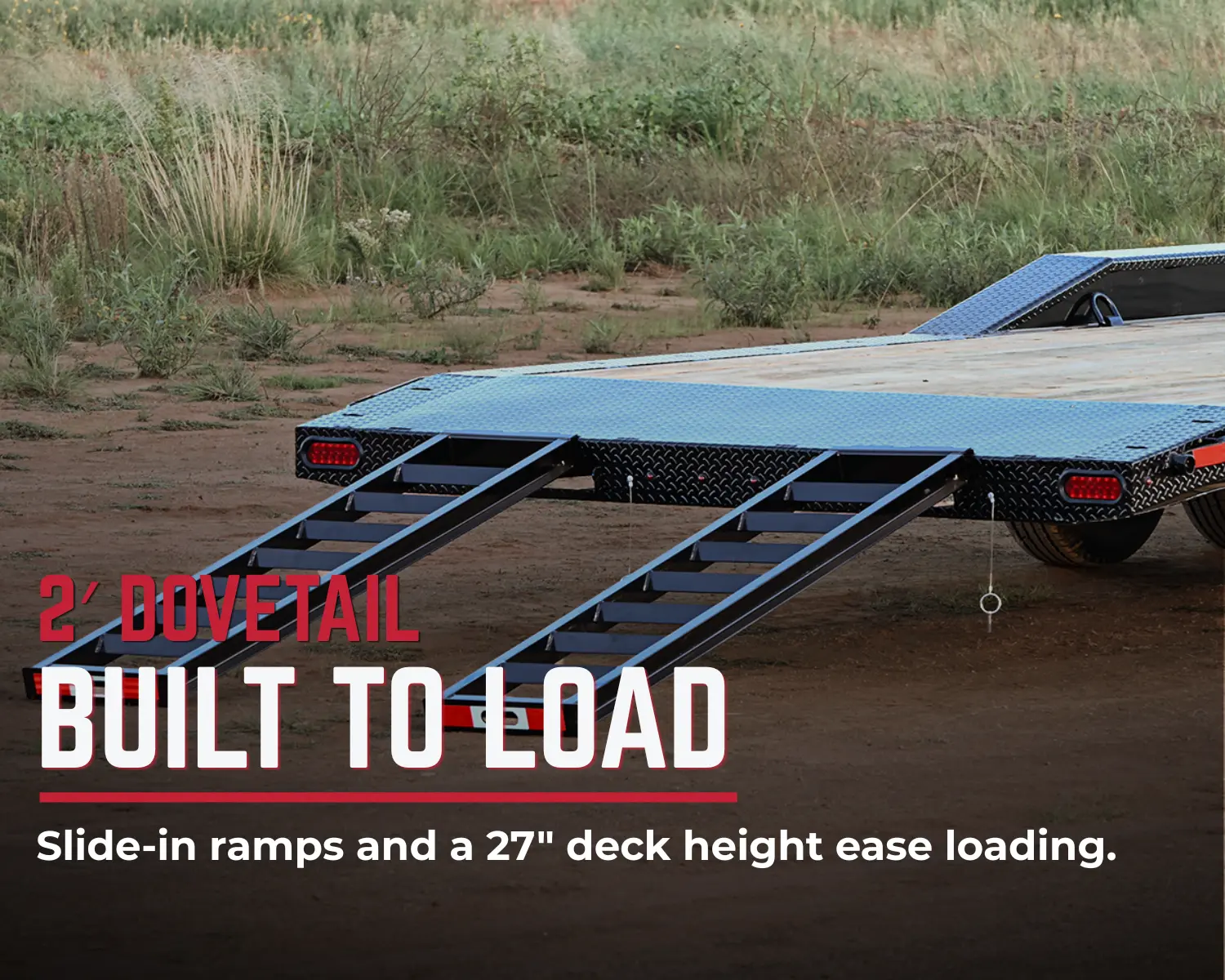

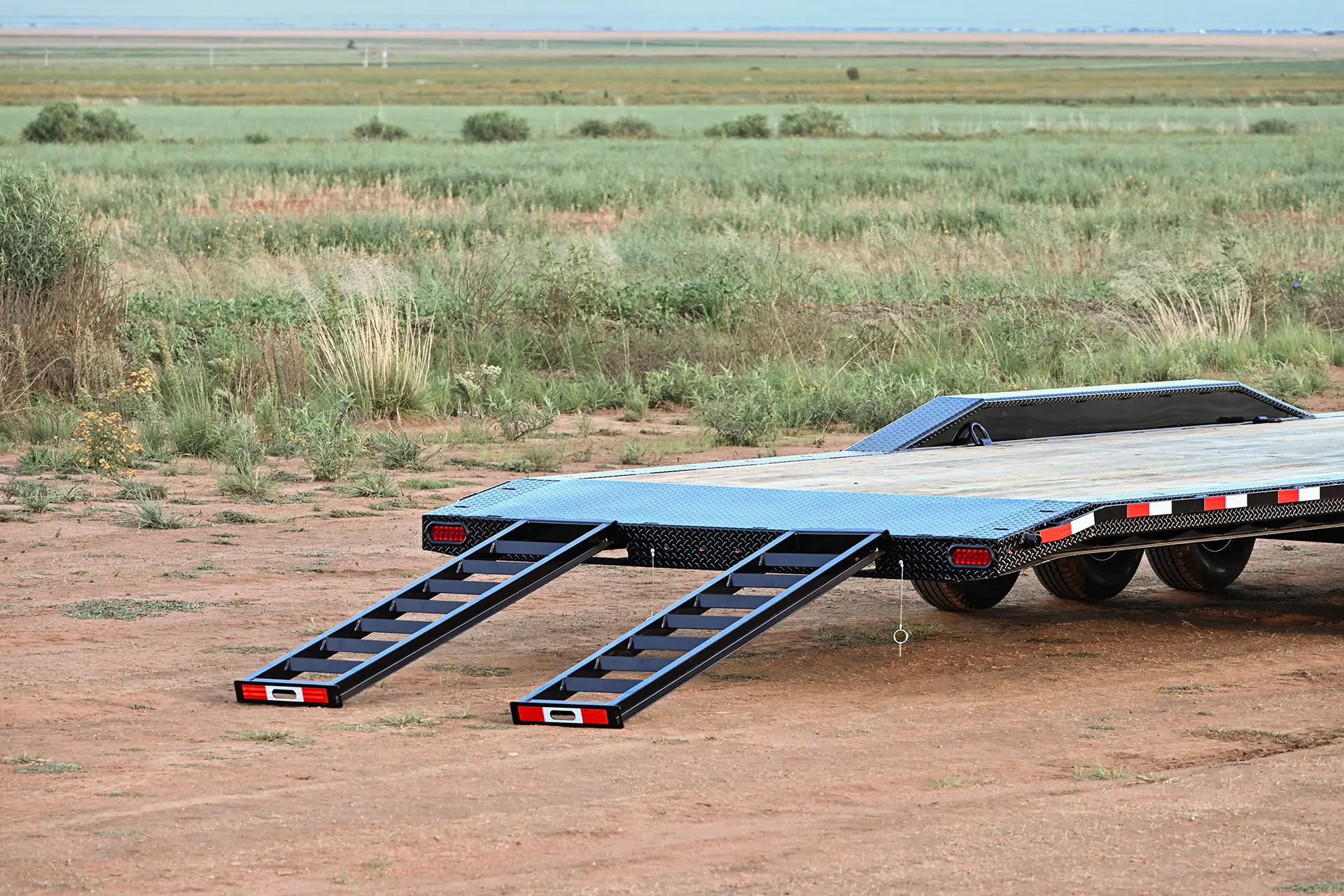

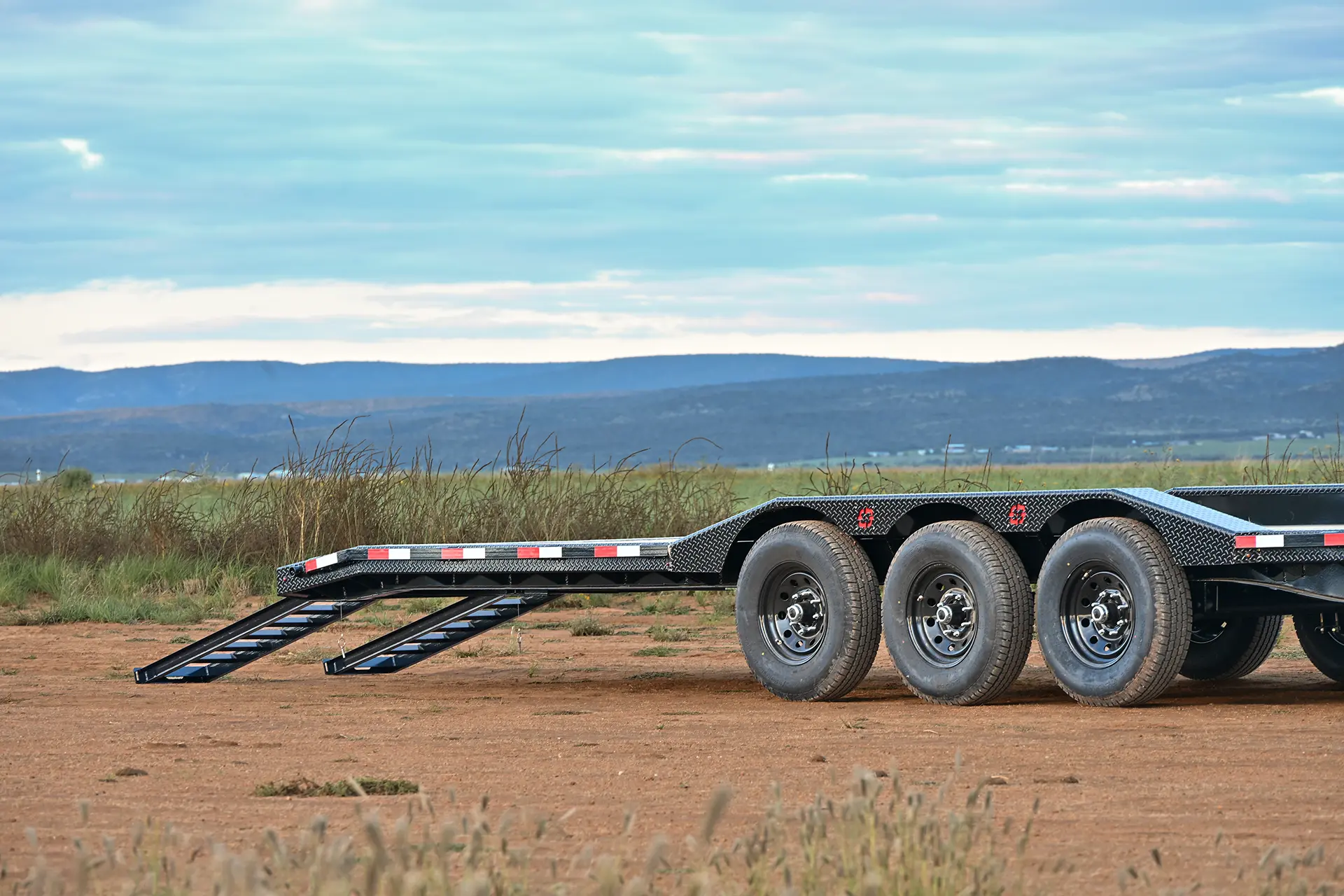

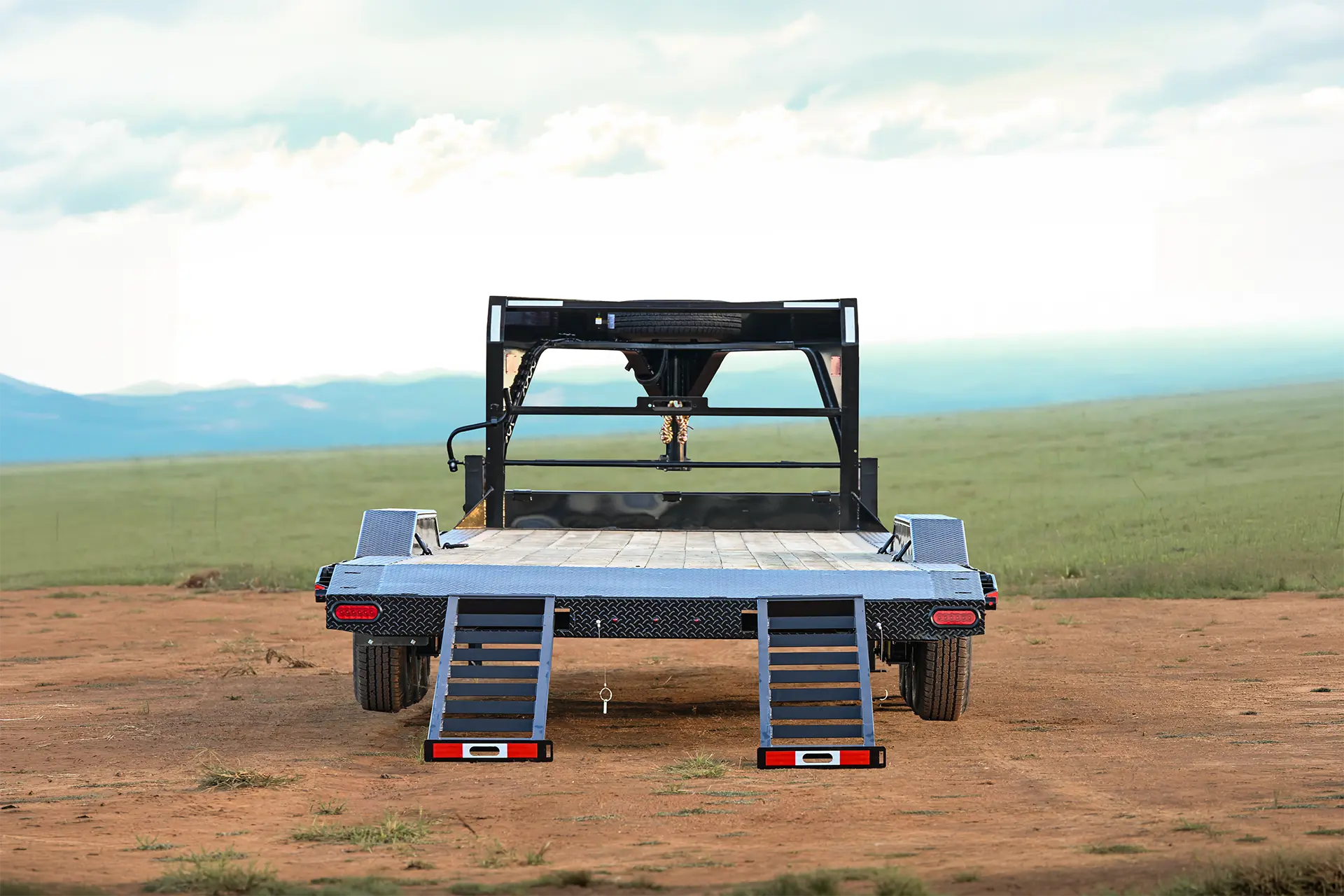

Dovetail and Ramps	2' Dovetail with Slide-In Ramps
Fenders	3/16" Diamond-Plate Steel Drive-Over Fenders
D-Rings	4 Welded Between the Fenders
Tie-Down Slots	E-Track Ratchet Slots
Hitching and Towing
Coupler	Adjustable 2-5/16" Gooseneck Coupler – 30,000 lbs
Jacks	2 Side-Wind Spring-Loaded Drop-Leg Jacks – 12,000 lb Rating Listed
Safety Chains	2 × 3/8" Grade 70 Chains with Clevis Hooks
Toolbox	Lockable Toolbox
Winch Plate	Behind the Neck – Winch Not Included
Spare Tire Mount	Weld-On Mount – Spare Tire Not Included
Wheels and Suspension

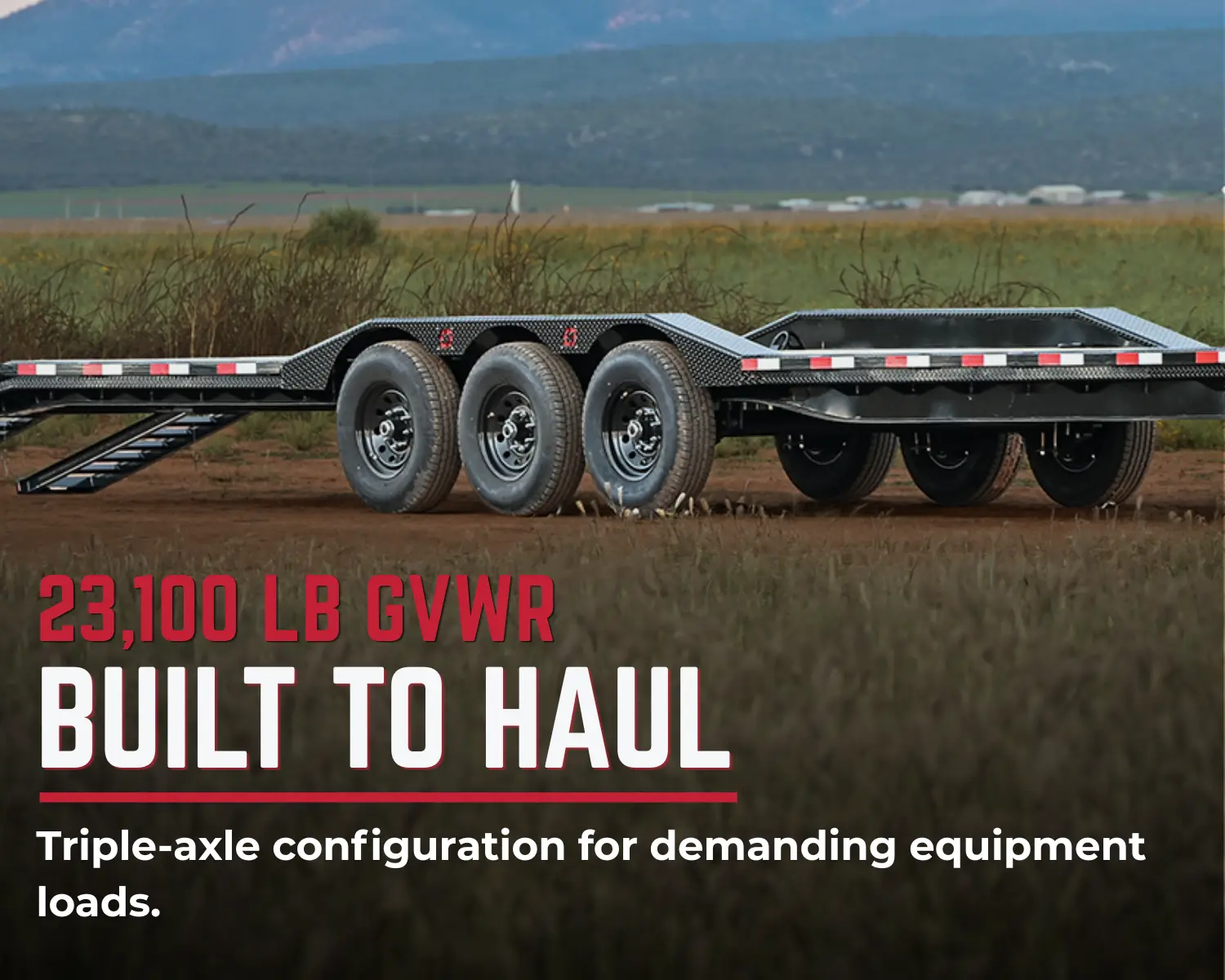

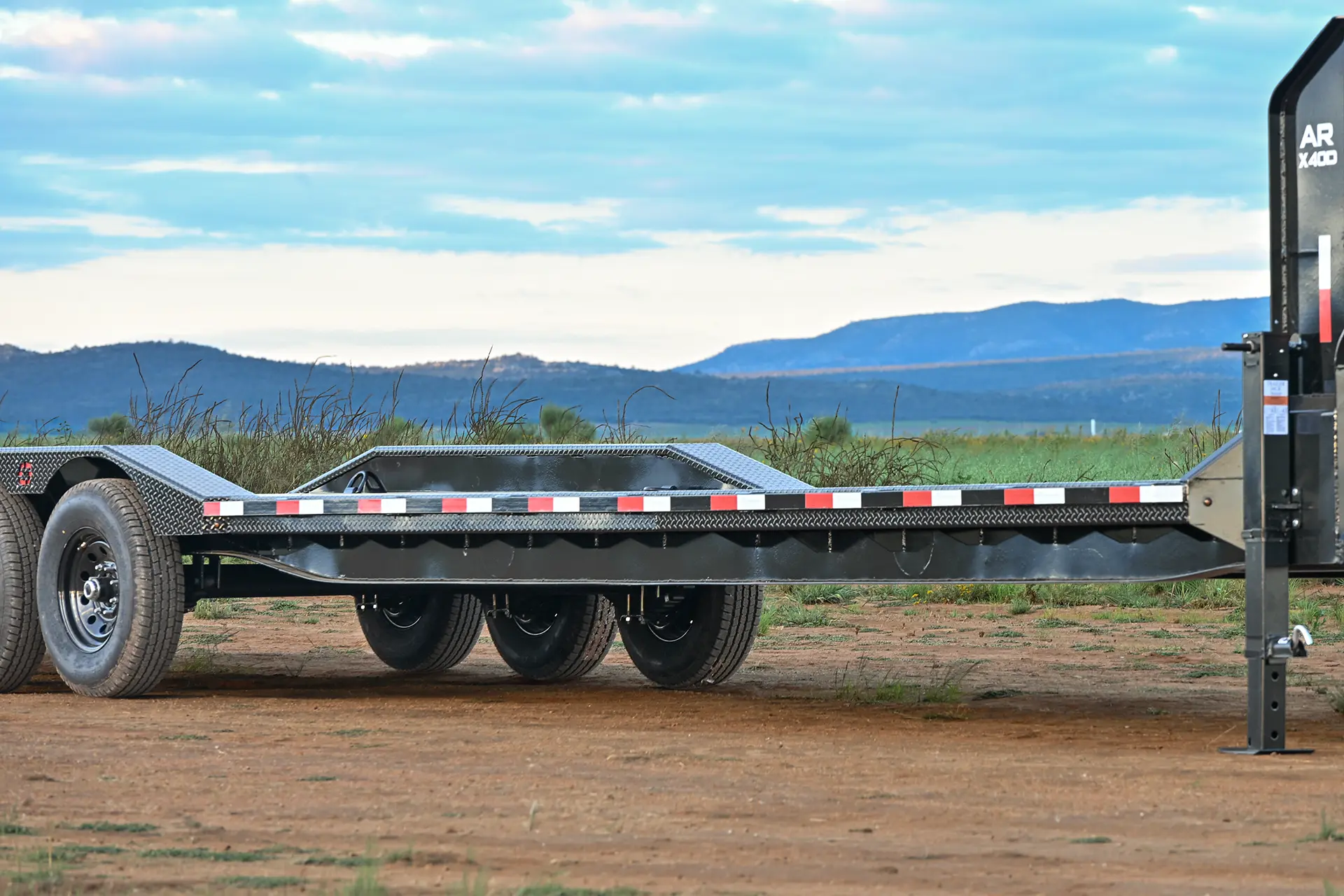

Axle Configuration	Triple Axle
Suspension	Slipper Springs
Tires	ST235/80R16 10-Ply – 3,520 lb Single-Tire Rating
Bolt Pattern	8 on 6.5"
Wheels	16" Black Mod Wheels
Electrical and Lighting
Lighting	DOT-Approved LED Lights
Wiring	All-Weather Wire Harness – 7-Way RV
Finish and Paint
Finish	Steel Blasted
Paint	Powder Coated
Warranty
Structural	3 Years
Paint	1 Year
