TITAN BOLT-HD Series

Heavy-Duty Deckover • 16K Dual Oil Bath Axles

Lengths

30–40 FT

Width

102 IN

GVWR

30,000 LBS

Buckshot TITAN BOLT-HD Series

Built to haul. Built to last.

Find a Dealer

TITAN BOLT-HD Series

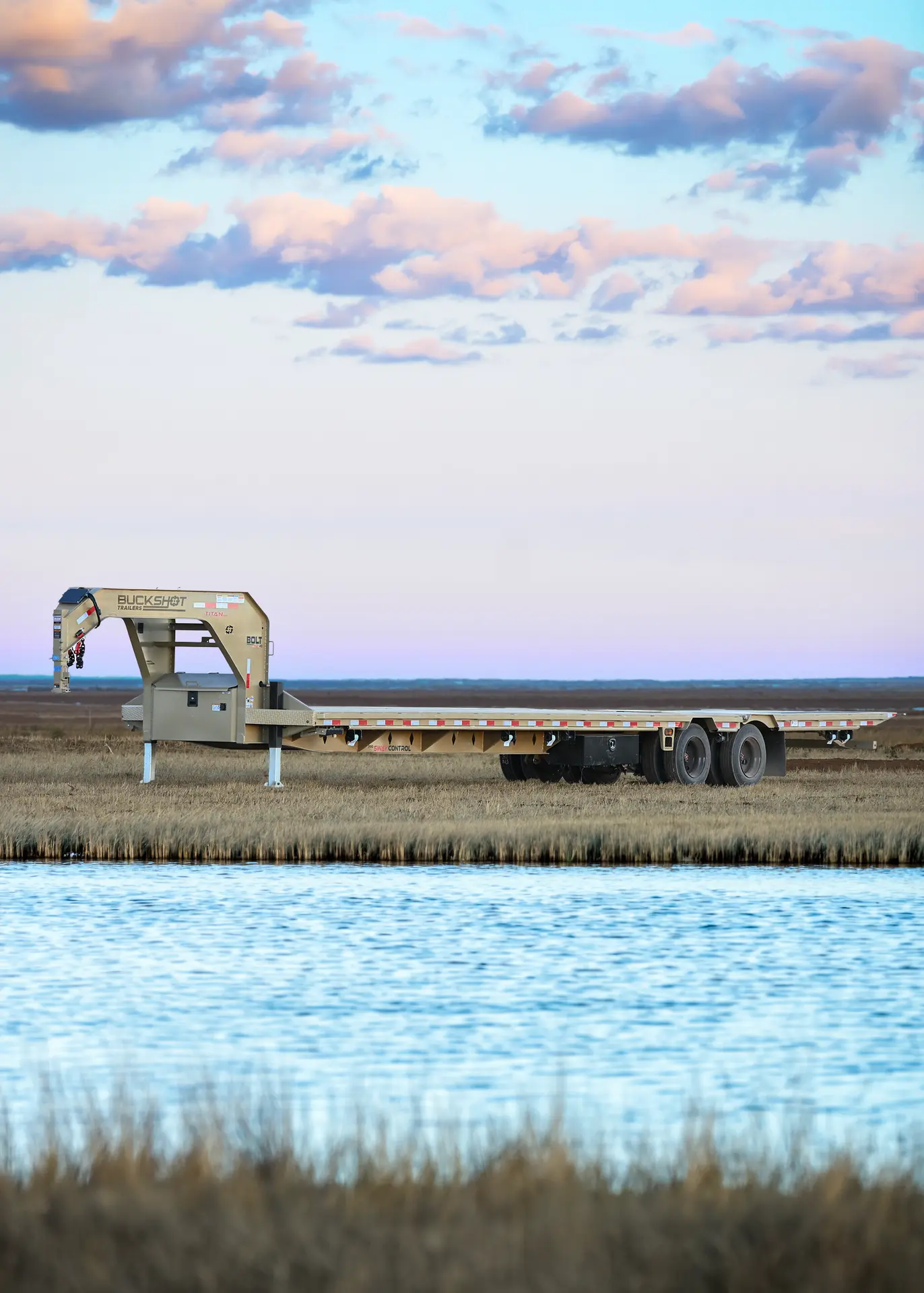

Heavy-Duty Gooseneck Deckover Trailer with 16K Dual Oil Bath Axles

TITAN BOLT-HD Model Line

Product Highlights

Buckshot Titan Series Bolt HD: Built for power, Engineered for Heavy Hauling!

Introducing the Buckshot Titan Series BOLT HD, the standard of strength and innovation in the trailer industry. Constructed with a re-engineered 3/16 metal gooseneck and a heavy-duty engineered frame, this trailer delivers unmatched stability and performance for the toughest jobs. Its 34” deck height with a 1/4” diamond plate low-profile design ensures a durable and reliable platform for your cargo.

Versatility is enhanced with a Hydraulic Dovetail powered by dual 14” bore cylinders, combined with retractable steps, stake pockets, and pipe chain spools for maximum functionality. For secure transport, the trailer features a lockable Mega Toolbox, along with a 30,000 lb adjustable 2-5/16” coupler and dual 12,000 lb drop-leg jacks.

On-road performance is guaranteed with 16K electric brake axles, HDSS adjustable suspension, and 215/75 R17.5 18-ply radial tires mounted on 17.5” black mod steel wheels. The Titan Series is fully equipped with lifetime LED lighting, a molded sealed wiring harness, and a 7-way plug with adapter, all DOT-compliant.

Sandblasted and powder-coated for maximum durability, the Titan Series BOLT HD is your most reliable partner for transporting heavy loads with confidence and ease. 🚚💥

Standard Features

Frame and Structure
Model	Bolt HD – Titan Series (Hydraulic Dovetail)
Length	30', 32', 34', 36', 38', 40'

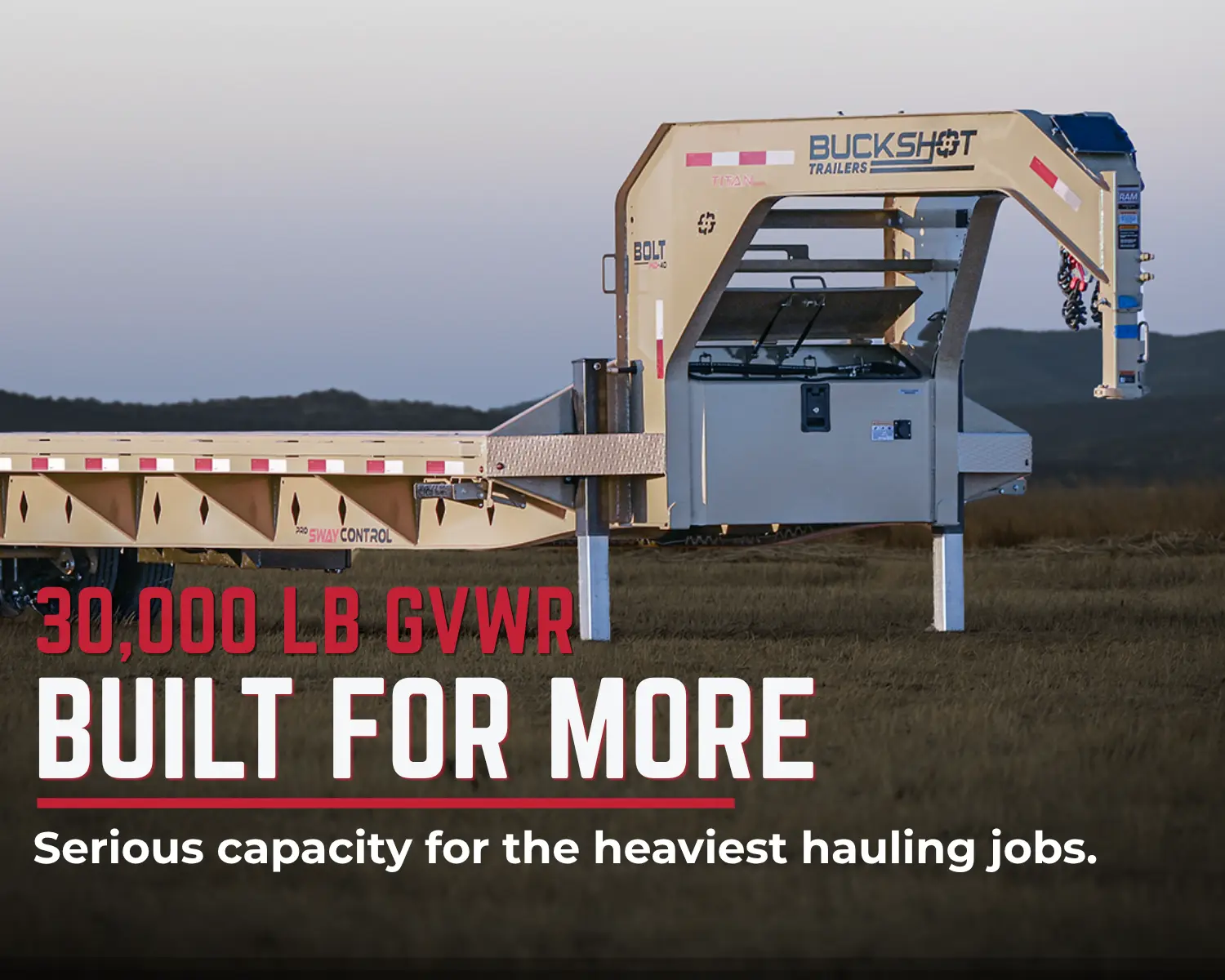

Gooseneck	3/16" Re-engineered Metal Gooseneck
Frame	Engineered Beam Frame with Torque Tubes
Flooring	2" Treated Pine Lumber Deck
Crossmembers	3" Channel on 16" Centers
Fenders	Diamond Plate Low-Pro Fenders
Stake Pockets	Additional stake pockets for secure cargo options
Rub Rail	2" Rub Rail
Pipe Chain Spools	Included
Hitching and Towing
Coupler	2-5/16" 30K Adjustable Coupler
Jacks	(2) 12K Drop-Leg Jacks
Deck and Ramp Features

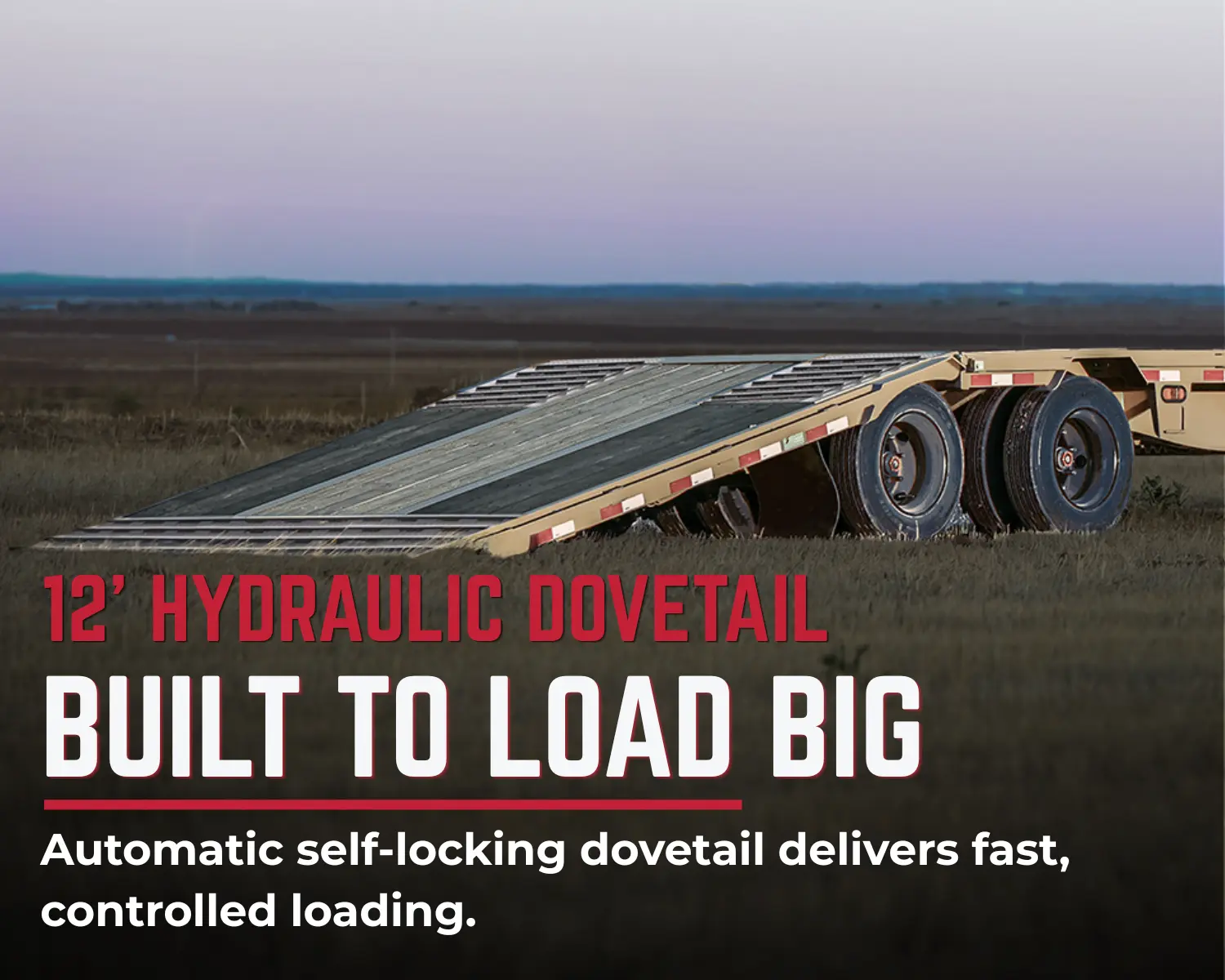

Dovetail	12' Hydraulic Dovetail with Blackwood Inserts
Steps	Retractable steps on both sides
Tie-Downs	Flat iron rails with stake pockets
Wheels and Suspension

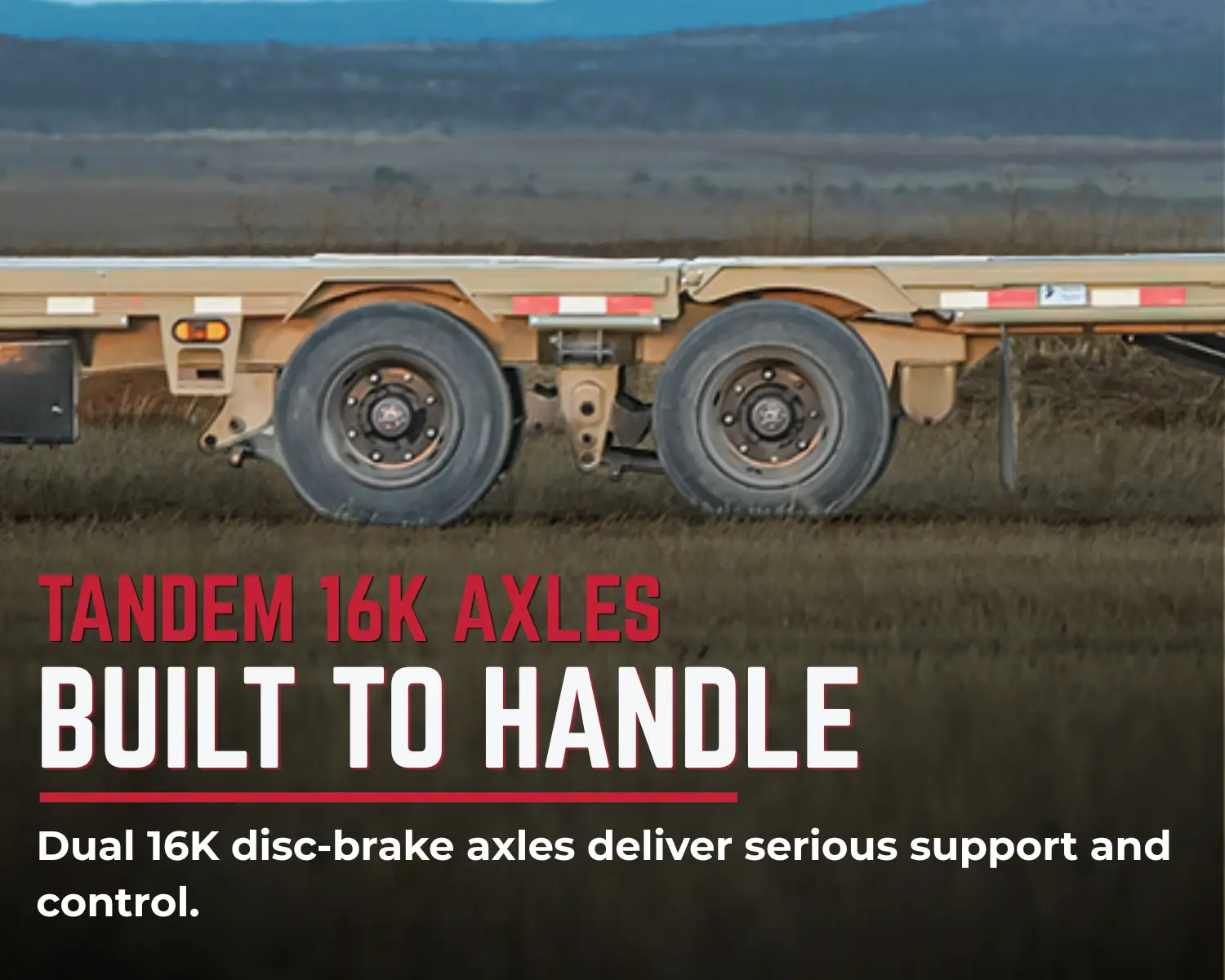

Axles	(2) 16K Electric Brake Axles with EZ-Lube Hubs
Suspension	HDSS Adjustable Suspension
Tires	215/75 R17.5 Radial Tires on 17.5" Black Mod Wheels
Spare Tire Mount	Included
Electrical and Lighting
Lighting	Lifetime LED Lighting (DOT Approved)
Wiring Harness	Molded Sealed Harness with 7-Way Plug + Adapter
Toolbox and Storage
Toolbox	Lockable Mega Toolbox (standard)
Finish and Paint
Finish	Steel Blasted
Paint	Powder Coated
Add-on Options
• Electric/Hydraulic Winches (14K, 18K, 20K) • Side-mounted LED Pod Lights • Slide Track System • Hydraulic Jacks or 2-Speed Jacks • Undermount Toolbox (45” x 13”) • Top Riser Toolbox • Custom Colors • Axle Upgrades: 12K / 16K / 20K • Brake Options: Electric / Hydraulic • Spare Tire
