Buckshot AR-D Series gooseneck dovetail equipment trailer with 7K axles

AR-D Series

Gooseneck Dovetail Equipment Trailer with 7K Axles

Lengths
20–34 FT
Width
102 IN
GVWR
15,400 LBS

Buckshot AR-D Series

Built to haul. Built to last.

Find a Dealer

AR-D Series

Gooseneck Dovetail Equipment Trailer with 7K Axles

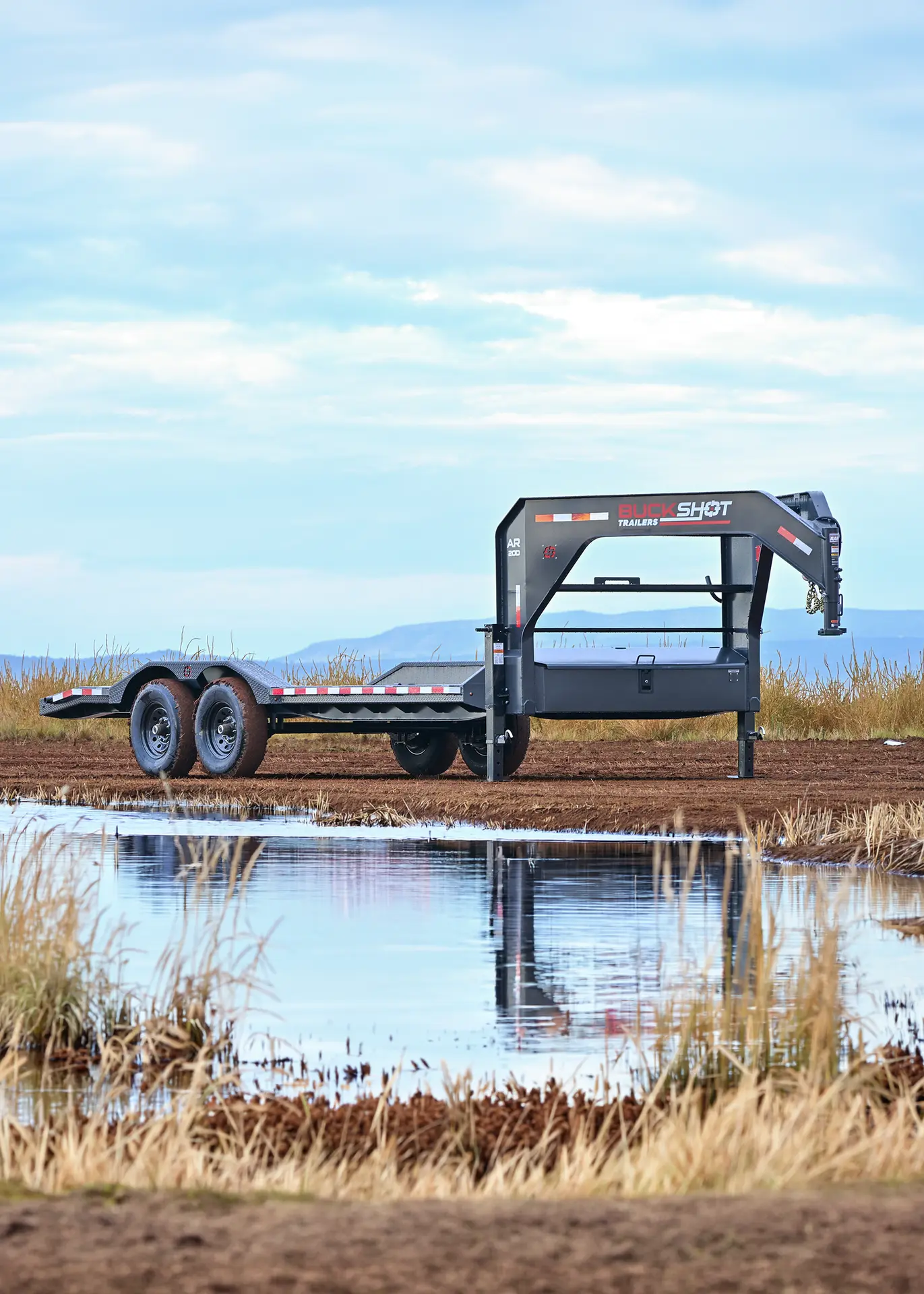

AR-D Series gooseneck dovetail equipment trailer represented in GunMetal Gray

AR-D Model Line

Product Highlights

  • AR-D equipment trailer engineered gooseneck and treated-pine deck
  • AR-D equipment trailer side profile and dual 7K Lippert spring axles
  • AR-D equipment trailer full-width deck and drive-over fenders

AR D Equipment Trailer – Built for Strength & Convenience!

The AR-D Gooseneck Drive-Over Fender Trailer from Buckshot Trailers is built for dependable equipment hauling with the strength and deck space demanding jobs require.

Its engineered frame and engineered beam gooseneck provide a strong, purpose-built foundation, while the full 102" deck with diamond plate drive-over fenders makes it easier to load and transport wider equipment.

With a 26" deck height, dual 7k Lippert spring brake axles with E-Z Lube hubs, and dual 10k drop-leg jacks, the AR-D delivers a stable, straightforward hauling platform built for everyday work.

Finished with a steel-blasted, powder-coated exterior and equipped with DOT-approved lifetime LED lighting and a sealed molded wiring harness, the AR-D is built Buckshot tough from front to back.


Standard Features


Frame and Structure
Gooseneck Engineered Beam Gooseneck
Frame 6" (12 lbs/ft) Wide Flange I-Beam (20'–26')
8" I-Beam Upgrade (28'–32')
Flooring 2x8 Treated Pine Lumber Floor
Sides Rub Rail, Stake Pockets, and Pipe Spools
Crossmembers 3" Structural Channel Crossmembers at 16" Centers
Deck Height 26"
Deck Width Full 102" with Diamond Plate Drive-Over Fenders
Hitching and Towing
Coupler 2-5/16" Adjustable Coupler
Jacks 2 - 10k Drop-Leg Jacks
Wheels and Suspension
Axles and Brakes Dual 7k Lippert Spring Brake Axles with E-Z Lube Hubs
Suspension Spring Suspension
Tires and Wheels 235/80R16 Radial Tires on 16x6 Black Mod Steel Wheels
Spare Tire Mount Included
Electrical and Lighting
Lighting Lifetime LED Lighting, All DOT Approved
Wiring Harness Molded Sealed Harness with Resistors
Plug 7-Way Receiver Female Plug with Adapter
Finish and Paint
Finish Steel Blasted
Paint Powder Coated

Gallery

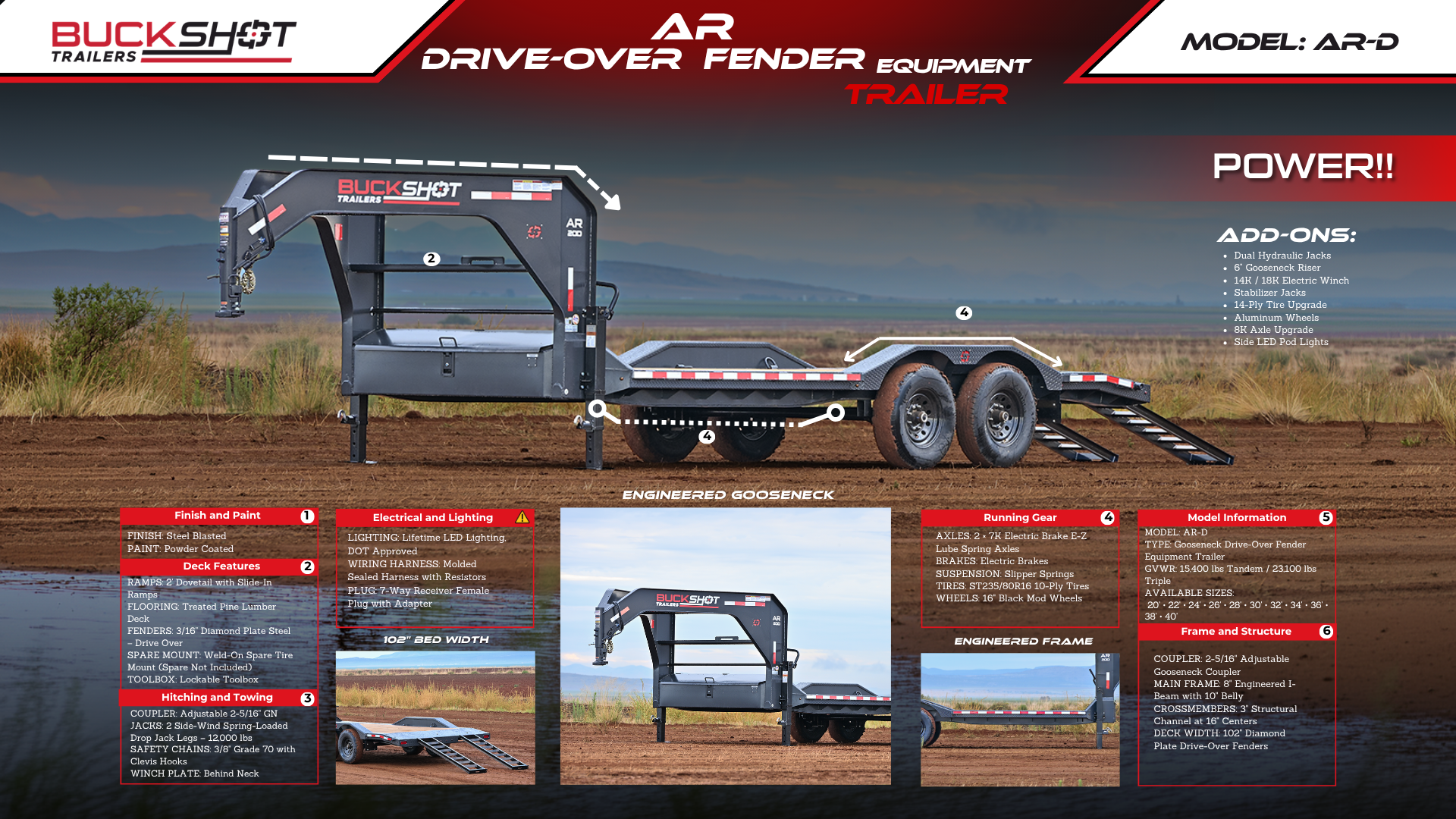

Brochure


Video
