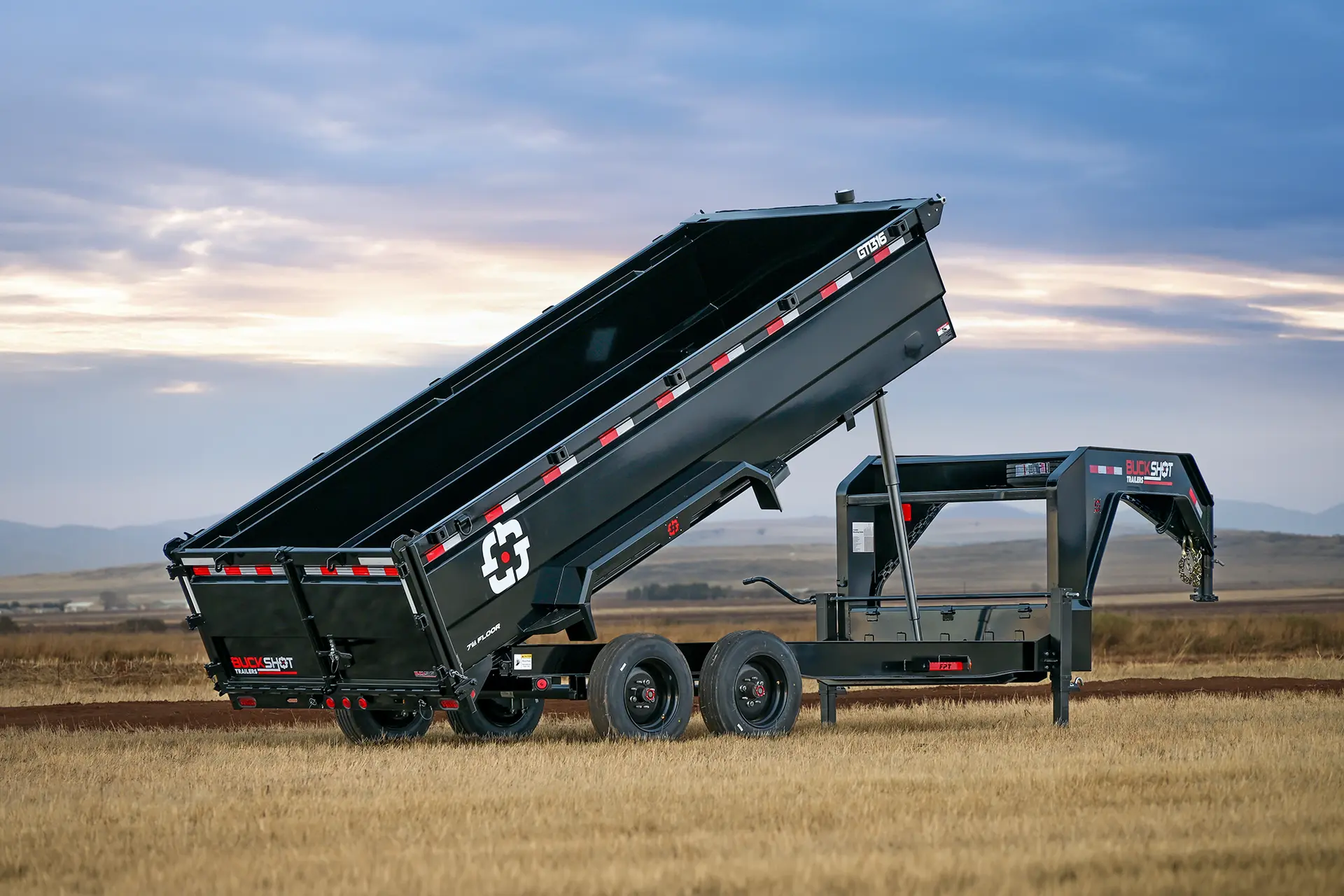

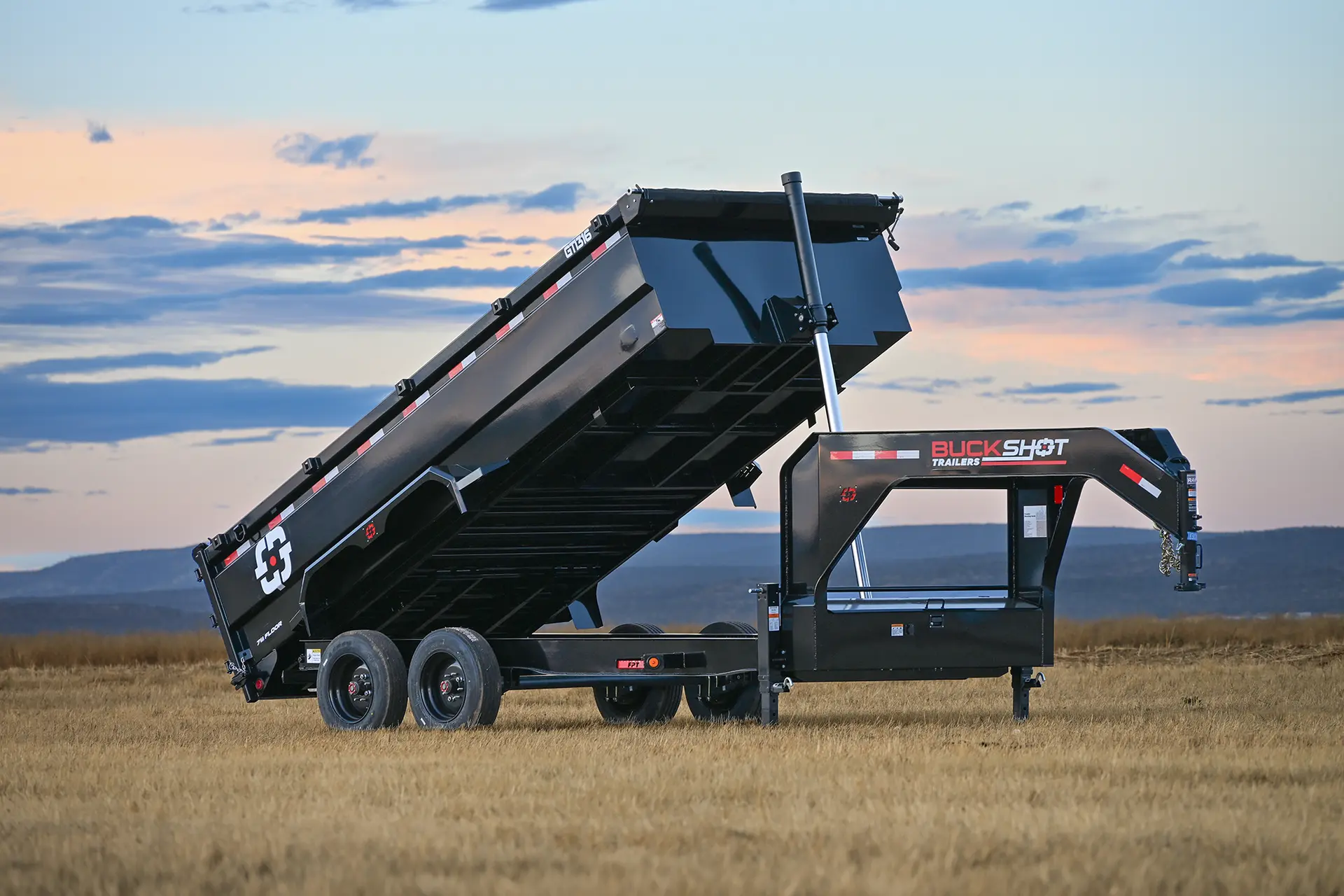

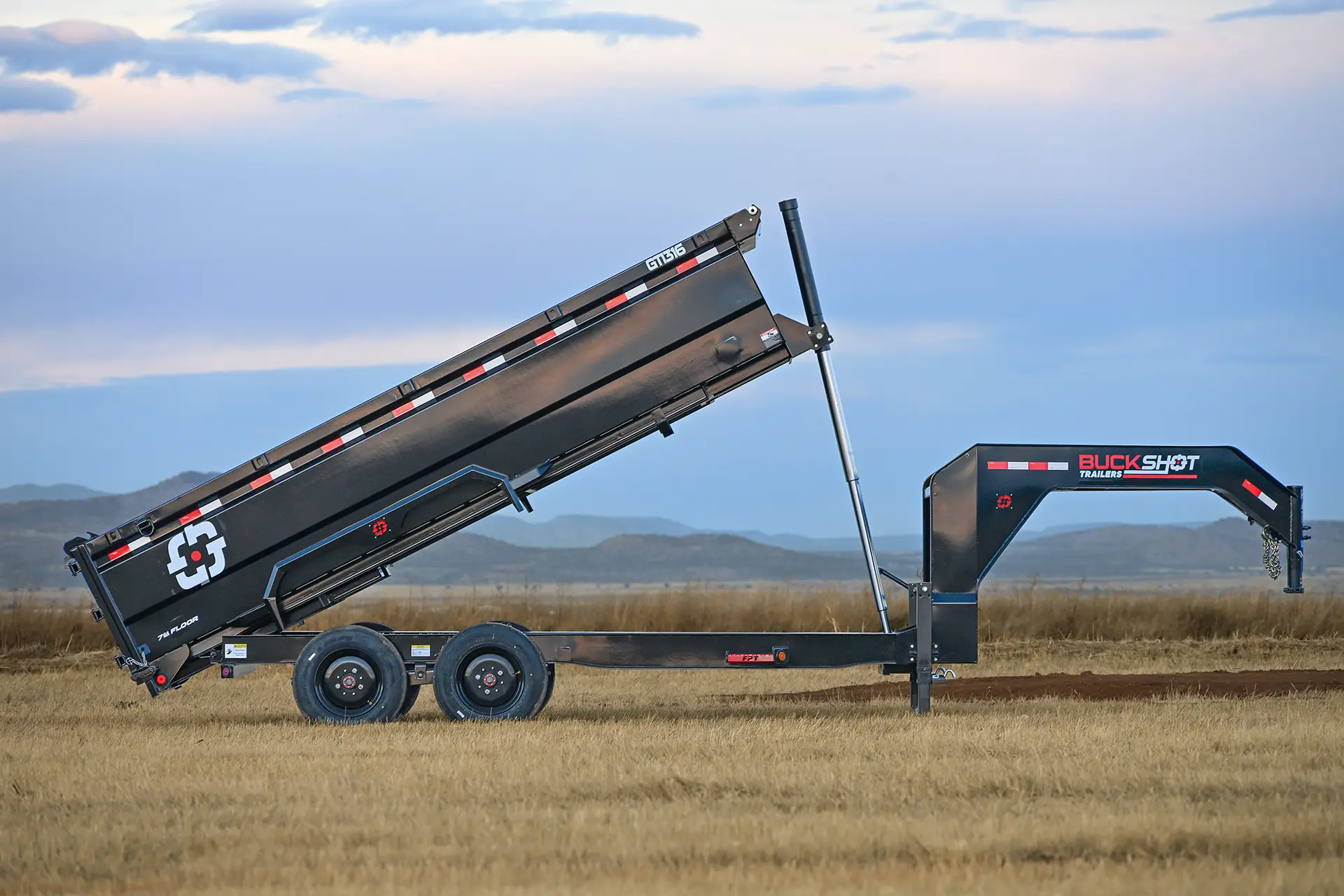

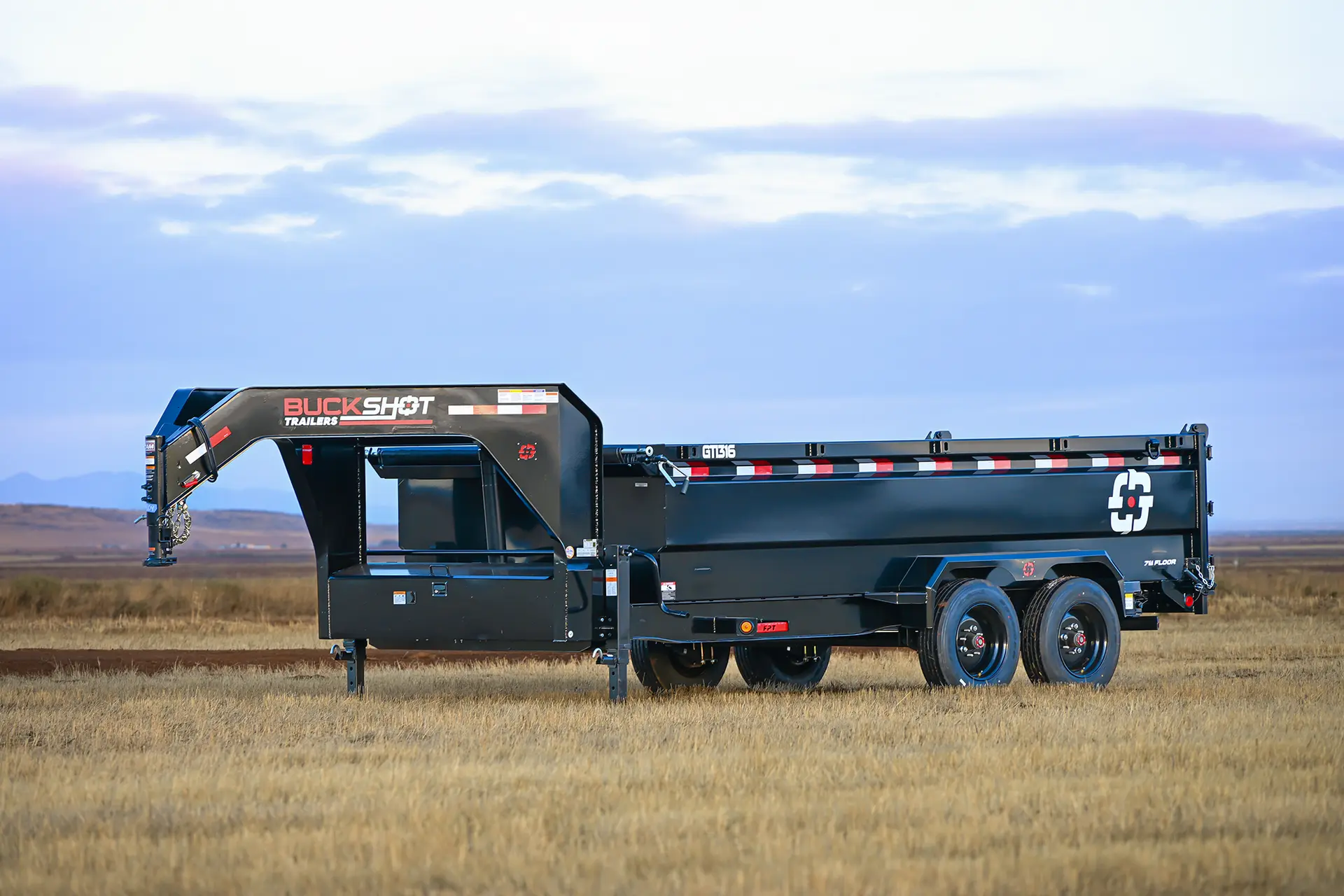

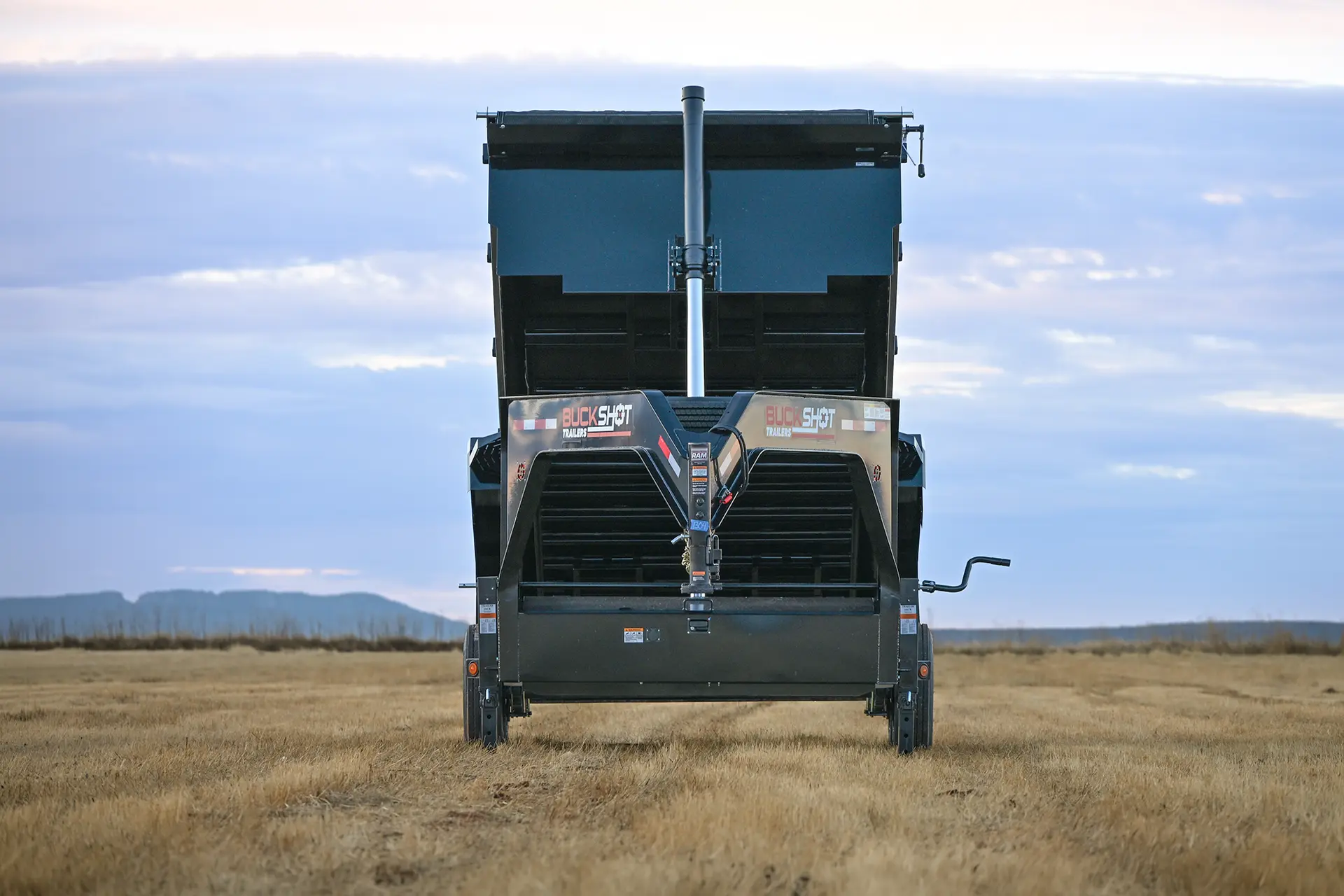

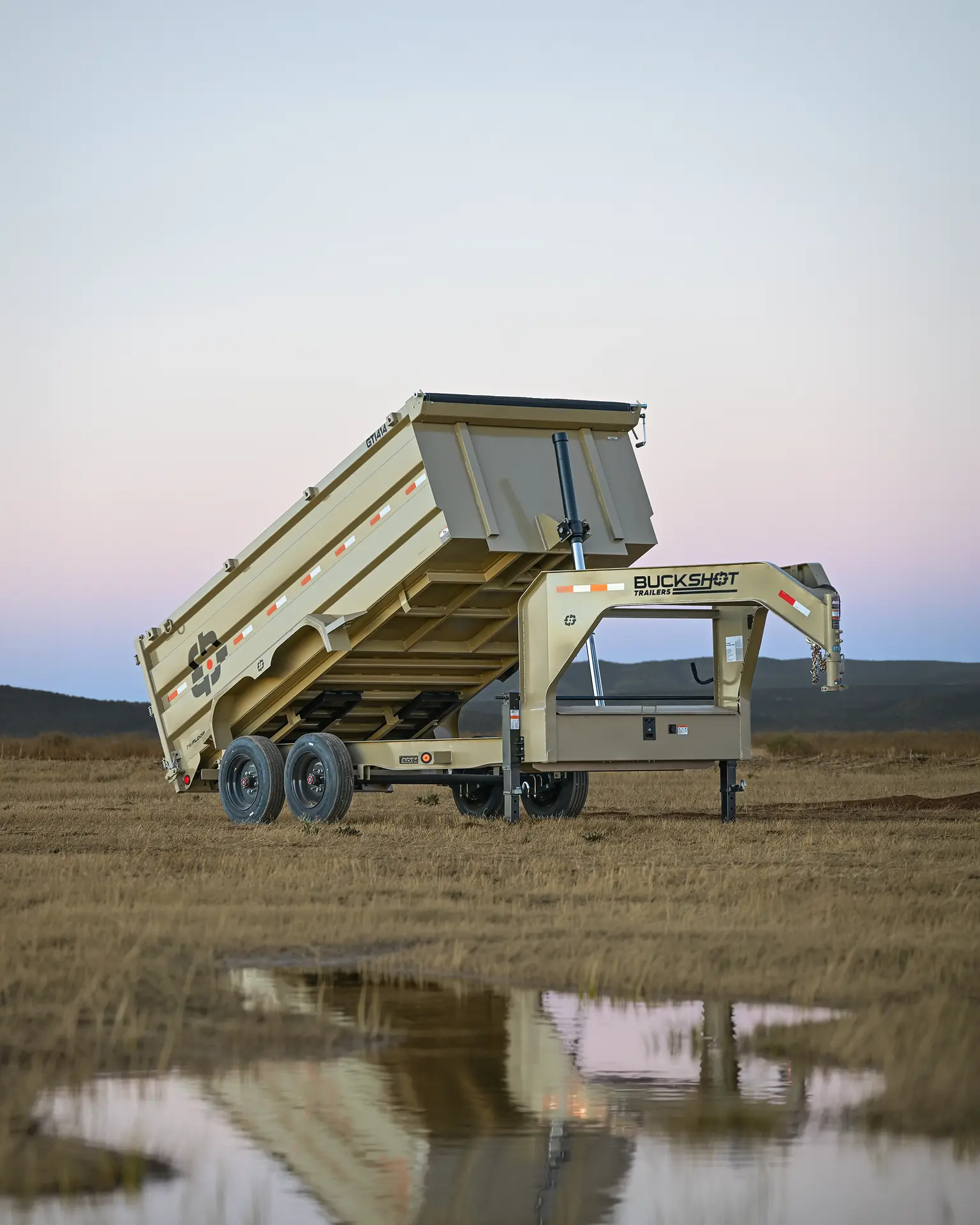

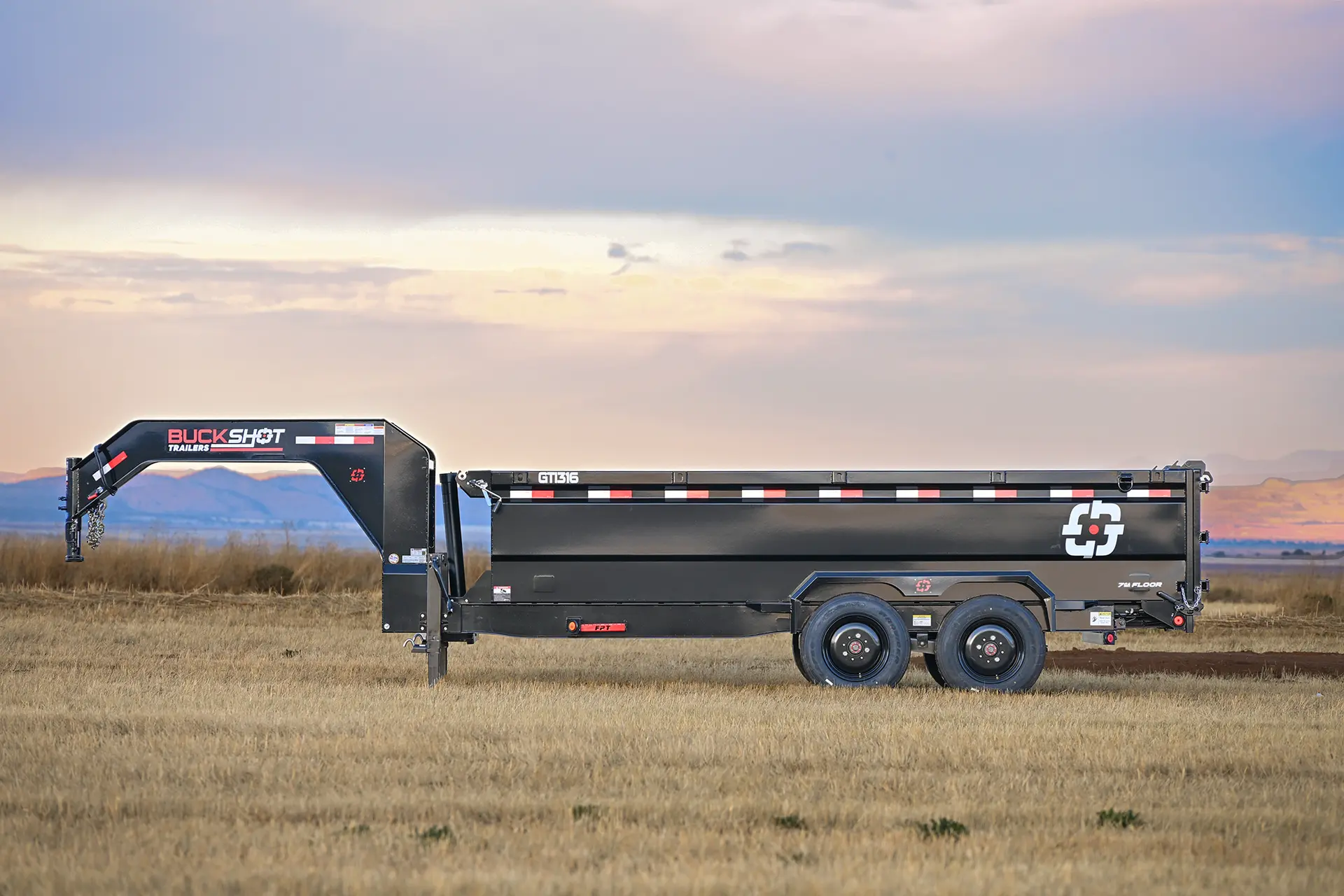

GTI Series

Gooseneck Dump Trailer with 7K Axles

Lengths

14–16 FT

Side Heights

2–4 FT

GVWR

15,400 LBS

Buckshot GTI Series

Built to haul. Built to last.

Find a Dealer

GTI Series

Gooseneck Dump Trailer with 7K Axles

GTI Model Line

Product Highlights

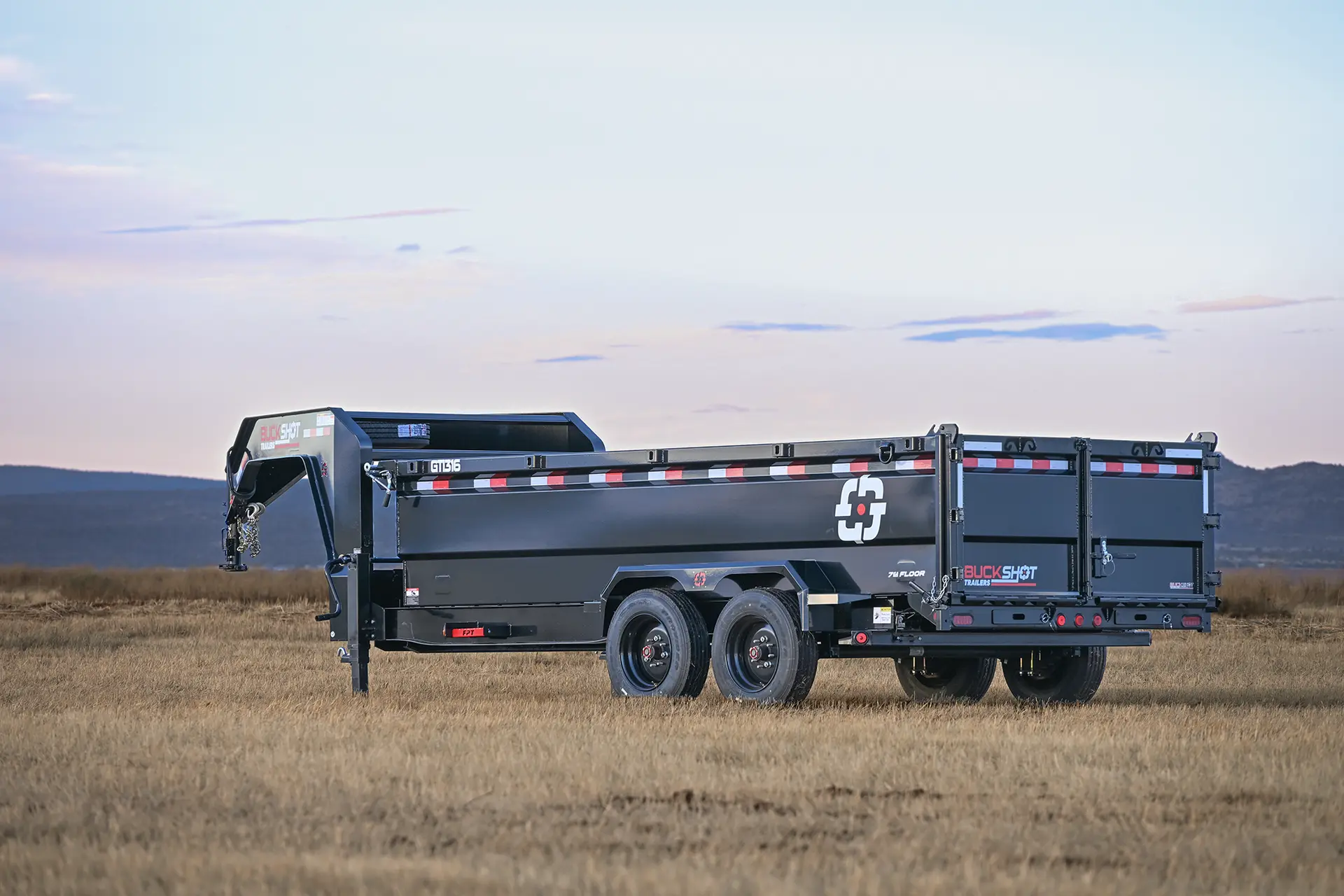

GTI Gooseneck Dump Trailer – Unmatched Durability, Heavy-Duty Performance!

The GTI Gooseneck Dump Trailer from Buckshot is engineered for unmatched durability and functionality. Featuring an engineered gooseneck and an ENGINEERED I beam frame, this trailer is designed for heavy-duty performance. Its 3/16" one-piece floor and 10Ga sides, available in heights of 2', 3', and 4', offer versatility for various loads.

The trailer is equipped with a powerful telescopic lift system, ensuring efficient operation. Towing is made effortless with a 2 5/16" adjustable coupler and dual 10k drop-leg jacks, while 6' slide-in ramps facilitate easy loading.

Safety and durability are enhanced with 7k electric brake axles, E-Z lube hubs, and a multi-leaf slipper spring suspension. The trailer's longevity is assured with a sandblasted and powder-coated finish, and it's equipped with lifetime LED lighting and a molded sealed harness, ensuring compliance with DOT standards. 🚛💥

Standard Features

Frame and Structure
Gooseneck	Engineered Gooseneck
Frame	Engineered I Beam Frame
Floor and Sides	7 Gauge one-piece Floor, 10Ga. one-piece Sides (2', 3', 4' Heights)
Crossmembers	3" Structural Channel Crossmembers at 16" Centers
Deck Height	27"
Fenders	Weld On Smooth Fenders
Stake Pockets	For additional cargo securing options
Hitching and Towing
Coupler	2, 5/16" Adjustable Coupler
Jacks	2 side wind spring loaded drop jack legs
Ramps	6' Slide-in Ramps
Bed and Gate Features

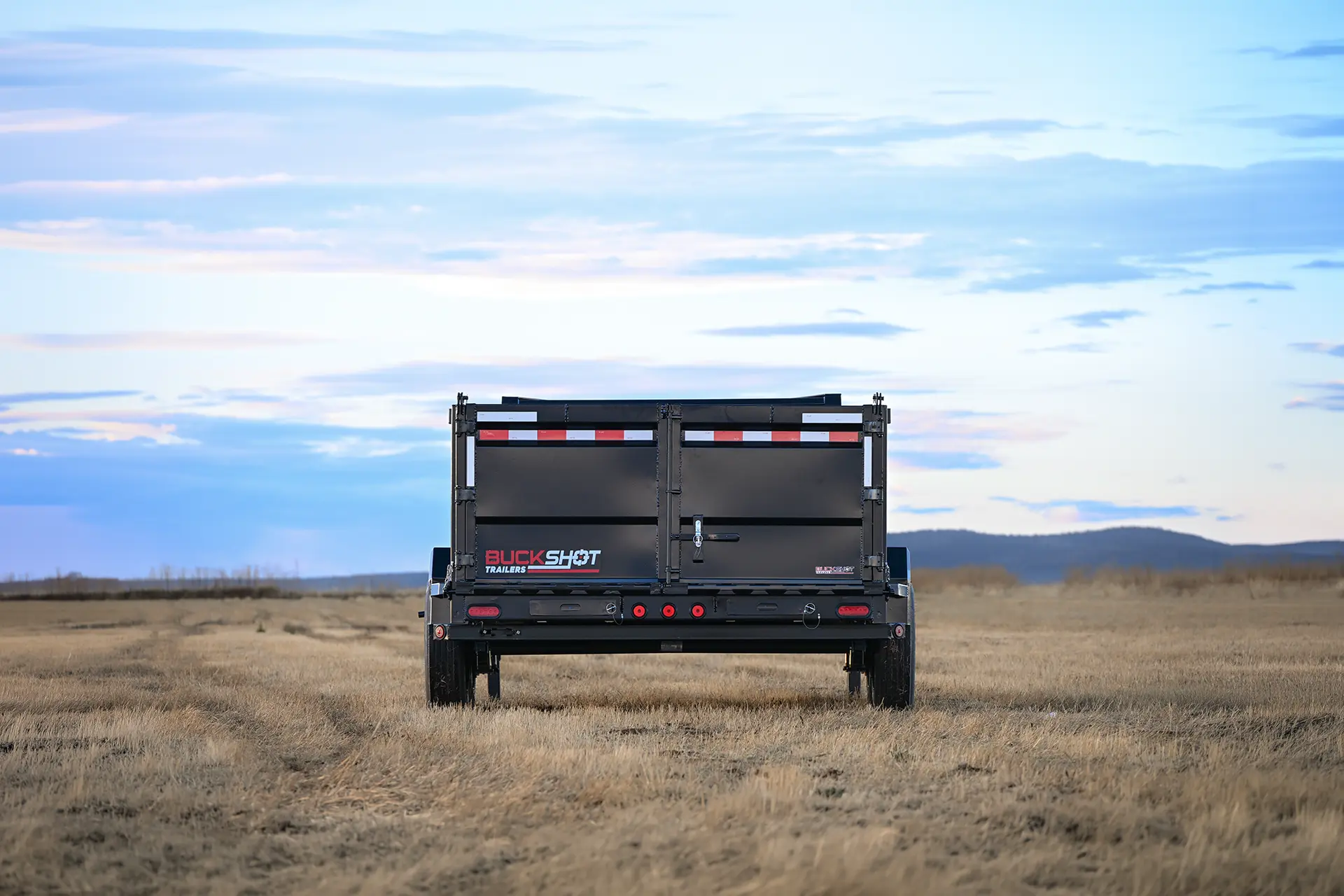

Gate	Three-Way Spreader Gate
Tarp Kit	Standard Retractable Tarp Kit
D-Rings	4 - 5/8" Standard D-Rings
Lifting and Hydraulics
Lift System	Telescopic Cylinder
Pump Unit	KTI Pump Unit
Battery and Charger	Interstate deep Cycle Battery with Built-In 5 amp Battery Charger
Toolbox	Lockable Toolbox housing Battery & Pump
Wheels and Suspension
Axles and Brakes	7k Electric Brake Axles with E-Z Lube Hubs
Suspension	Multi-leaf Slipper Spring Suspension
Tires and Wheels	235/80R16 Radial Tires on Black Mod Wheels
Spare Tire Mount
Electrical and Lighting
Lighting	Lifetime LED Lighting, all DOT Approved
Wiring Harness	Molded Sealed Harness with Resistors
Plug	7-Way Receiver Female Plug with Adapter
Finish and Paint
Finish	Sand Blasted
Paint	Powder Coated
ADD-ON OPTIONS
Tongue
	Hydraulic Jacks (Dual)
	6" Gooseneck Riser
Dump
	24" Side Extensions for 14' Dump
	24" Side Extensions for 16' Dump
	Upgrade to heavy duty ramps
	Upgrade to IronTarp Kit
	Rear Support Legs (Qty. 2) with Pins
Lift System
	Tuff Wireless Remote – 2 Button
	Tuff Wireless Remote – 4 Buttons
Running Gear
	235/80R16 14 Ply (4 Wheels)
	235/80R16 10 Ply with Aluminum Rims (4 Wheels)
	235/80R16 14 Ply with Aluminum Rims (4 Wheels)
	Spare 235/80R16 10 Ply 8-6.5
	Spare 235/80R16 14 Ply 8-6.5
	Aluminum Spare 235/80R16 10 Ply 8-6.5
	Aluminum Spare 235/80R16 14 Ply 8-6.5
	(2) 8K Electric Brake Oil Bath Torsion Axles with 235/80R16 14 Ply Tires (Kit)
	Upgrade to 215/75R17.5 16 Ply (4 Wheels)
	Spare 215/75R17.5 16 Ply 8-6.5
Electrical and Lighting
	Side 5" Ultra Bright LED Pod Flood Lights (2 Pcs)
	Solar Battery Charge – 7.5 Watt Solar Panel
