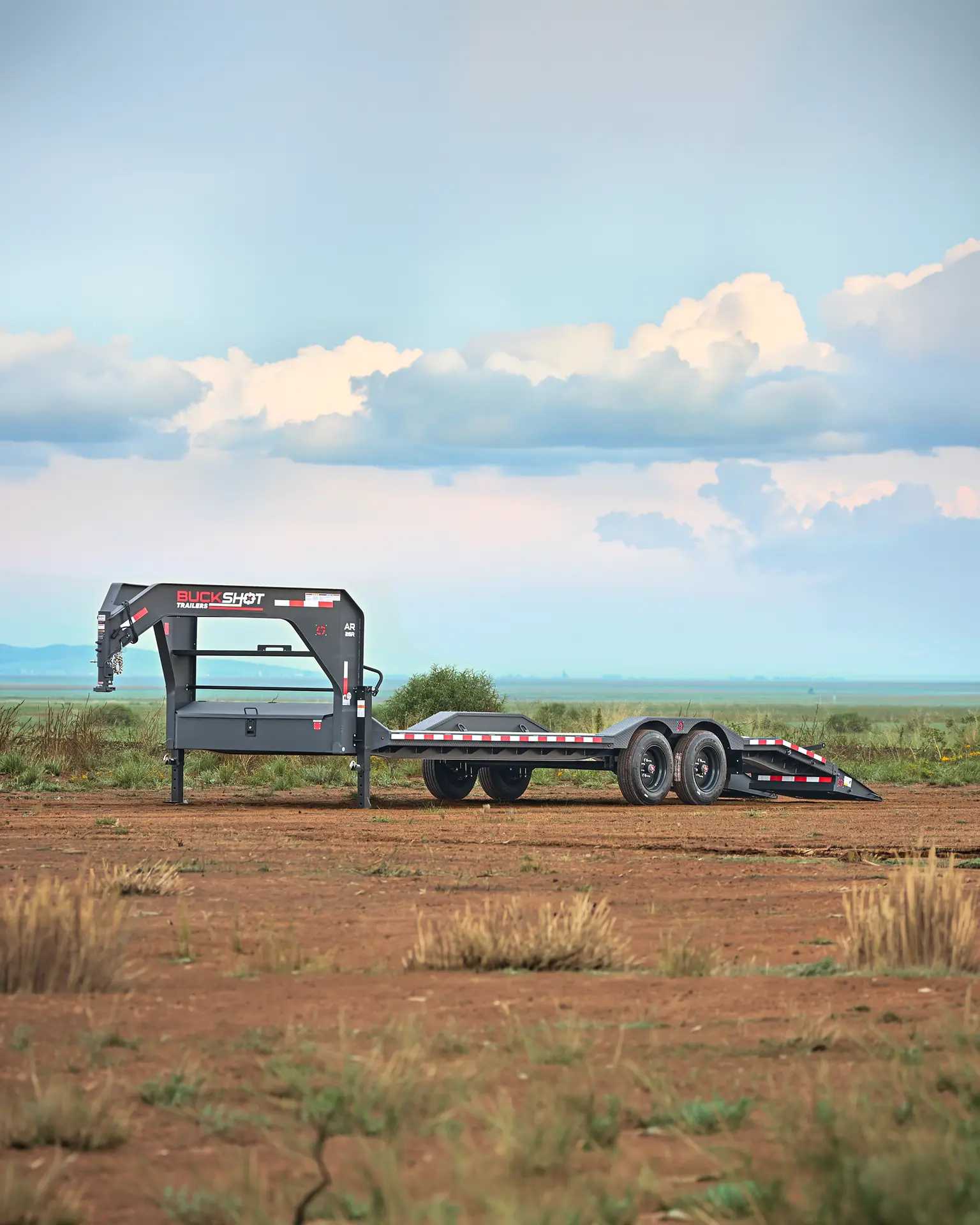

Buckshot AR-R Series gooseneck equipment trailer with tandem 7K axles

AR-R Series

Gooseneck Equipment Trailer with Tandem 7K Axles

Lengths
24-34 FT
Width
102 IN
GVWR
15,400 LBS

Buckshot AR-R Series

Built to haul. Built to last.

Find a Dealer

AR-R Series

Gooseneck Equipment Trailer with Tandem 7K Axles

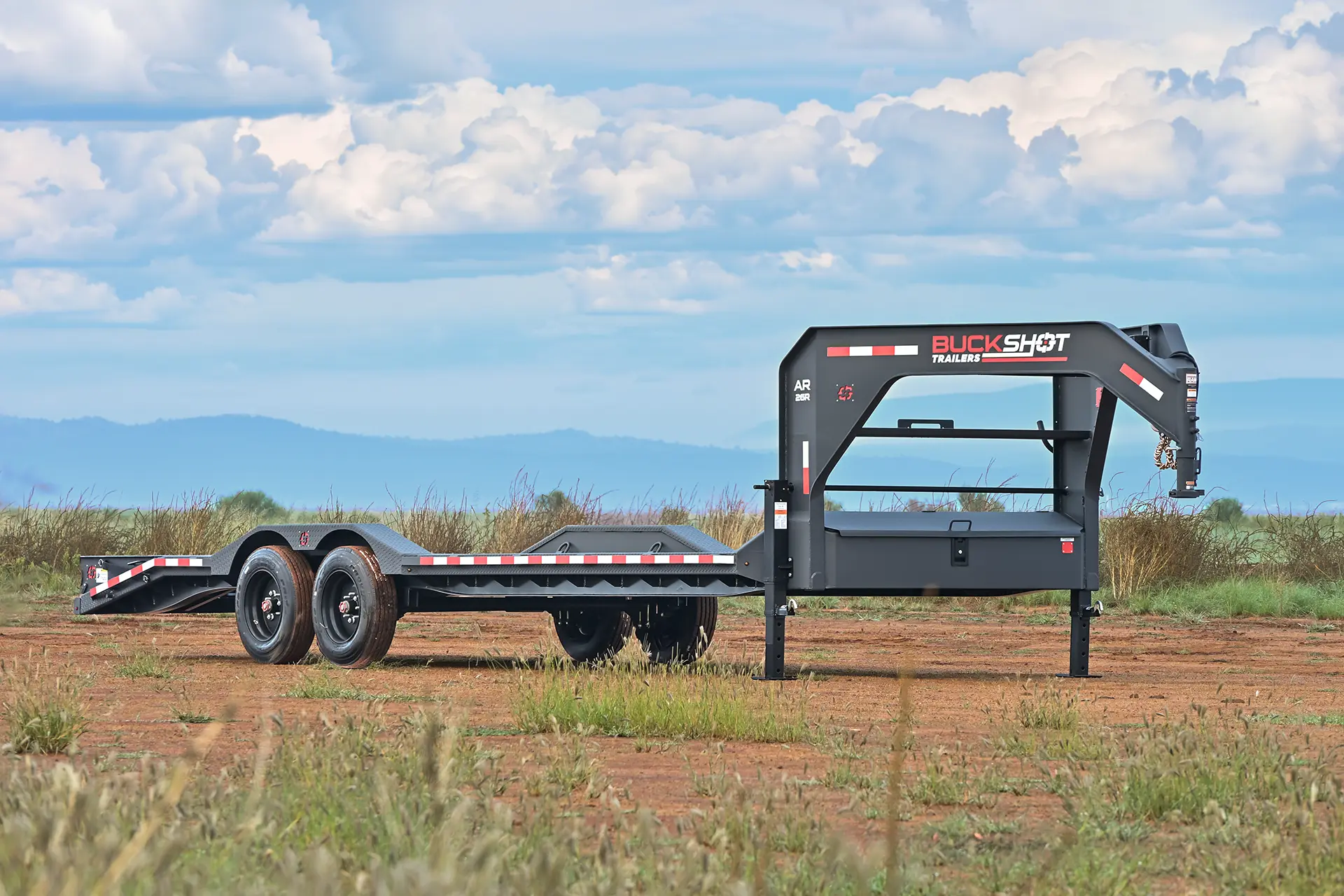

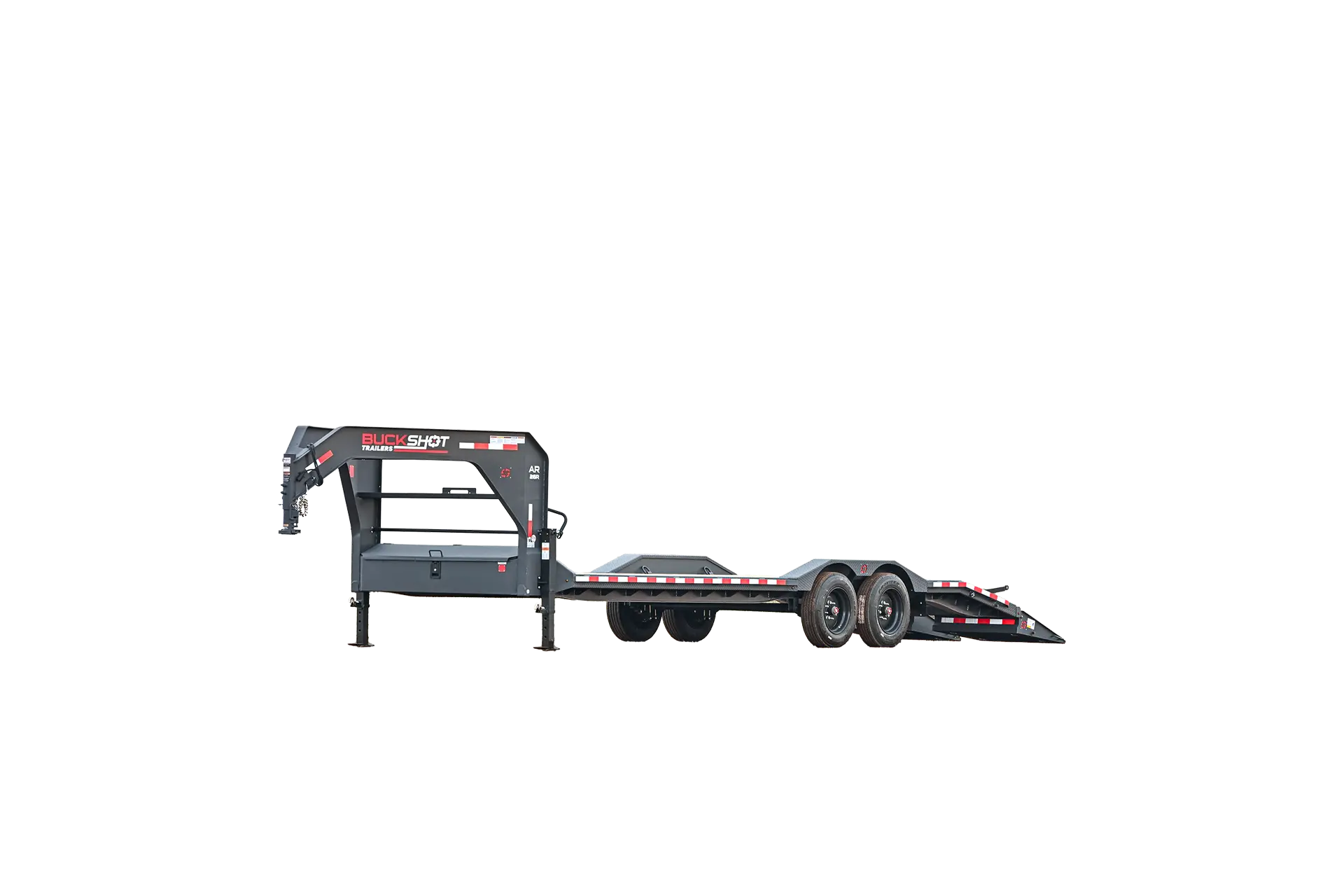

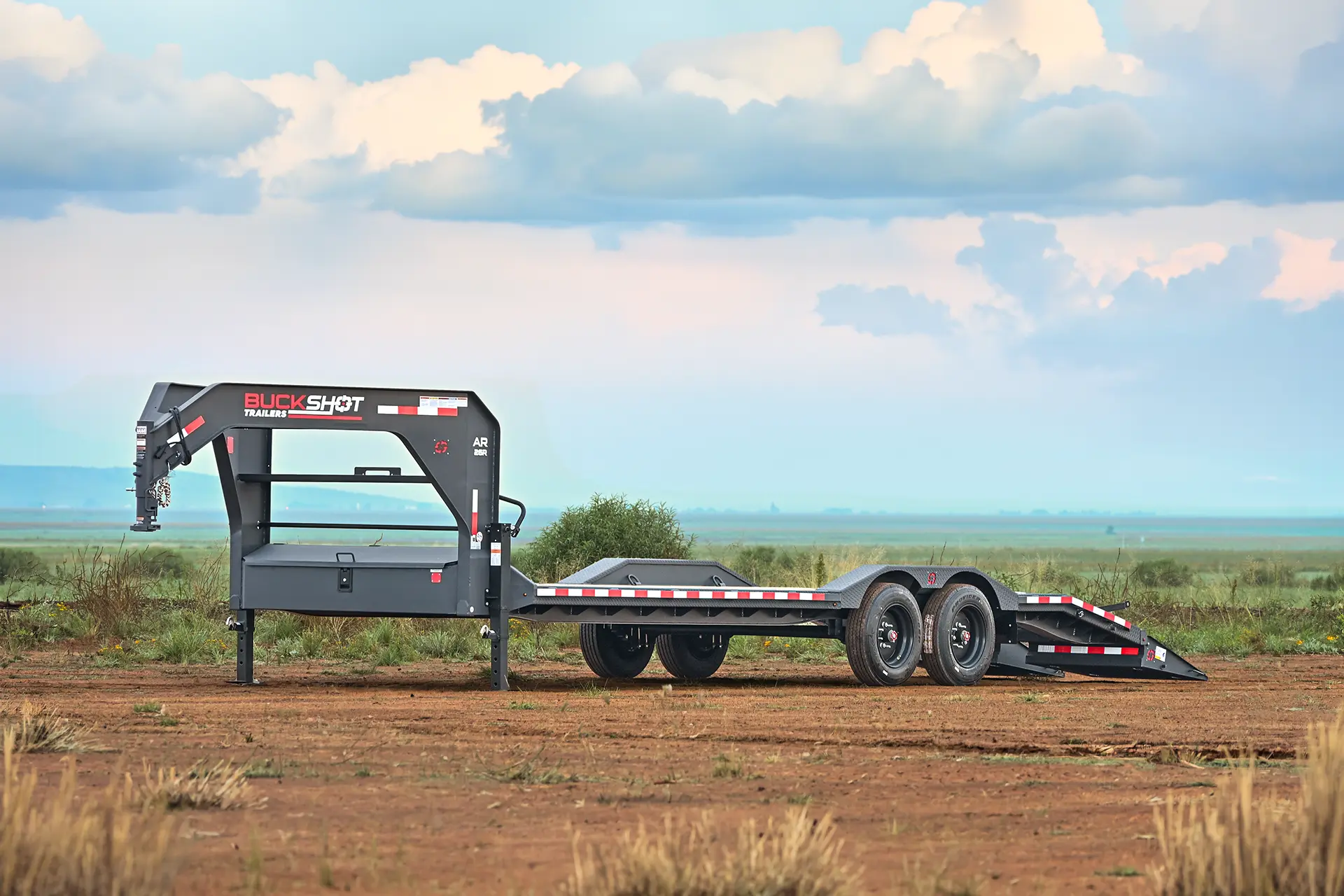

AR-R Series tandem-axle gooseneck equipment trailer represented in GunMetal Gray

AR-R Series

Product Highlights

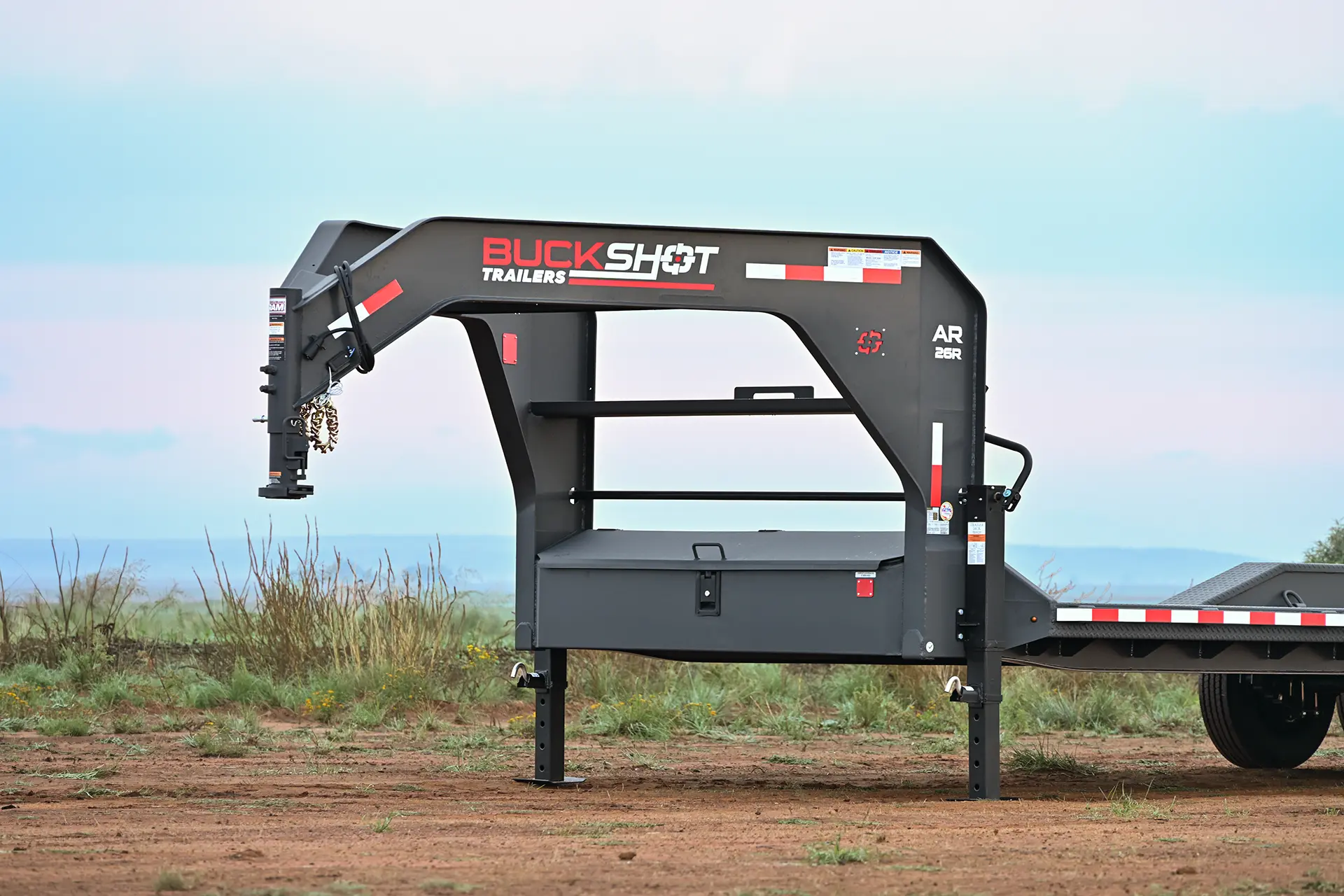

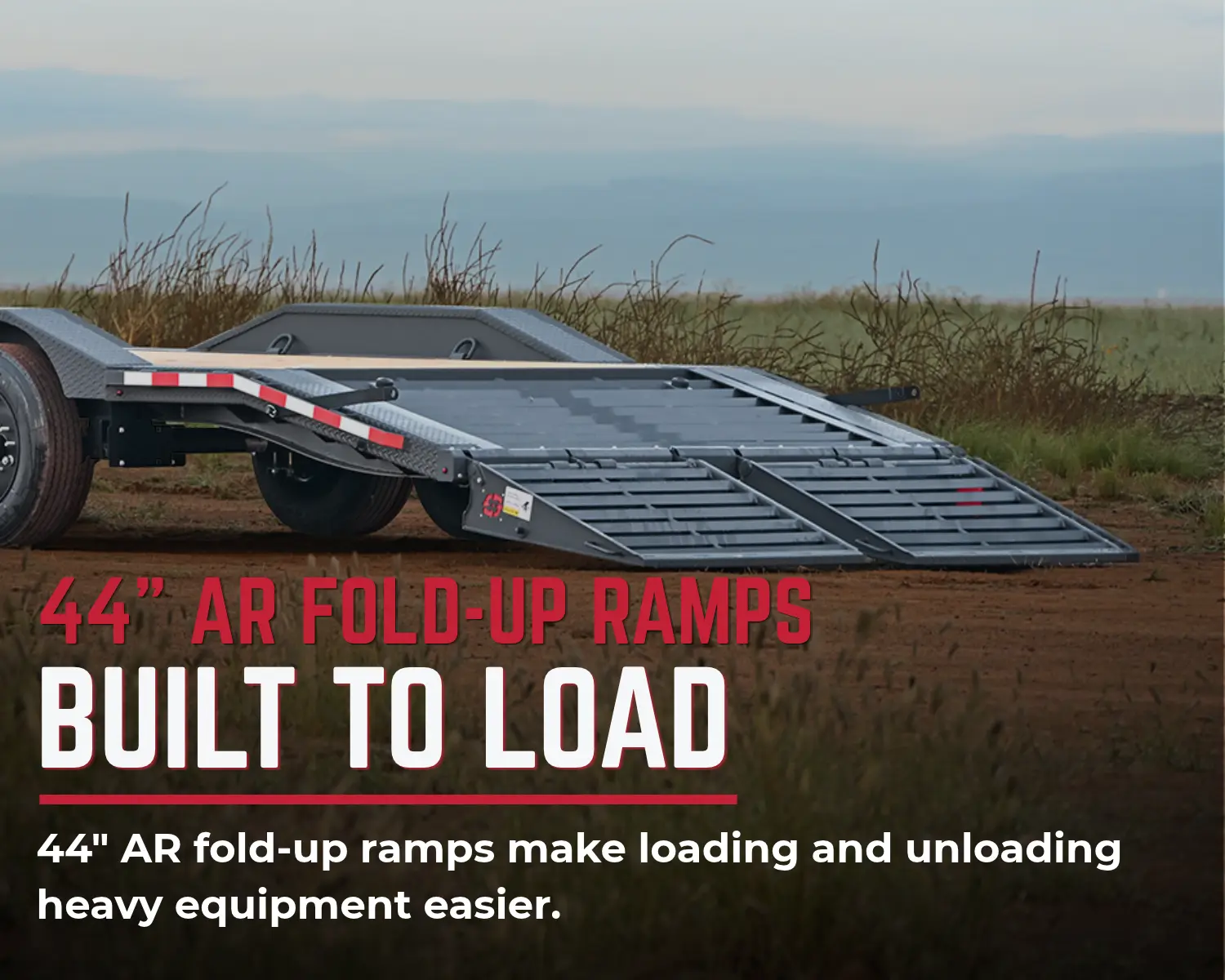

  • AR-R equipment trailer engineered gooseneck and treated-pine deck

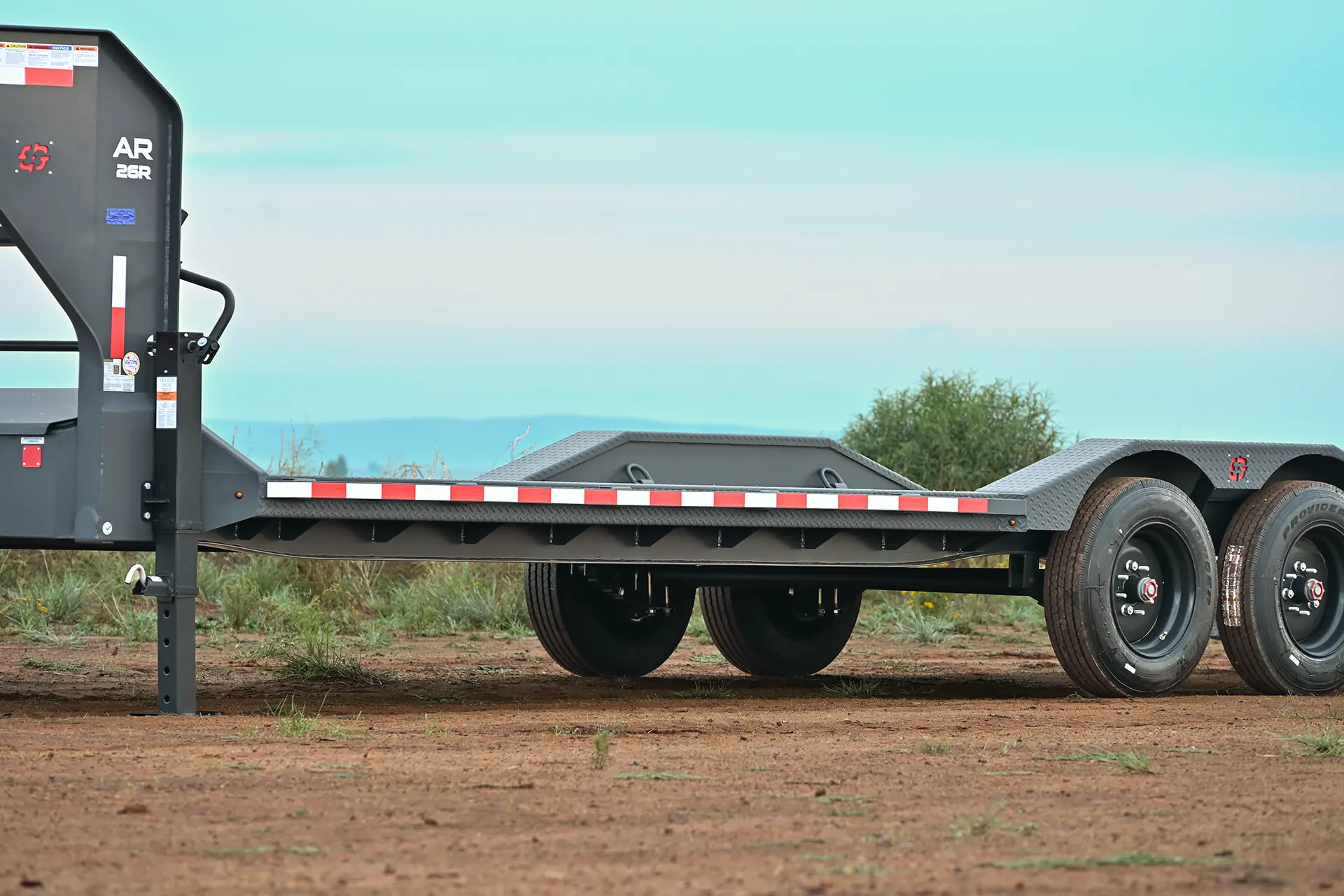

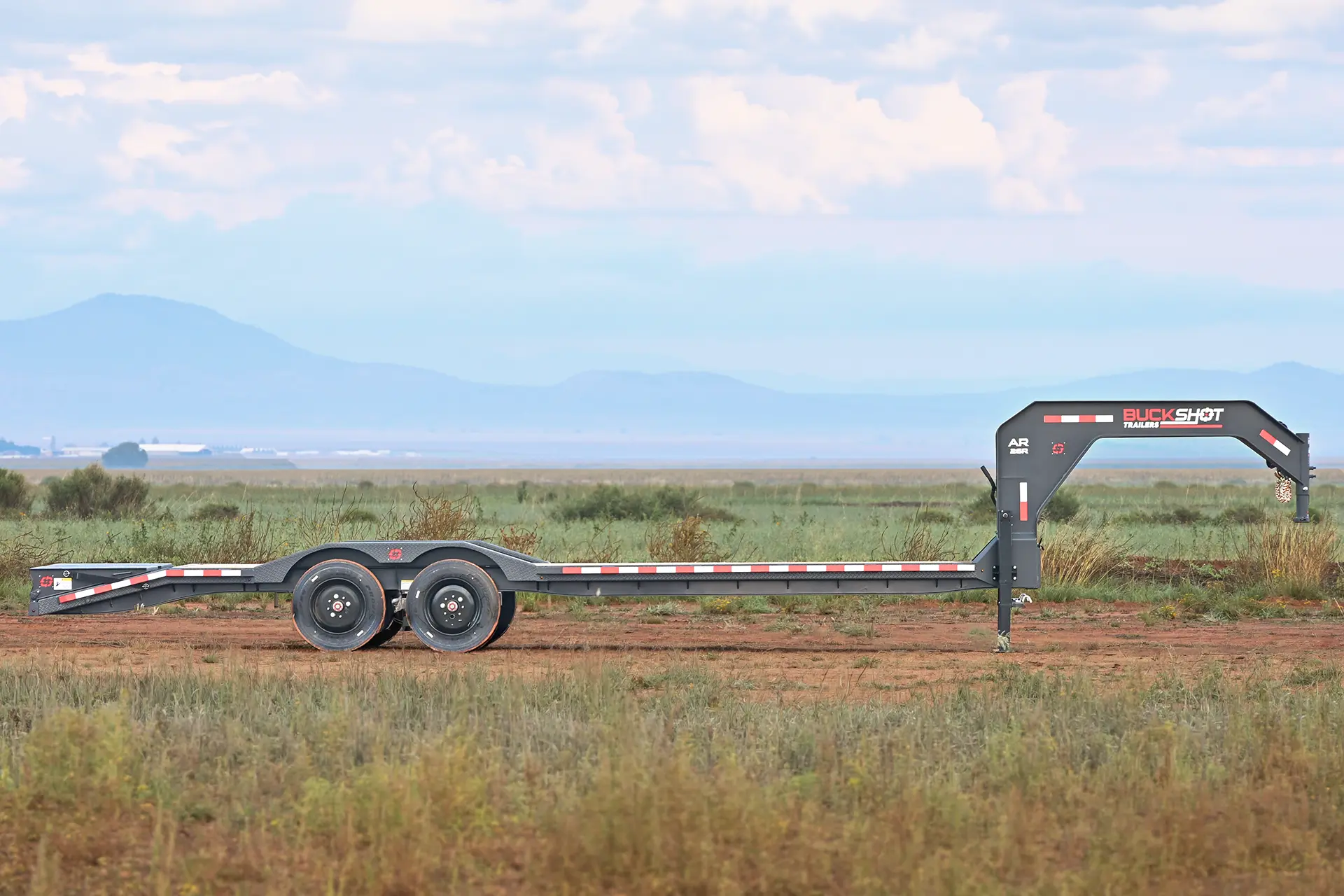

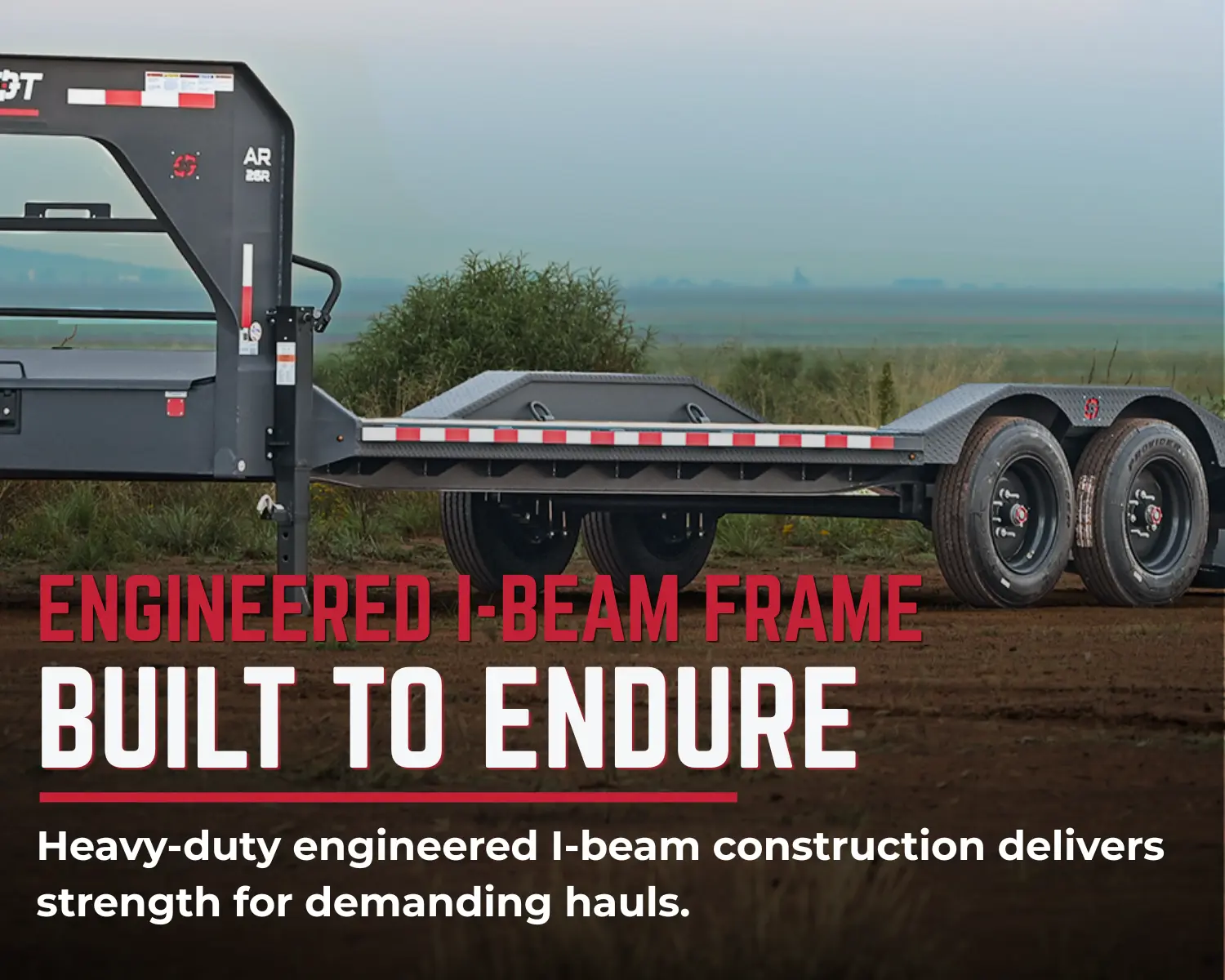

  • AR-R equipment trailer side profile and dual 7K Lippert spring axles

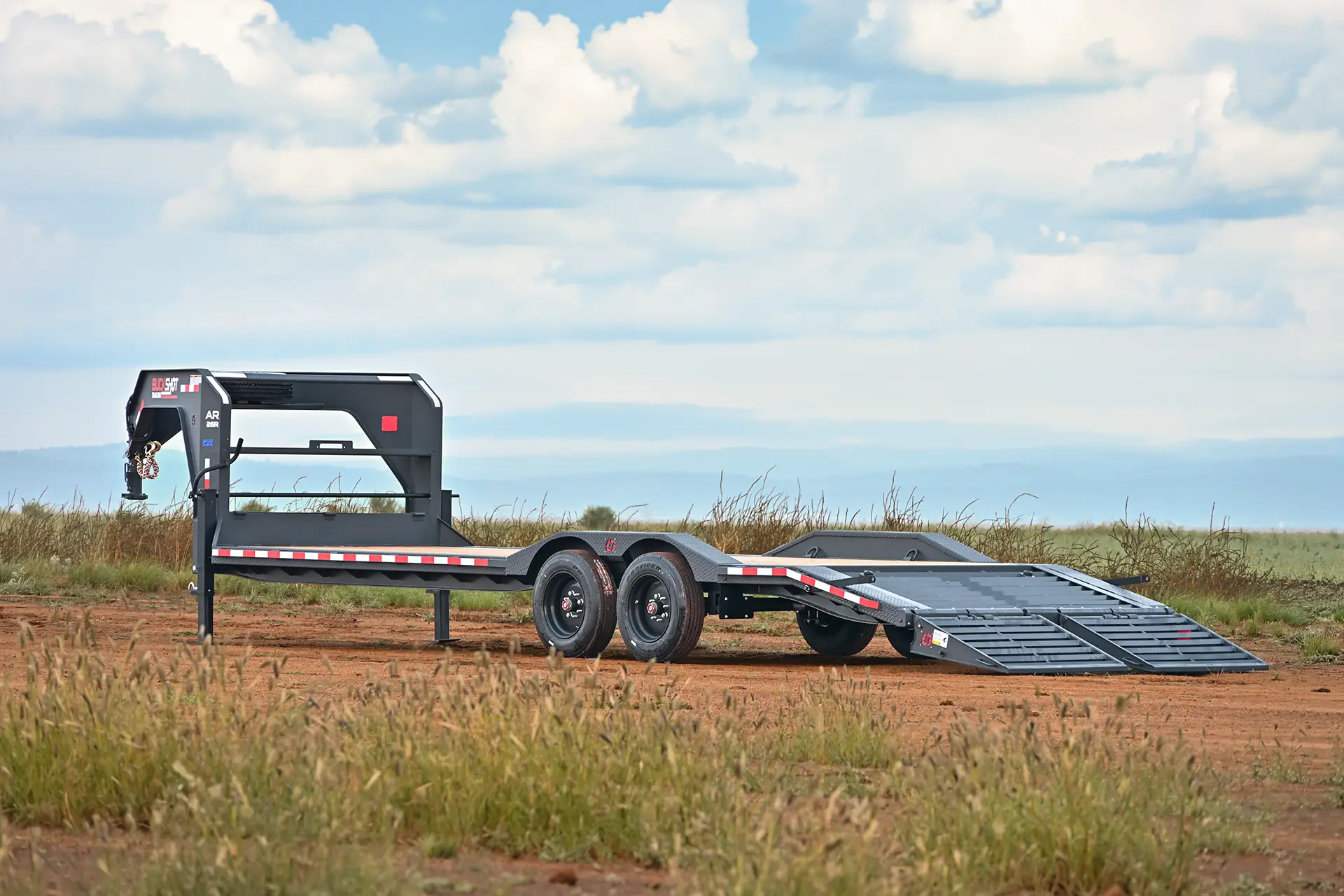

  • AR-R equipment trailer full-width deck and drive-over fenders

AR-R Equipment Trailer – Built for Strength. Designed for Easier Loading!


The AR-R Gooseneck Equipment Trailer from Buckshot Trailers is engineered for dependable heavy-duty hauling, combining rugged construction with practical features designed to make every job easier.

Its heavy-duty engineered I-beam frame and gooseneck provide a solid foundation, while the full 102" deck, diamond plate drive-over fenders, and 44" AR fold-up ramps make loading and transporting equipment more convenient.

Equipped with tandem 7K Lippert torsion axles, electric brakes, dual 12K drop-leg jacks, and a 15,400 lb GVWR, the AR-R delivers the strength and stability needed for demanding work.

Finished with a steel-blasted, powder-coated exterior and equipped with DOT-approved LED lighting, the AR-R is built to perform from the first load to the last mile.

BUCKSHOT BUILT. ROAD READY.


Standard Features


Frame and Structure

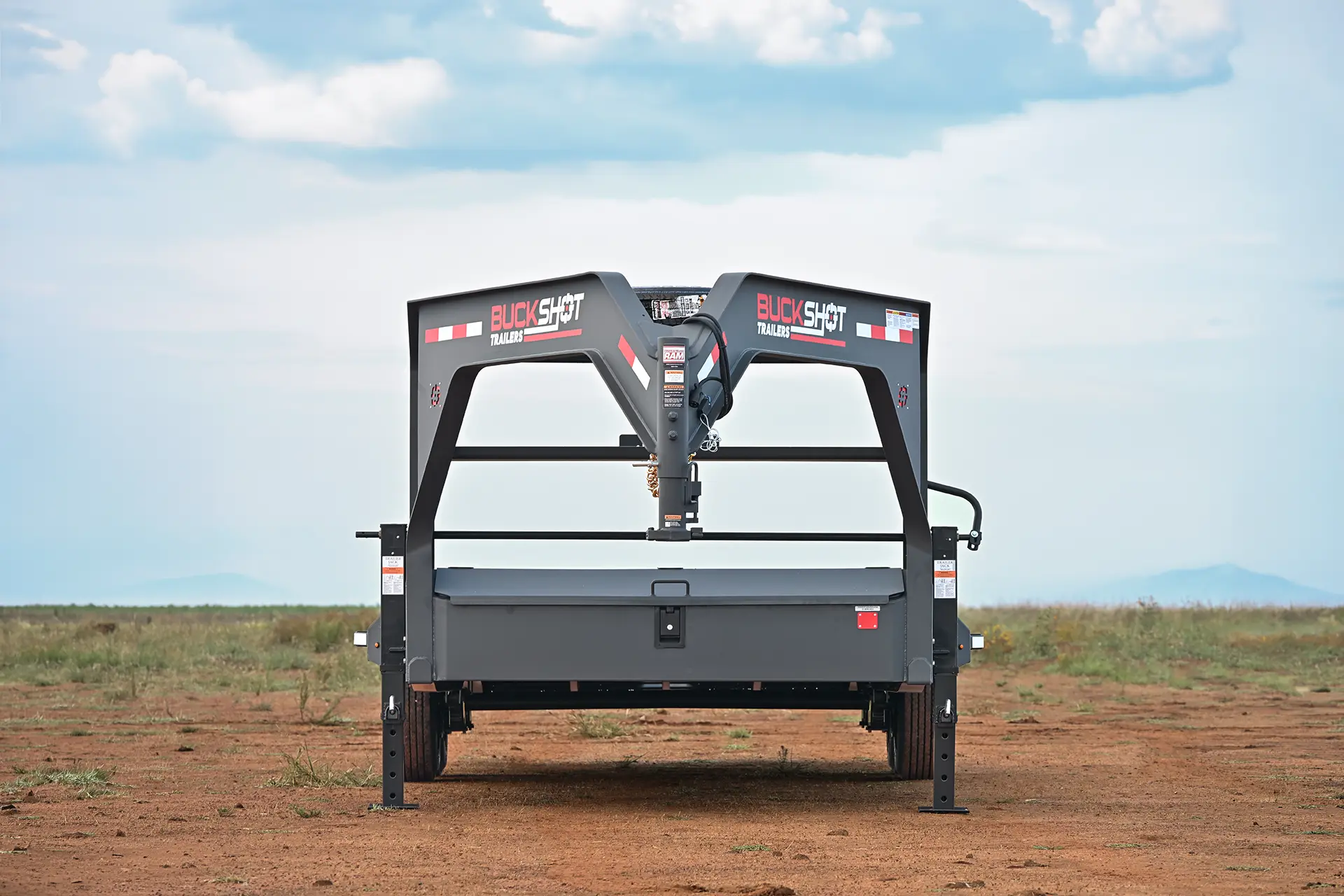

Gooseneck Engineered Beam Gooseneck
Main Frame 8" Engineered I-Beam with 10"–14" Belly
Flooring 2" × 8" Treated Pine Lumber Deck
Crossmembers 3" Structural Channel at 16" Centers
Deck Height 27"
Deck Width 102" with Diamond Plate Drive-Over Fenders

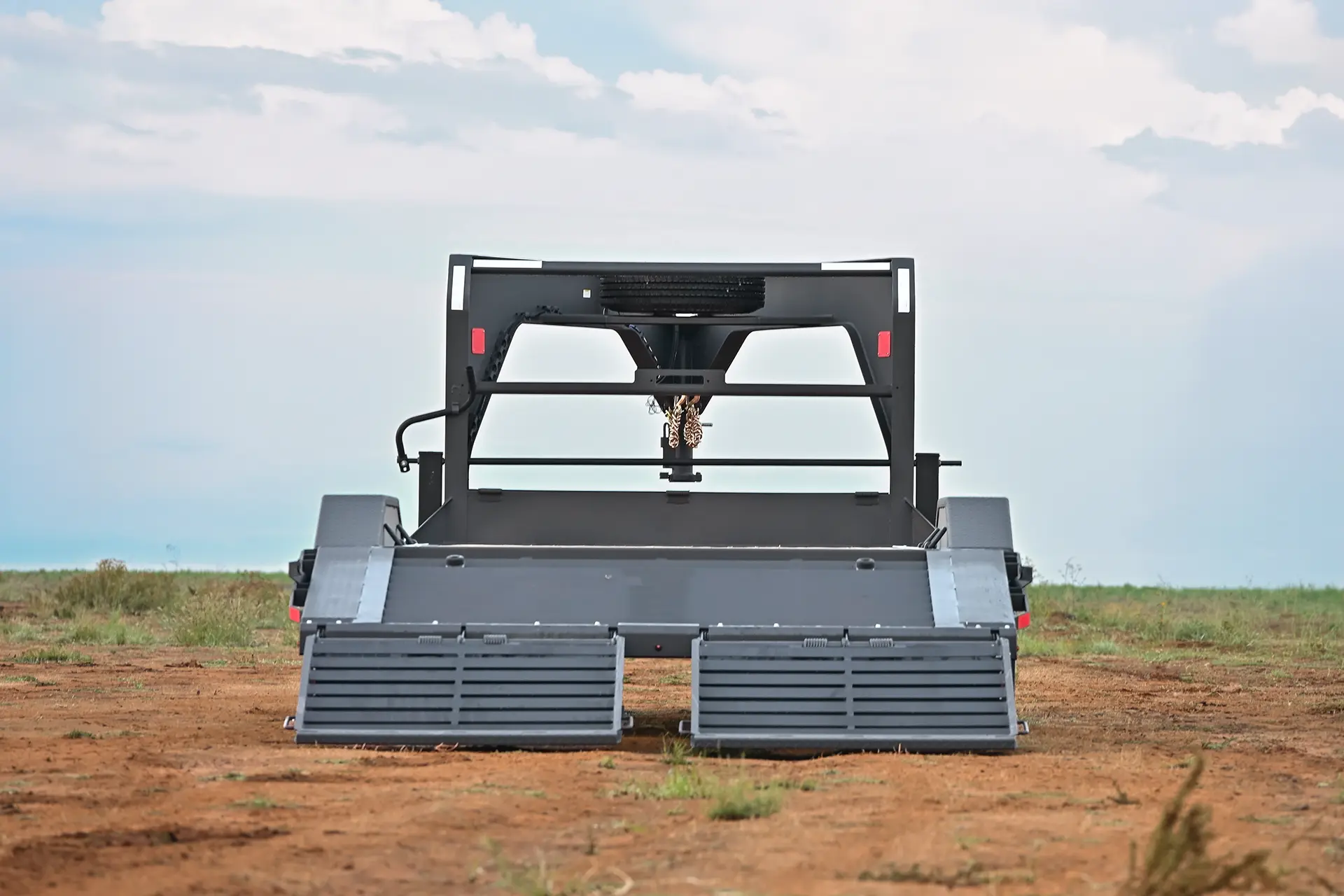

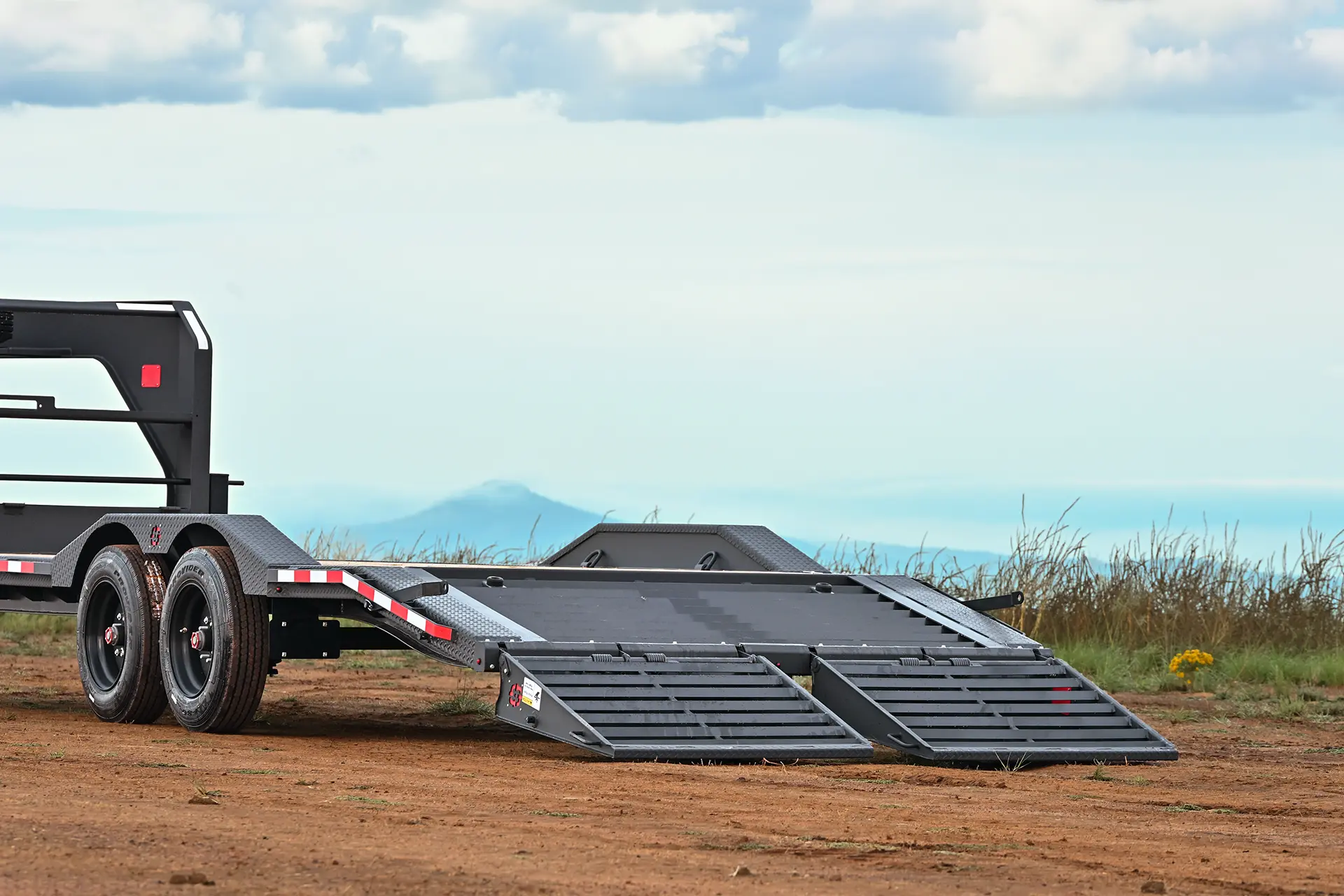

Ramps 44" AR Fold-Up Ramps
Hitching and Towing
Coupler Adjustable 2-5/16" Gooseneck Coupler – 30,000 lbs
Jacks 2 Side-Wind Spring-Loaded Drop-Leg Jacks – 12,000 lbs Each
Safety Chains 2 × 3/8" Grade 70 with Clevis Hooks
Toolbox Built-In Lockable Toolbox
Winch Plate Included (Winch Not Included)
Wheels and Suspension
Axles 2 × 7K Lippert Torsion Axles
Brakes Electric Brakes
Suspension Torsion Suspension
Tires and Wheels ST235/80R16 10-Ply Tires on 16" Black Mod Wheels
Spare Tire Mount Weld-On Spare Tire Mount (Spare Not Included)
Electrical and Lighting
Lighting DOT-Approved LED Lighting
Wiring Harness All-Weather-Proof Wiring Harness
Plug 7-Way RV Connection
Finish and Paint
Finish Steel Blasted
Paint Powder Coated

Gallery

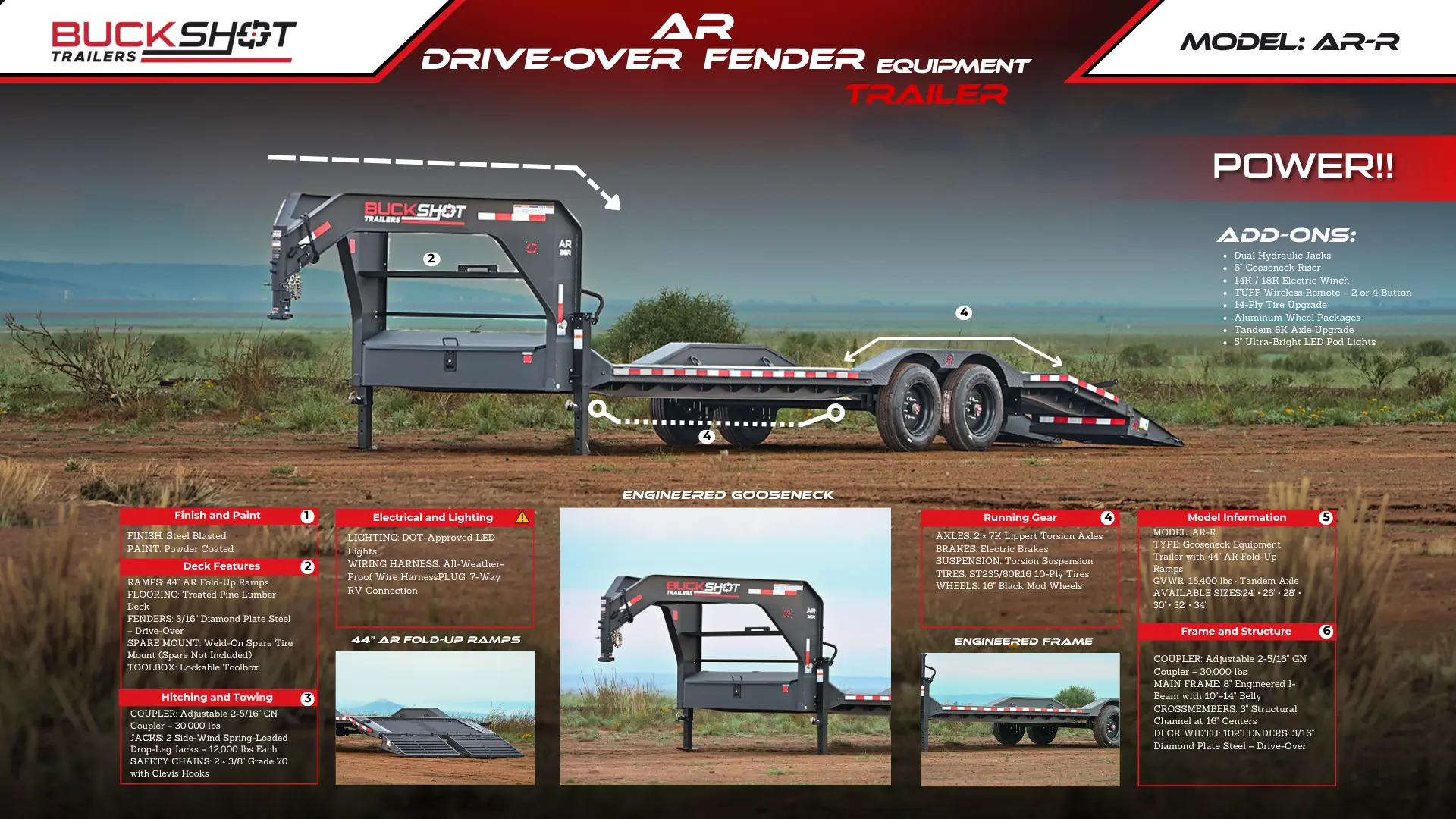

Brochure
