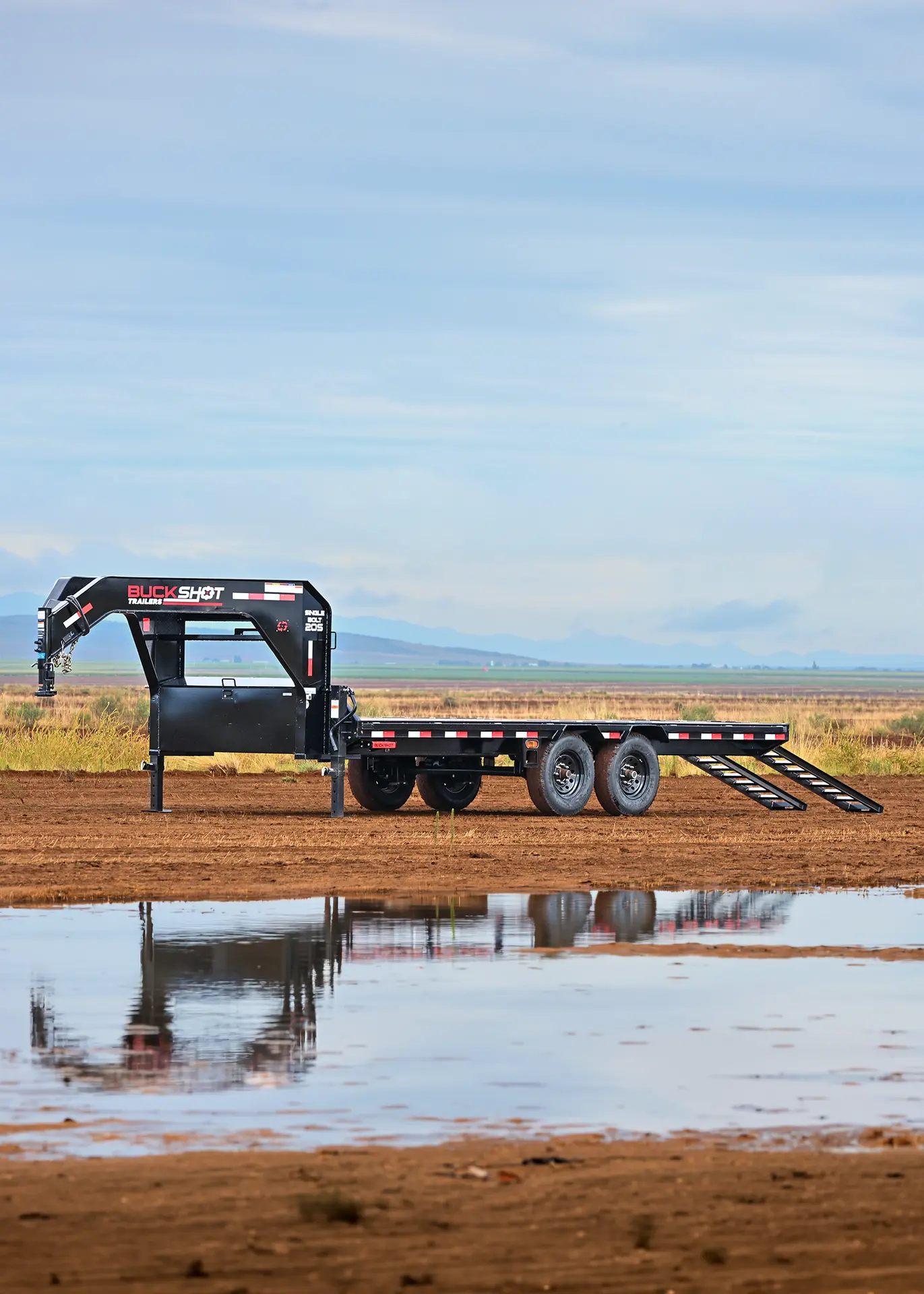

Buckshot SINGLE BOLT Series gooseneck deckover trailer

SINGLE BOLT Series

Gooseneck Deckover with Dual 7K Axles

Lengths
20–40 FT
Width
102 IN
GVWR
14,000 LBS

Buckshot SINGLE BOLT Series

Built to haul. Built to last.

Find a Dealer

SINGLE BOLT Series

Engineered Gooseneck Deckover Trailer with Dual 7K Axles

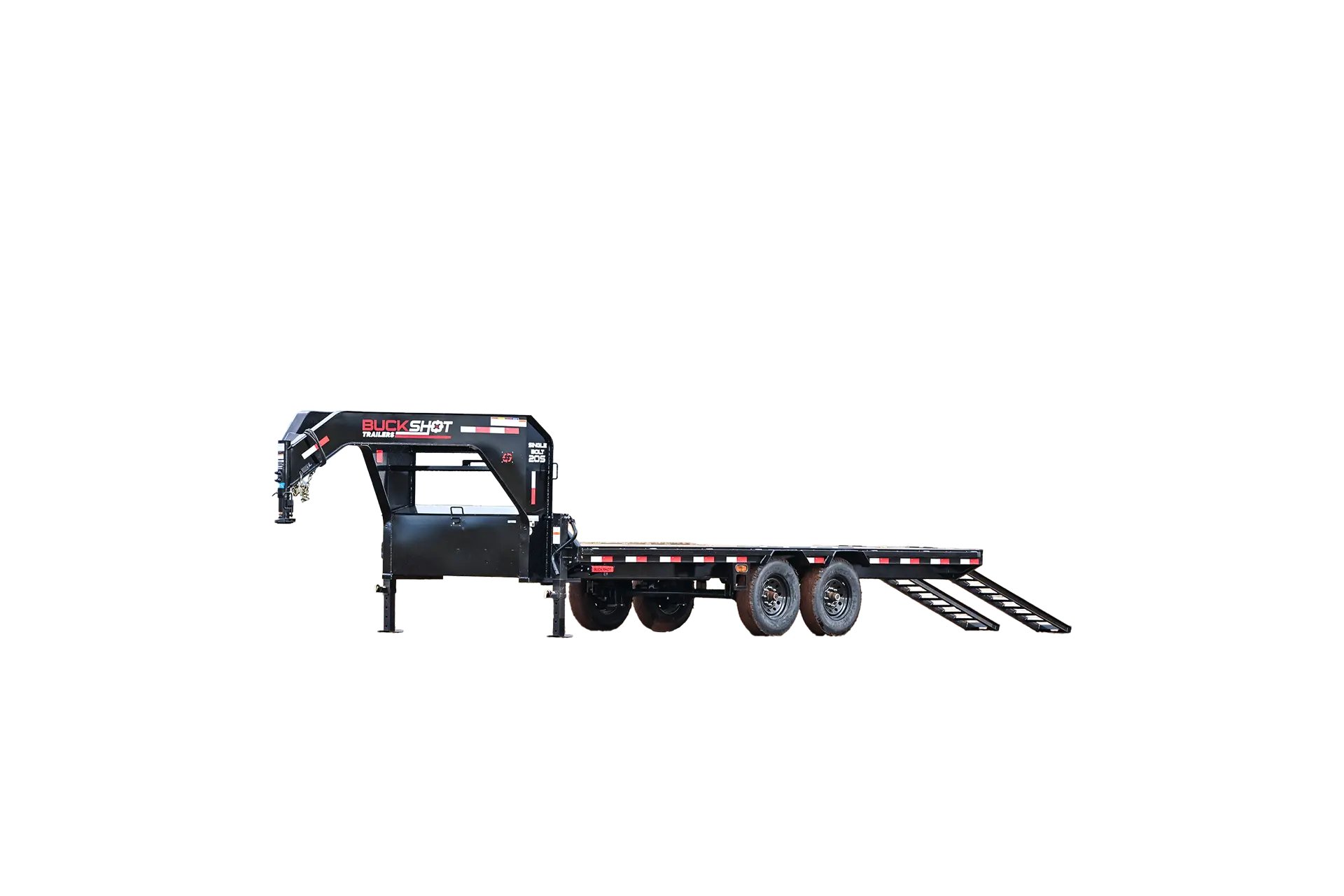

SINGLE BOLT Series gooseneck deckover trailer represented in Mirror Black

SINGLE BOLT Model Line

Product Highlights

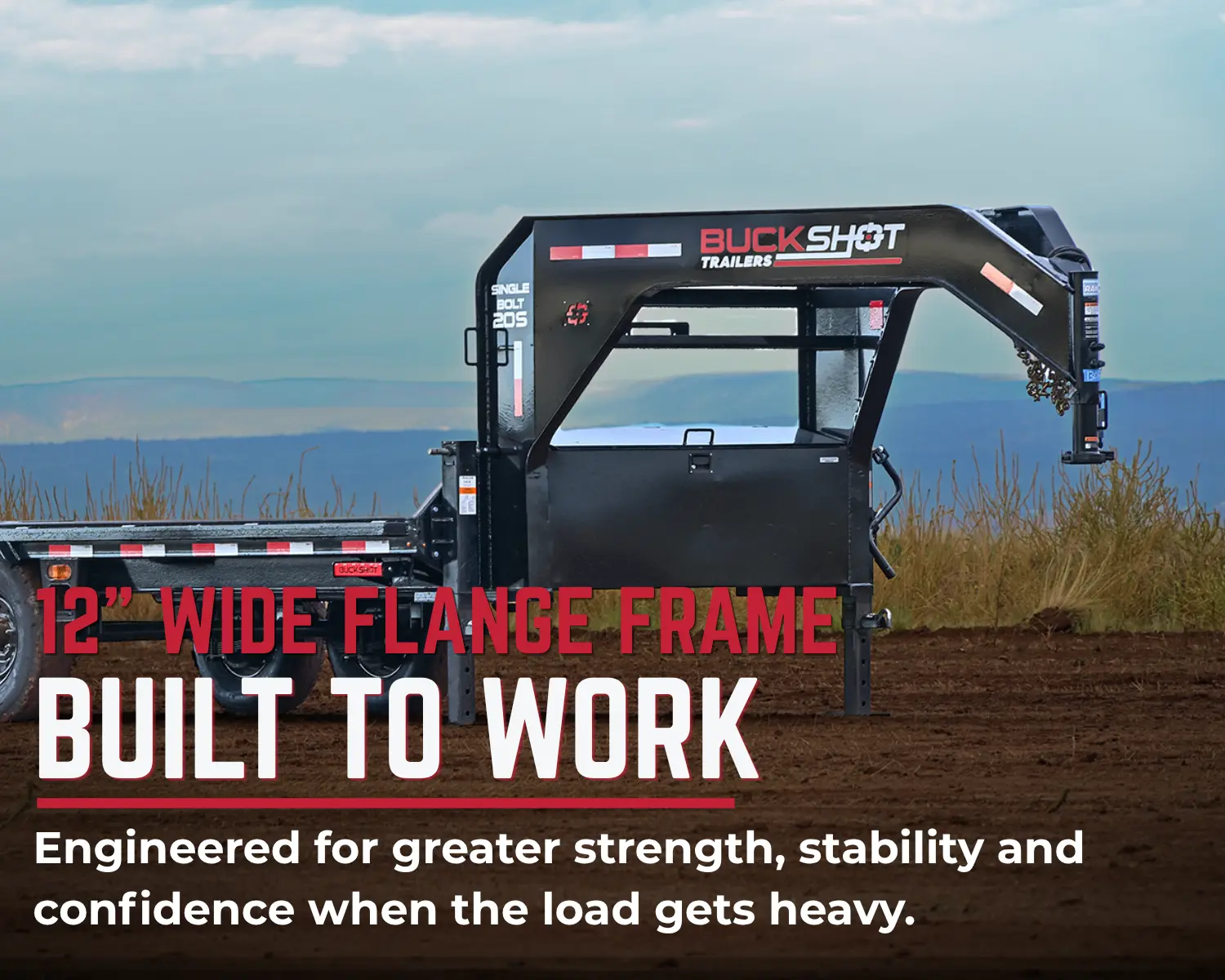

  • SINGLE BOLT gooseneck deckover trailer product feature

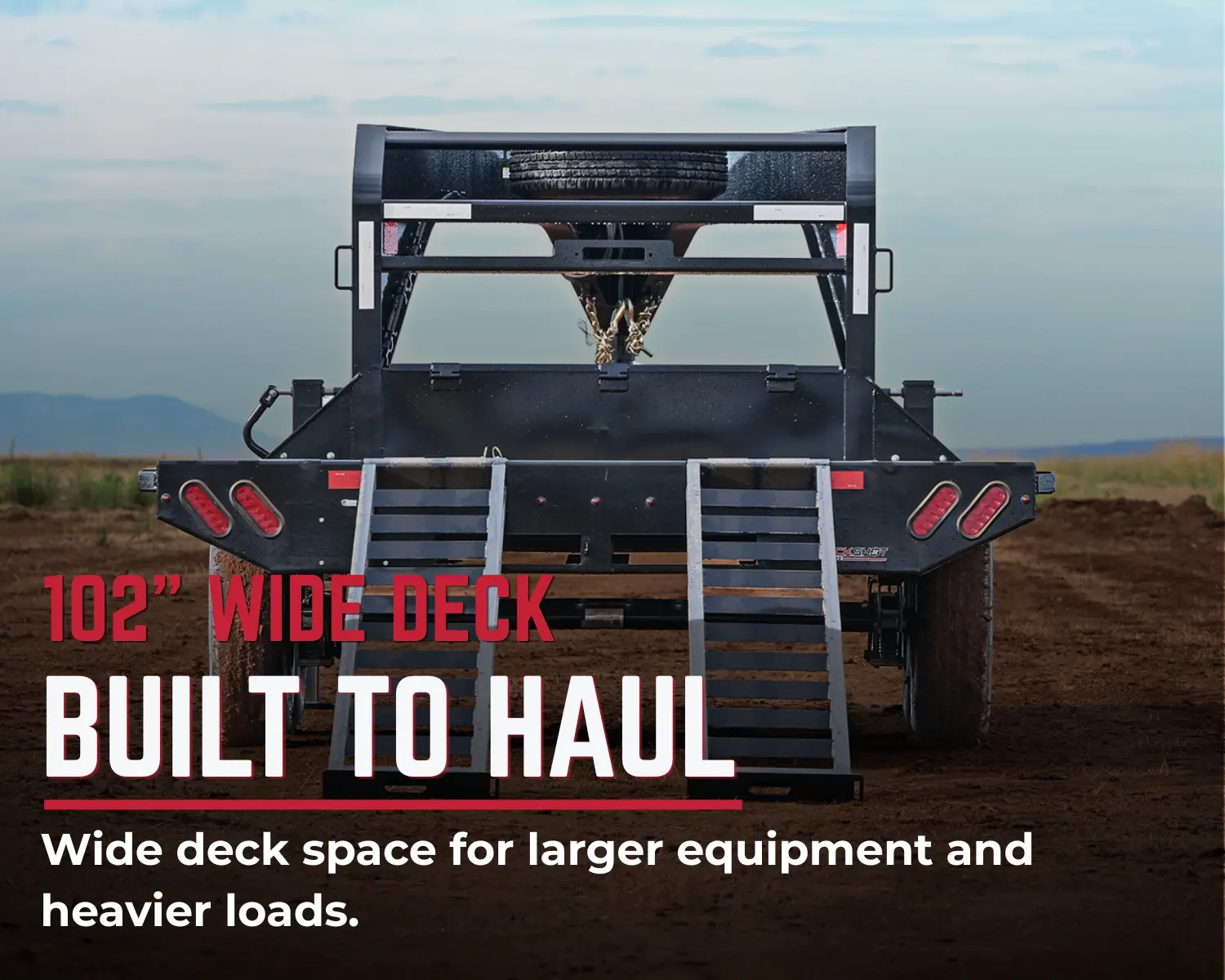

  • SINGLE BOLT deckover trailer construction detail

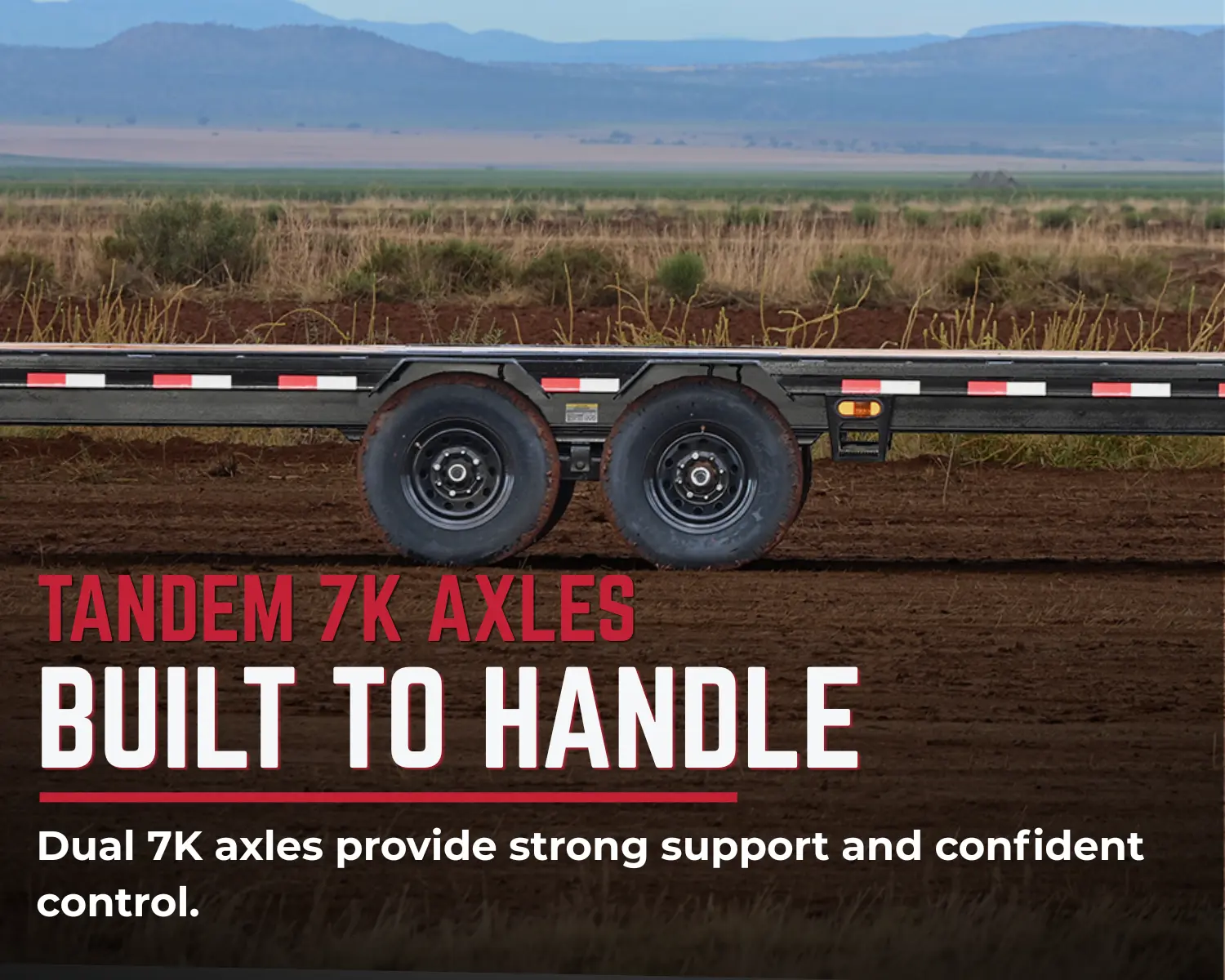

  • SINGLE BOLT deckover trailer equipment detail

Buckshot Single Bolt Trailer – Strength, Stability, and Versatility for Demanding Loads!

🚛💪 Introducing the Buckshot Single Bolt Trailer, a pinnacle of strength and functionality in the trailer industry. Constructed with an engineered beam gooseneck and a robust 12" (14 lbs/ft) wide flange beam frame, this trailer is designed to provide unparalleled stability and support for a variety of loads. Its deck, standing at a height of 34", is complemented by a durable 2x8 treated pine lumber floor, ensuring a solid foundation for your cargo. 🔧 The trailer's versatility is further enhanced with options of 5' X 42" wide fold-up ramps or a straight deck with 8' slide-in ramps, accompanied by front and middle steps for easy access. For secure hauling, it features rub rail, stake pockets, and pipe spools, while the towing experience is streamlined with a 25K 2,5/16" adjustable coupler and dual 10k drop-leg jacks. Road performance is assured with 7k electric brake axles, multi-leaf spring suspension, and 235/80R16 10 ply radial tires on 16X6 black mod steel wheels. Additionally, the trailer is equipped with lifetime LED lighting, a molded sealed harness, and a 7-way receiver female plug with an adapter, all conforming to DOT approvals. Sandblasted and powder coated for longevity, this Deckover Trailer is your reliable partner for transporting heavy loads with confidence and ease!

Standard Features


Weight Ratings
GVWR 15,400 lbs
Frame and Structure
Gooseneck Engineered Neck
Main Frame 12" I-Beam – 14 lbs/ft
Torque Tube 30' and Up Only
Crossmembers 3" Channel (3.50 lbs/ft) – 16" Spacing
Deck
Deck Straight Deck
Deck Width 102"
Flooring Pine Lumber Floor
Sides 2" Rub Rail with Stake Pockets
Hitching and Towing
Coupler Adjustable 2-5/16" GN Coupler – 30,000 lbs
Jacks 2 Side Wind Spring Loaded Drop Jack Legs – 12,000 lbs
Safety Chains 3/8" Grade 70 with Clevis Hooks – 2
Toolbox Lockable Toolbox
Spare Tire Mount Weld-On Spare Tire Mount – Spare Not Included
Wheels and Suspension
Axles 2 – 7K Electric Brake EZ-Lube Spring Axles
Suspension Slipper Springs
Tires ST235/80R16 10-Ply – 3,520 lbs Each
Bolt Pattern 8 on 6.5"
Wheels 16" Black Mod Wheels
Electrical and Lighting
Lights DOT Approved LED Lights
Wiring All Weather Proof Wire Harness – 7-Way RV
Finish and Paint
Finish Steel Blasted and Powder Coated
Warranty
Structural 3 Years
Paint 1 Year

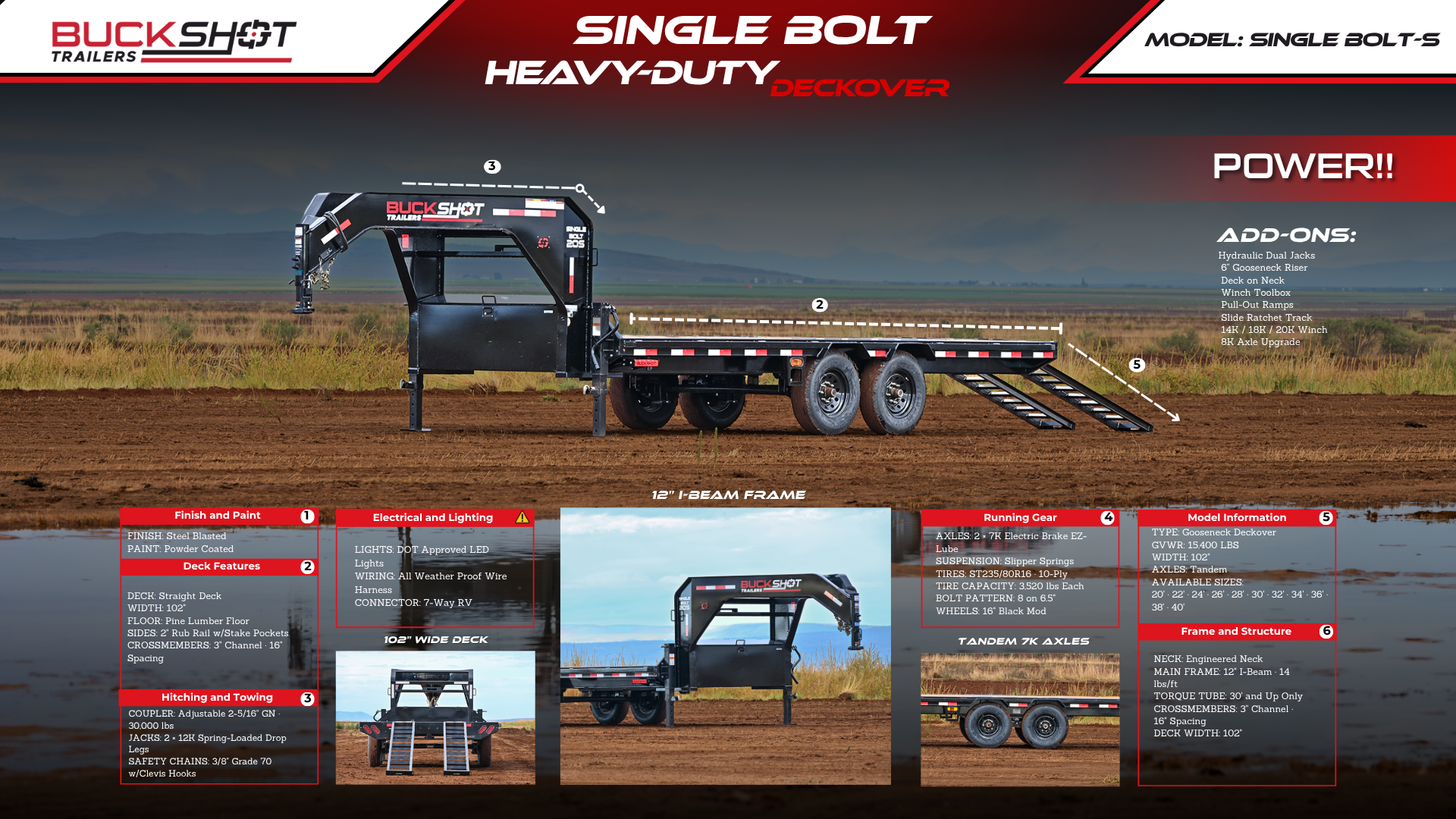

Brochure


Brochure Link
