LPF Series

Bumper Pull Dump Trailer · 10–12 FT · 10,400 LB GVWR

Lengths

10–12 FT

Side Heights

2–4 FT

Available Heights

GVWR

10,400 LBS

Buckshot LPF Series

Built to haul. Built to last.

Find a Dealer

LPF Series

Bumper Pull Dump Trailer · 10–12 FT · 10,400 LB GVWR

Gunmetal Gray

Lengths

10–12FT

Side Heights

2–4FT

Available Heights

Axle Count

GVWR

10,400LBS

Width

70IN

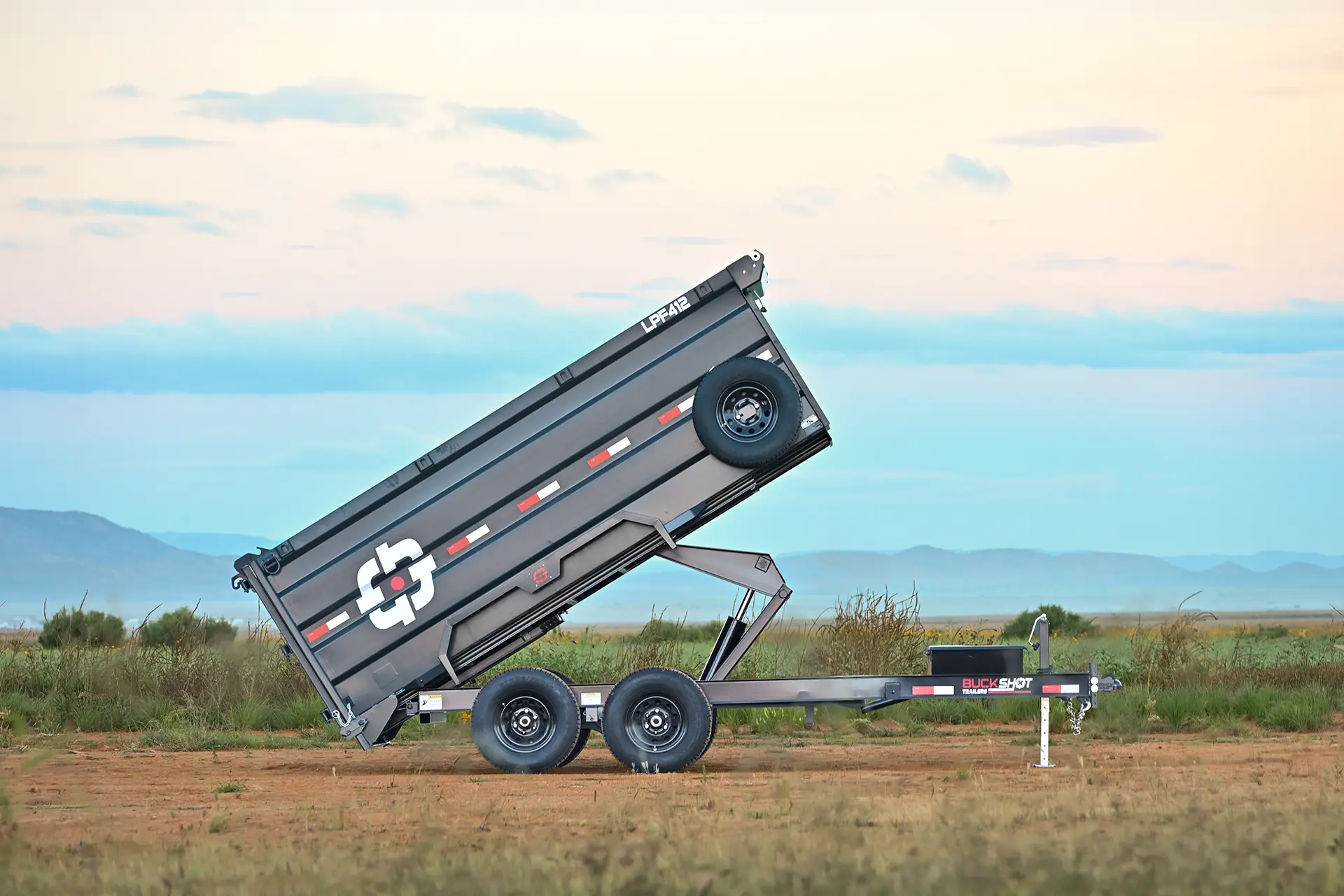

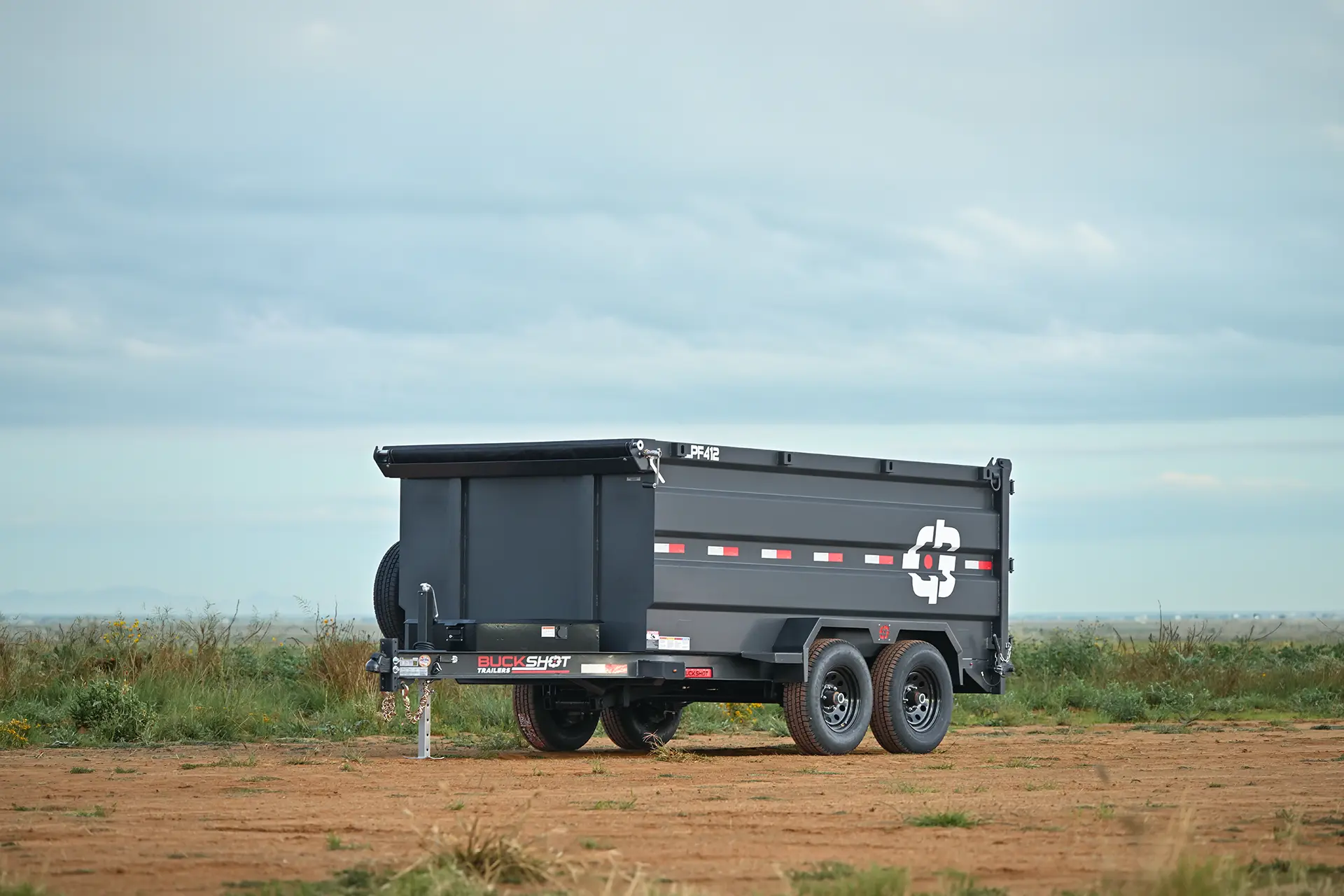

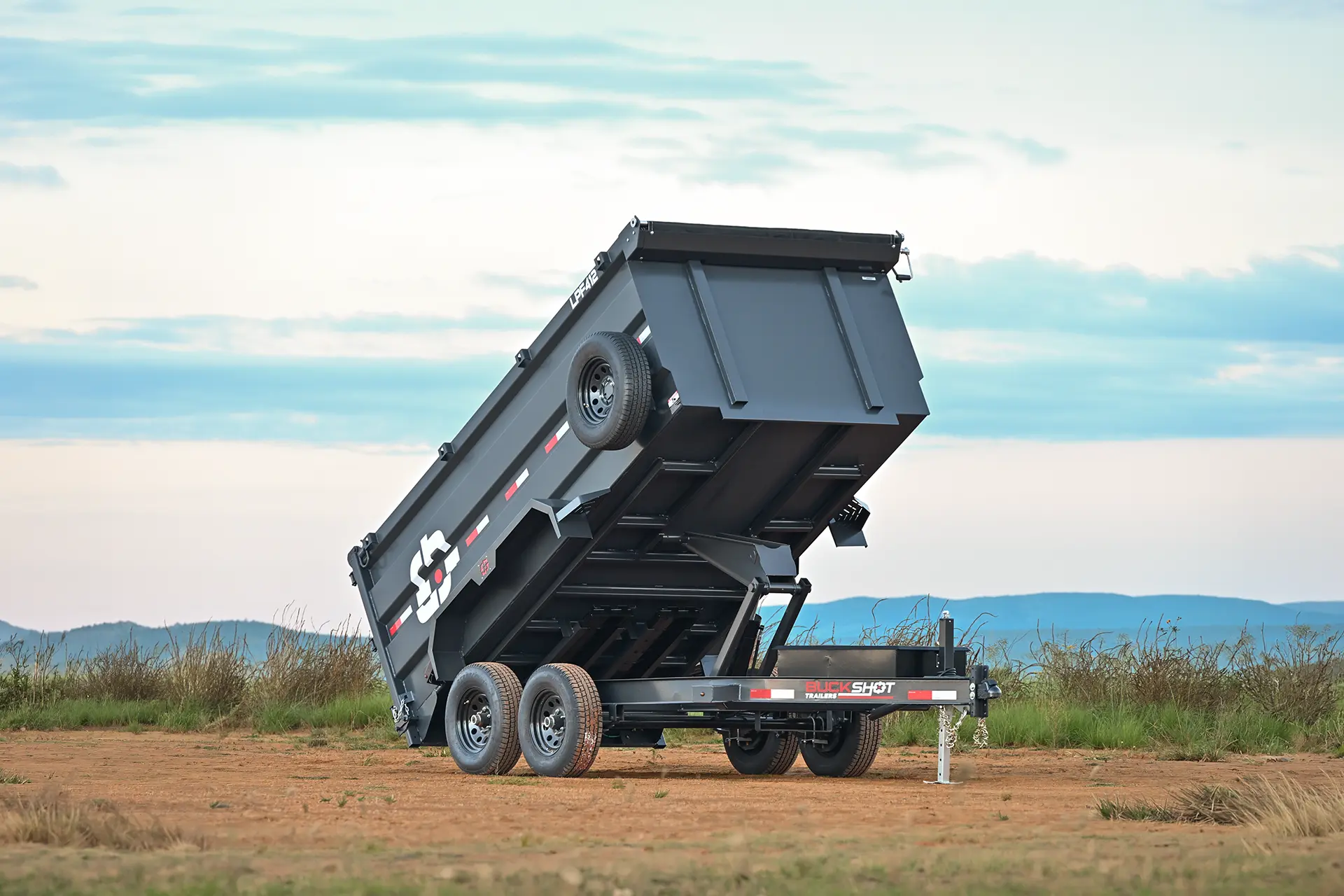

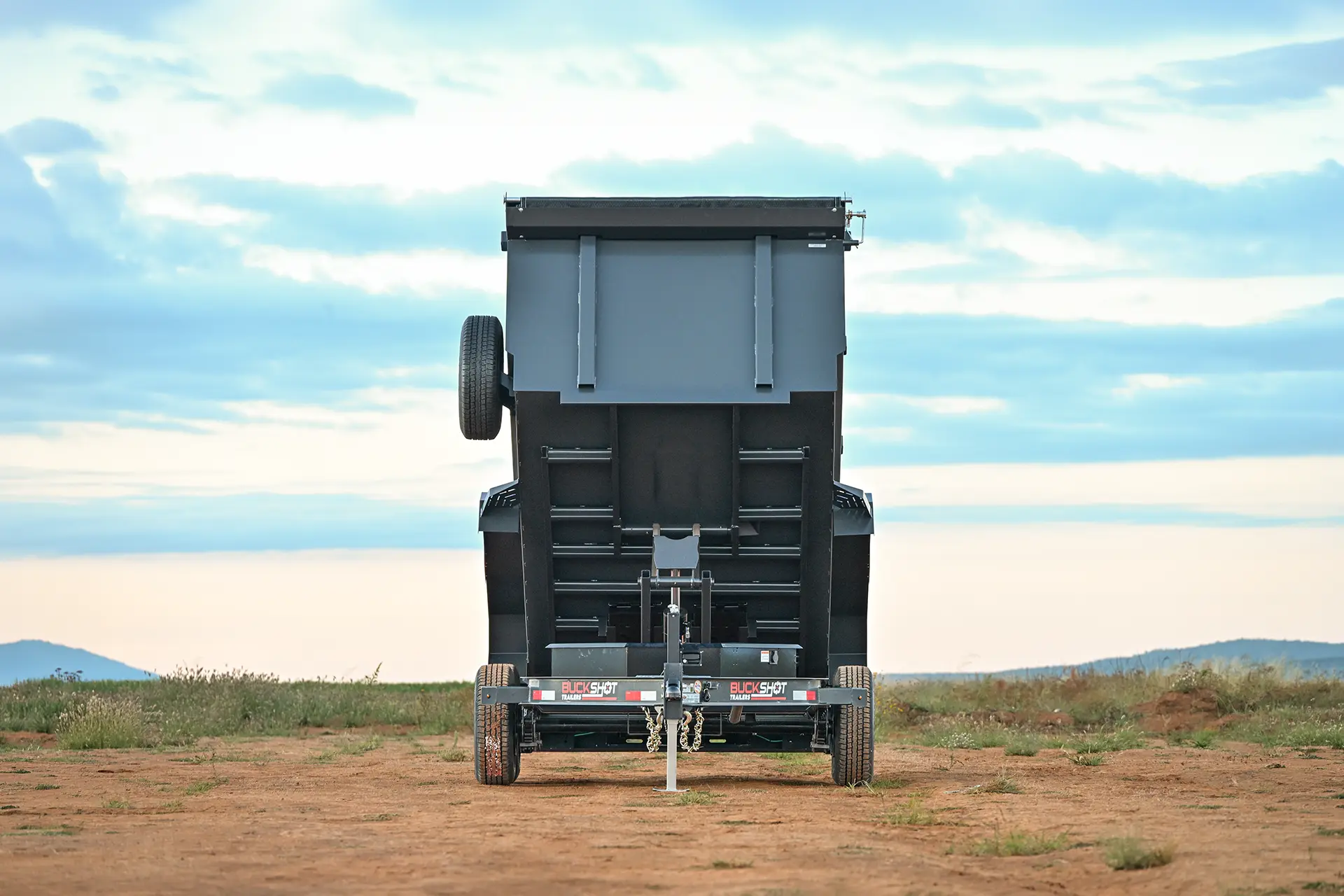

LPF Bumper Pull Dump Trailer

LPF Series Highlights

Buckshot LPF Dump Trailer – Compact Design. Built for Bigger Jobs.

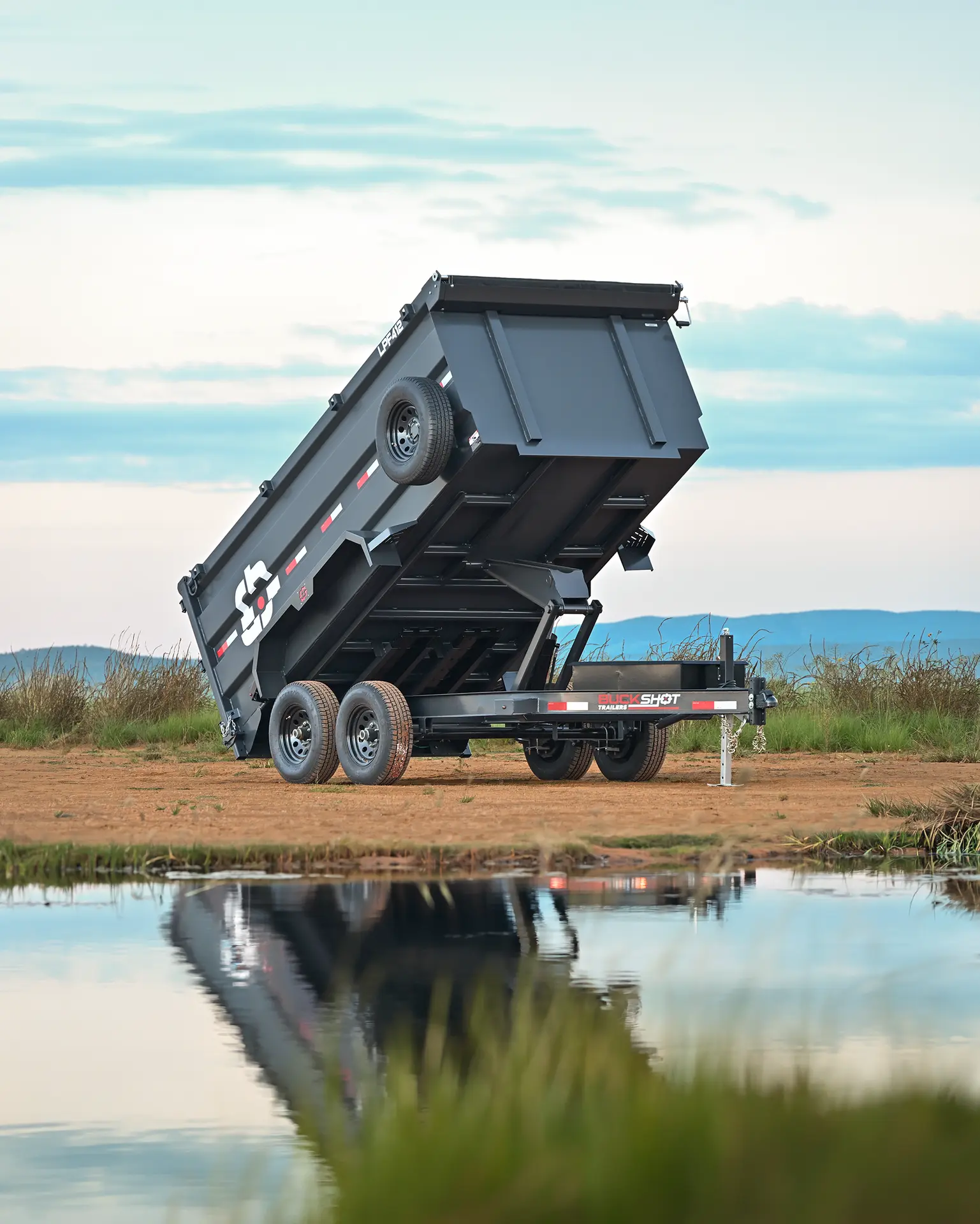

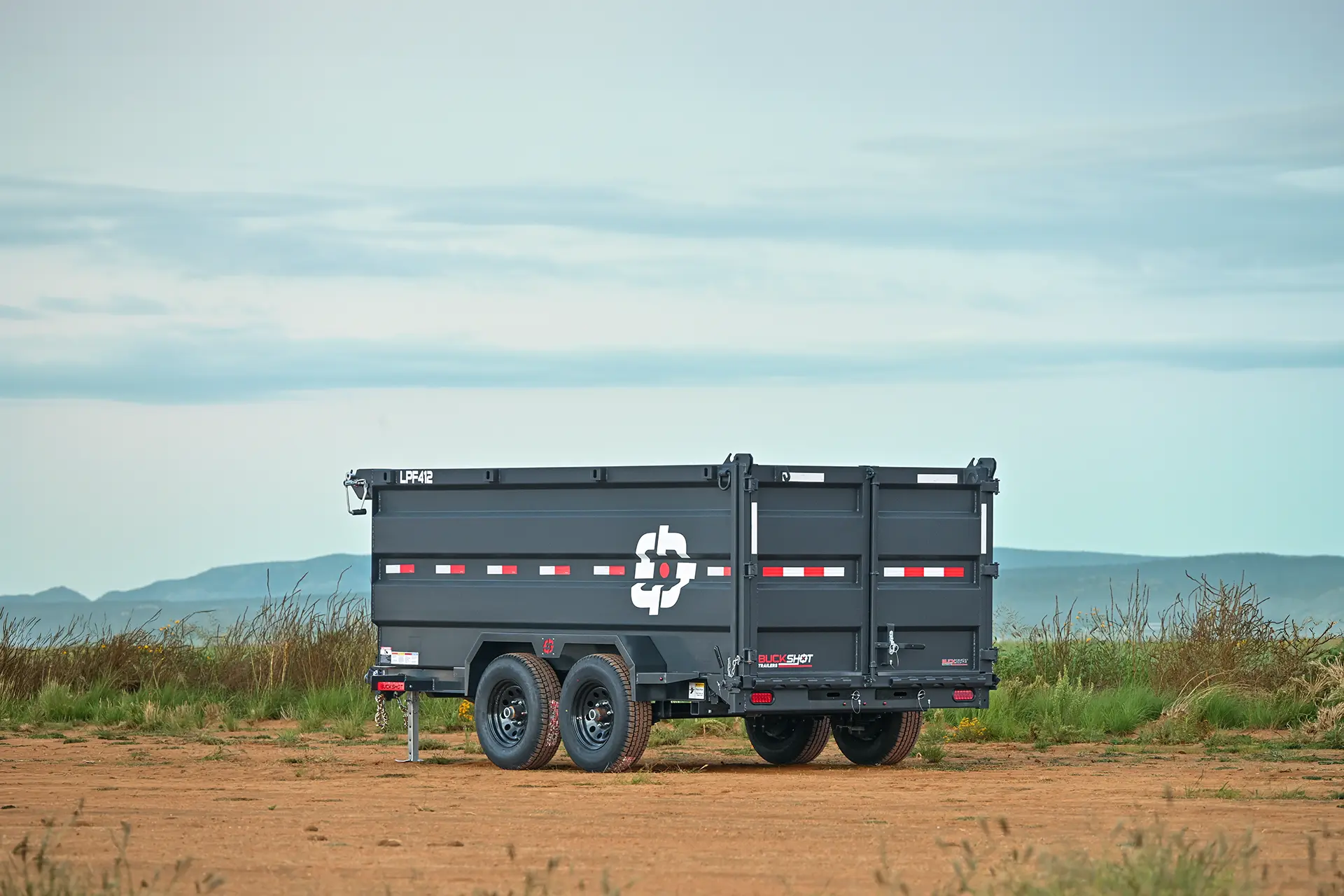

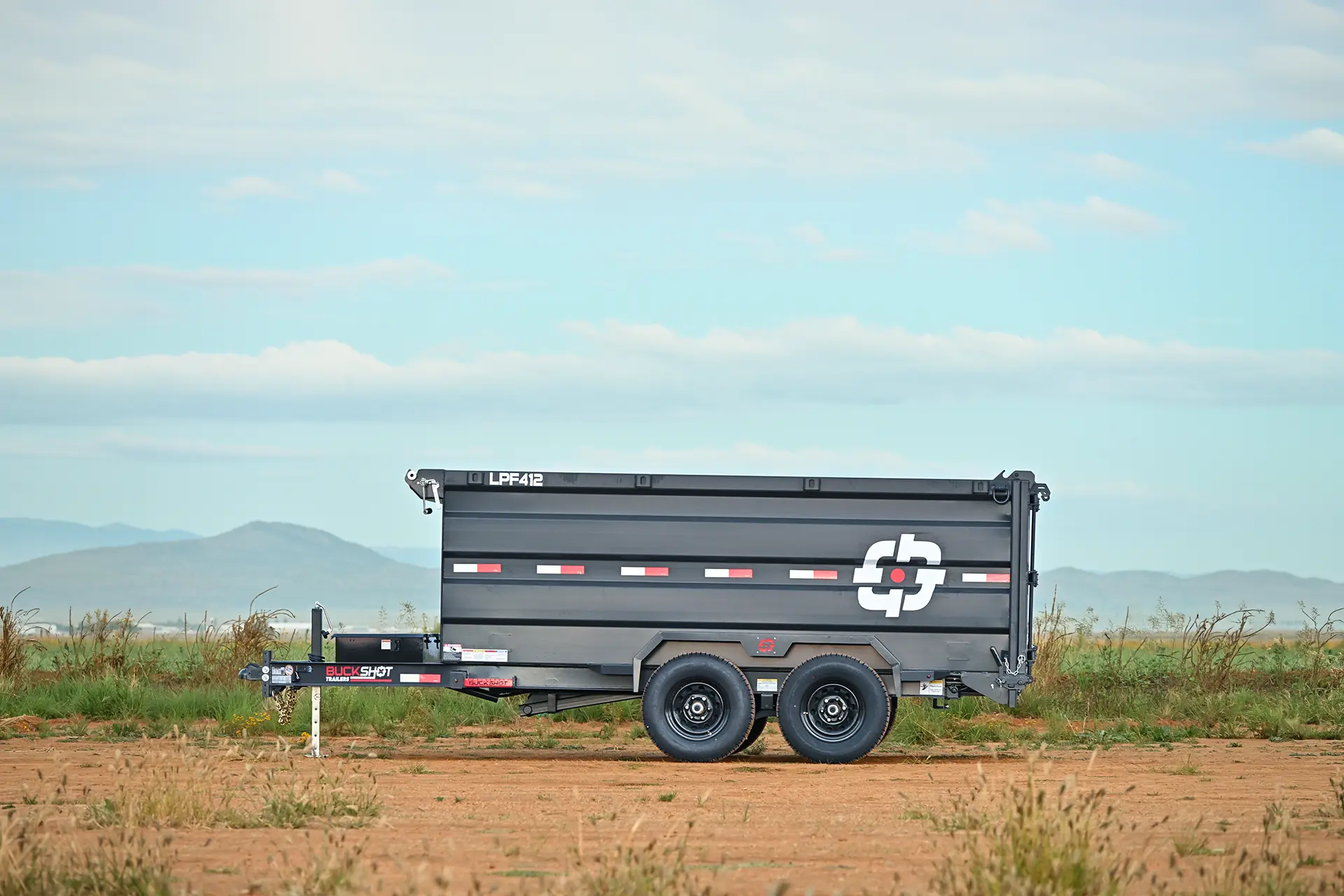

The Buckshot LPF Dump Trailer delivers dependable hauling and dumping in a bumper-pull design. Available in 10′ and 12′ lengths across six models, it features a 70″ wide bed for everyday work.

Its one-piece I-beam tongue, 6″ I-beam main frame (8.5 lbs/ft), and 10-gauge steel floor and formed sides provide a sturdy foundation for hauling materials and equipment.

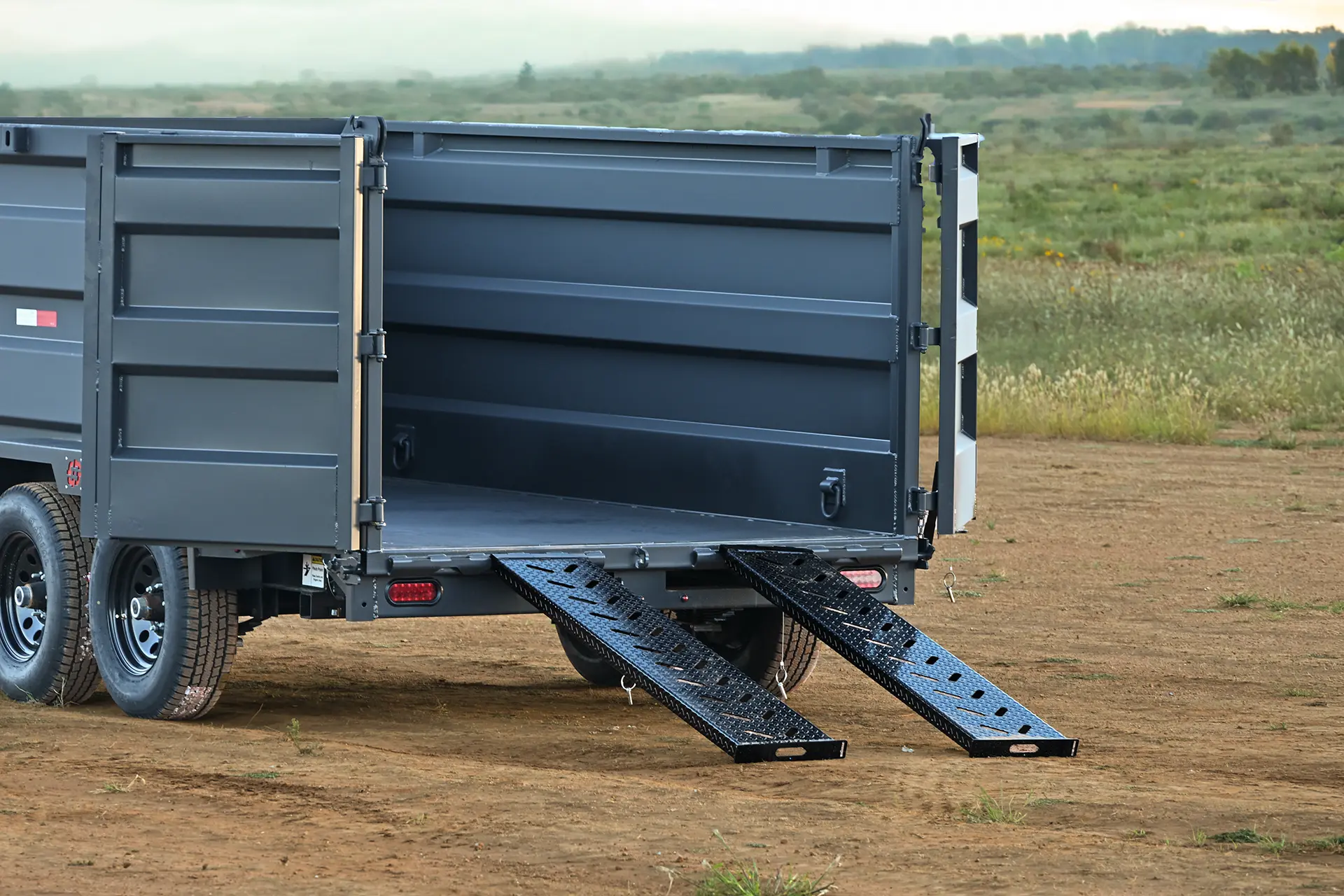

4′ slide-in ramps, a 3-way spreader gate, four D-rings welded inside the bed, and a standard manual tarp kit add flexibility for loading, securing, and unloading.

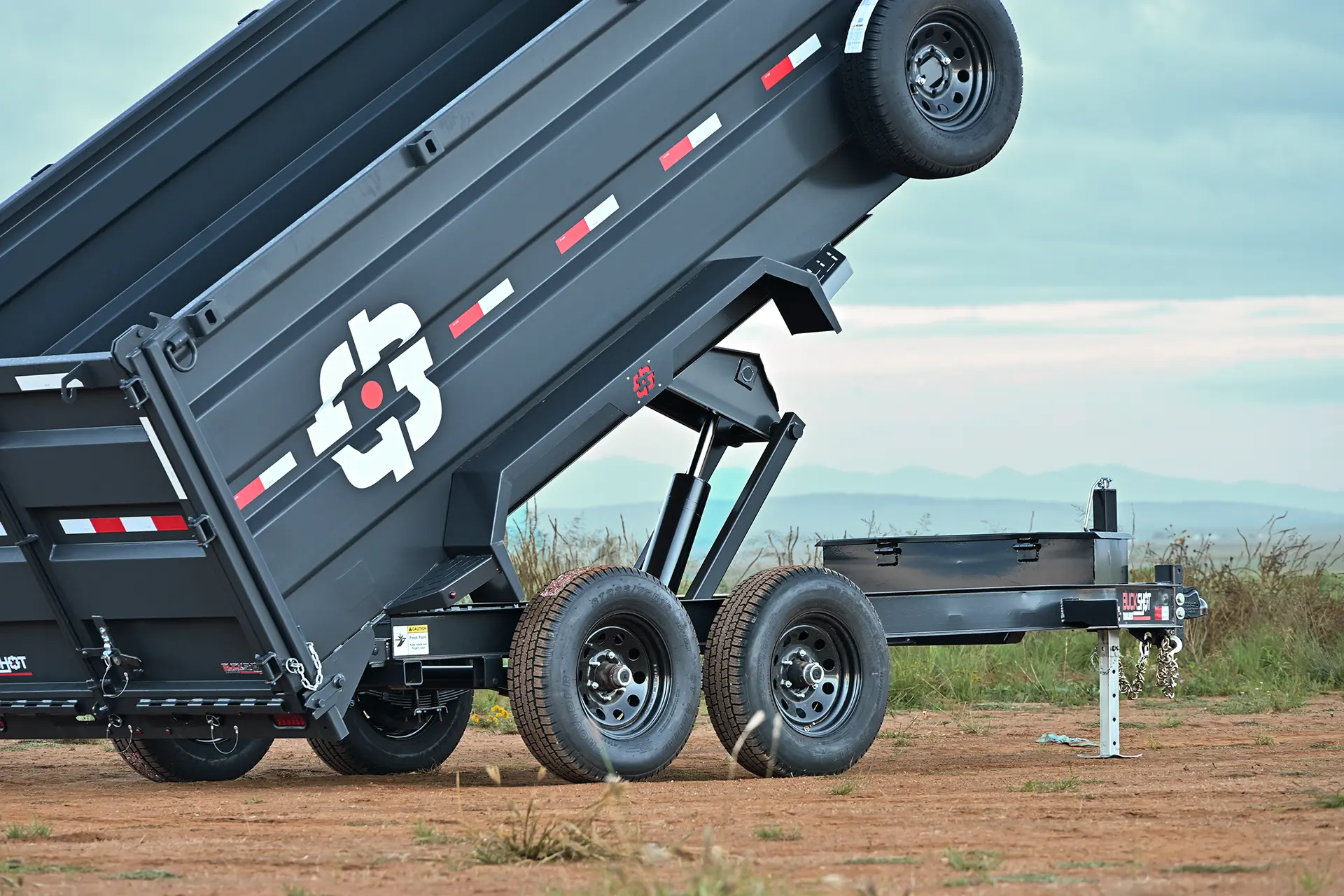

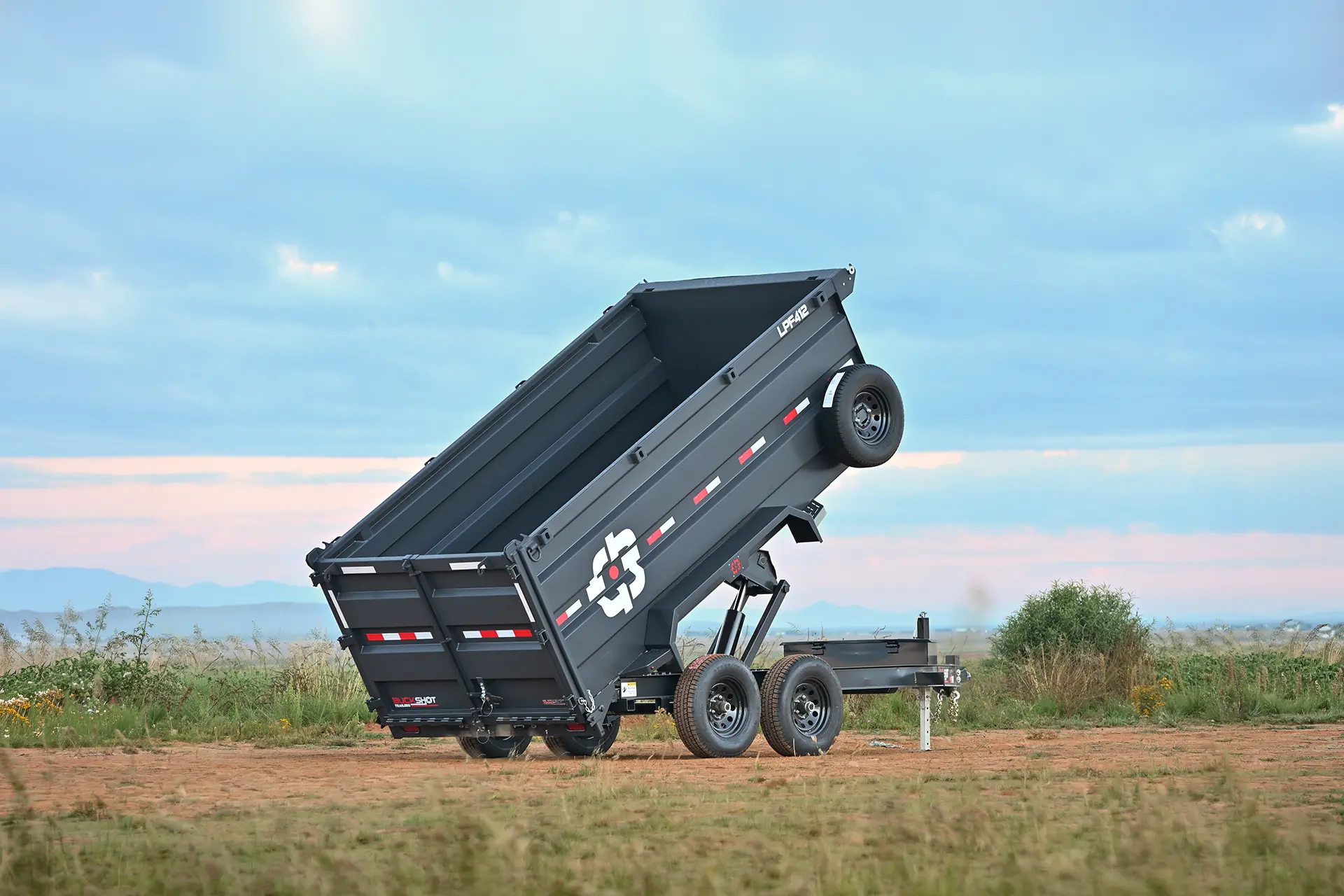

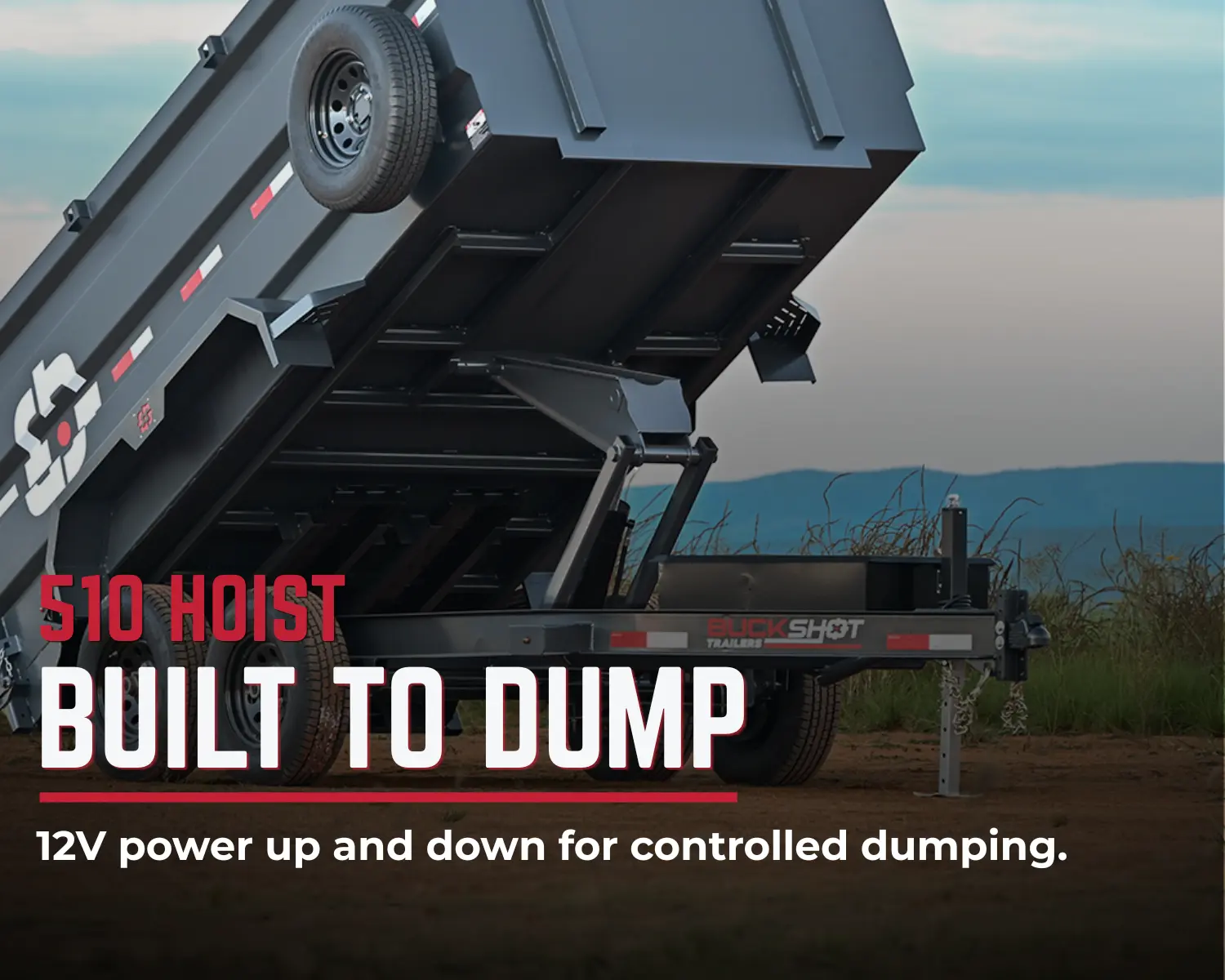

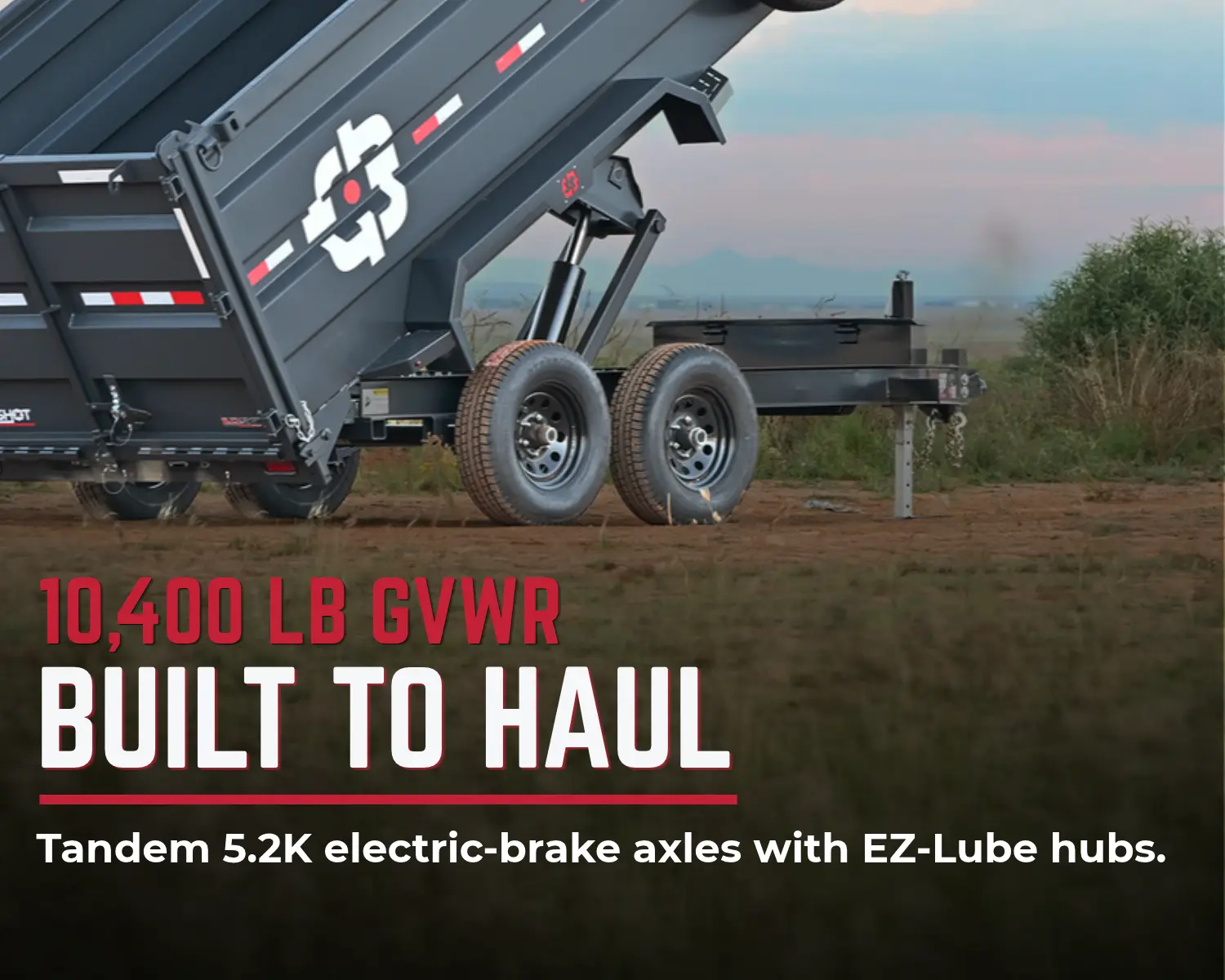

Dumping is powered by a 510 hoist and 12V hydraulic power up/power down system. The LPF rides on tandem 5.2K electric-brake EZ-Lube spring axles and carries a 10,400 lb GVWR.

With DOT-approved LED lights, an all-weather 7-way RV wiring harness, and a steel-blasted, powder-coated finish, the LPF is ready to haul, dump, and get back to work.

Standard Features

Model Information
Model Line	Buckshot LPF
Trailer Type	Bumper Pull Dump Trailer
Available Models	LPF210, LPF310, and LPF410 (10') LPF212, LPF312, and LPF412 (12')
Frame and Structure
Tongue	One-Piece I-Beam
Main Frame	6" I-Beam – 8.5 lbs/ft
Floor	10-Gauge Steel Floor
Sides	10-Gauge Formed Steel Sides
Side Heights	2', 3', or 4', Depending on Model
Crossmembers	3" Channel (3.50 lbs/ft) at 16" Spacing
Hitching and Towing

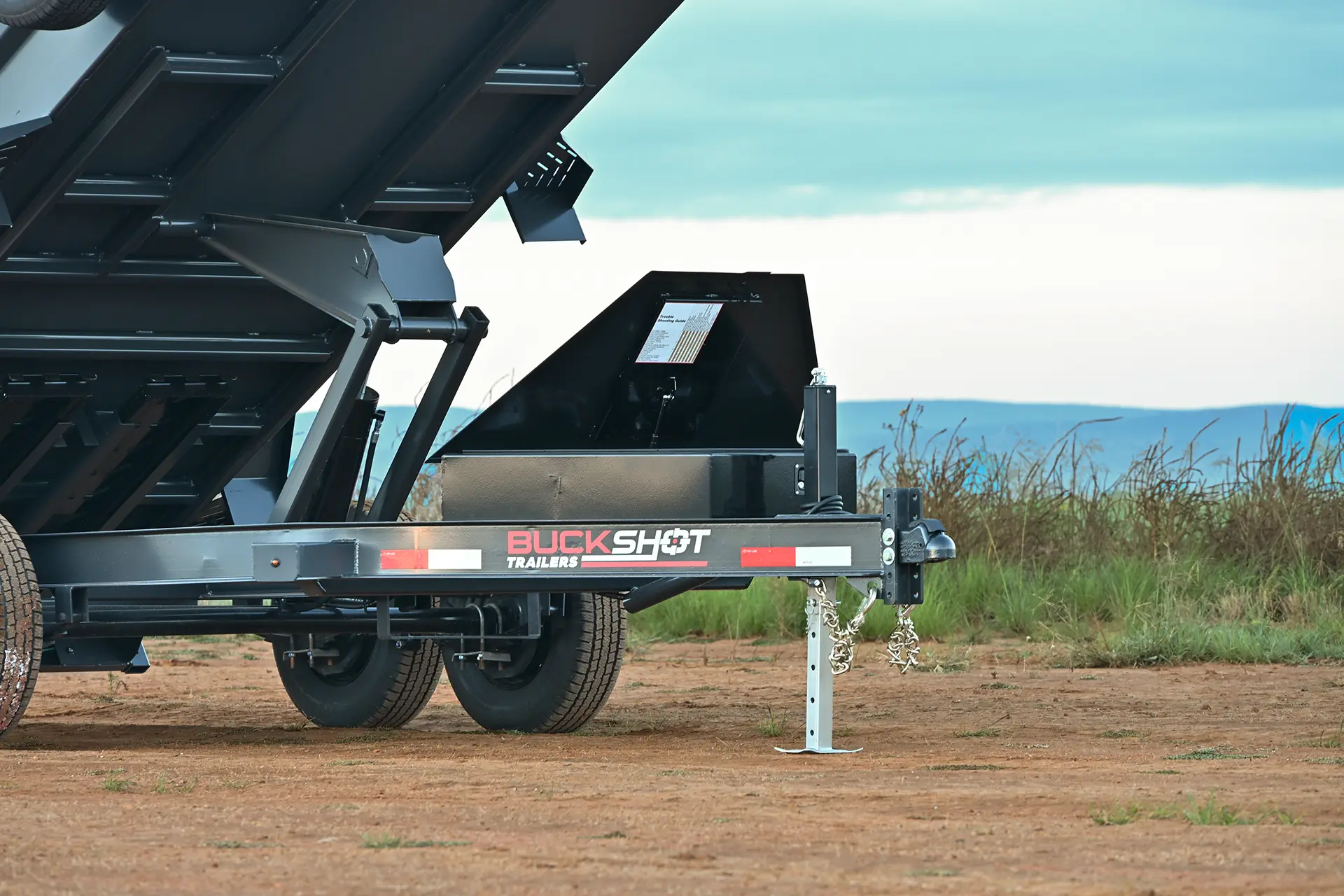

Coupler	Adjustable Auto-Latch 2-5/16" Bumper Pull Coupler
Jack	1 Top-Wind Drop-Down Jack Leg – 8,000 lbs
Safety Chains	2 × 5/16" Grade 70 Safety Chains with Clevis Hooks
Spare Tire Mount	Weld-On Spare Tire Mount – Spare Not Included
Toolbox	Lockable Toolbox
Bed and Gate Features
Bed Width	70"
Ramps	4' Slide-In Ramps

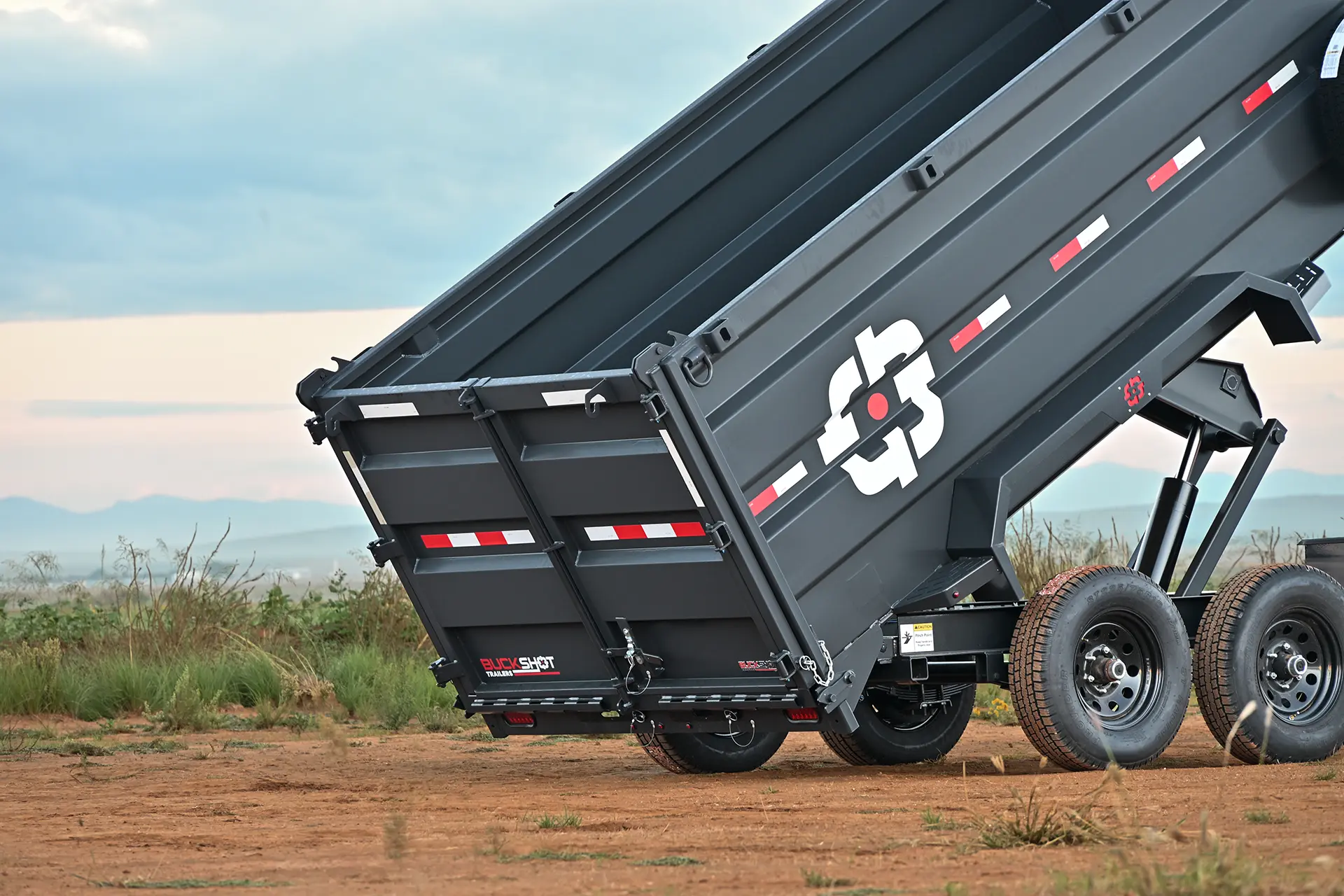

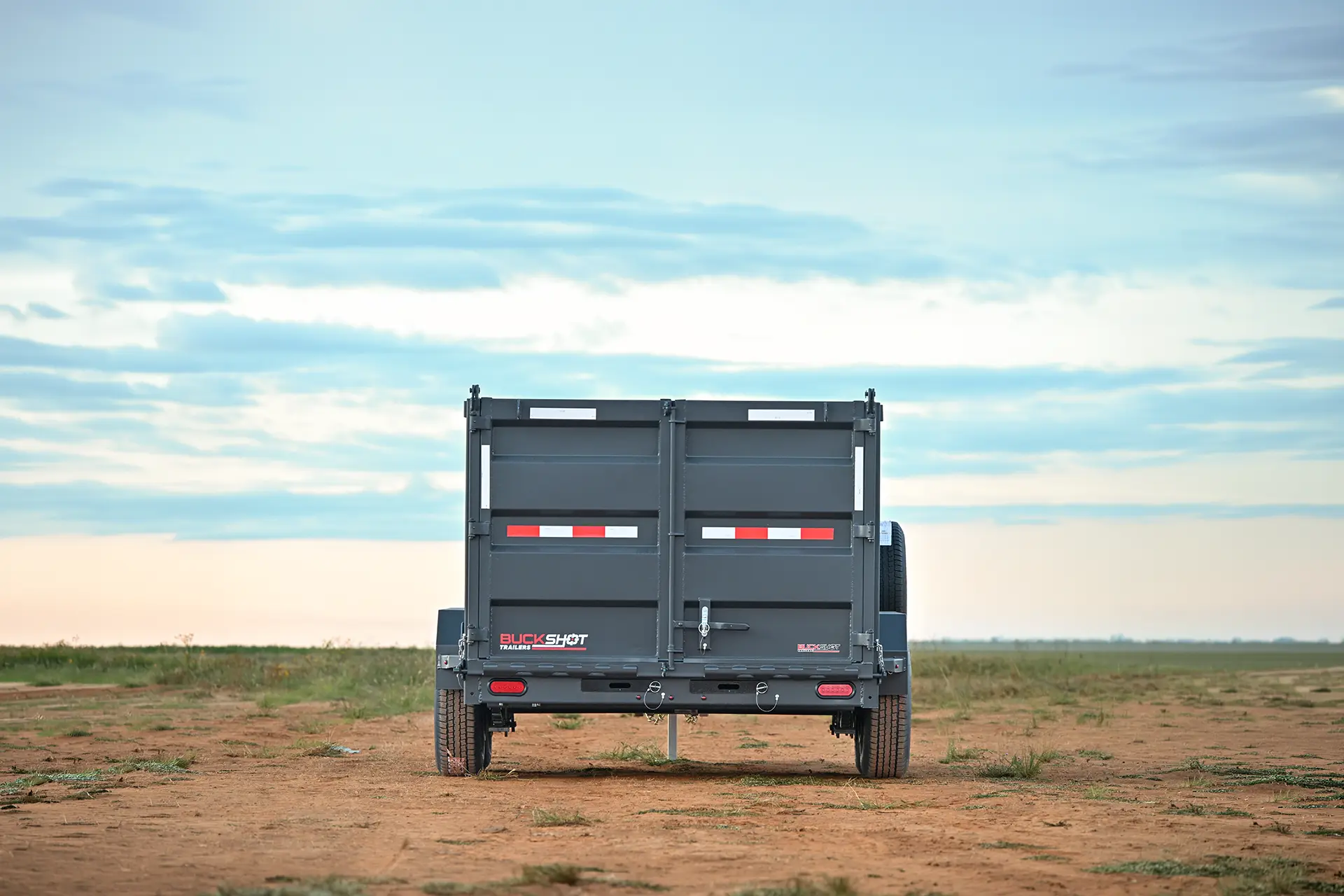

Gate	3-Way Spreader Gate
Tarp Kit	Manual Tarp Kit
D-Rings	4 D-Rings Welded Inside the Bed
Lift System and Hydraulics
Lift System	510 Hoist
Hydraulic System	12V Hydraulic Power Up / Power Down
Wheels and Suspension
GVWR	10,400 lbs
Axles and Brakes	2 × 5.2K Electric-Brake EZ-Lube Spring Axles
Suspension	Double-Eye Spring Suspension
Tires	ST225/75R15 10-Ply – 2,830 lb Single-Tire Rating
Bolt Pattern	6 on 5.5"
Wheels	15" Black Mod Wheels
Electrical and Lighting
Lighting	DOT-Approved LED Lights
Wiring Harness	All-Weather Wire Harness
Connection	7-Way RV
Finish and Warranty
Finish	Steel Blasted
Paint	Powder Coated
Structural Warranty	3 Years
Paint Warranty	1 Year
ADD-ON OPTIONS
Pintle Eye	3" Channel-Mount Pintle Eye – 21,000 lb Rating
Rear Support	2 Rear Support Legs with Pins
Remote	TUFF Wireless Remote – 2 Button
Spare Tire	ST225/75R15 10-Ply Spare – 6 on 5.5"
Lighting	2 × 5" Ultra-Bright LED Pod Flood Lights
Solar	7.5-Watt Solar Battery Charger
