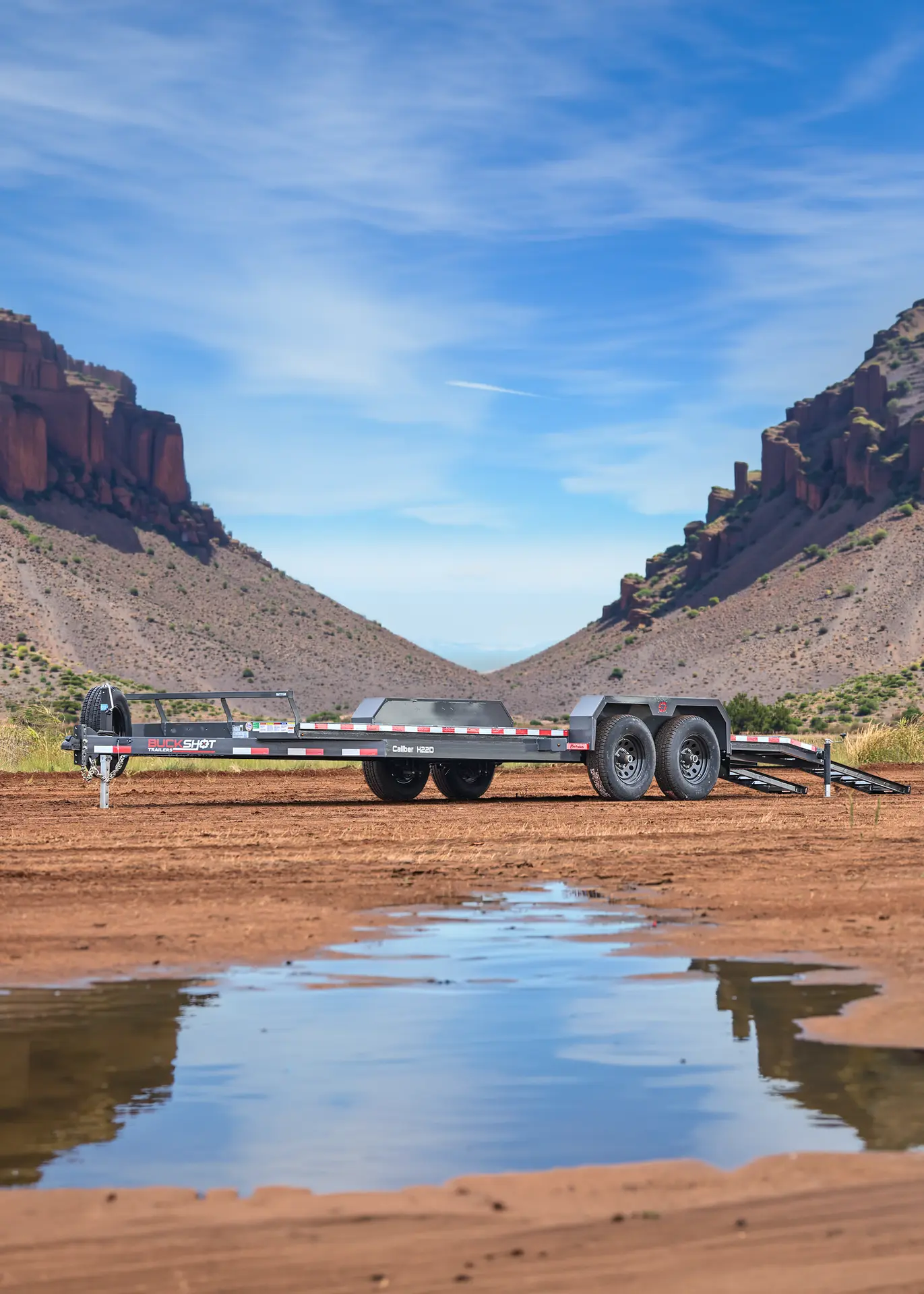

Buckshot CALIBER-H Series heavy-duty bumper pull car hauler trailer with 5.2K axles

CALIBER-H Series

Heavy-Duty Bumper Pull Car Hauler Trailer with 5.2K Axles

Lengths
16–22 FT
Width
83 IN
GVWR
10,400 LBS

Buckshot CALIBER-H Series

Built to haul. Built to last.

Find a Dealer

CALIBER-H Series

Heavy-Duty Bumper Pull Car Hauler Trailer with 5.2K Axles

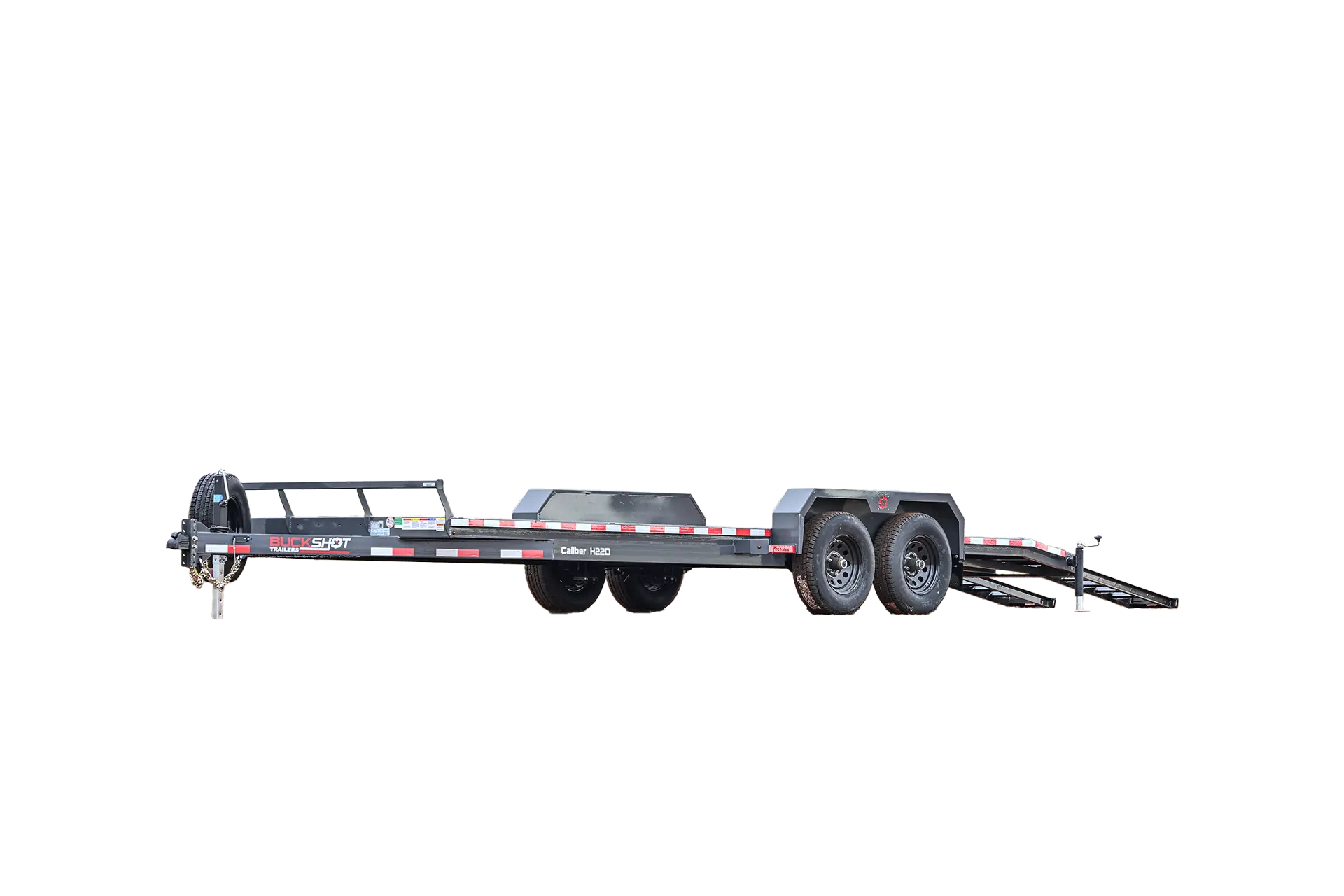

CALIBER-H Series bumper pull car hauler trailer represented in GunMetal Gray

CALIBER-H Model Line

Product Highlights

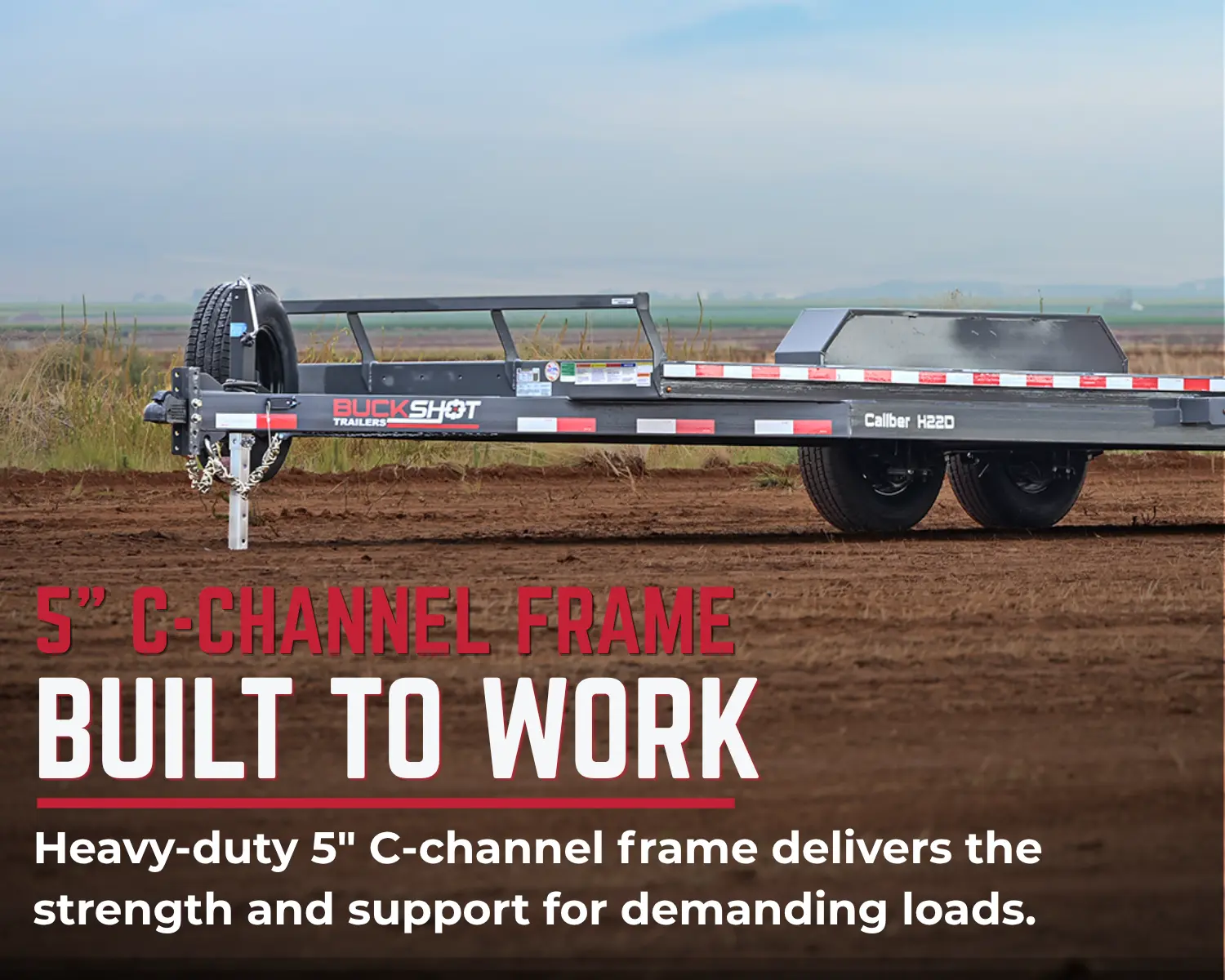

  • CALIBER-H heavy-duty bumper pull car hauler trailer deck

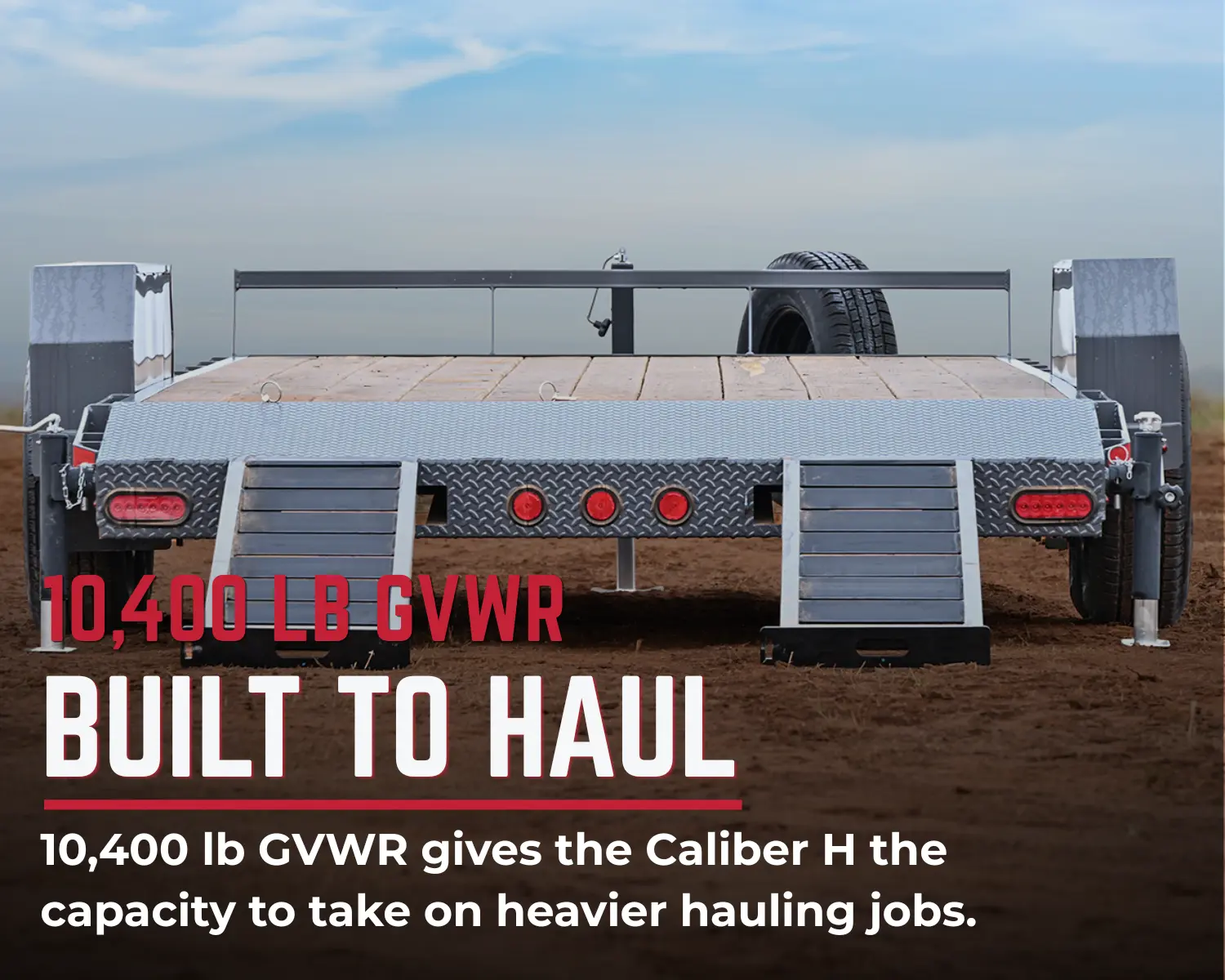

  • CALIBER-H car hauler with 83-inch deck and tandem axles

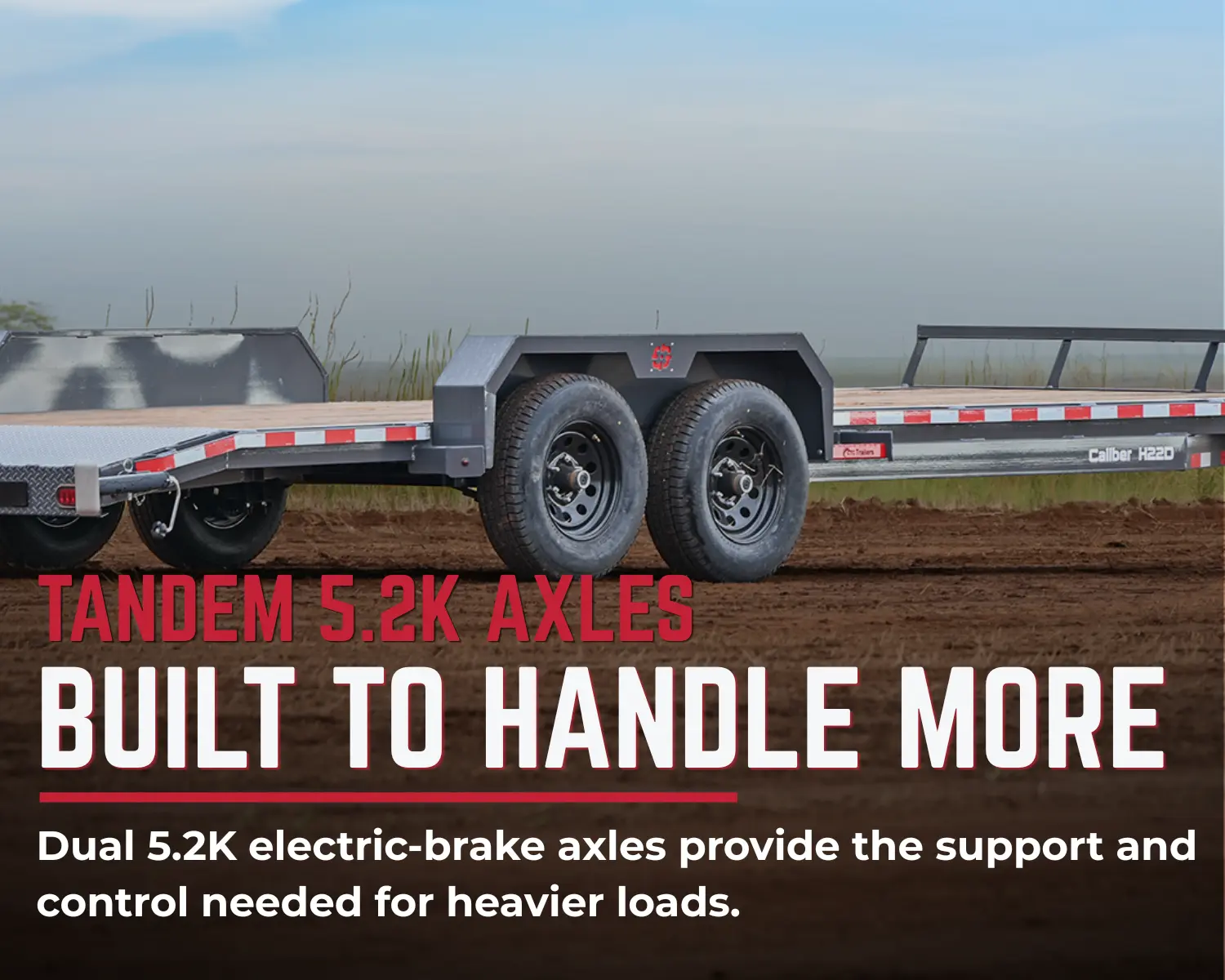

  • CALIBER-H car hauler chassis and spring axle detail

Caliber Car Hauler – Tough, Reliable, Ready to Roll!

The Caliber Car Hauler from Buckshot Trailers delivers strength and versatility in a lighter-duty package. Built with a 4" one-piece channel tongue and frame, it boasts a 22" deck height and 83" wide deck with a 2x8 pressure-treated wood floor and stake pockets with a 2" rub rail for secure hauling.

It features 66" x 9" removable fenders, a 2-5/16" adjustable coupler, and a 5k drop-leg jack for easy towing. With 3.5k electric brake axles, E-Z lube hubs, and multi-leaf slipper spring suspension, it ensures a smooth ride on 205/75R15 6-ply radial tires.

Loading is effortless with a 24" dovetail or 4' engineered diamond plate slide-in ramps. Safety is covered with lifetime LED lighting, a molded sealed harness, and a 7-way plug with an adapter.

Finished with steel blasting and a powder-coated exterior, this hauler is built to last. Tough, dependable, and ready for the job! 🚛🔥

Standard Features



Frame and Structure
Tongue and Frame 4" (4.5 lbs/ft) Channel one piece
Flooring 2X8 Pressure-Treated Floor
Sides 2" Rub Rail, and Stake Pockets
Crossmembers 2-1/2" Engeneered Angle Iron Crossmembers at 24" Centers
Deck Height 22"
Deck Width 83"
Fenders 66" x 9" 14 ga. Removable Fenders.
Hitching and Towing
Coupler 2, 5/16" Adjustable Coupler
Jack 5k Drop-Leg Jack
Ramp Options
Ramps 24" Dove Tail or with 4' Engeneered Diamond plate Slide-in Ramps
Wheels and Suspension
Axles and Brakes 3.5k Electric Brake Axles with E-Z Lube Hubs
Suspension Multi-leaf Slipper Spring Suspension
Tires and Wheels 205/75R15 6-Ply Radial Tires with Black Mod Wheels
Spare Tire Mount
Electrical and Lighting
Lights DOT Approved LED Lights
Wiring All Weather Proof Wire Harness 7Way RV
Finish and Paint
Finish Steel Blasted
Paint Powder Coated
Add-on Options
Tool Box
Rear stabilizer Jacks
Spare Tire 205/75R15 6ply
Custom Color

Gallery

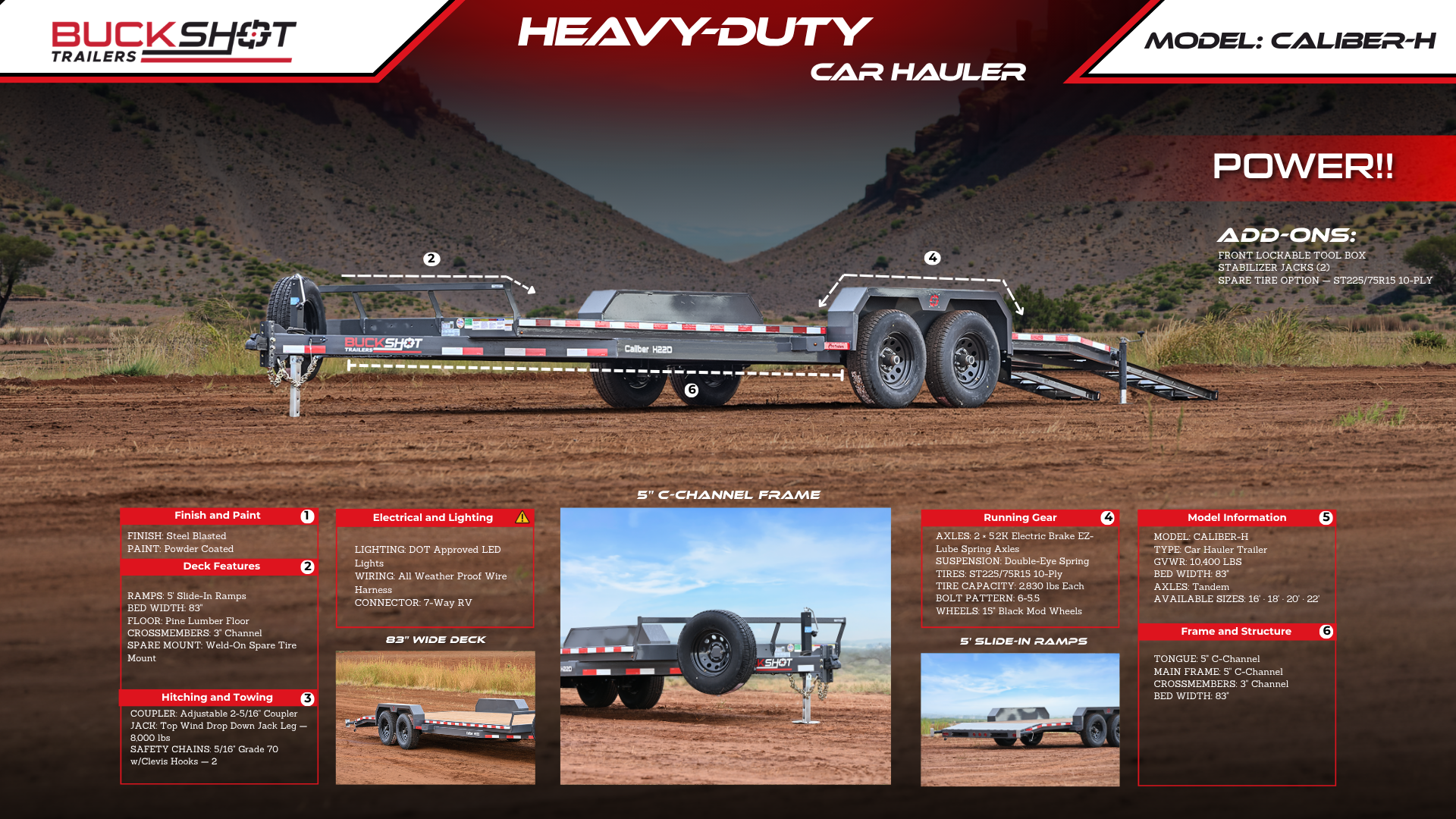

Brochure
