Standard Features
| Frame and Structure | |
|---|---|
| Tongue and Frame | 4" Channel Wrapped Tongue and 4" Channel Frame |
| Sides | 14" Solid Metal Sides with 2 3/8 Round Rail |
| Crossmembers | 2 1/2" Engineered angle Crossmembers on 26" Centers |
| Fenders | Weld-on Fenders |
| Deck | |

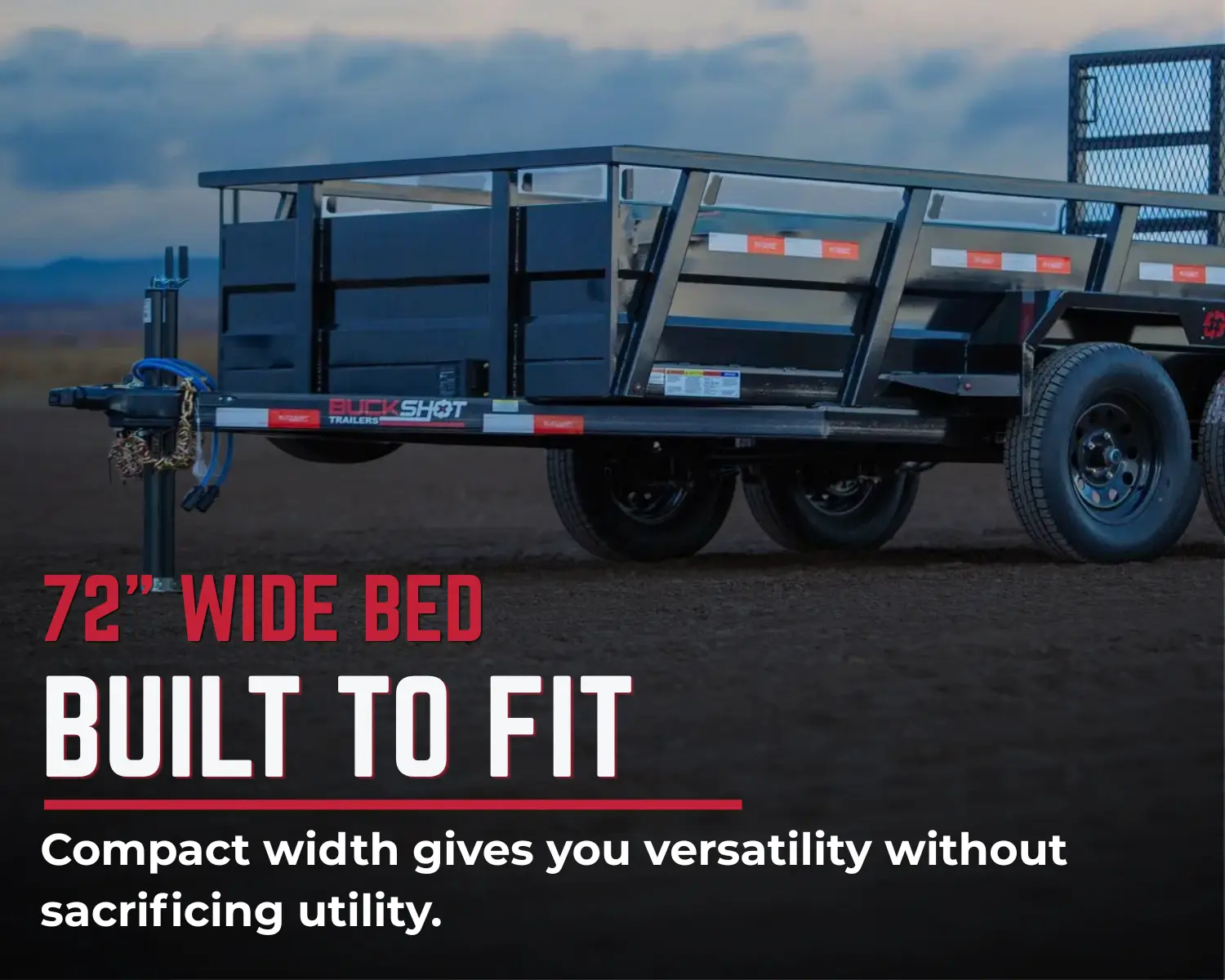

| Deck Width | 83" |
| Flooring | 2" Treated Pine Lumber Deck |
| Tie-Downs | 3/16" Stake Pockets on Both Sides For Tie Down |
| Hitching and Towing | |
| Coupler | 2.5/16" Demco Coupler |
| Safety Chains | 1/4" Grade 70 Safety Chains w/Clevis hook (2 each) |
| Jacks | Ram A-frame Jack (2,000 lbs.) |
| Ramp Options | |

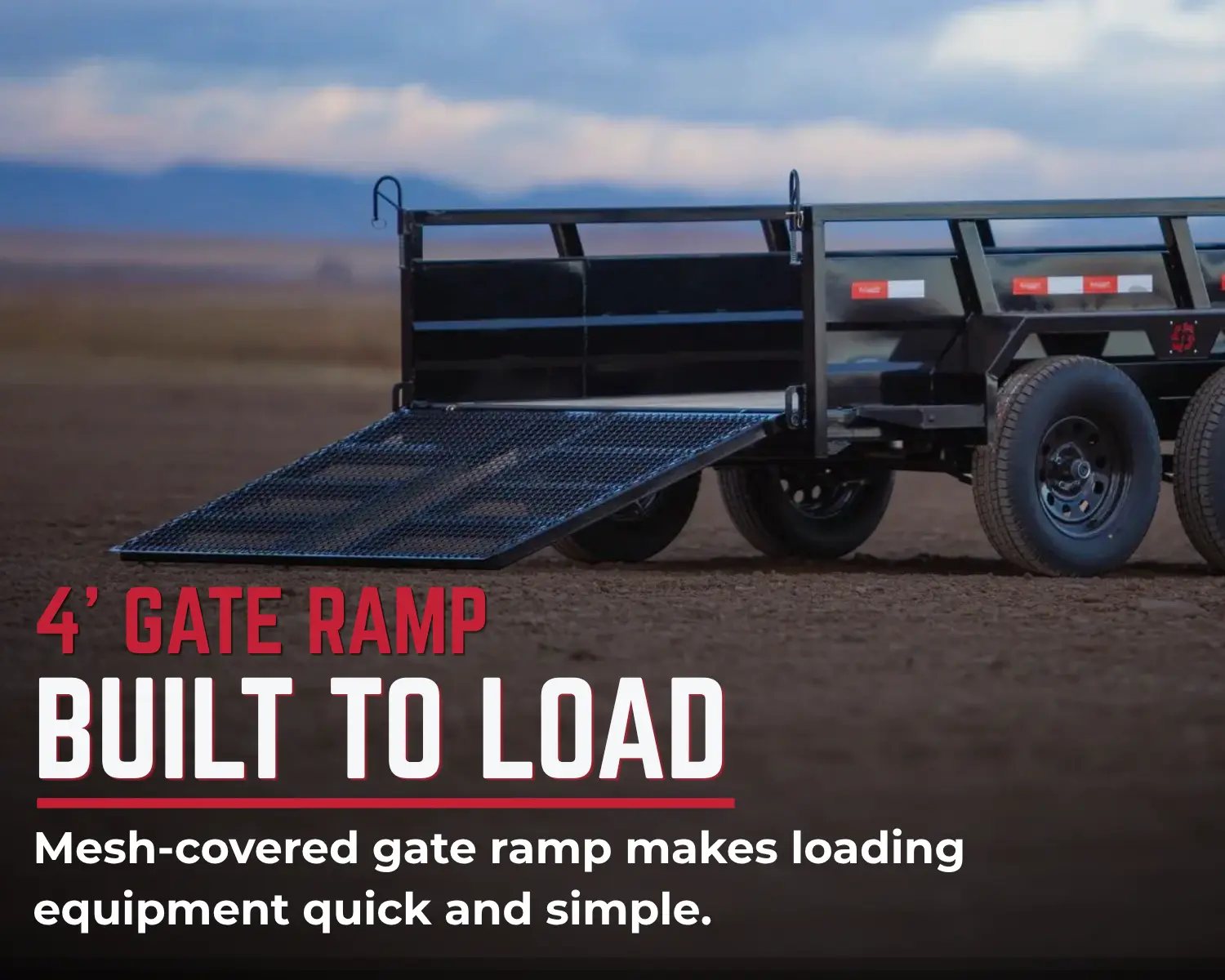

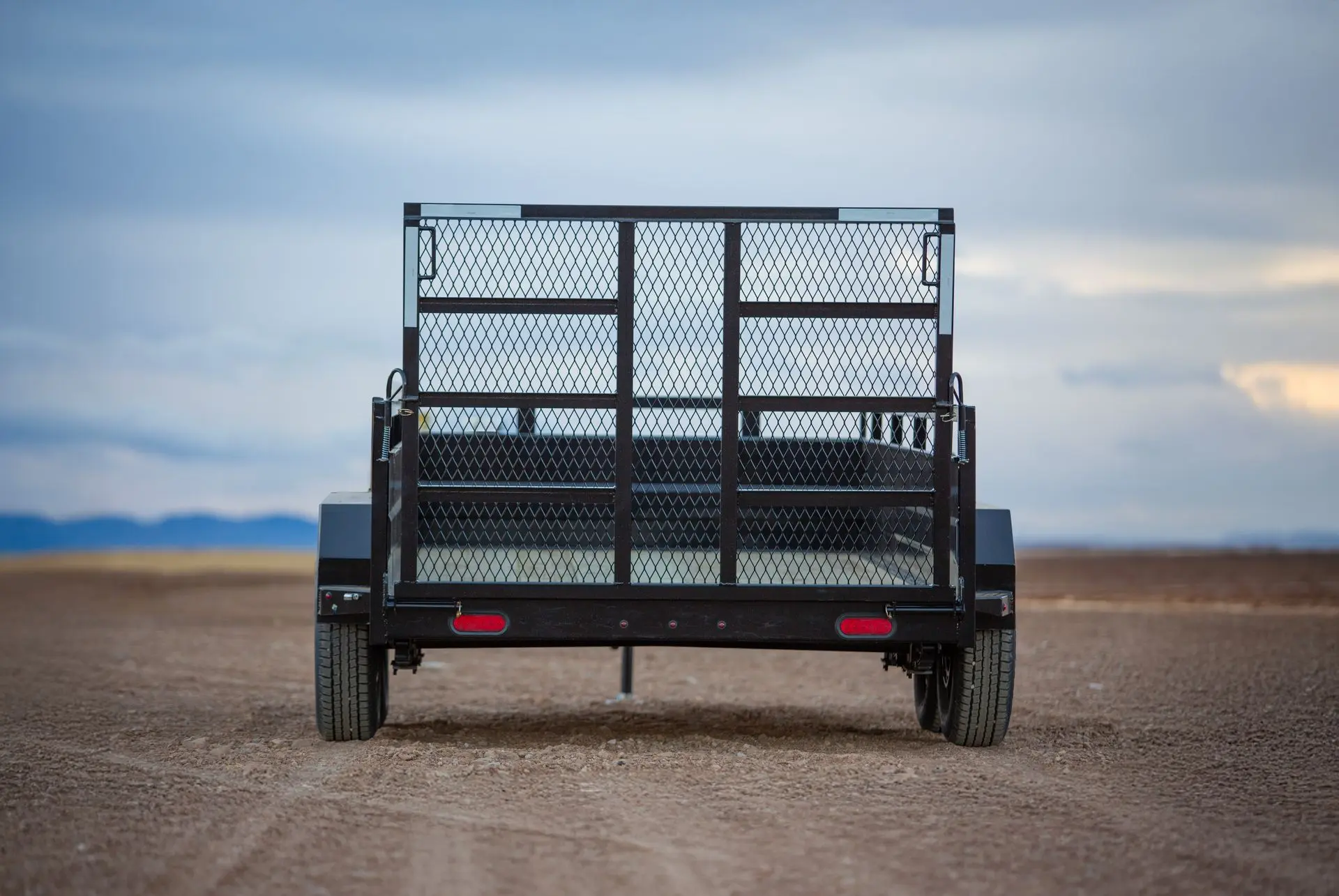

| Tail | Straight Deck With Fold Gate |
| Wheels and Suspension | |

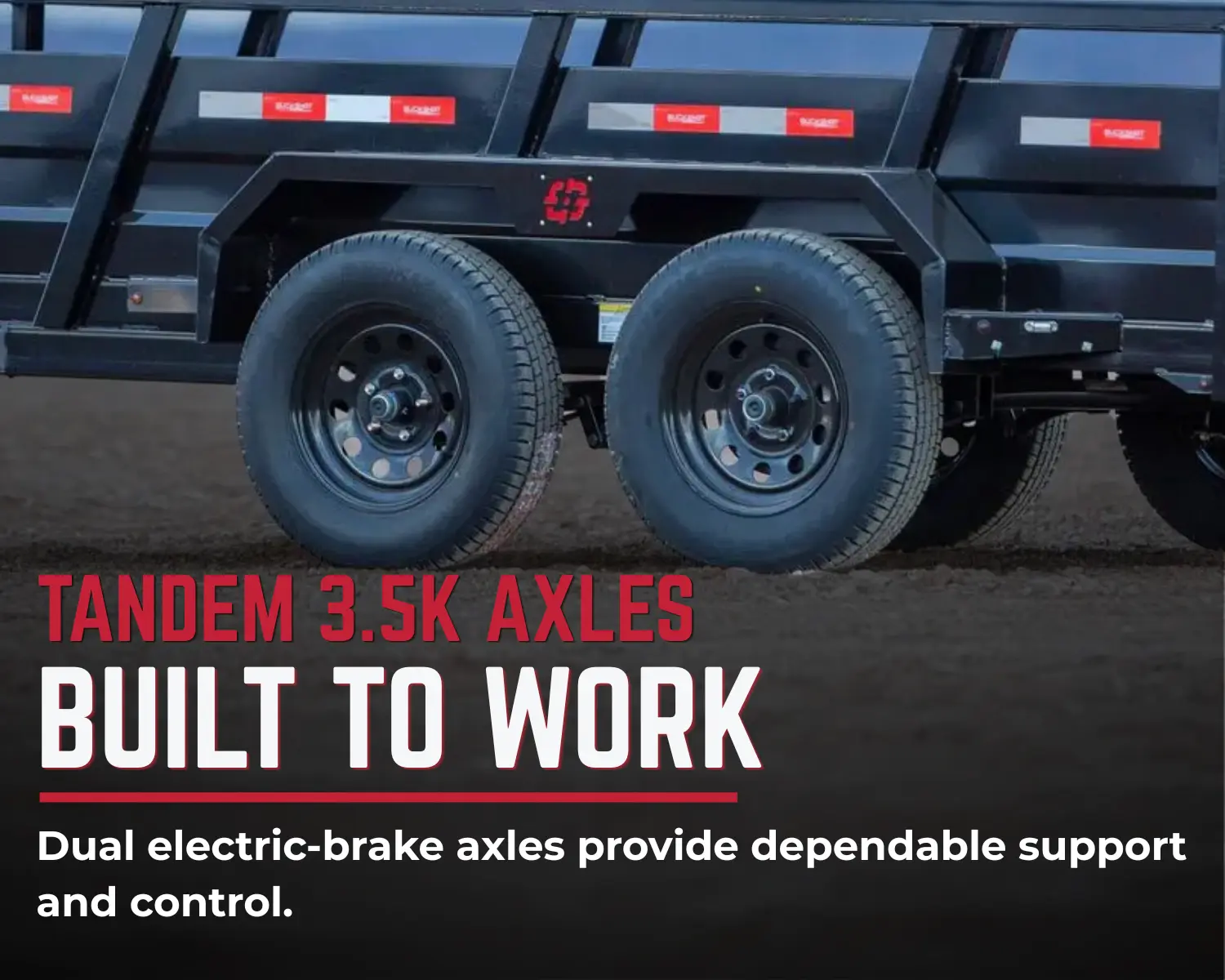

| Axles and Brakes | (2) 3,500 lbs. Electric / Spring Axles |
| Axle Configuration | BS 95" |
| Suspension | 4-Leaf Double-Eye Spring Suspension |
| Fenders | Weld-on Fenders |
| Tires and Wheels | 205/75R15 6-ply Radial Tires |
| Electrical and Lighting | |
| Lighting | DOT Approved LED Lighting |
| Wiring Harness | All-Weather Wiring Harness (7-way RV) |
| BreakawaySystem | Electric Breakaway System w/Charger |
| Finish and Paint | |
| Finish | Sand Blasted |
| Paint | Powder Coated |
