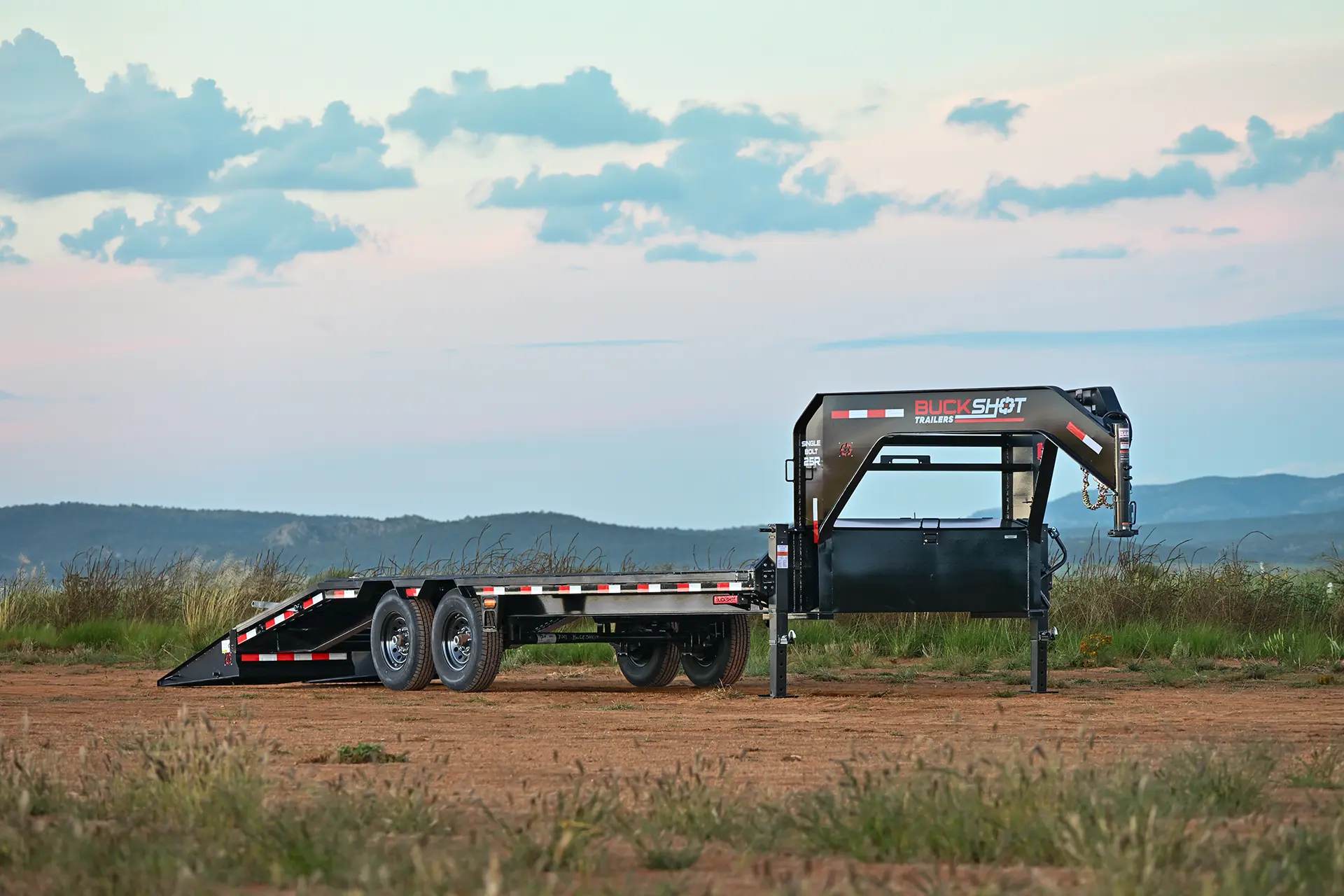

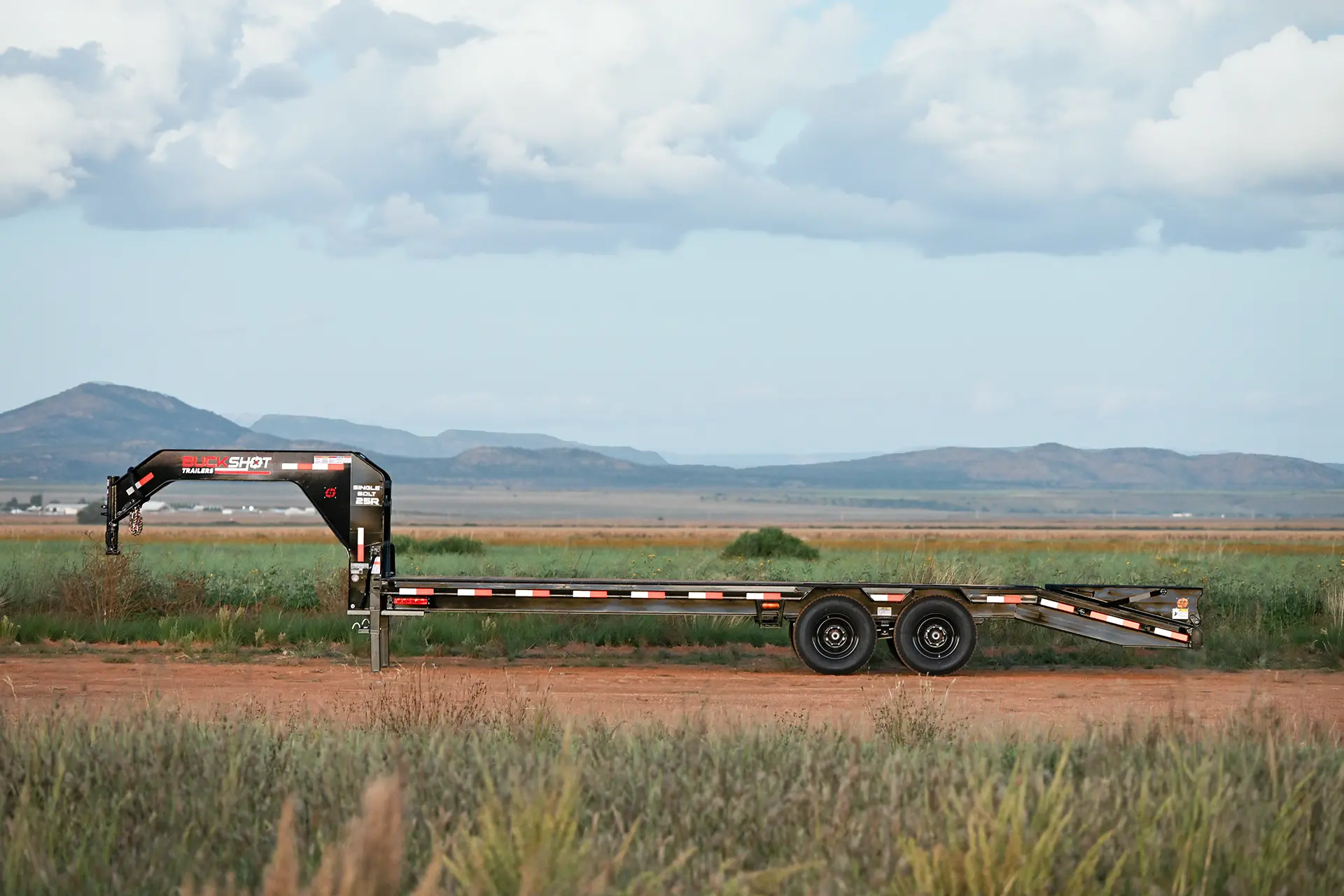

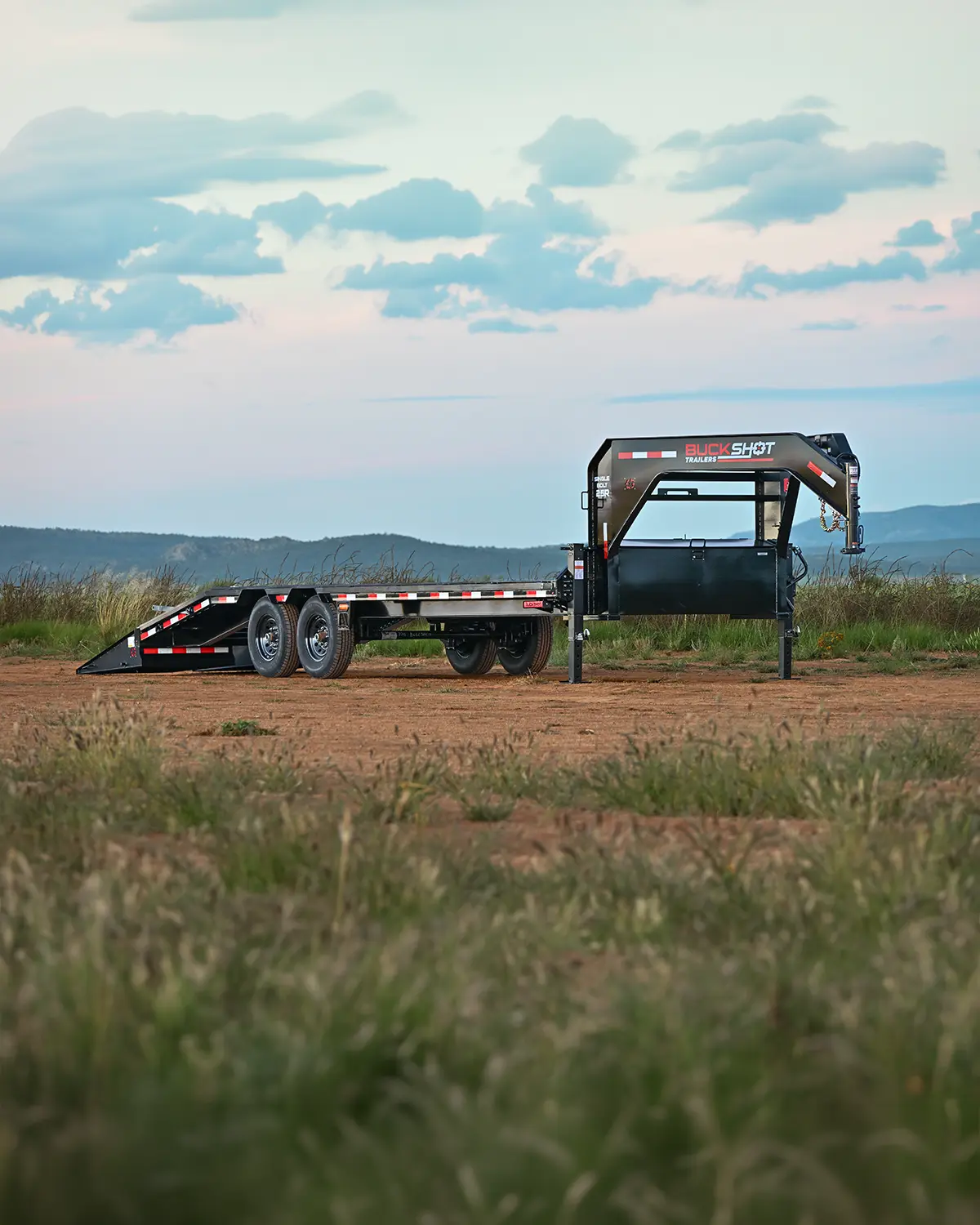

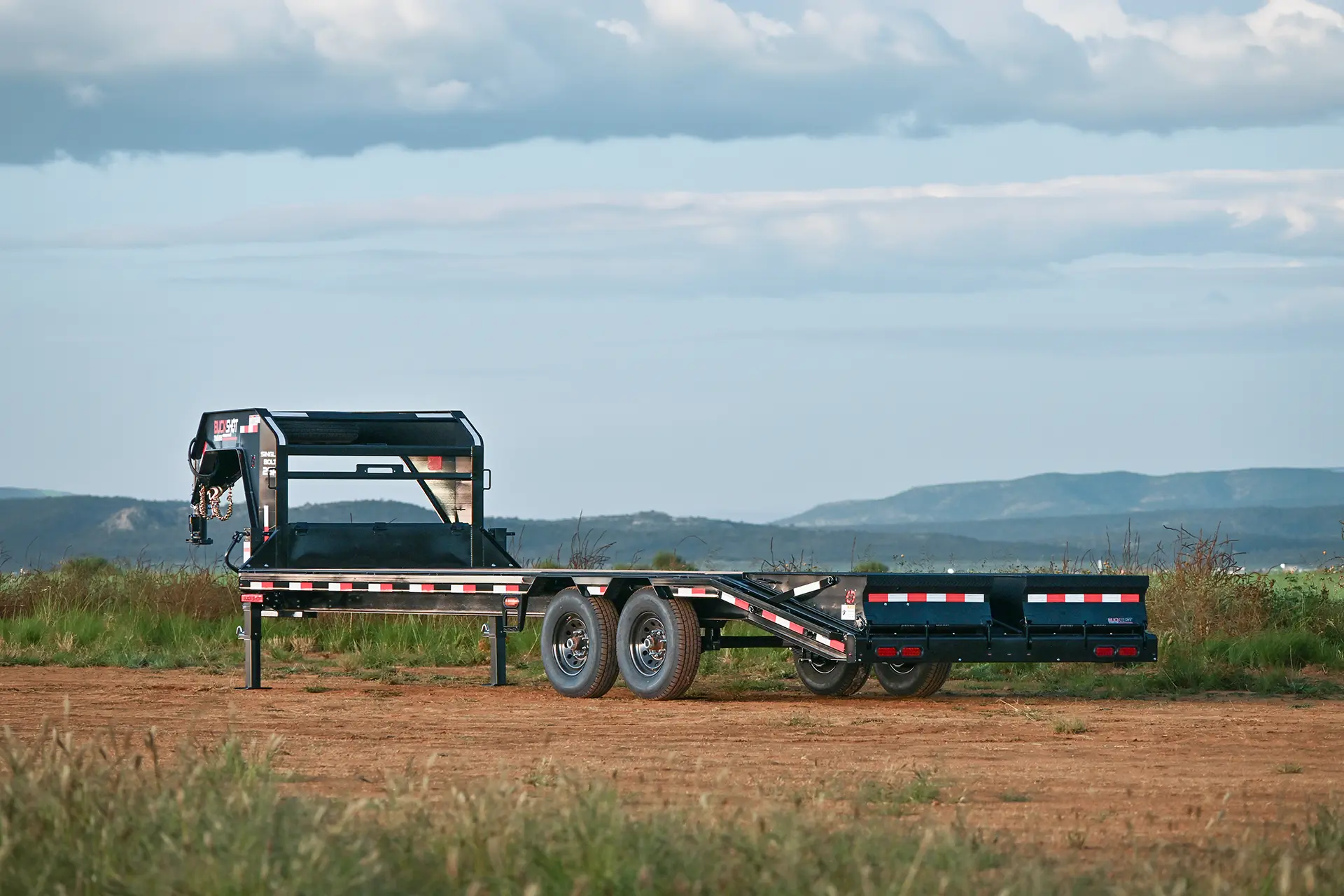

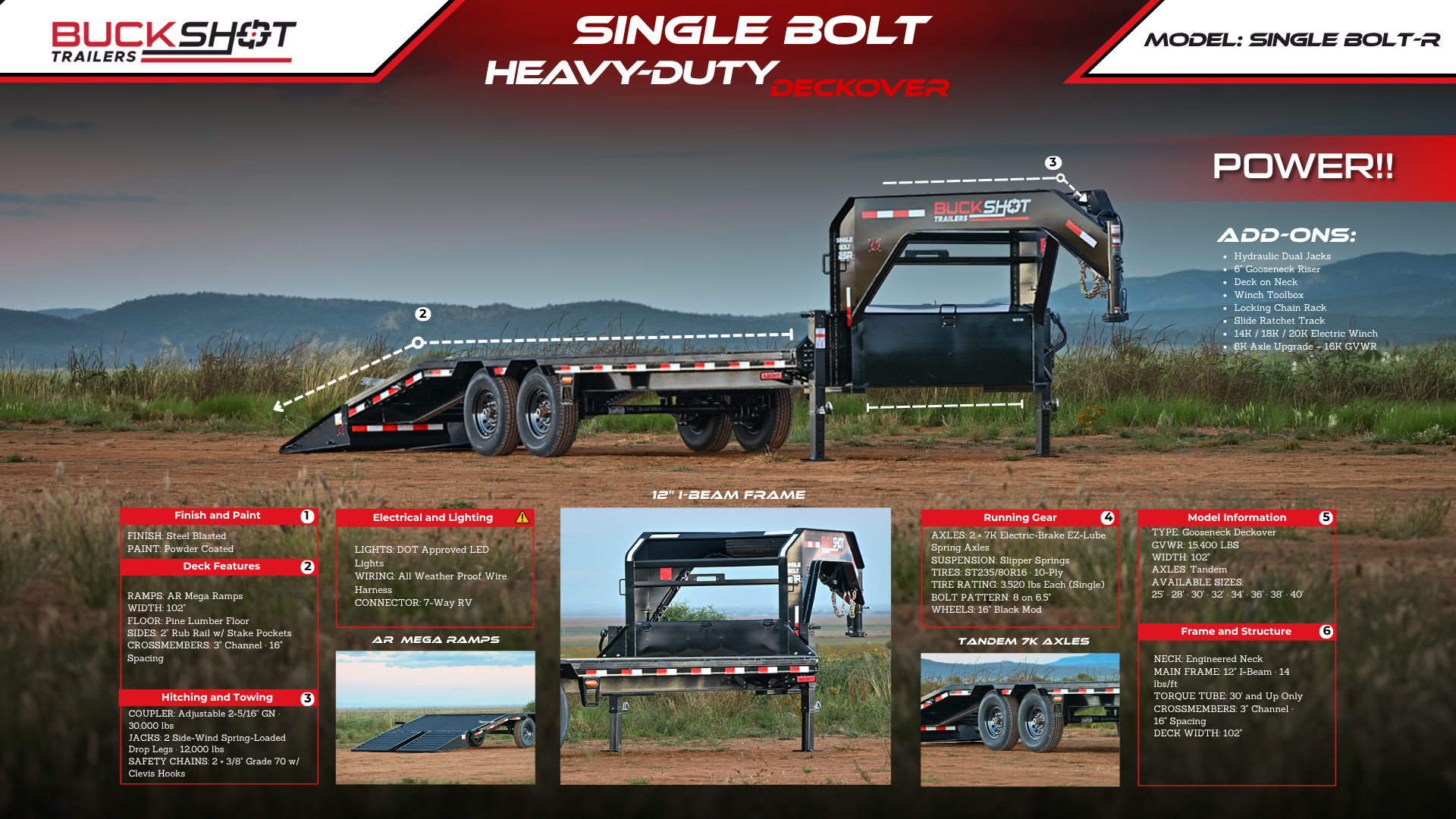

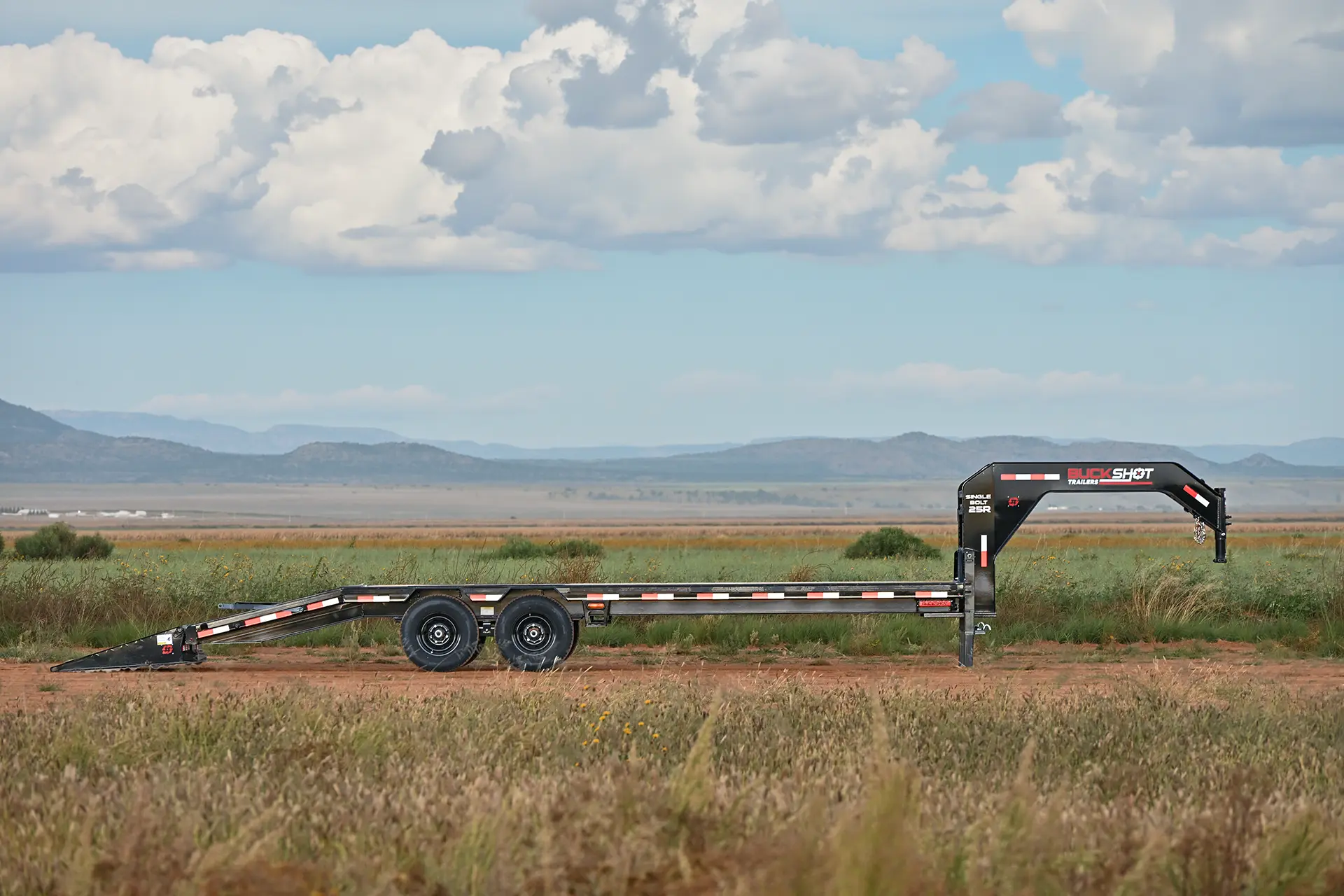

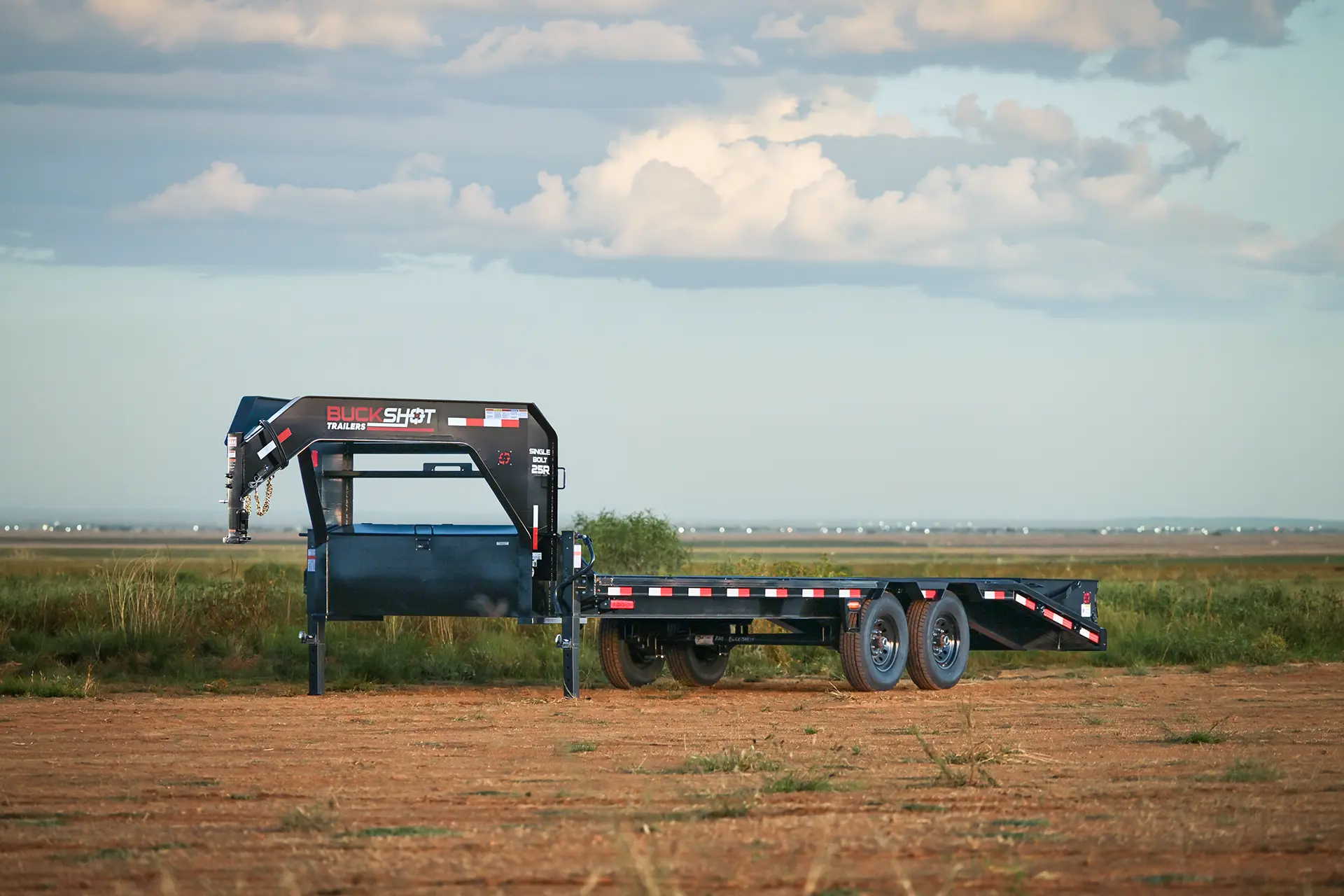

Buckshot Single Bolt-R Gooseneck – Built to Load. Ready to Haul.

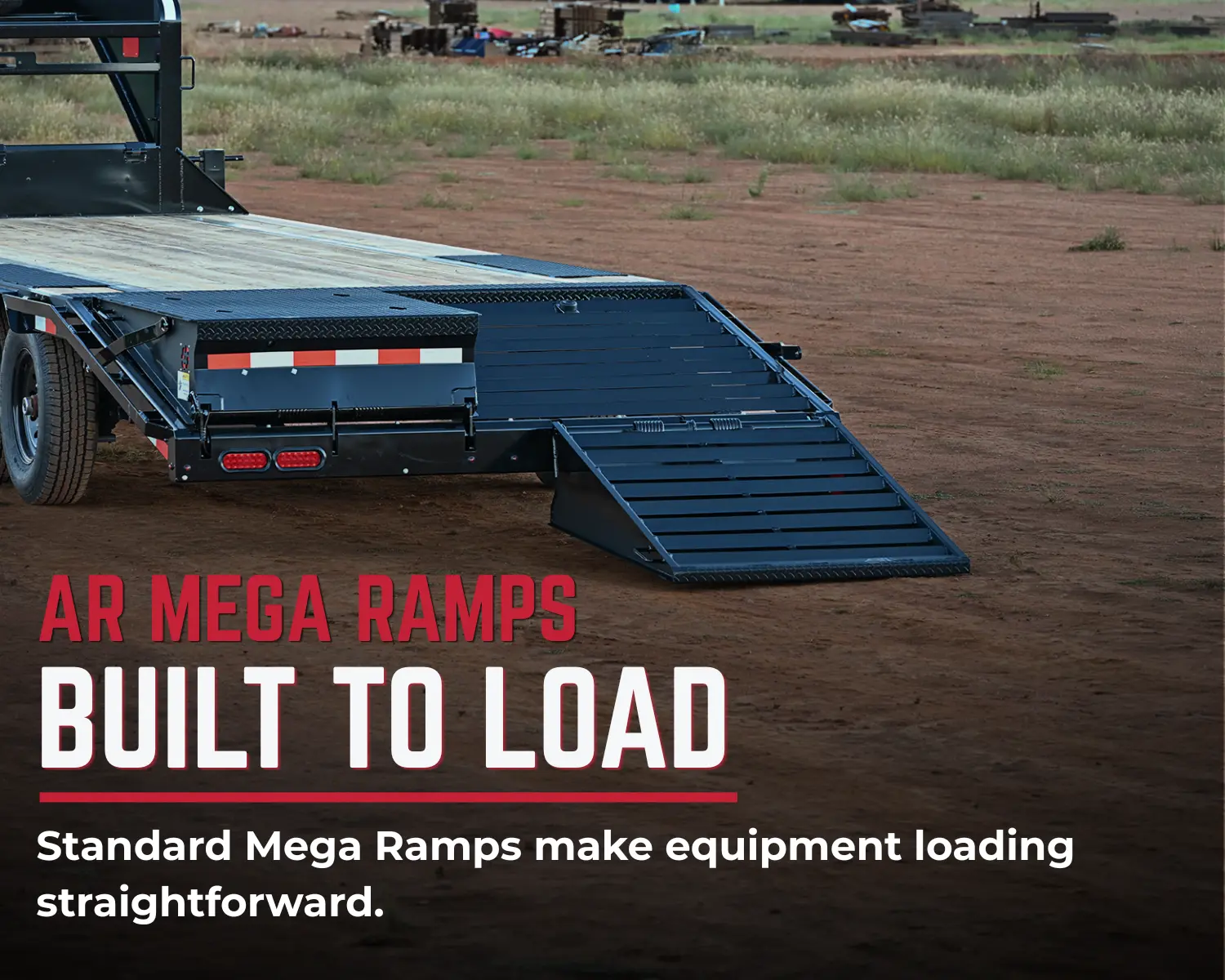

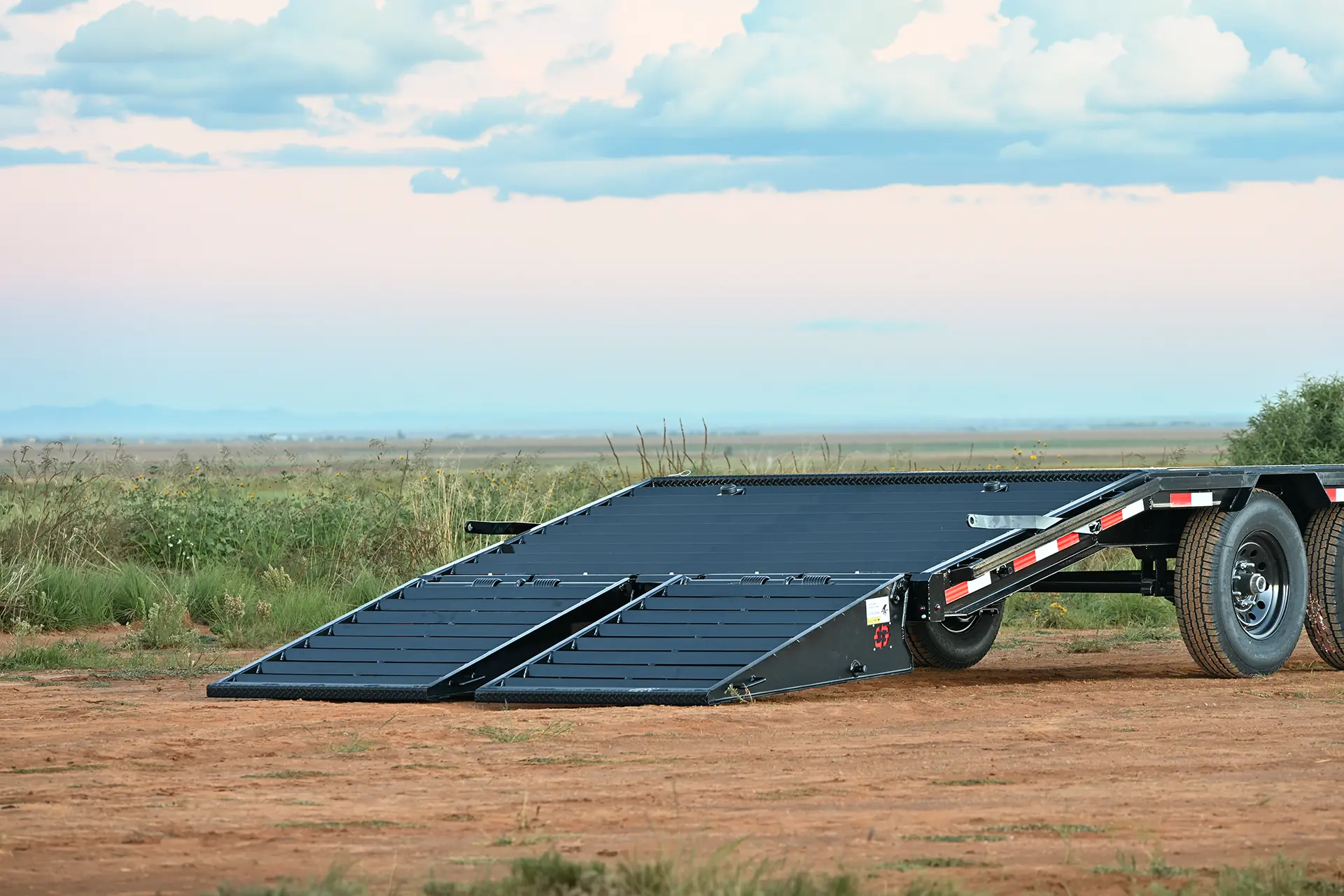

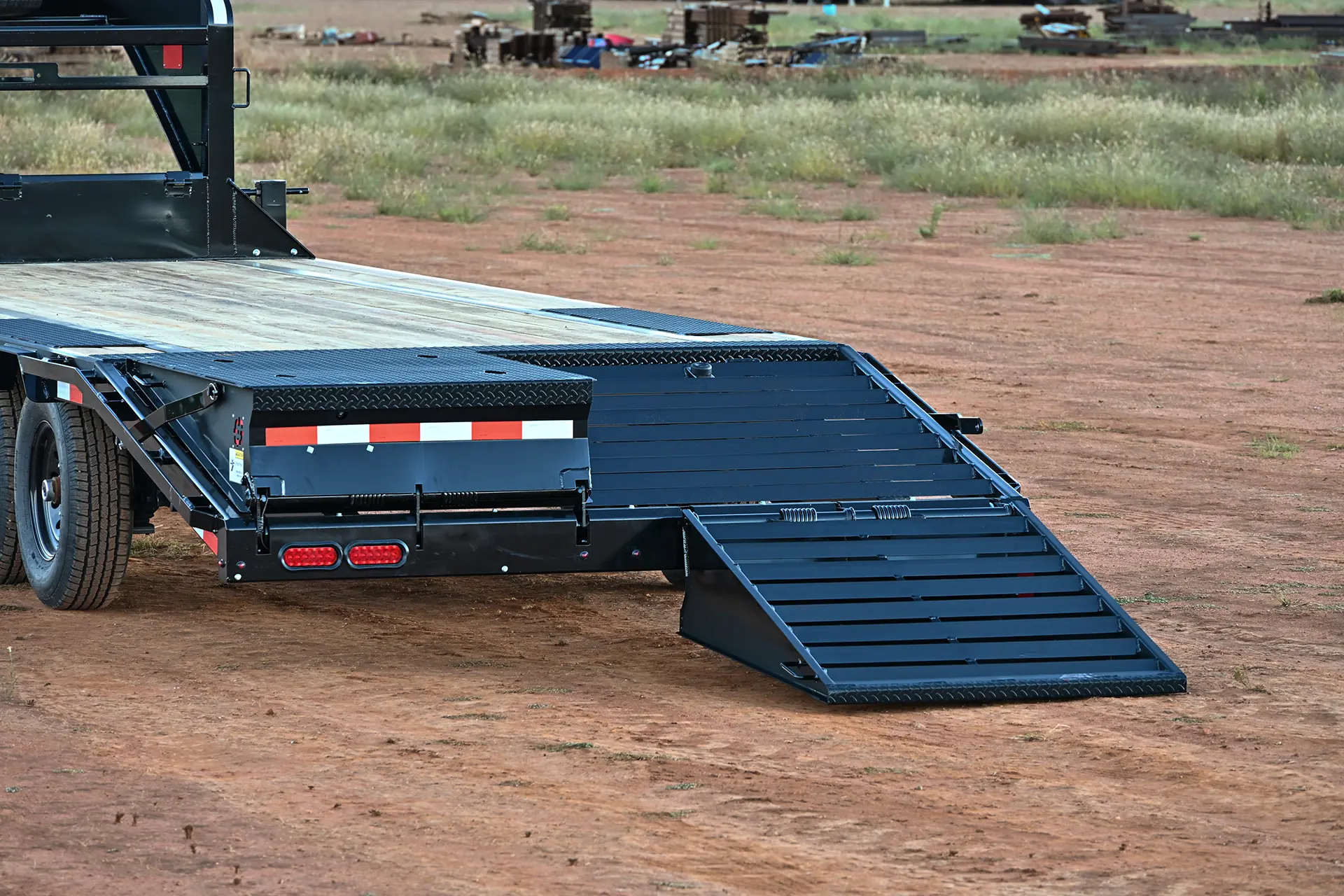

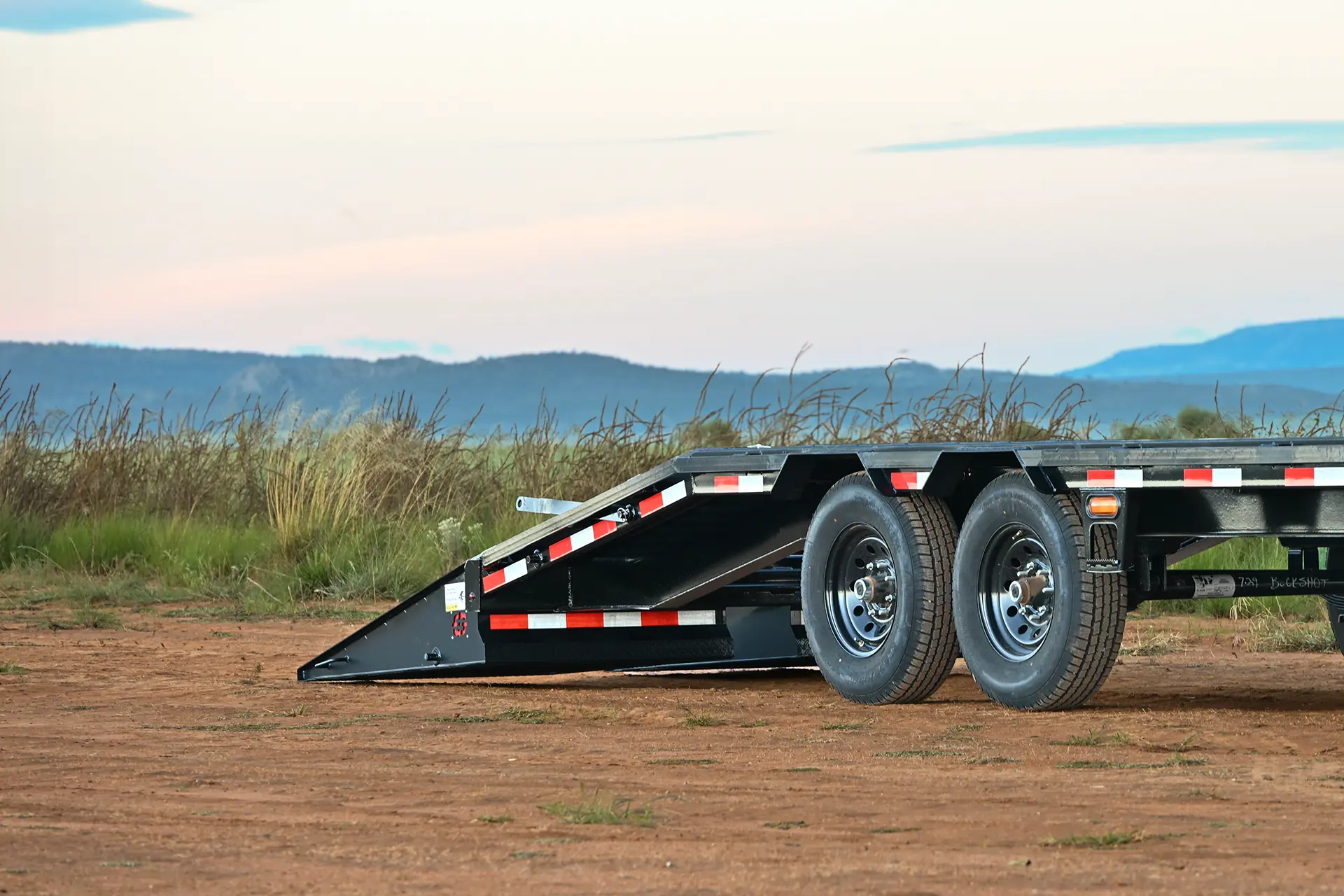

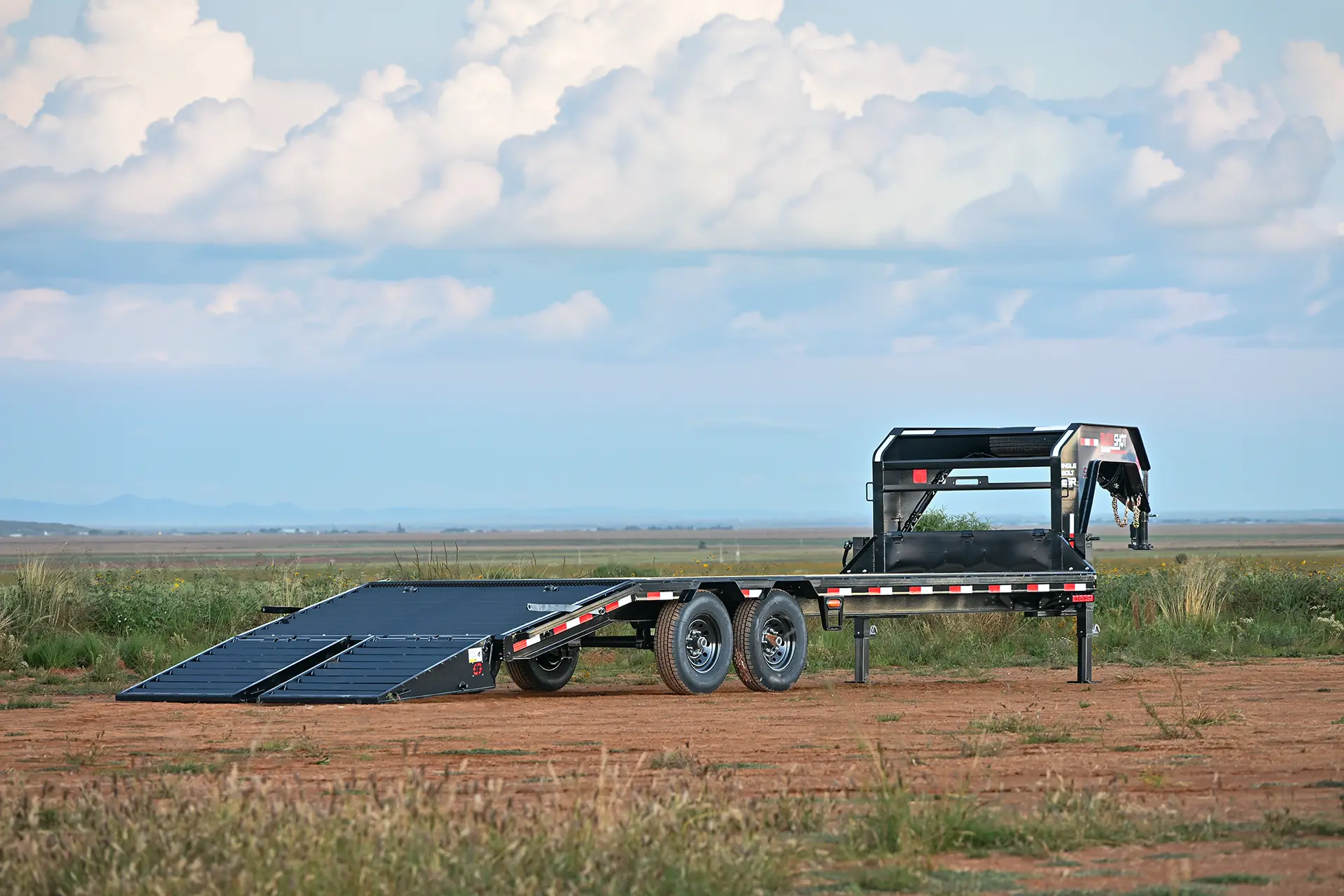

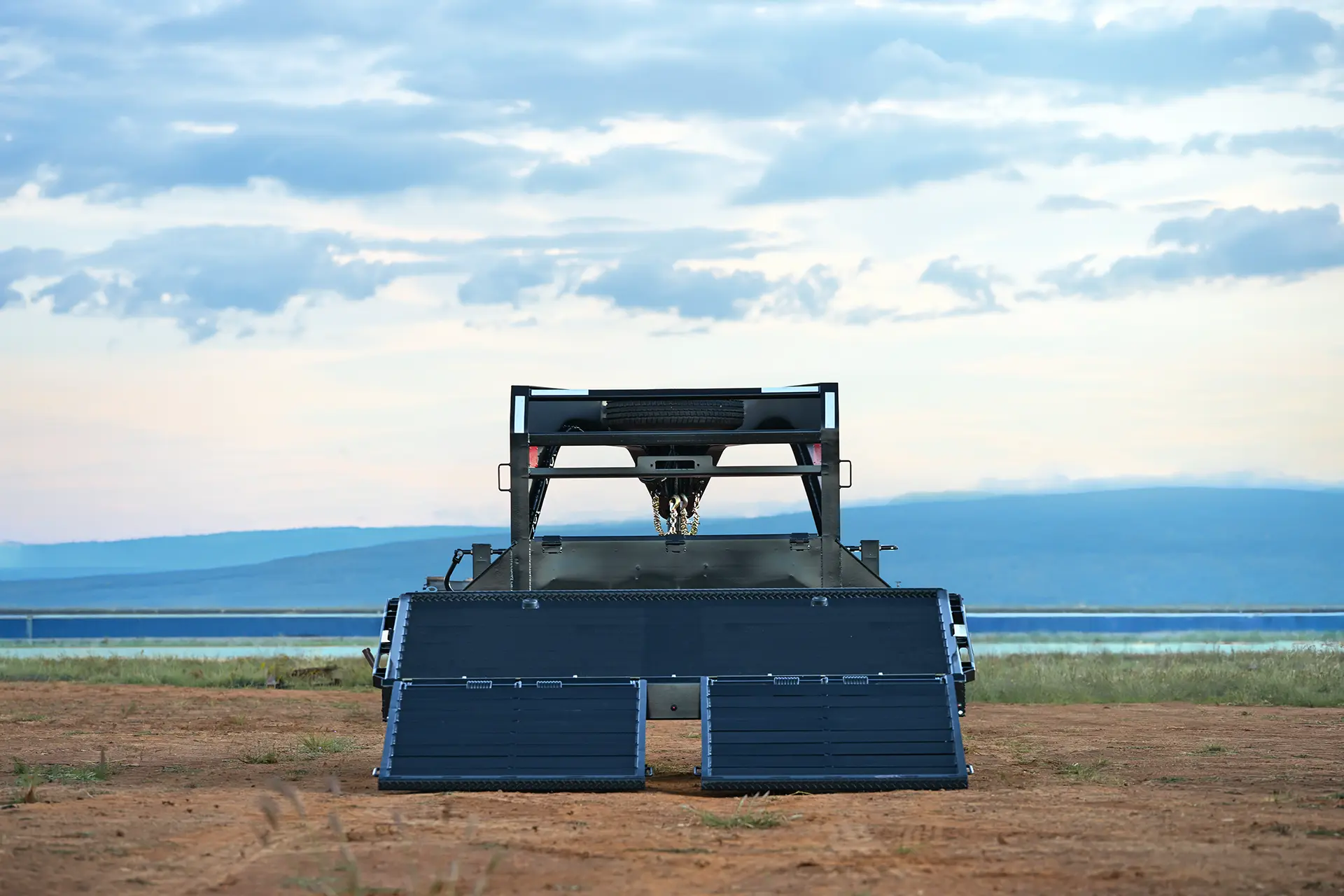

When the job calls for a wide platform and a practical way to load equipment, the Single Bolt-R is ready with a 102″ deckover platform and standard AR Mega Ramps. It is available in eight lengths from 25′ to 40′, with a 15,400 lb GVWR.

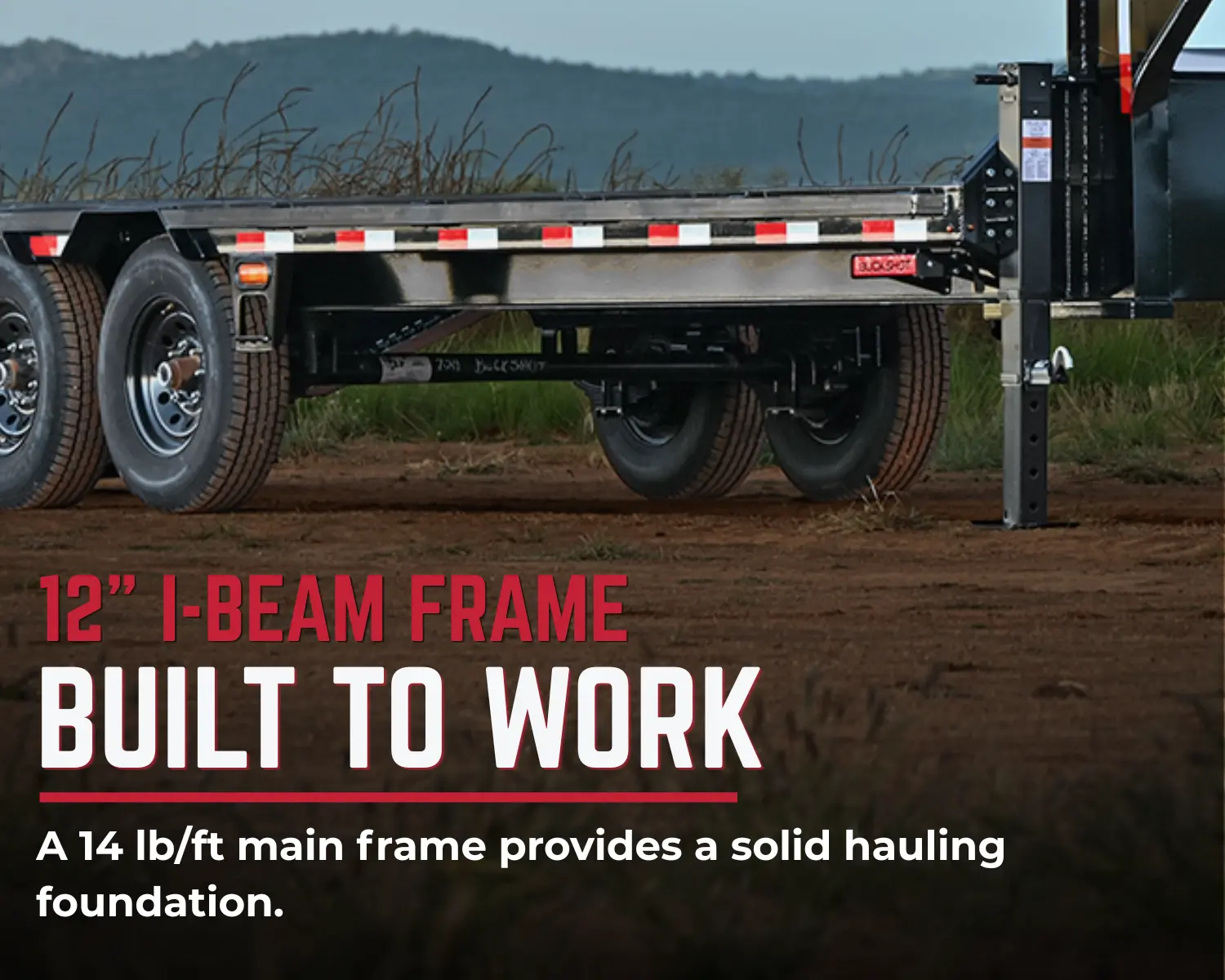

An engineered gooseneck joins a 12″ I-beam main frame rated at 14 lb/ft. Models 30′ and longer include a torque tube. The deck has a pine lumber floor, 3″ channel crossmembers spaced at 16″, and a 2″ rub rail with stake pockets for securing loads.

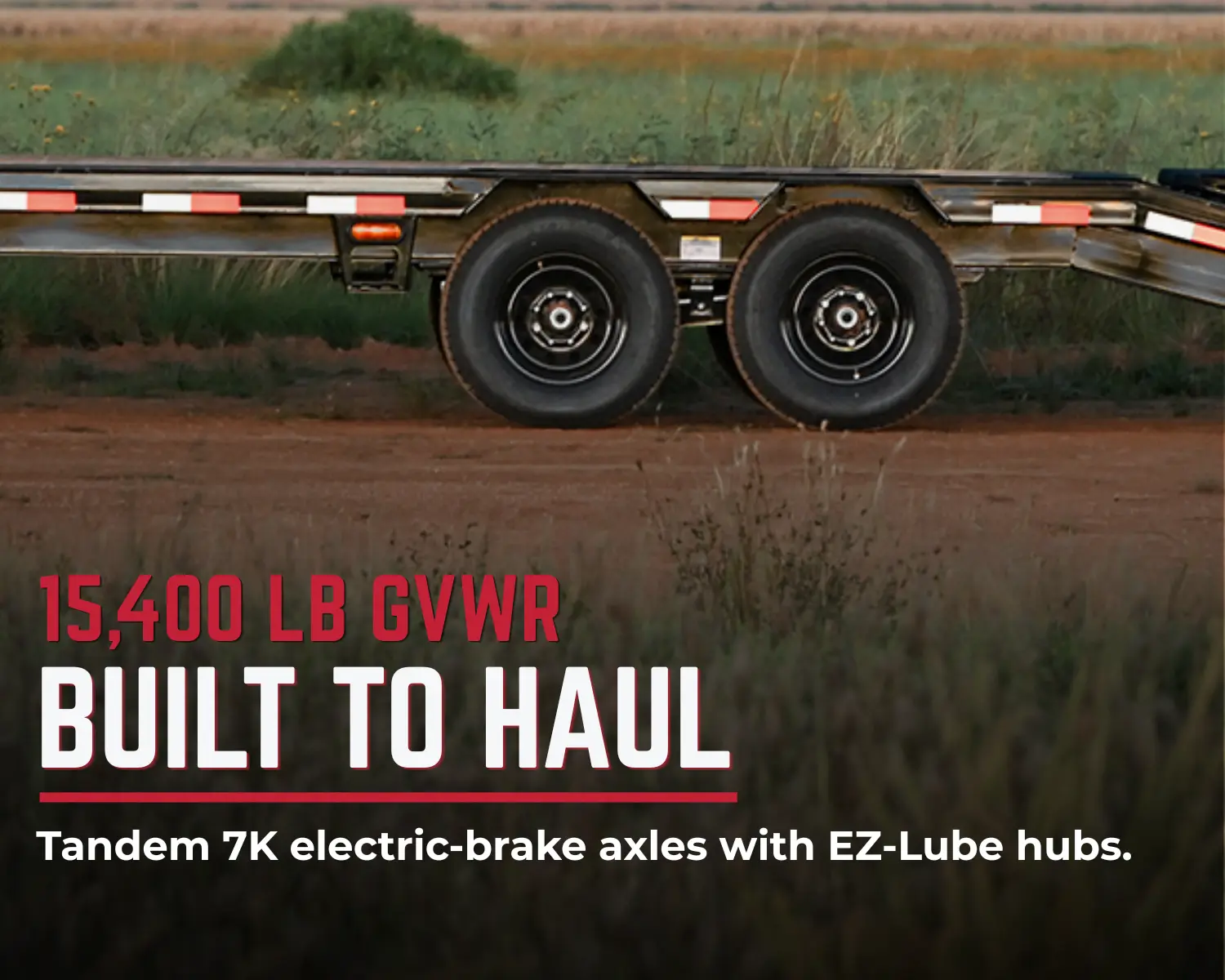

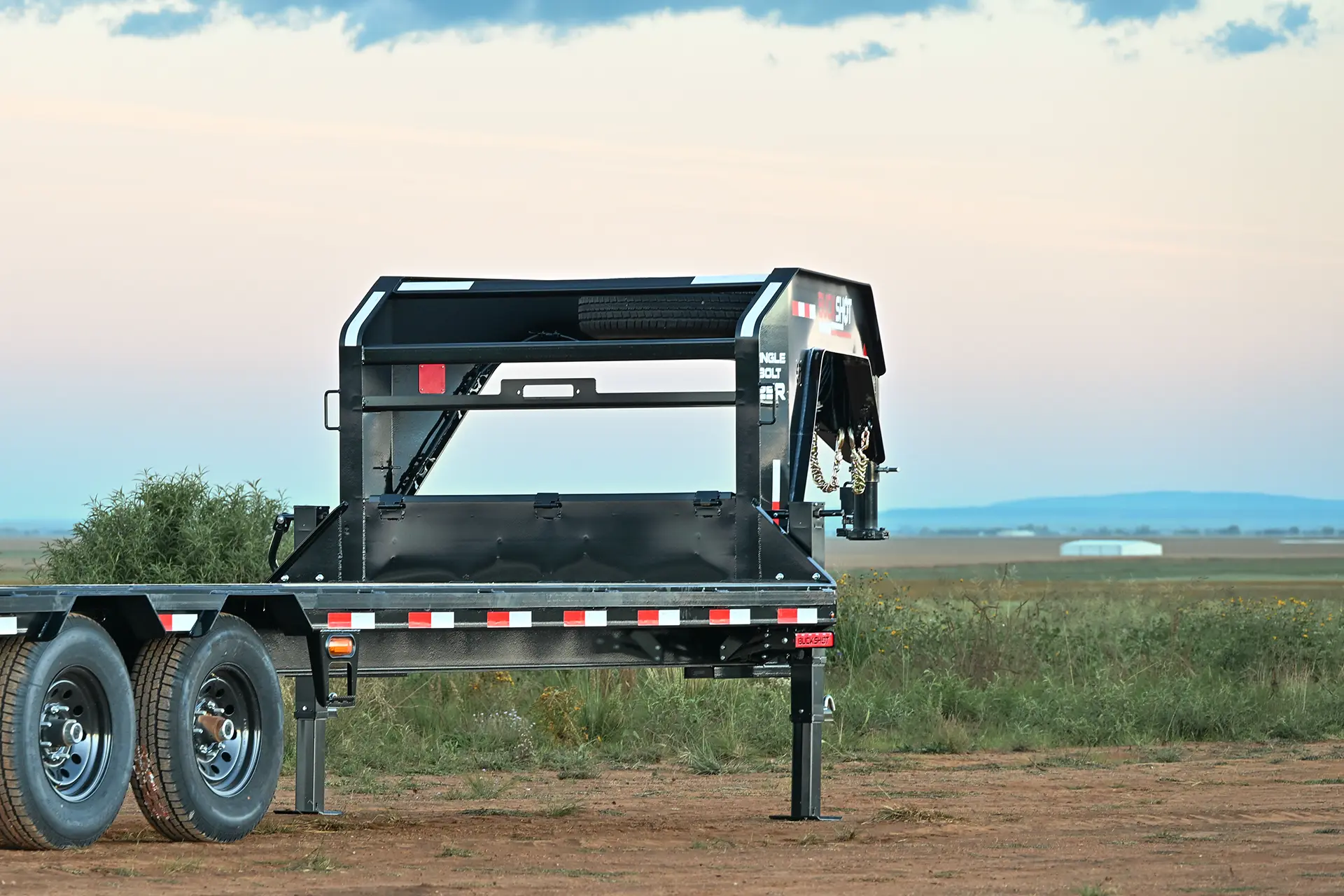

For towing, the Single Bolt-R includes an adjustable 2-5/16″ gooseneck coupler rated at 30,000 lb, dual side-wind drop-leg jacks, and Grade 70 safety chains. Tandem 7K electric-brake EZ-Lube spring axles, slipper springs, and ST235/80R16 10-ply tires support it on the road.

A lockable toolbox, DOT-approved LED lights, an all-weather 7-way RV wiring harness, and a steel-blasted, powder-coated finish complete the trailer.
