Standard Features
| Models and Ratings | |
|---|---|
| Model Line | AR B-XT |

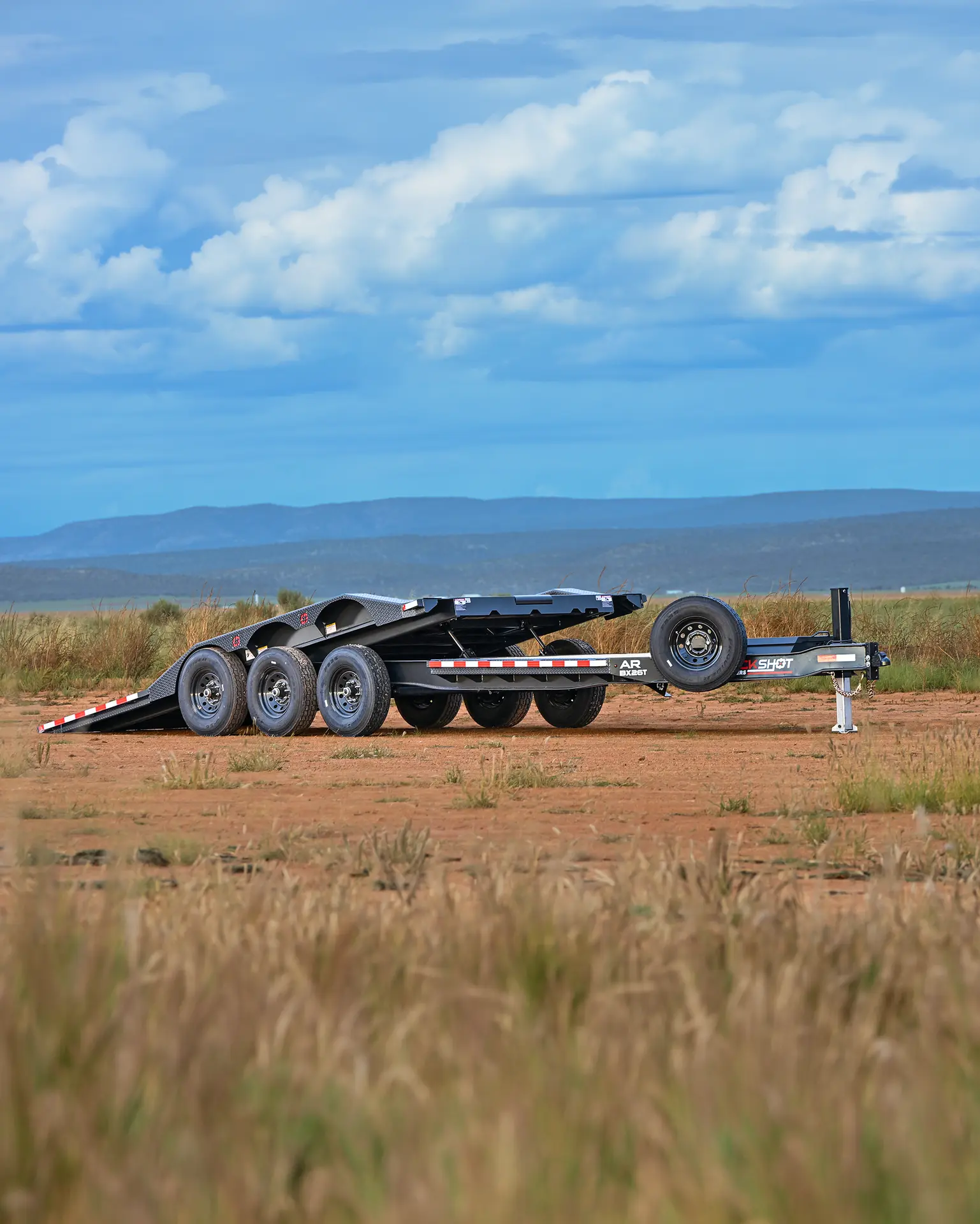

| Product Type | Triple Axle Bumper Pull Tilt Equipment Trailer |
| Available Models | AR B X26T, AR B X28T, AR B X30T |
| Available Lengths | 26', 28', and 30' |
| GVWR | 23,100 lbs |
| Axle Configuration | Triple Axle |
| Frame and Structure | |

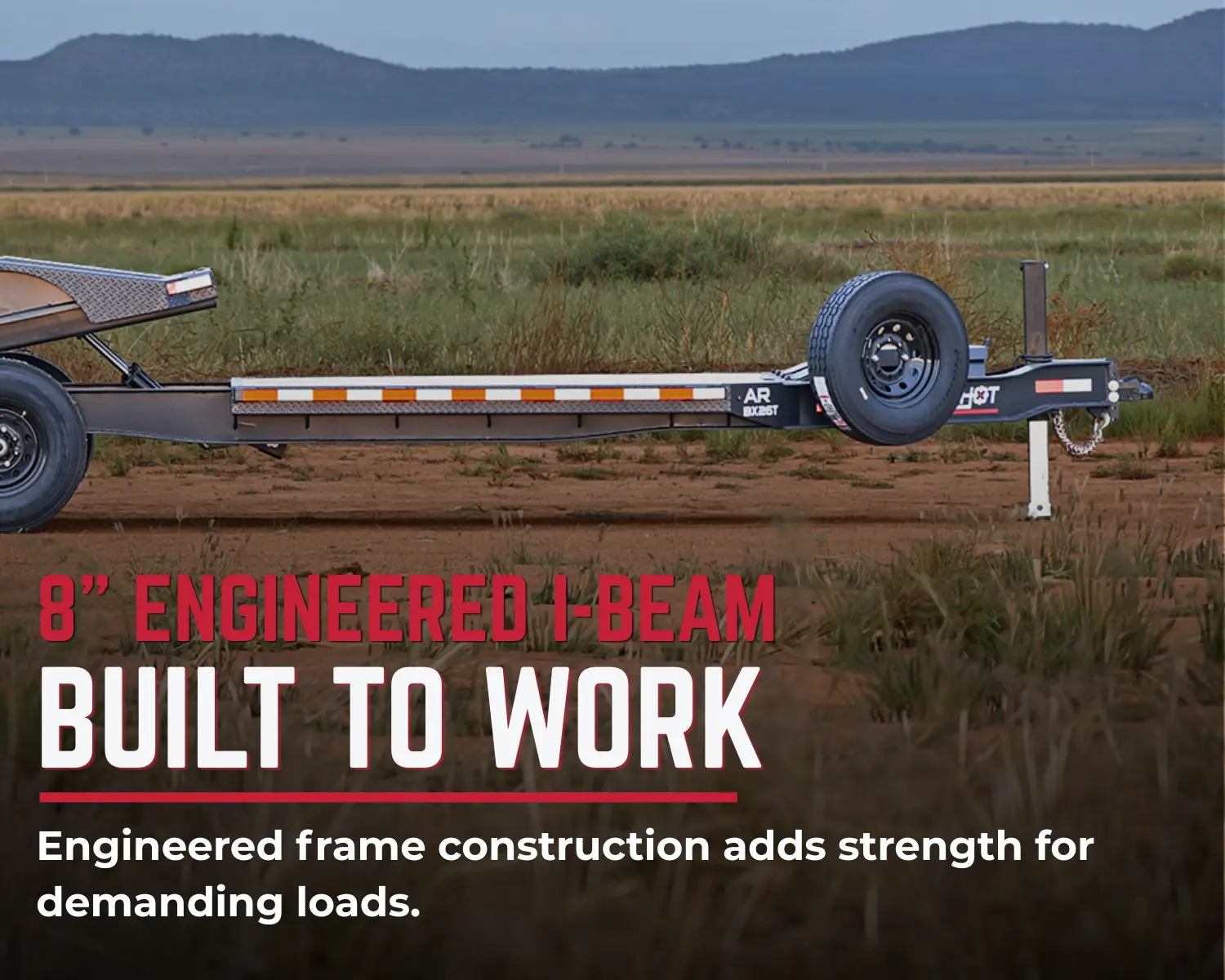

| Main Frame | 8" Engineered I-Beam with 10"–11" Belly |
| Tongue | Engineered I-Beam Bumper Pull Tongue |
| Flooring | Treated Pine Lumber Deck |
| Crossmembers | 3" Channel, 3.50 lbs/ft, 16" Spacing |
| Deck Width | 102" |
| Width Between Fenders | 83" |
| Deck Height | 24" |
| Drive-Over Fenders | 3/16" Diamond Plate Steel Drive-Over Fenders |
| Sides | 3/16" Formed Plate with 2" Rub Rail |

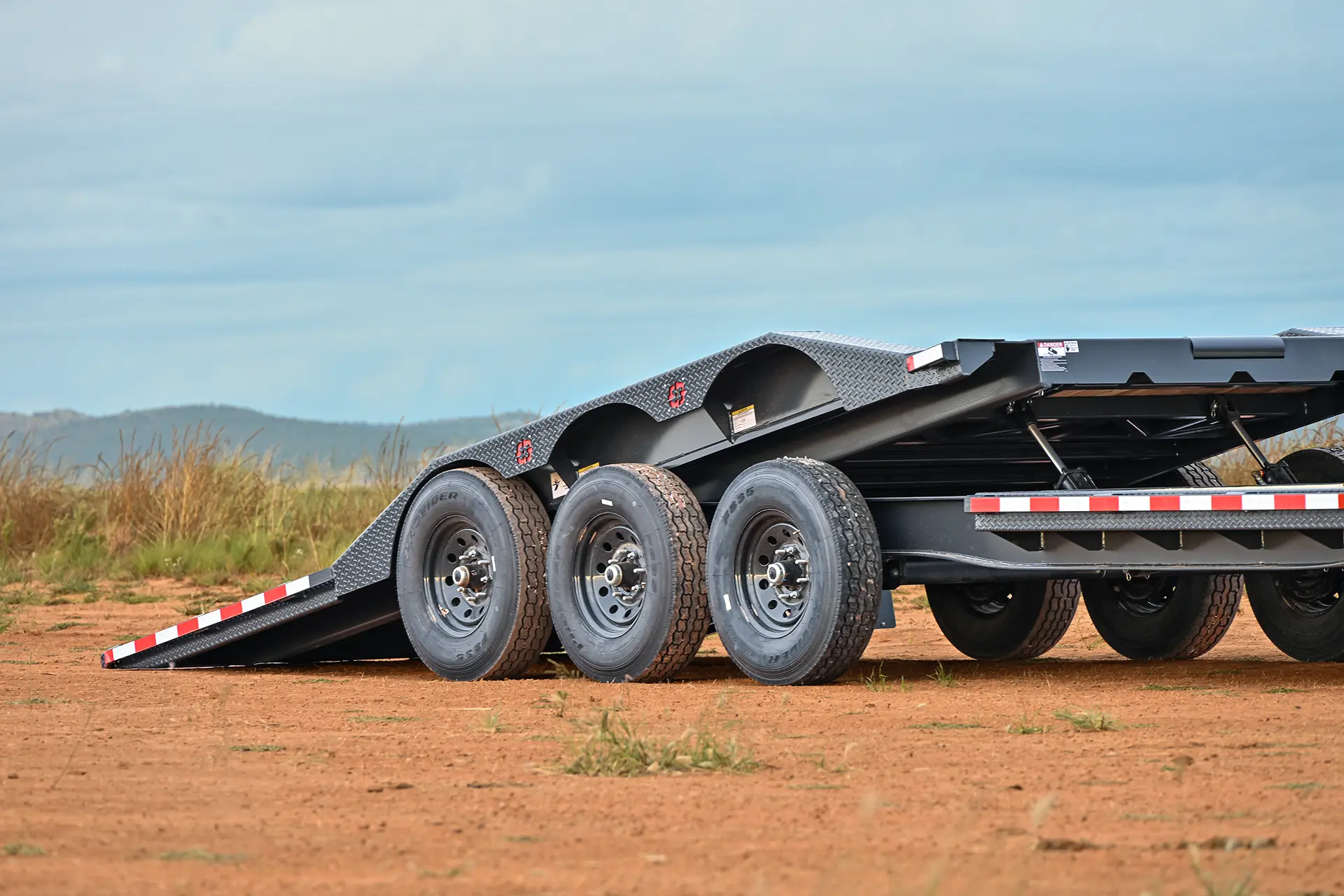

| Tilt Deck | |

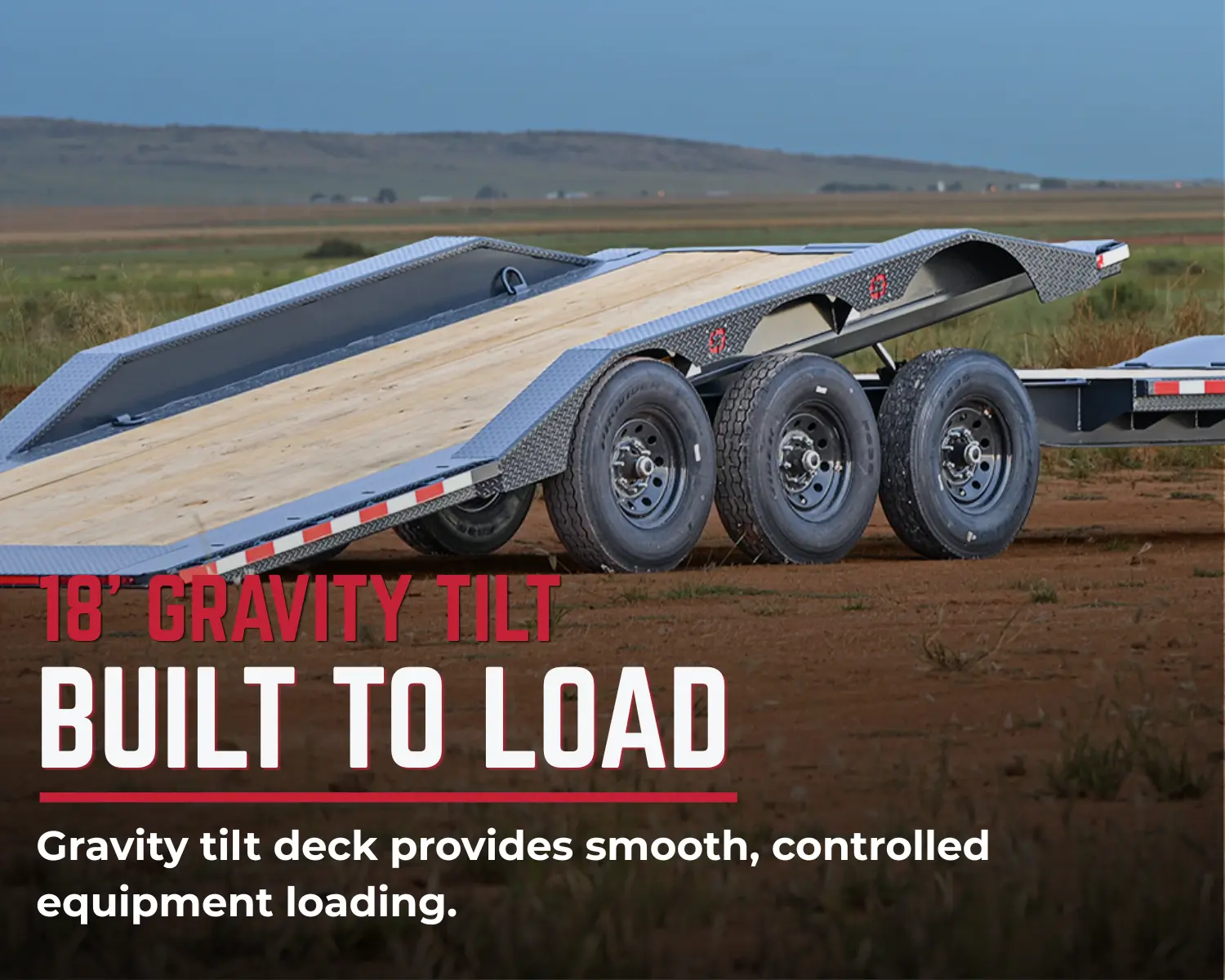

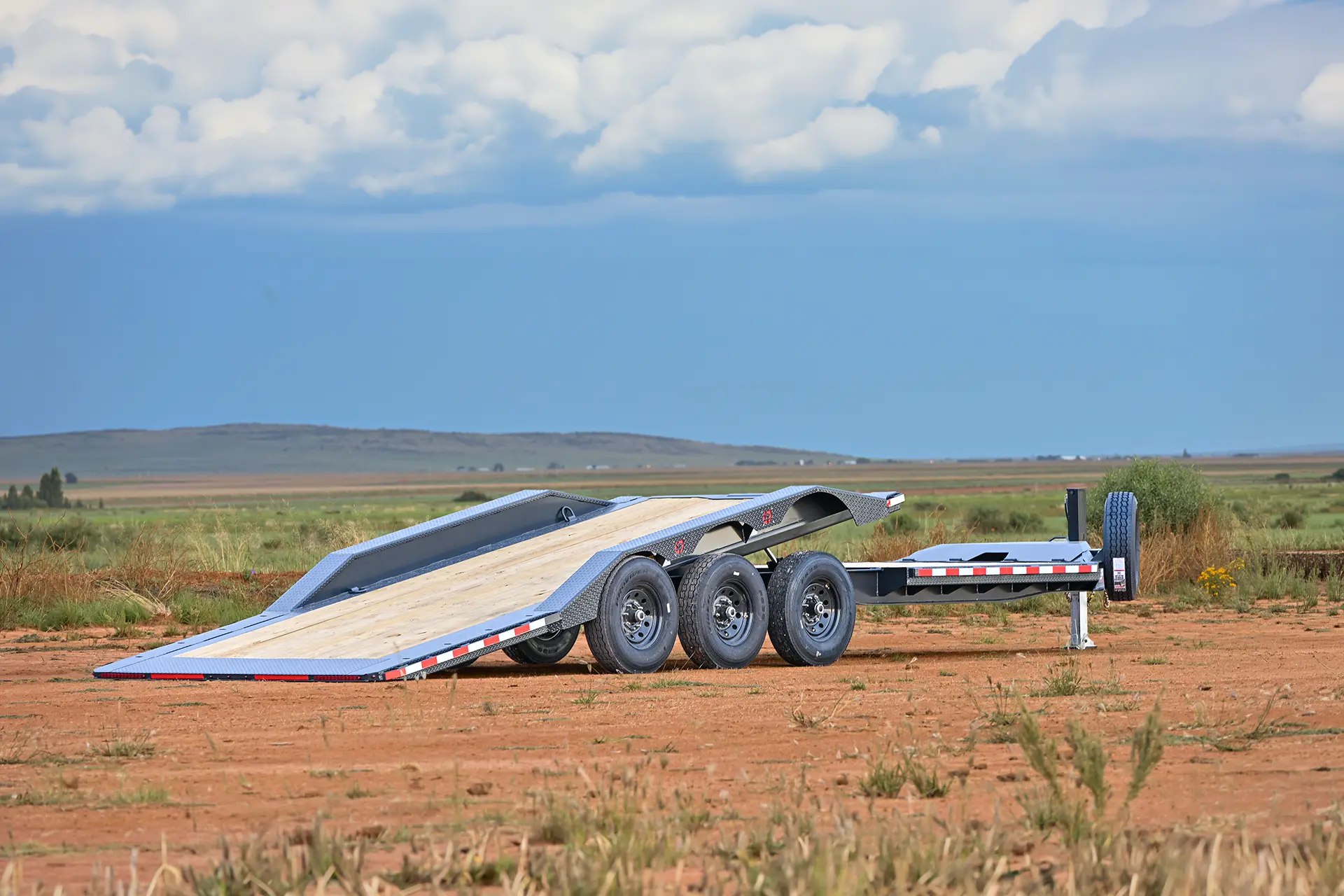

| Tilt Section | 18' Gravity Tilt Deck |
| Optional Tilt Deck | 16' Tilt Deck Available |
| Tilt System | Gravity Up/Down System with Reservoir Tank and 3-Way Valve |
| Cylinder | 1 × 3" × 12" Cylinder |
| Tilt Angle | 12° with 18' Deck / 13° with Optional 16' Deck |
| D-Rings | 4 Welded D-Rings Between Fenders |
| Tie-Downs | E-Track Ratchet Slots for Tie-Downs |

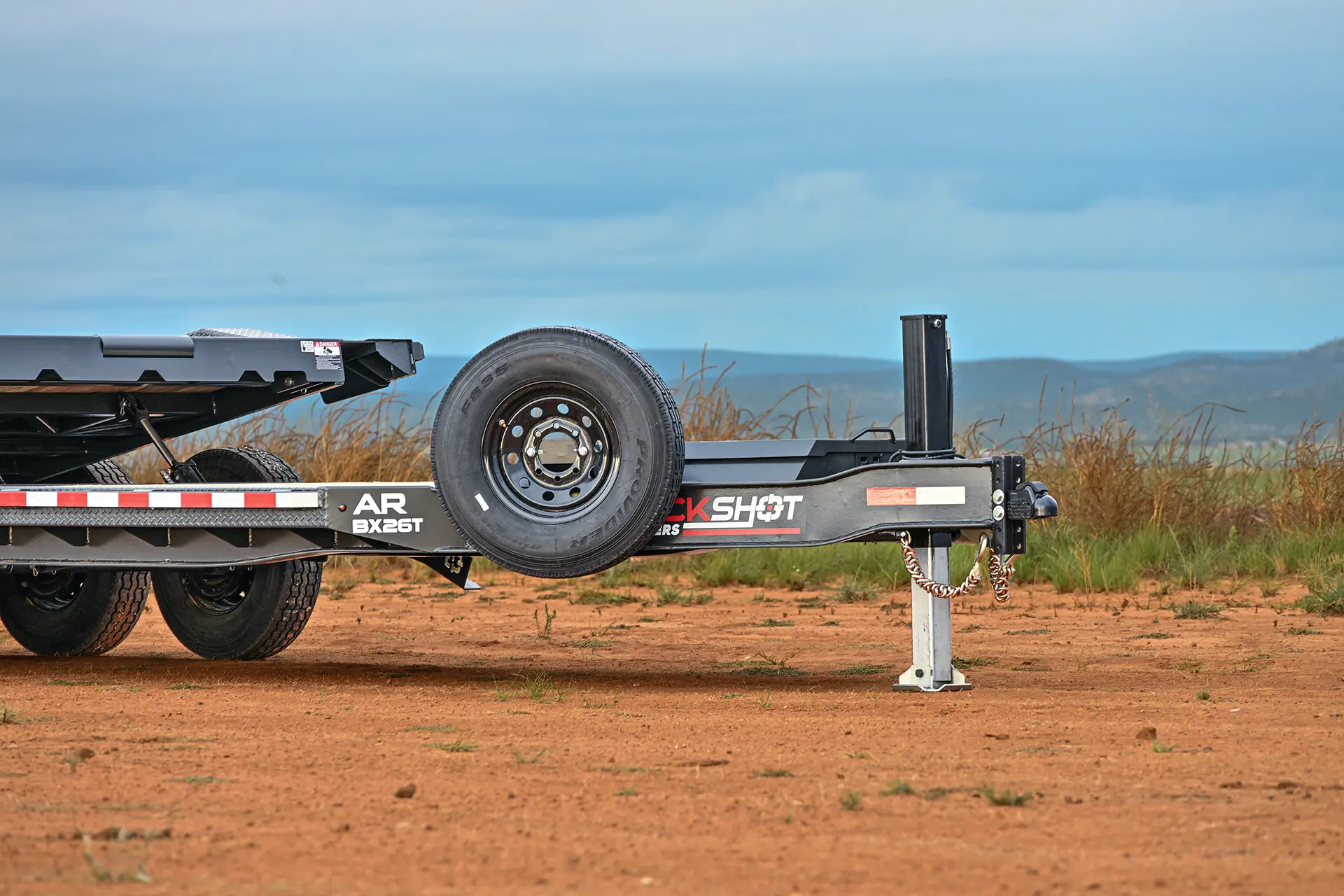

| Hitch and Jack | |
| Coupler | Adjustable Auto-Latch 2-5/16" Bumper Pull Coupler |

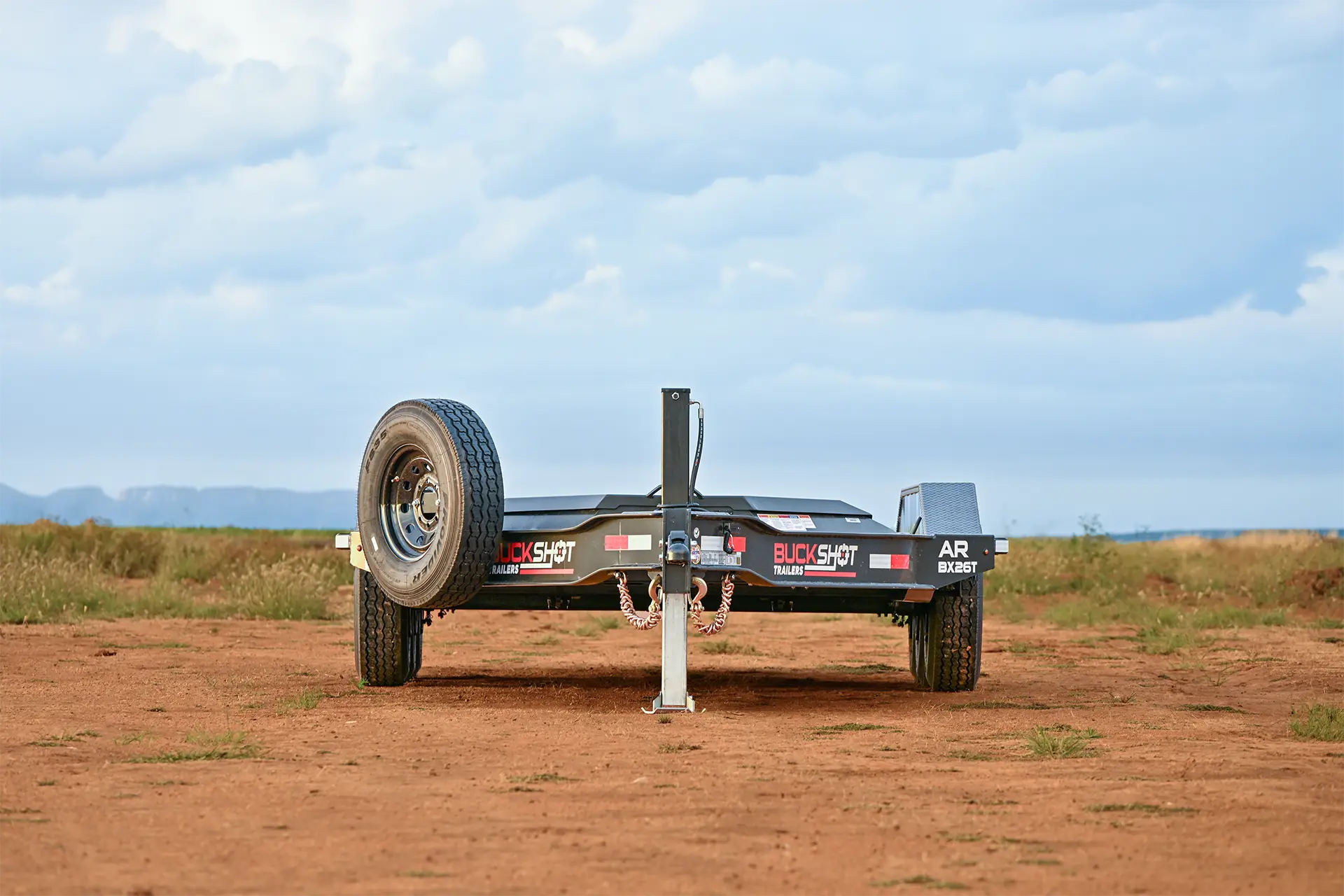

| Jack | 1 Side-Wind Spring-Loaded Drop-Leg Jack, 12,000 lbs |
| Safety Chains | 2 × 3/8" Grade 70 Safety Chains with Clevis Hooks |

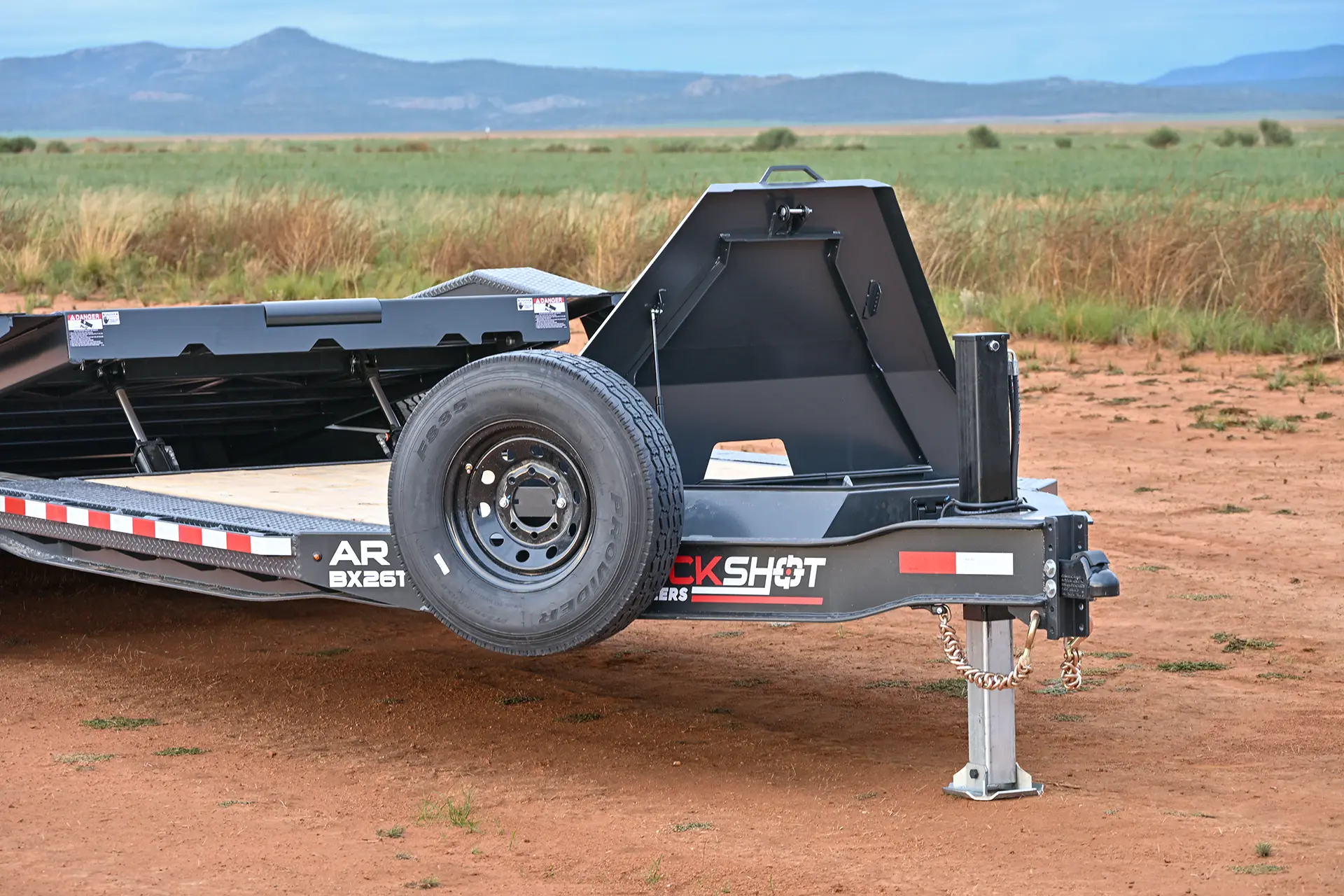

| Toolbox | Mega Lockable Toolbox with Winch Mount Inside |
| Winch Plate | Winch Ready; Winch Not Included |
| Spare Mount | Weld-On Spare Tire Mount; Spare Tire Not Included |
| Wheels and Suspension | |

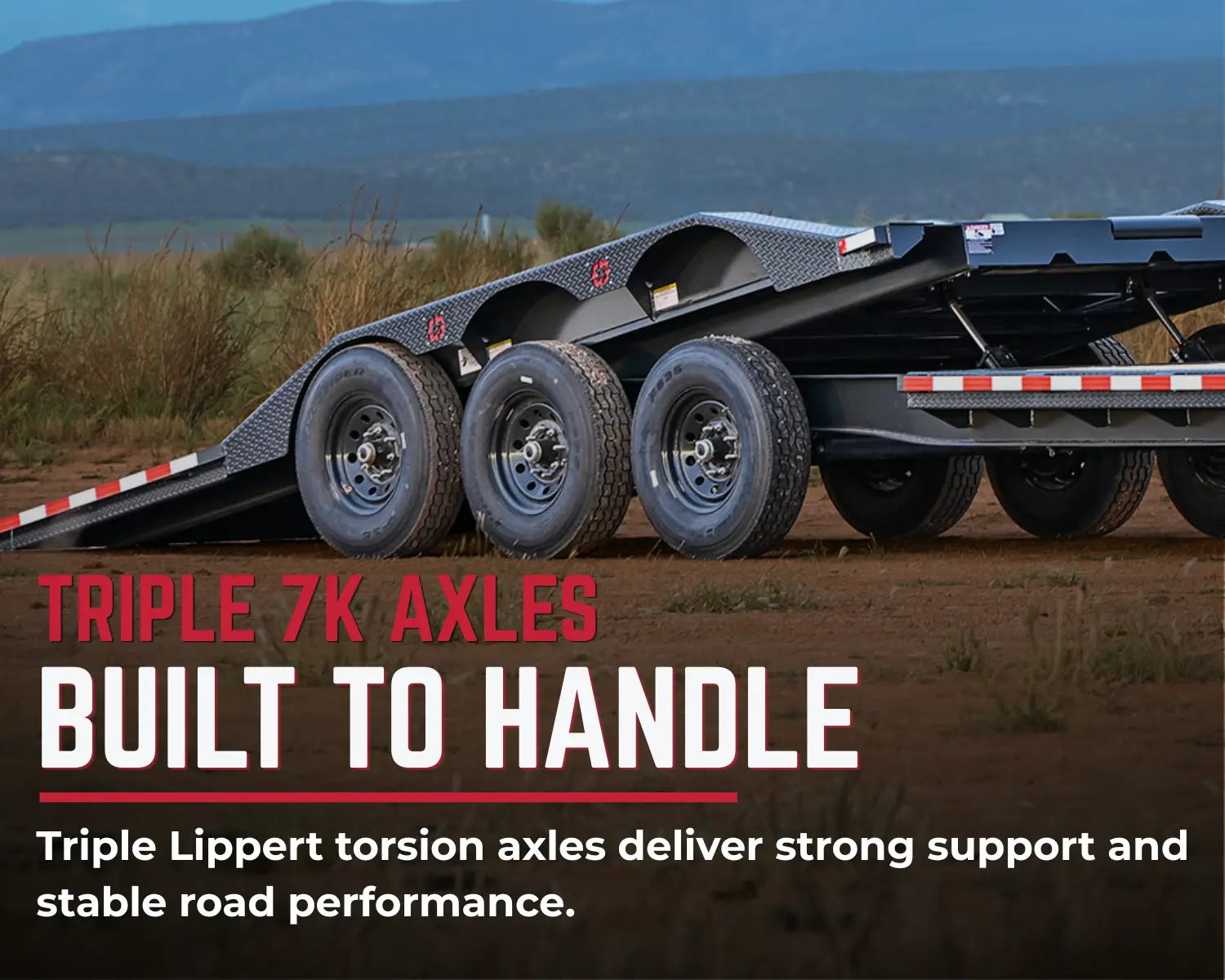

| Axles | 3 × 7K Lippert Torsion Axles |
| Axle Count | 3 |
| Suspension | Torsion Suspension |
| Tires | ST235/80R16 10-Ply Tires |
| Tire Capacity | 3,520 lbs Each |
| Bolt Pattern | 8 on 6.5" |
| Wheels | 16" Black Mod Wheels |
| Electrical and Lighting | |
| Lighting | DOT-Approved LED Lights |
| Wiring Harness | All-Weather-Proof Wire Harness |
| Connection | 7-Way RV |
| Finish and Warranty | |
| Surface Preparation | Steel Blasted |
| Paint Finish | Powder Coated |
| Structural Warranty | 3 Years |
| Paint Warranty | 1 Year |
| Models and Ratings | |
|---|---|
| Model Line | AR B-XT |
| Product Type | Triple Axle Bumper Pull Tilt Equipment Trailer |
| Available Models | AR B X26T, AR B X28T, AR B X30T |
| Available Lengths | 26', 28', and 30' |
| GVWR | 23,100 lbs |
| Axle Configuration | Triple Axle |
| Frame and Structure | |
| Main Frame | 8" Engineered I-Beam with 10"–11" Belly |
| Tongue | Engineered I-Beam Bumper Pull Tongue |
| Flooring | Treated Pine Lumber Deck |
| Crossmembers | 3" Channel, 3.50 lbs/ft, 16" Spacing |
| Deck Width | 102" |
| Width Between Fenders | 83" |
| Deck Height | 24" |
| Drive-Over Fenders | 3/16" Diamond Plate Steel Drive-Over Fenders |
| Sides | 3/16" Formed Plate with 2" Rub Rail |
| Tilt Deck | |
| Tilt Section | 18' Gravity Tilt Deck |
| Optional Tilt Deck | 16' Tilt Deck Available |
| Tilt System | Gravity Up/Down System with Reservoir Tank and 3-Way Valve |
| Cylinder | 1 × 3" × 12" Cylinder |
| Tilt Angle | 12° with 18' Deck / 13° with Optional 16' Deck |
| D-Rings | 4 Welded D-Rings Between Fenders |
| Tie-Downs | E-Track Ratchet Slots for Tie-Downs |
| Hitch and Jack | |
| Coupler | Adjustable Auto-Latch 2-5/16" Bumper Pull Coupler |
| Jack | 1 Side-Wind Spring-Loaded Drop-Leg Jack, 12,000 lbs |
| Safety Chains | 2 × 3/8" Grade 70 Safety Chains with Clevis Hooks |
| Toolbox | Mega Lockable Toolbox with Winch Mount Inside |
| Winch Plate | Winch Ready; Winch Not Included |
| Spare Mount | Weld-On Spare Tire Mount; Spare Tire Not Included |
| Wheels and Suspension | |
| Axles | 3 × 7K Lippert Torsion Axles |
| Axle Count | 3 |
| Suspension | Torsion Suspension |
| Tires | ST235/80R16 10-Ply Tires |
| Tire Capacity | 3,520 lbs Each |
| Bolt Pattern | 8 on 6.5" |
| Wheels | 16" Black Mod Wheels |
| Electrical and Lighting | |
| Lighting | DOT-Approved LED Lights |
| Wiring Harness | All-Weather-Proof Wire Harness |
| Connection | 7-Way RV |
| Finish and Warranty | |
| Surface Preparation | Steel Blasted |
| Paint Finish | Powder Coated |
| Structural Warranty | 3 Years |
| Paint Warranty | 1 Year |

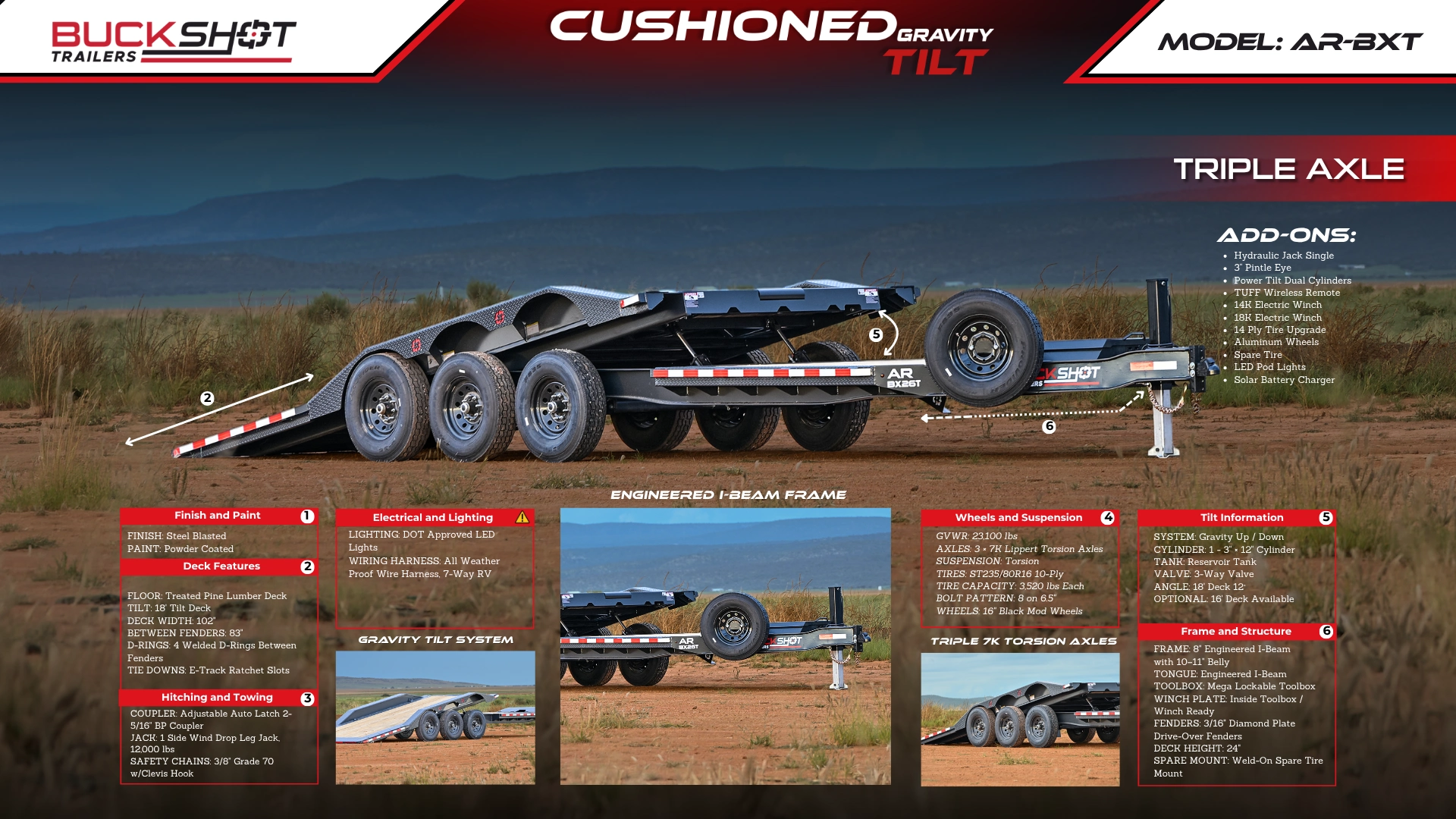

Brochure
