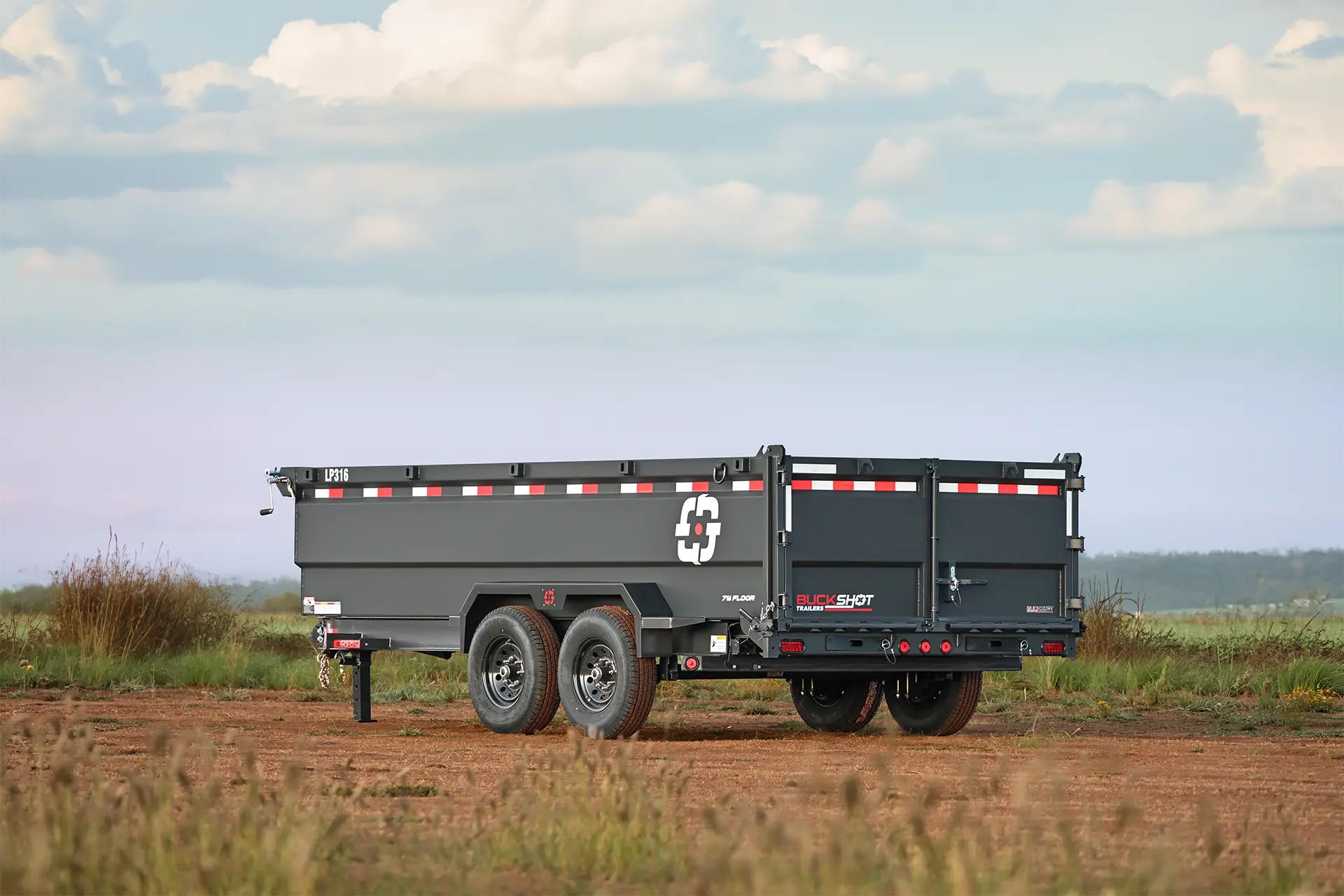

LP Series

83" Bumper Pull Dump Trailer with Tandem 7K Axles

Lengths

12–16 FT

Side Heights

2–4 FT

GVWR

14,000 LBS

Buckshot LP Series

Built to haul. Built to last.

Find a Dealer

LP Series

83" Bumper Pull Dump Trailer with Tandem 7K Axles

Gunmetal Gray

Lengths

12–16FT

Side Heights

2-4FT

Axle Count

GVWR

14,000LBS

Width

83IN

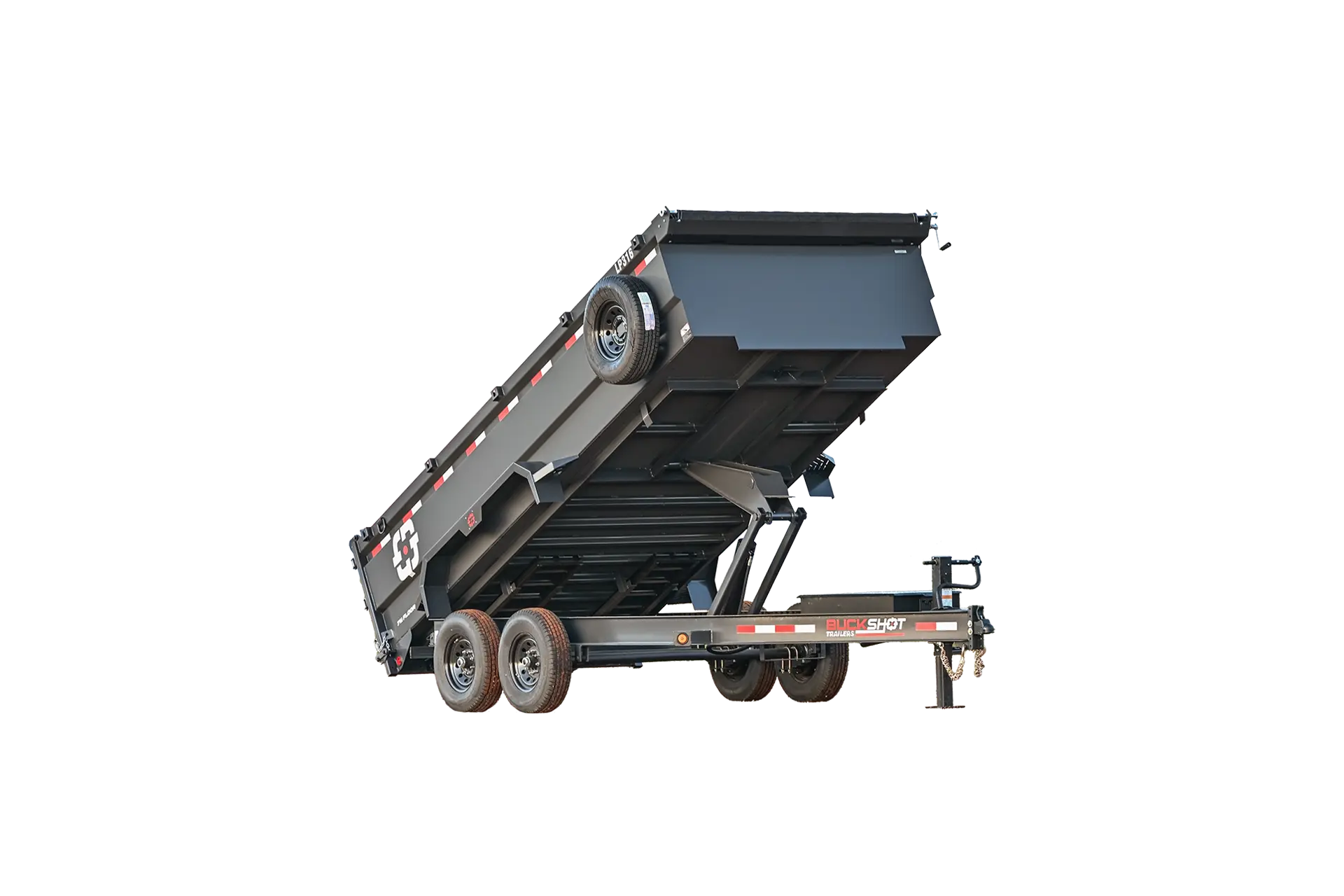

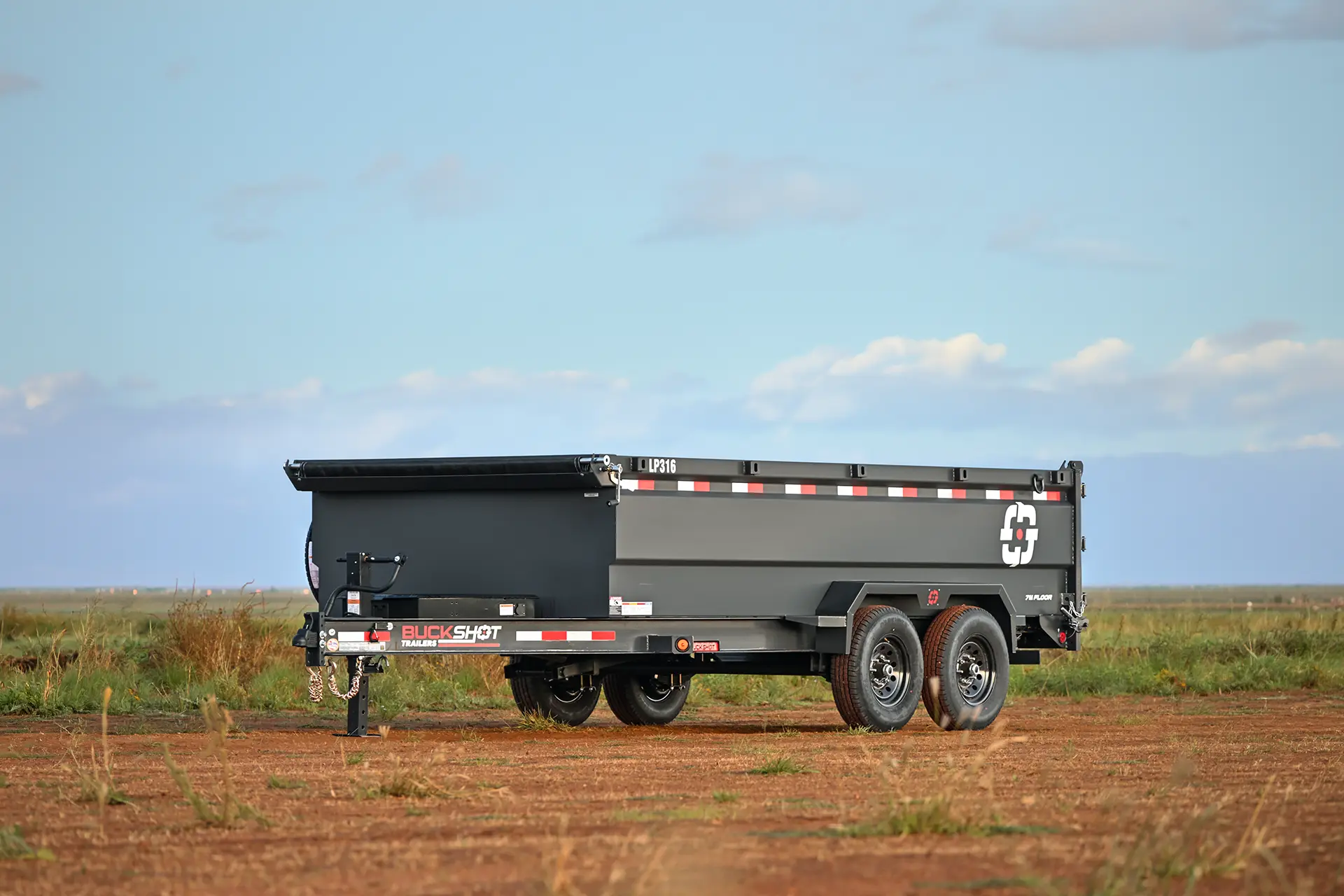

LP Bumper Pull Dump Trailer

LP Series Highlights

LP Dump Trailer – Heavy-Duty Strength. Built for Everyday Work.

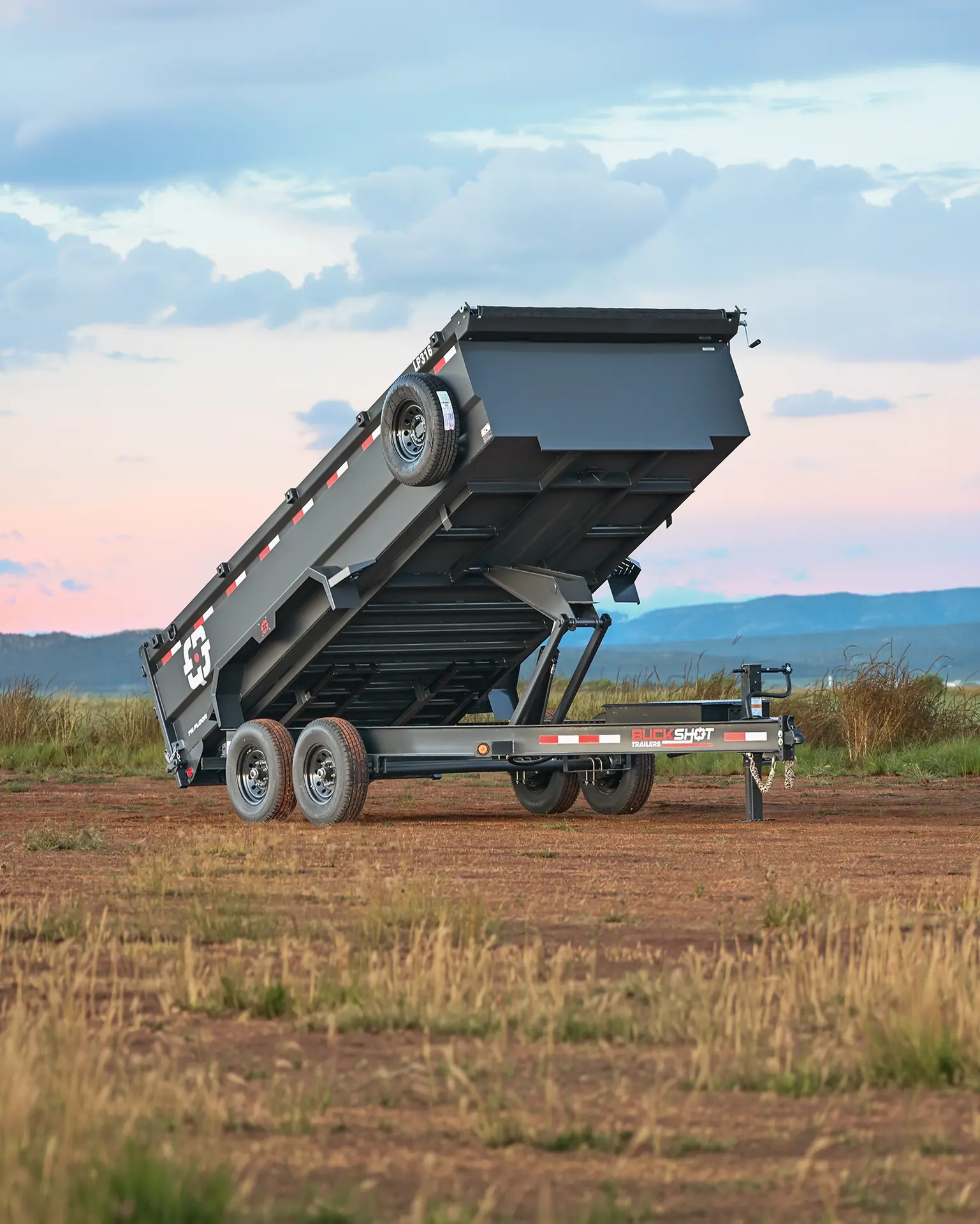

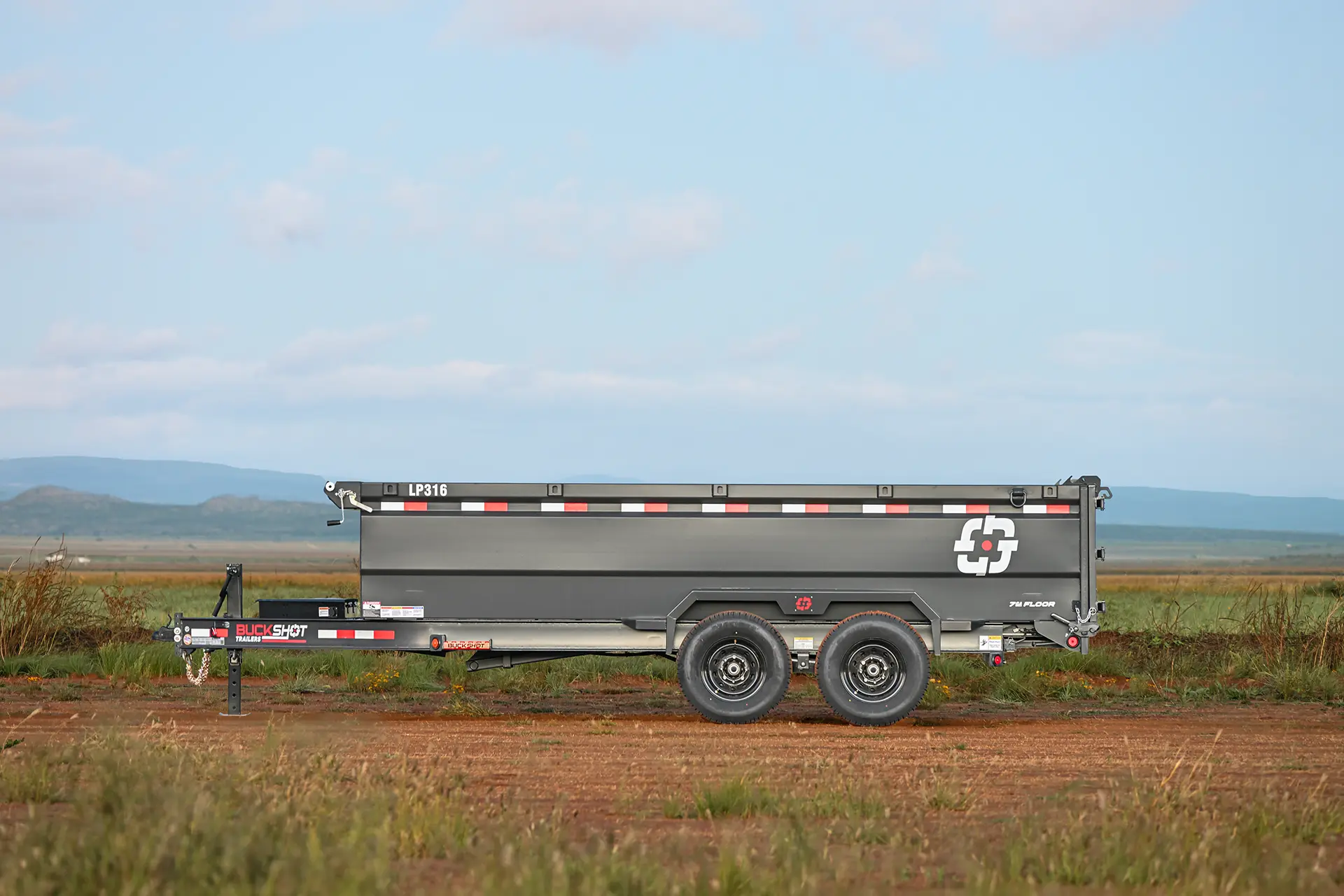

The LP Dump Trailer delivers dependable hauling and dumping performance in a rugged bumper-pull configuration, built for contractors, operators, and demanding everyday jobs.

Its heavy-duty construction features an 8" I-beam main frame, one-piece I-beam tongue, 7GA one-piece steel floor, and durable 10GA formed steel sides, creating a strong foundation designed to handle serious work.

With an 83" bed width, 6' slide-in ramps, and a 3-way spreader gate, the LP is built for versatility on the jobsite. A manual tarp kit comes standard, adding convenience for hauling loose material and everyday loads.

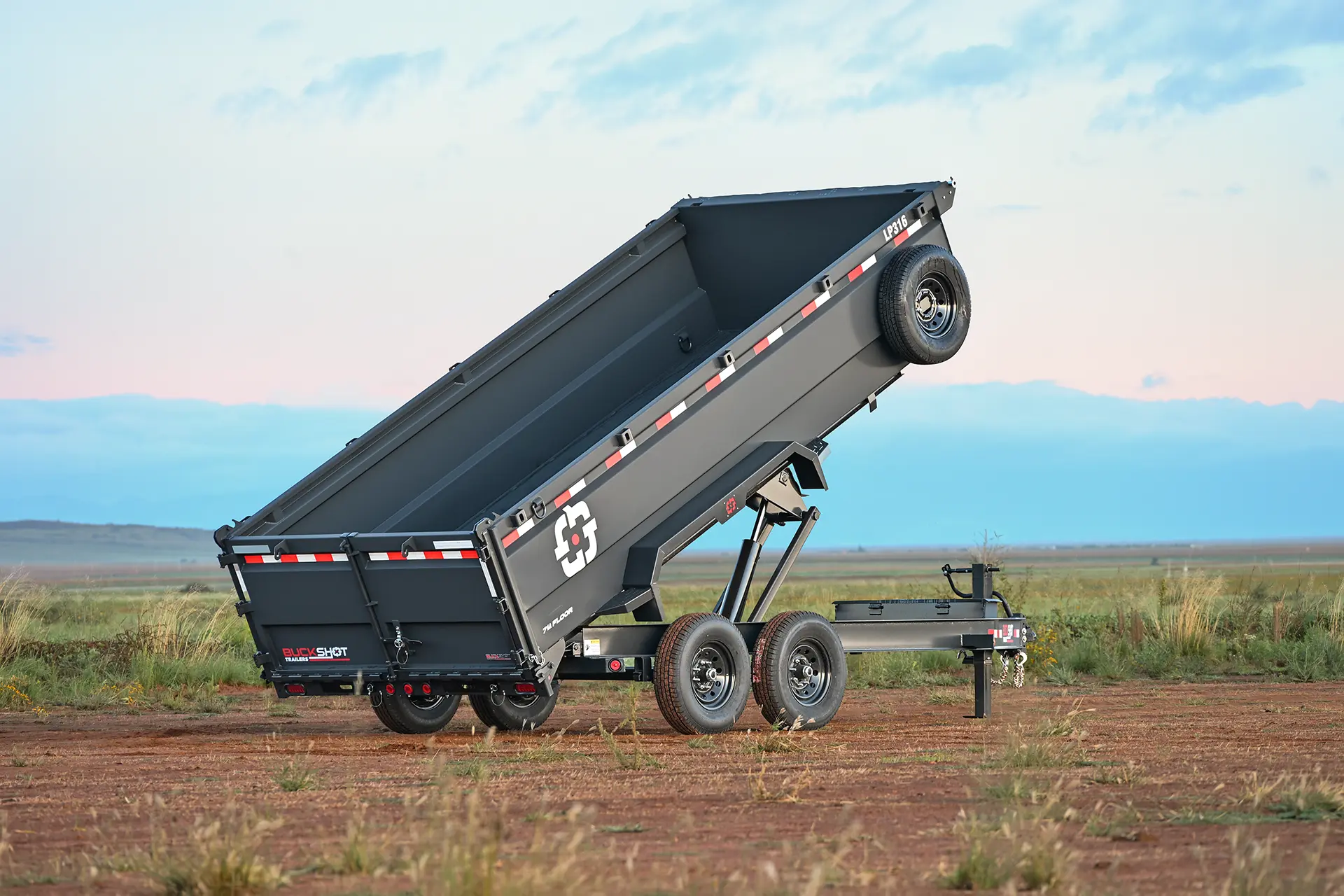

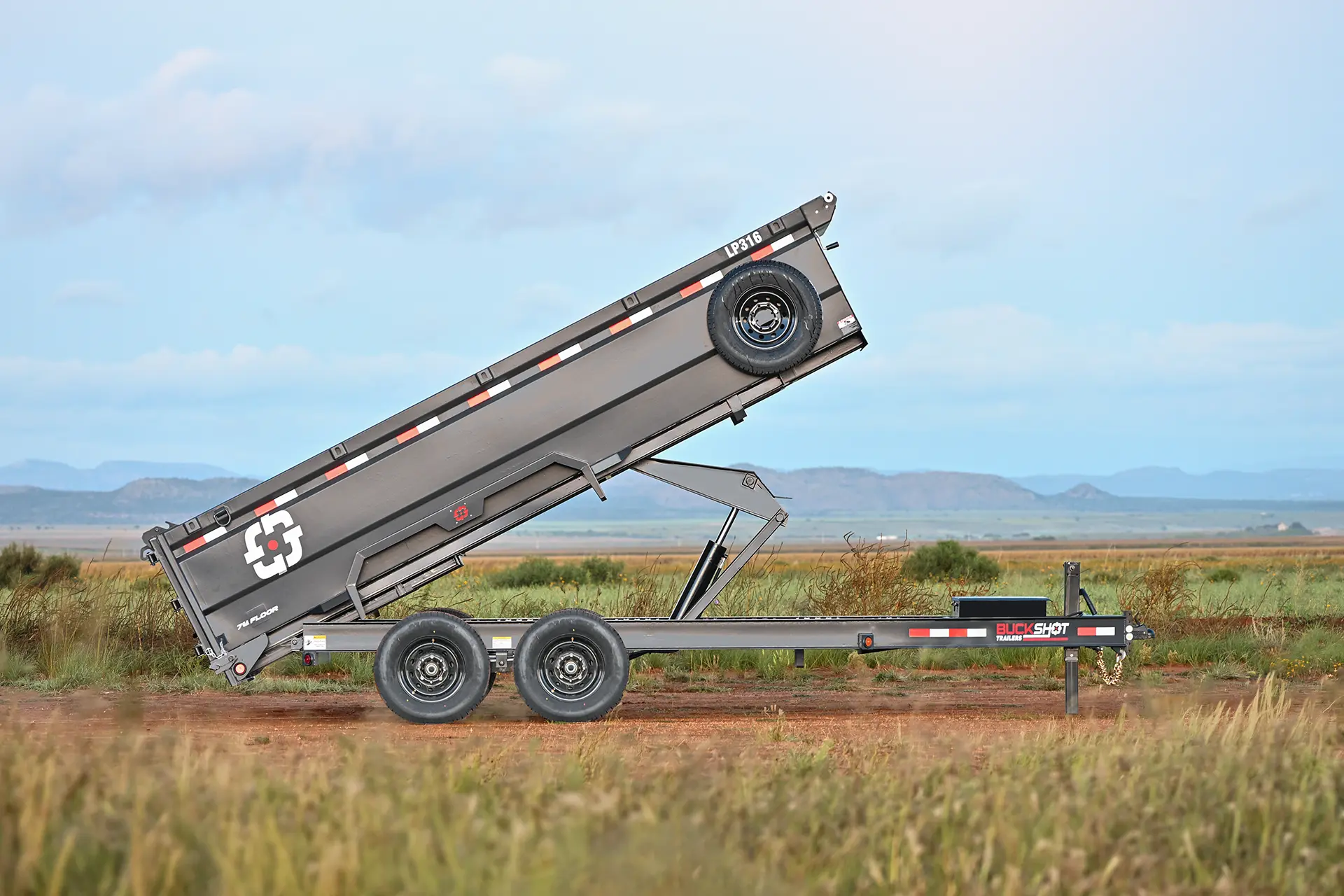

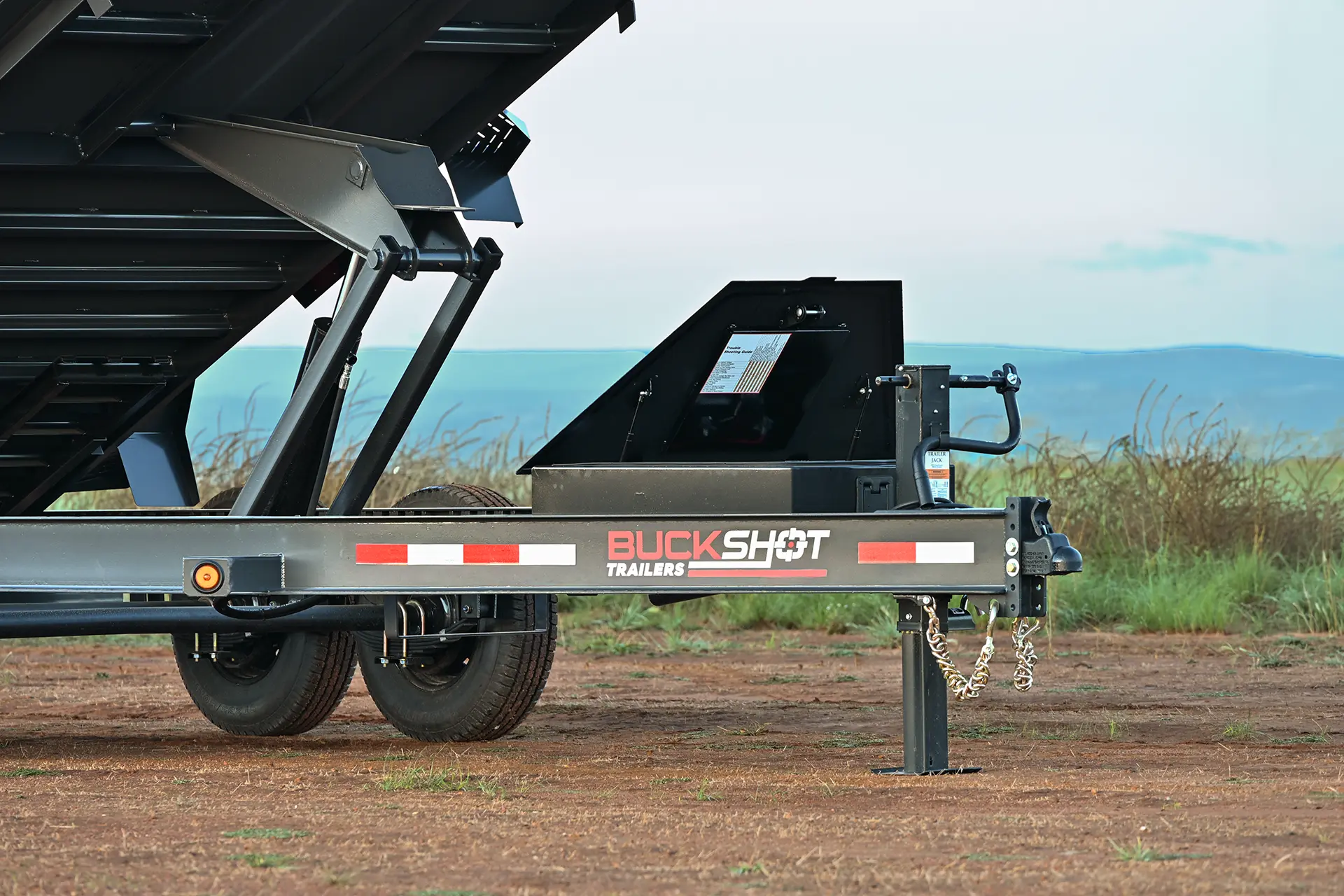

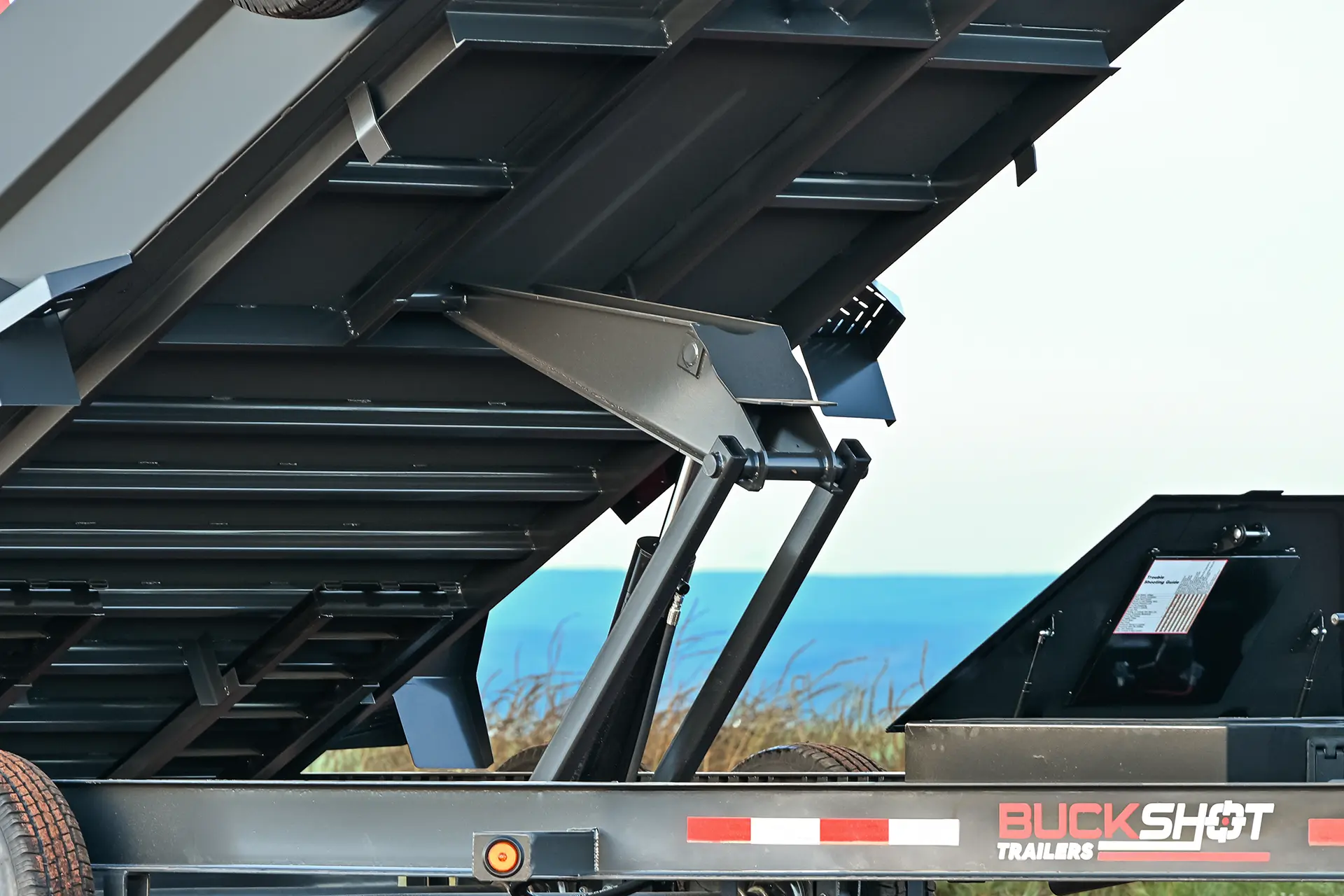

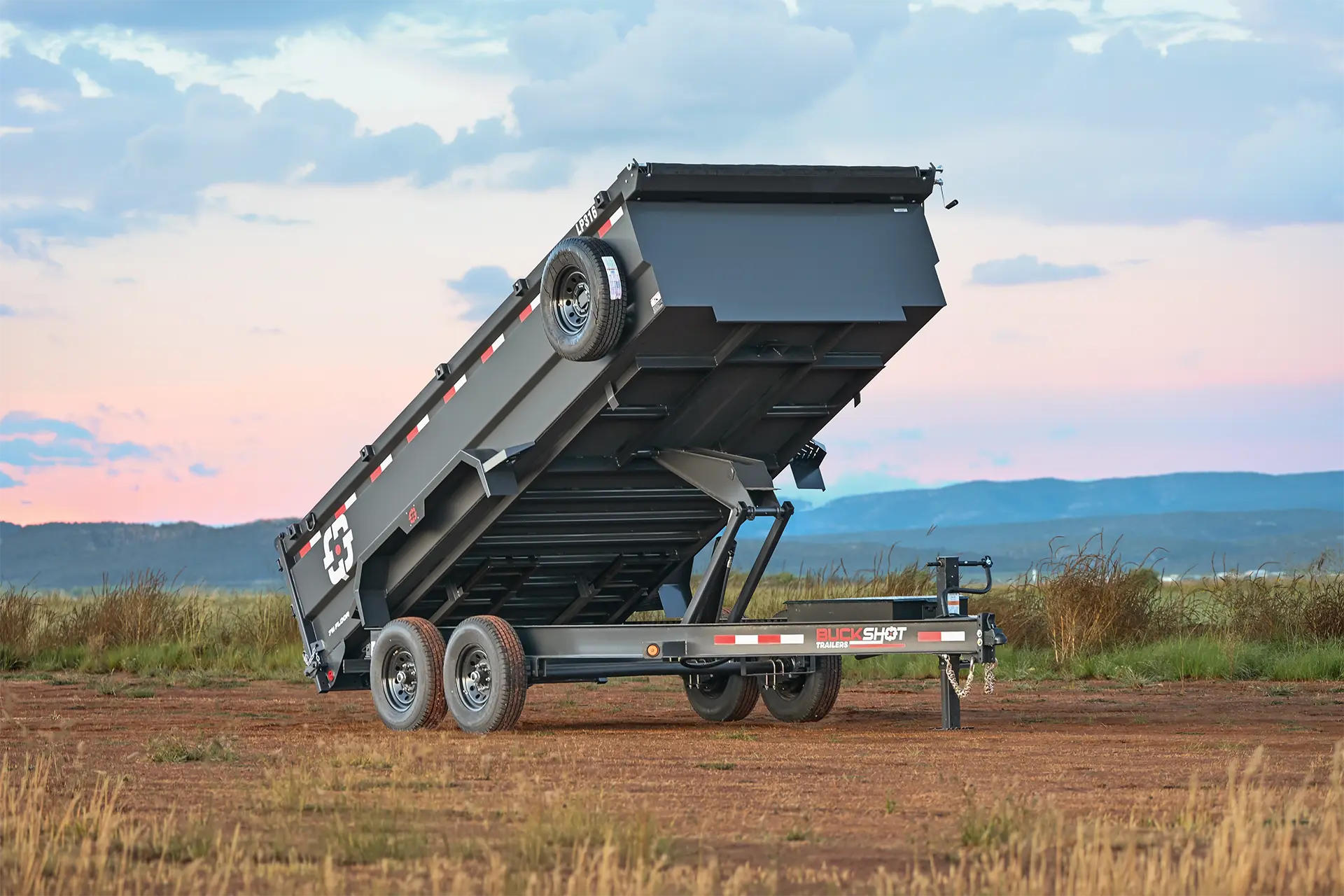

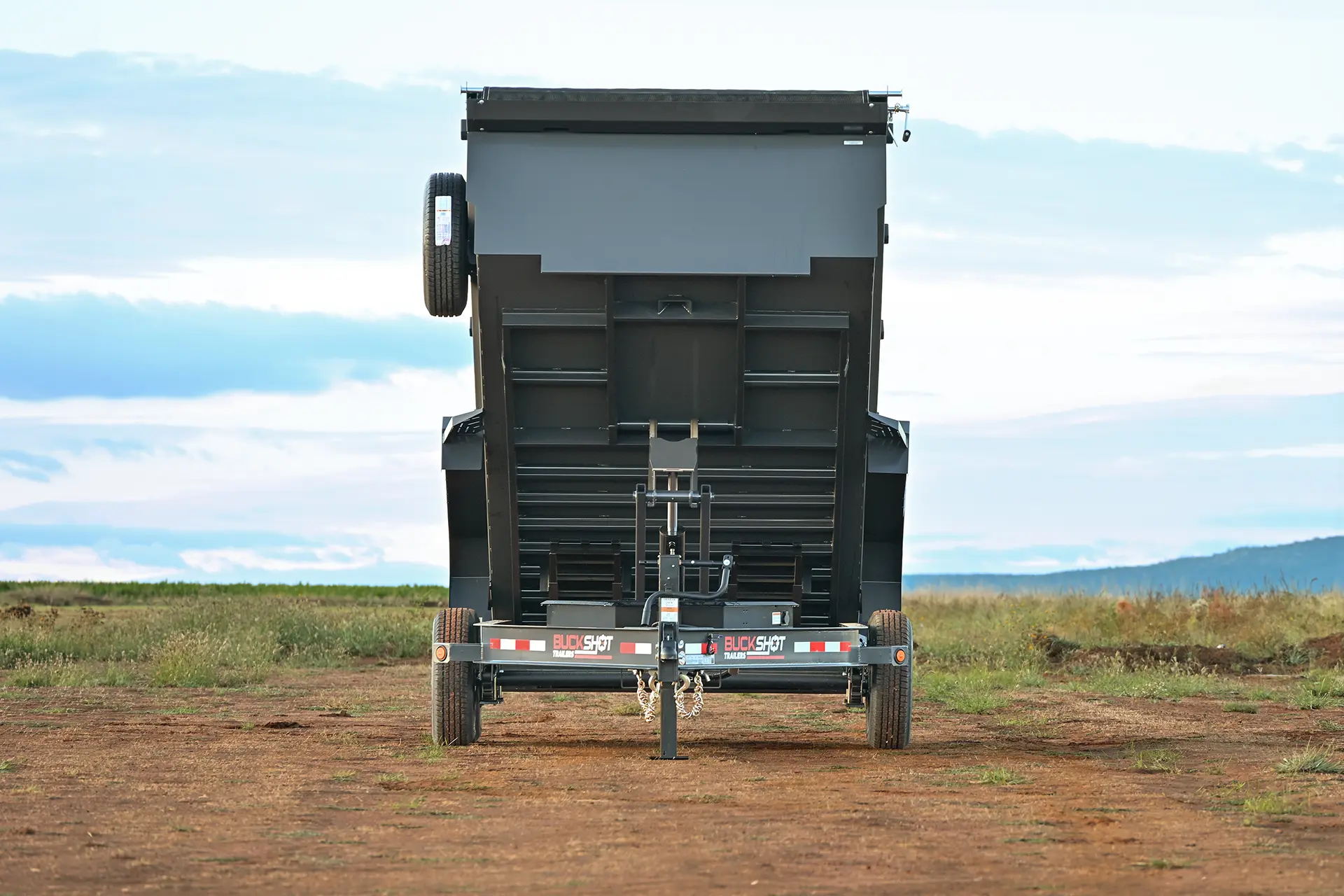

The LP uses a dependable hydraulic hoist lift system powered by a 12V hydraulic system, providing controlled dumping performance for workday after workday.

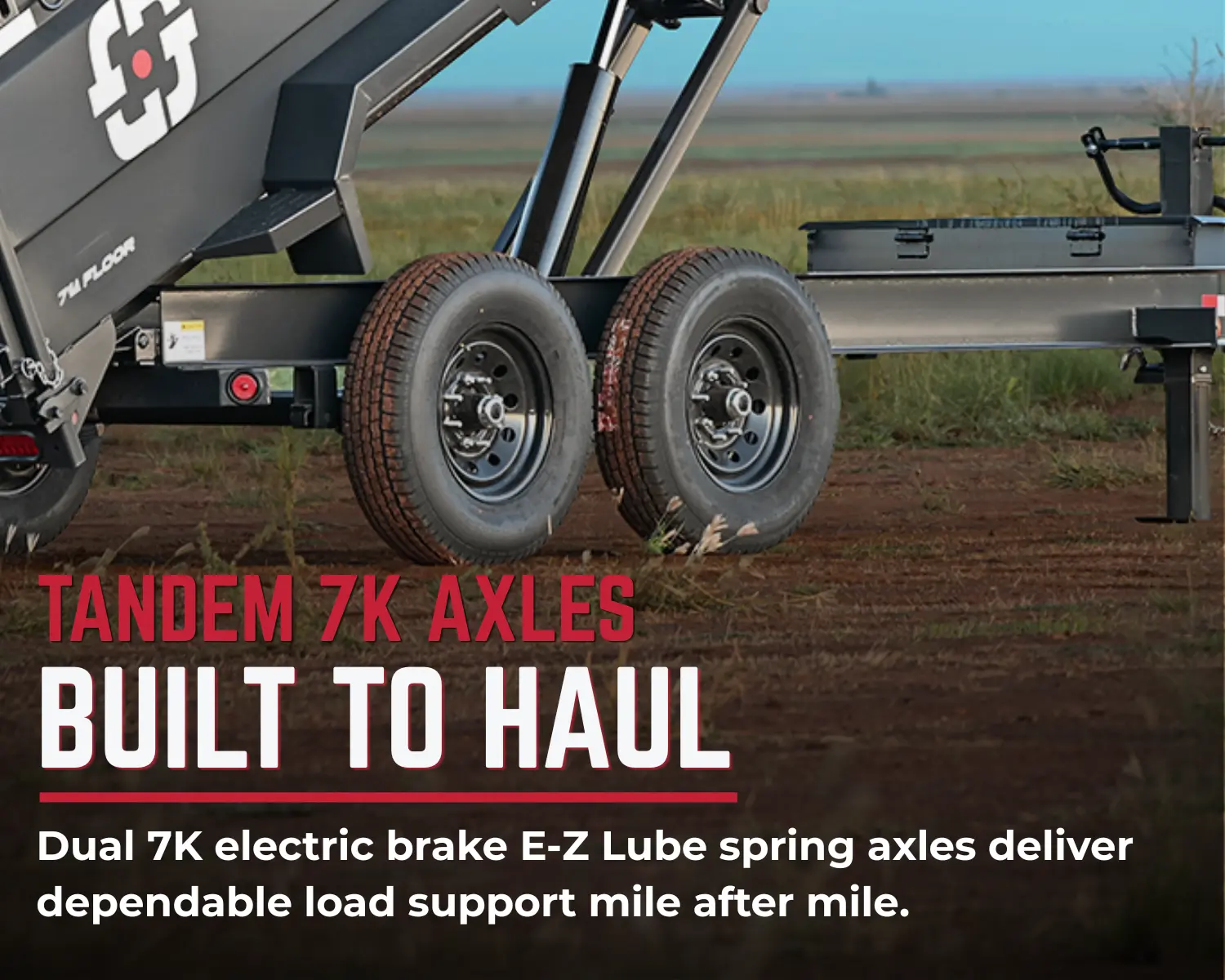

It rides on tandem 7K Lippert electric brake axles, delivering a 14,000 lb GVWR and dependable support for heavy loads.

Available in 12', 14', and 16' lengths, with 24", 36", or 48" wall and gate heights, the LP gives operators multiple configurations to match the job.

Finished with durable Buckshot construction and built around practical, proven components, the LP Dump Trailer is ready to haul, dump, and get back to work.

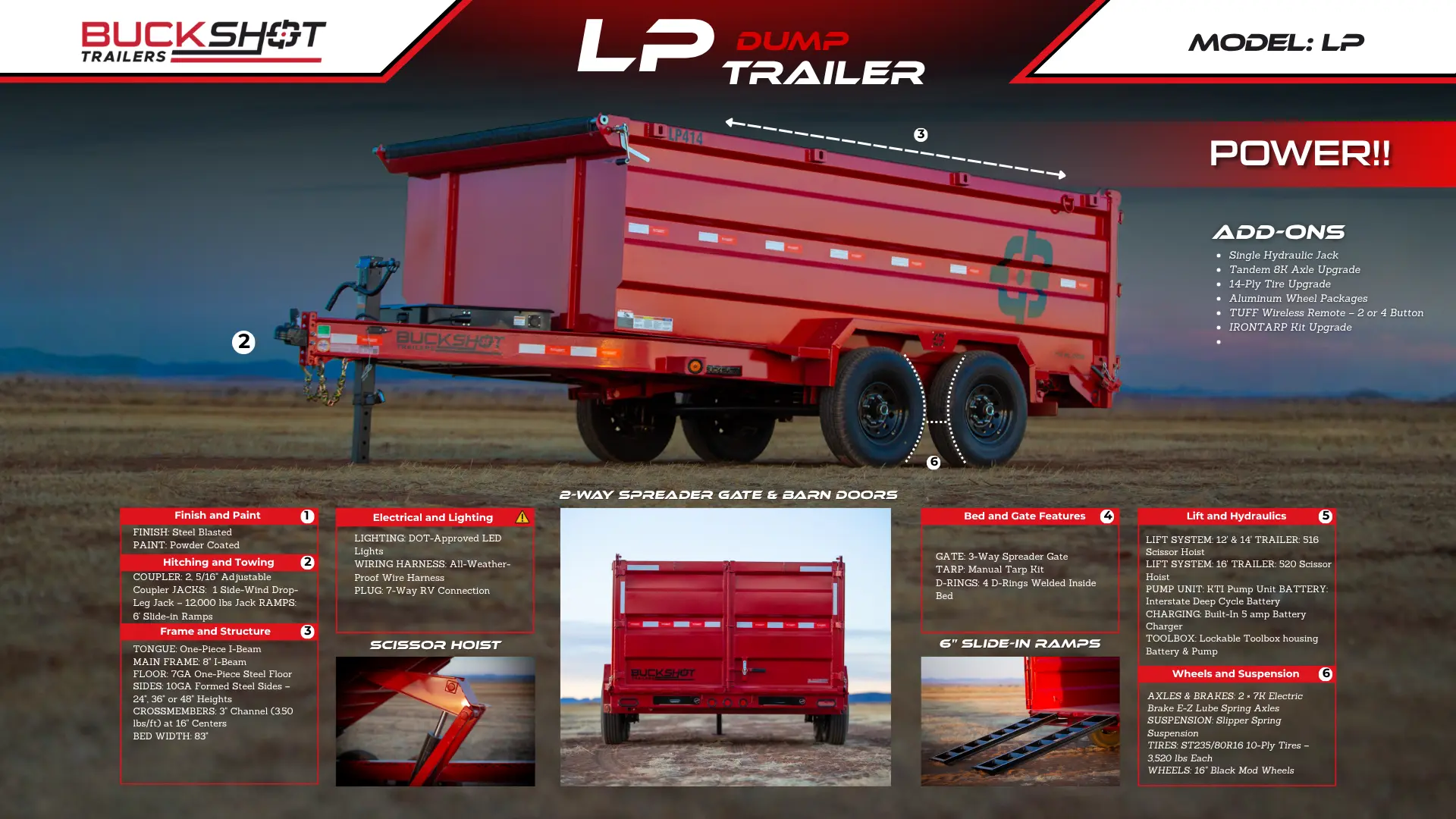

Standard Features

Frame and Structure
Tongue	One-Piece I-Beam
Main Frame	8" I-Beam
Floor	7 Gauge One-Piece Steel Floor
Sides	10 Gauge Formed Steel Sides
Side Heights	24", 36", or 48" Depending on Model
Crossmembers	3" Channel (3.50 lbs/ft) at 16" Spacing
Bed Width	83"
Hitching and Towing
Coupler	Adjustable Auto-Latch 2-5/16" Bumper-Pull Coupler
Jack	1 Side-Wind Spring-Loaded Drop-Leg Jack – 12,000 lbs
Safety Chains	2 × 3/8" Grade 70 Safety Chains with Clevis Hooks
Spare Tire Mount	Weld-On Spare Tire Mount (Spare Not Included)
Toolbox	Lockable Toolbox
Bed and Gate Features

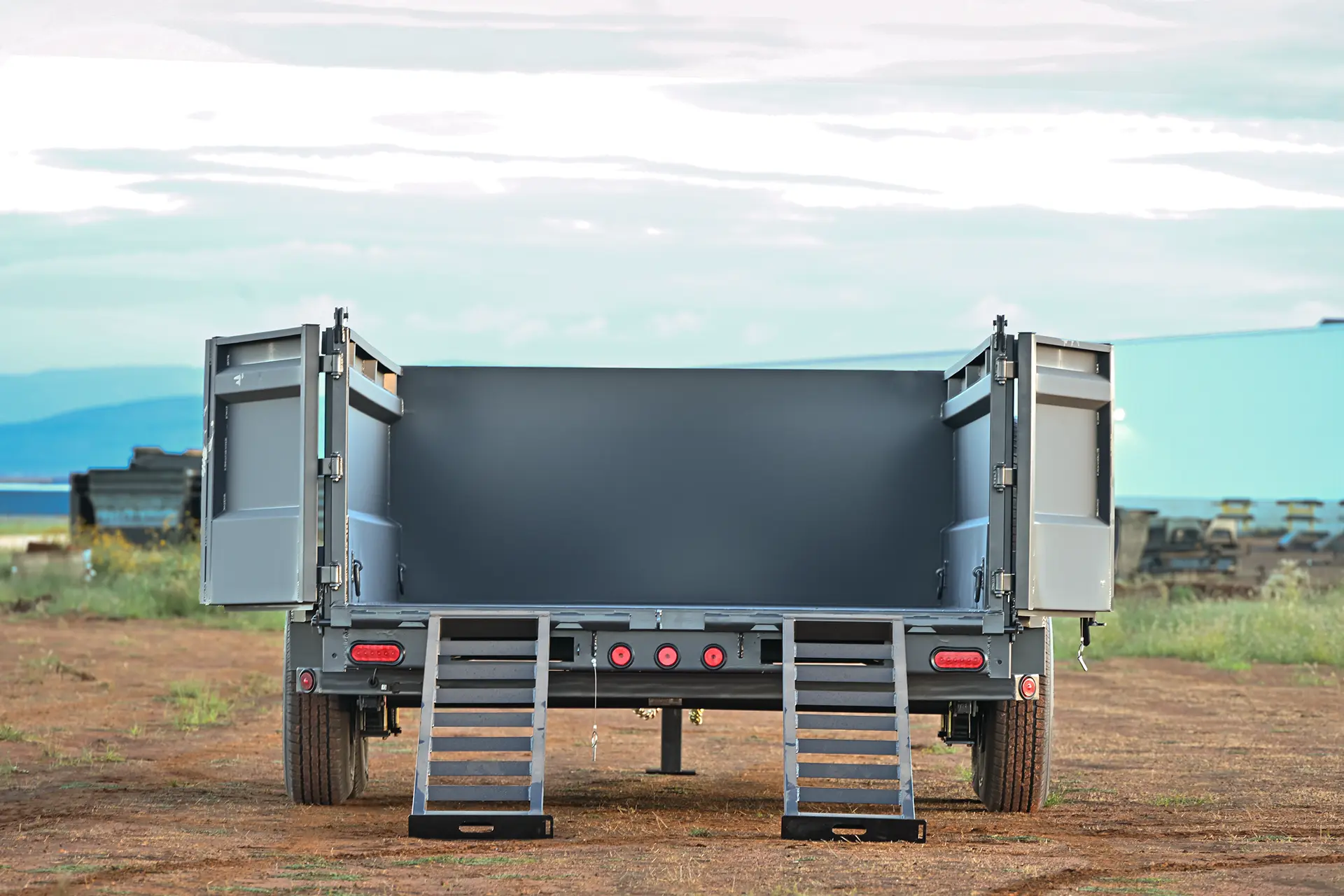

Ramps	6' Slide-In Ramps

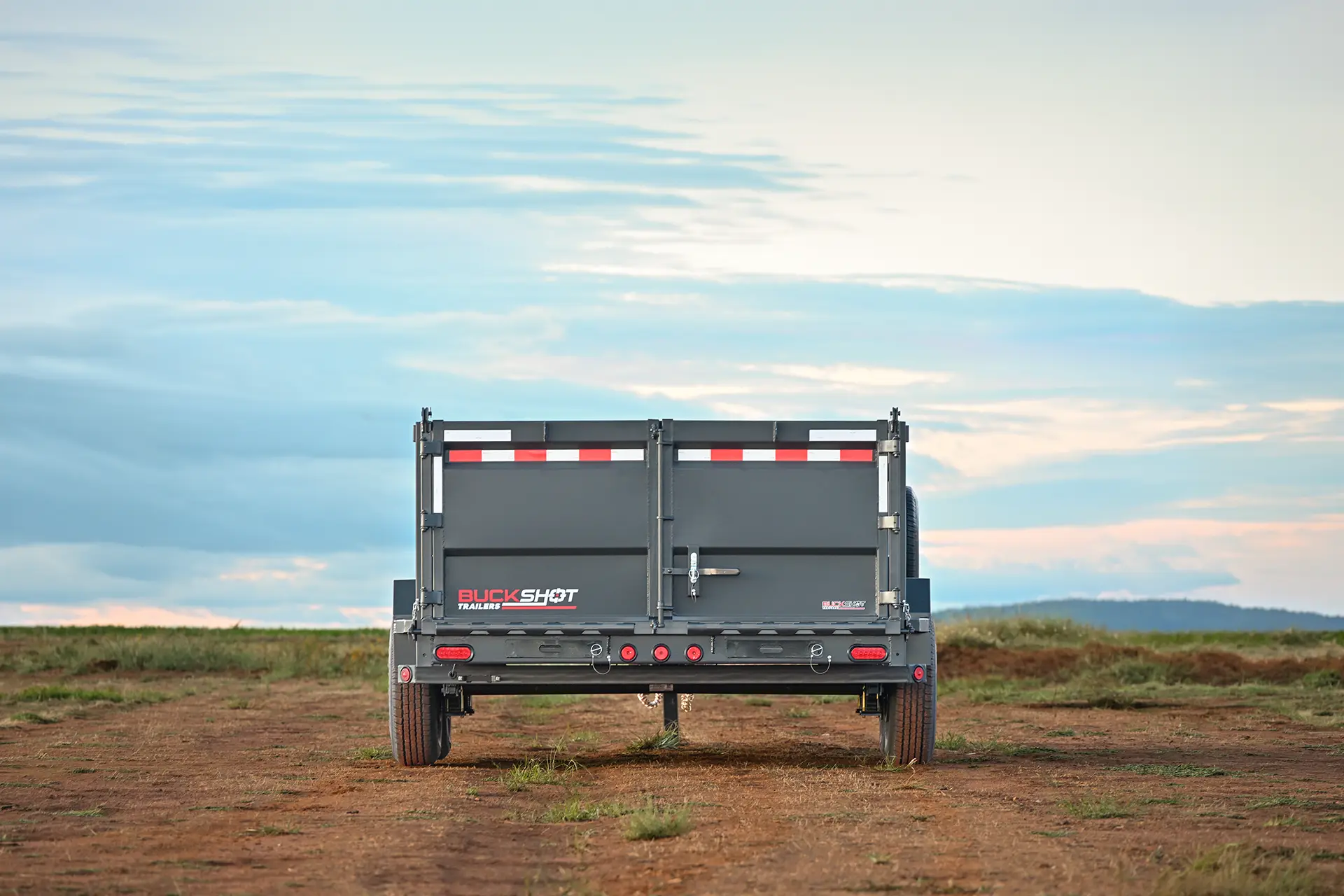

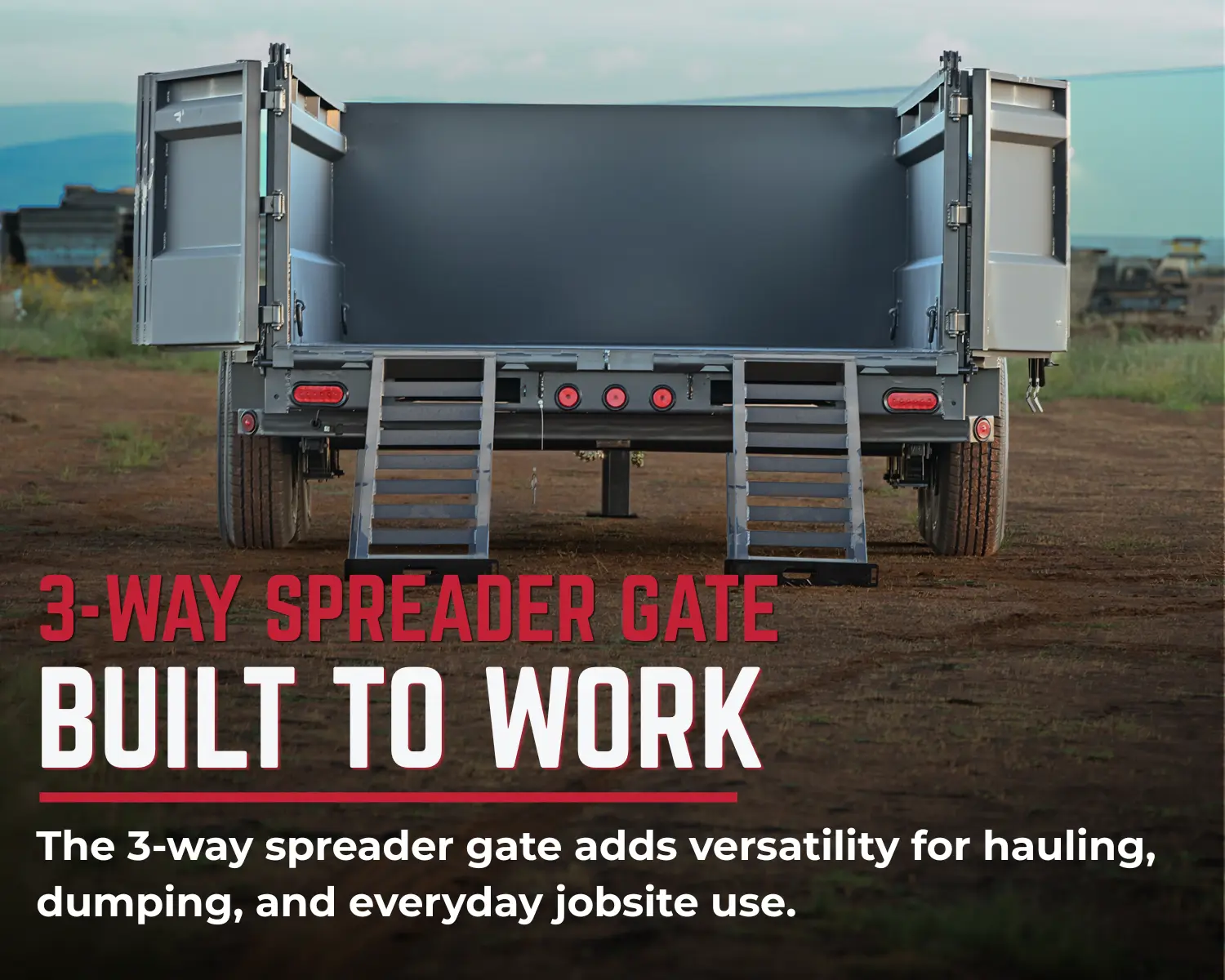

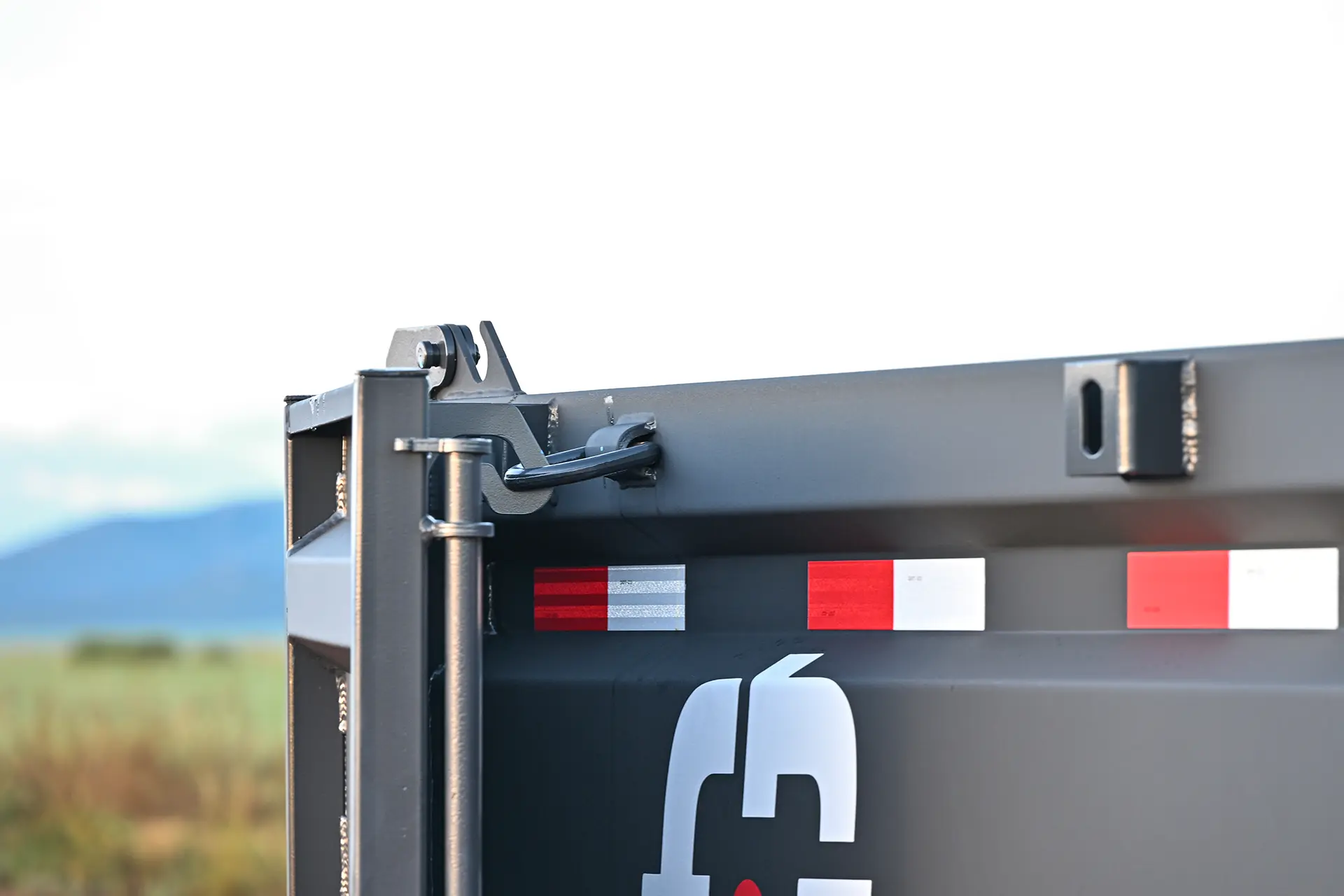

Gate	3-Way Spreader Gate
Tarp Kit	Manual Tarp Kit
D-Rings	4 D-Rings Welded Inside Bed
Lift System and Hydraulics

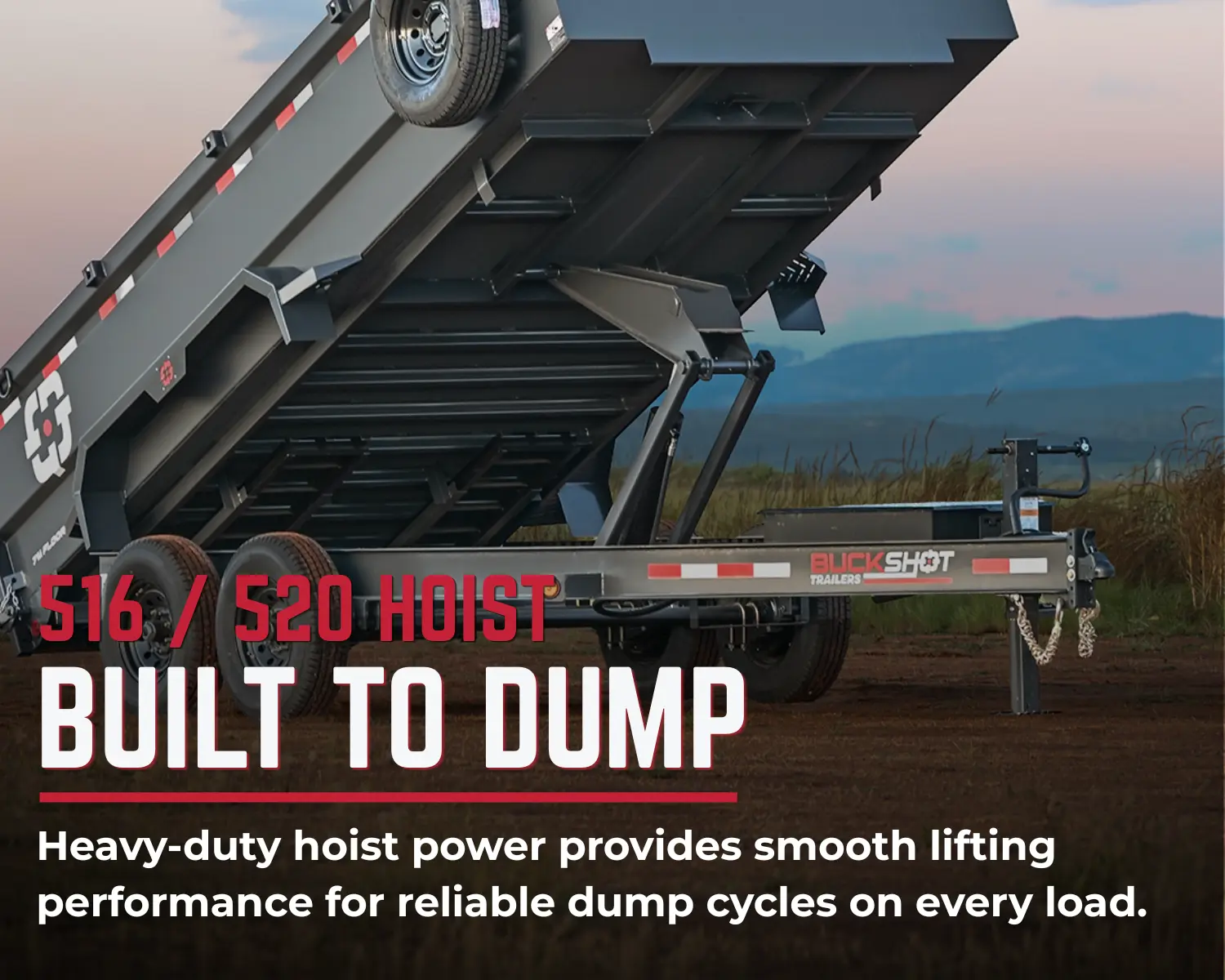

Lift System	516 Hoist on 12' and 14' Models 520 Hoist on 16' Models
Hydraulic System	12V Hydraulic Power Up / Power Down
Wheels and Suspension
GVWR	14,000 lbs
Axles and Brakes	2 × 7K Electric Brake E-Z Lube Spring Axles
Suspension	Slipper Spring Suspension
Tires	ST235/80R16 10-Ply Tires – 3,520 lbs Each
Bolt Pattern	8 on 6.5"
Wheels	16" Black Mod Wheels
Electrical and Lighting
Lighting	DOT-Approved LED Lights
Wiring Harness	All-Weather-Proof Wire Harness
Plug	7-Way RV Connection
Finish and Warranty
Finish	Steel Blasted
Paint	Powder Coated
Structural Warranty	3 Years
Paint Warranty	1 Year
ADD-ON OPTIONS
Hydraulic Jack	Single Hydraulic Jack
Coupler	3" Pintle Eye – Channel-Mount, 21,000 lbs
Ramps	Heavy-Duty Ramp Upgrade
Side Extensions	24" Side Extensions – 14' Models
Side Extensions	24" Side Extensions – 16' Models
Tarp	IRONTARP Kit Upgrade
Rear Support	2 Rear Support Legs with Pins
Remote	TUFF Wireless Remote – 2 Button
Remote	TUFF Wireless Remote – 4 Button
7K Tire Upgrade	ST235/80R16 14-Ply Tires – 4 Wheels
Aluminum Wheels	ST235/80R16 10-Ply Tires with Aluminum Rims – 4 Wheels
Aluminum Wheels	ST235/80R16 14-Ply Tires with Aluminum Rims – 4 Wheels
7K Spare Tire	ST235/80R16 10-Ply Spare – 8 on 6.5"
7K Spare Tire	ST235/80R16 14-Ply Spare – 8 on 6.5"
Aluminum Spare	ST235/80R16 10-Ply Aluminum Spare – 8 on 6.5"
Aluminum Spare	ST235/80R16 14-Ply Aluminum Spare – 8 on 6.5"
8K Axle Upgrade	2 × 8K Electric Brake Oil-Bath Spring Axles with ST235/80R16 14-Ply Tires – 16,000 lbs GVWR
8K Tire Upgrade	215/75R17.5 16-Ply Tires – 4 Wheels
8K Spare Tire	215/75R17.5 16-Ply Spare – 8 on 6.5"
Lighting	2 × 5" Ultra-Bright LED Pod Flood Lights
Solar	7.5-Watt Solar Battery Charger
