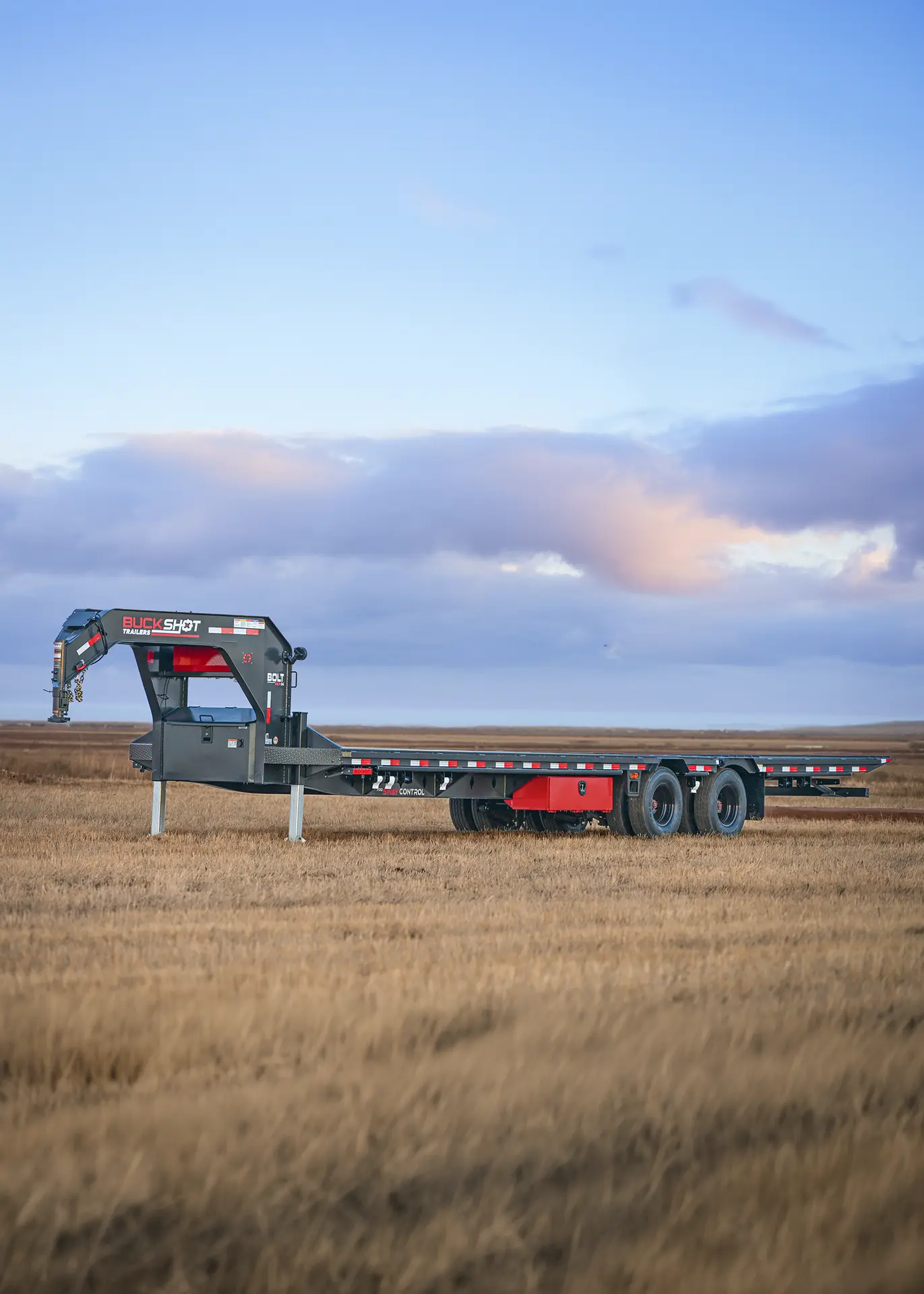

Buckshot BOLT-HD Series heavy-duty gooseneck deckover trailer

BOLT-HD Series

Heavy-Duty Deckover • 10K Axles

Lengths
30–40 FT
Width
102 IN
GVWR
21,400 LBS

Buckshot BOLT-HD Series

Built to haul. Built to last.

Find a Dealer

BOLT-HD Series

Heavy-Duty Gooseneck Deckover Trailer with 10K Axles

BOLT-HD Series heavy-duty gooseneck deckover representative 360 view in Gunmetal Gray

BOLT-HD Model Line

Product Highlights

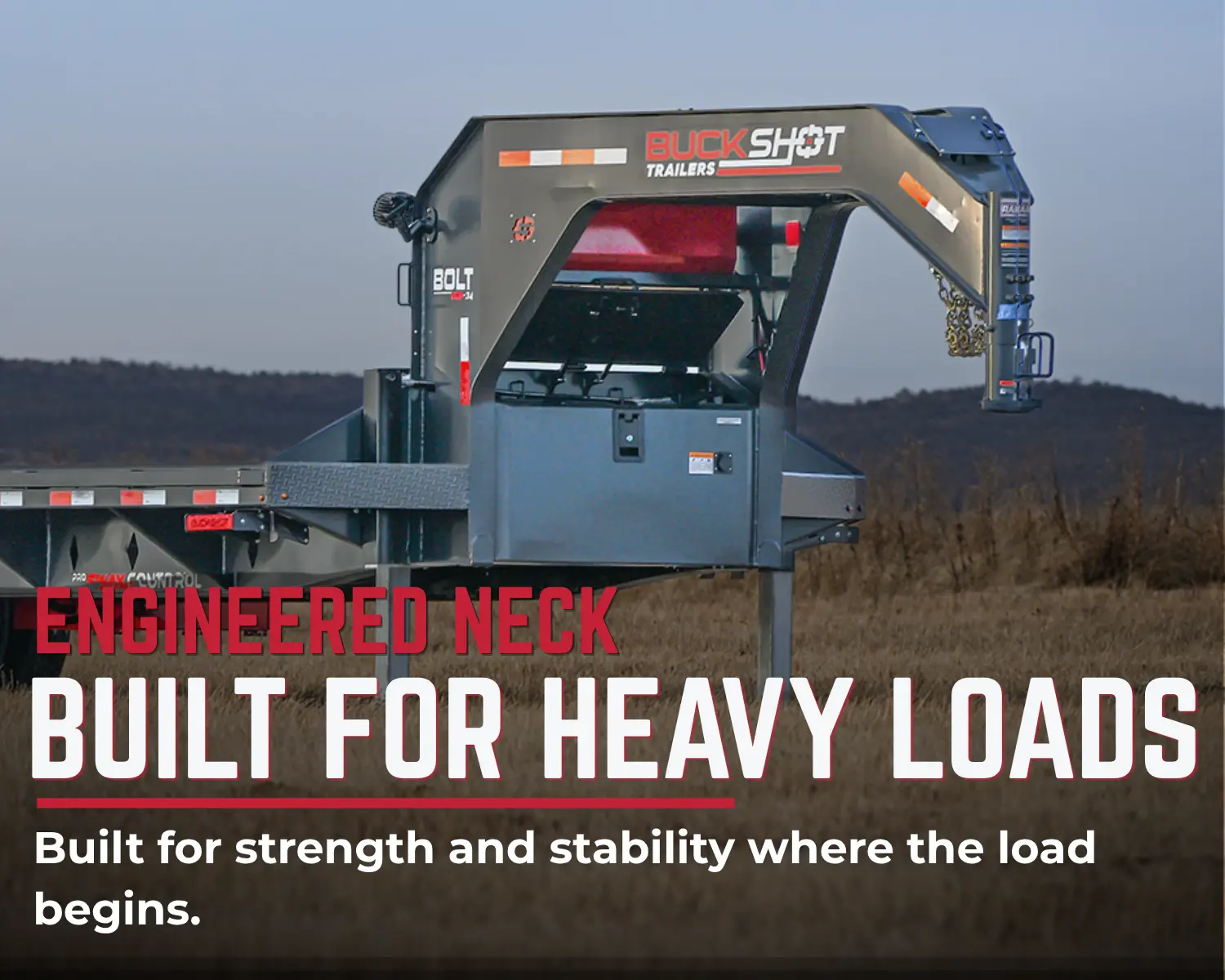

  • BOLT-HD heavy-duty gooseneck deckover trailer product feature

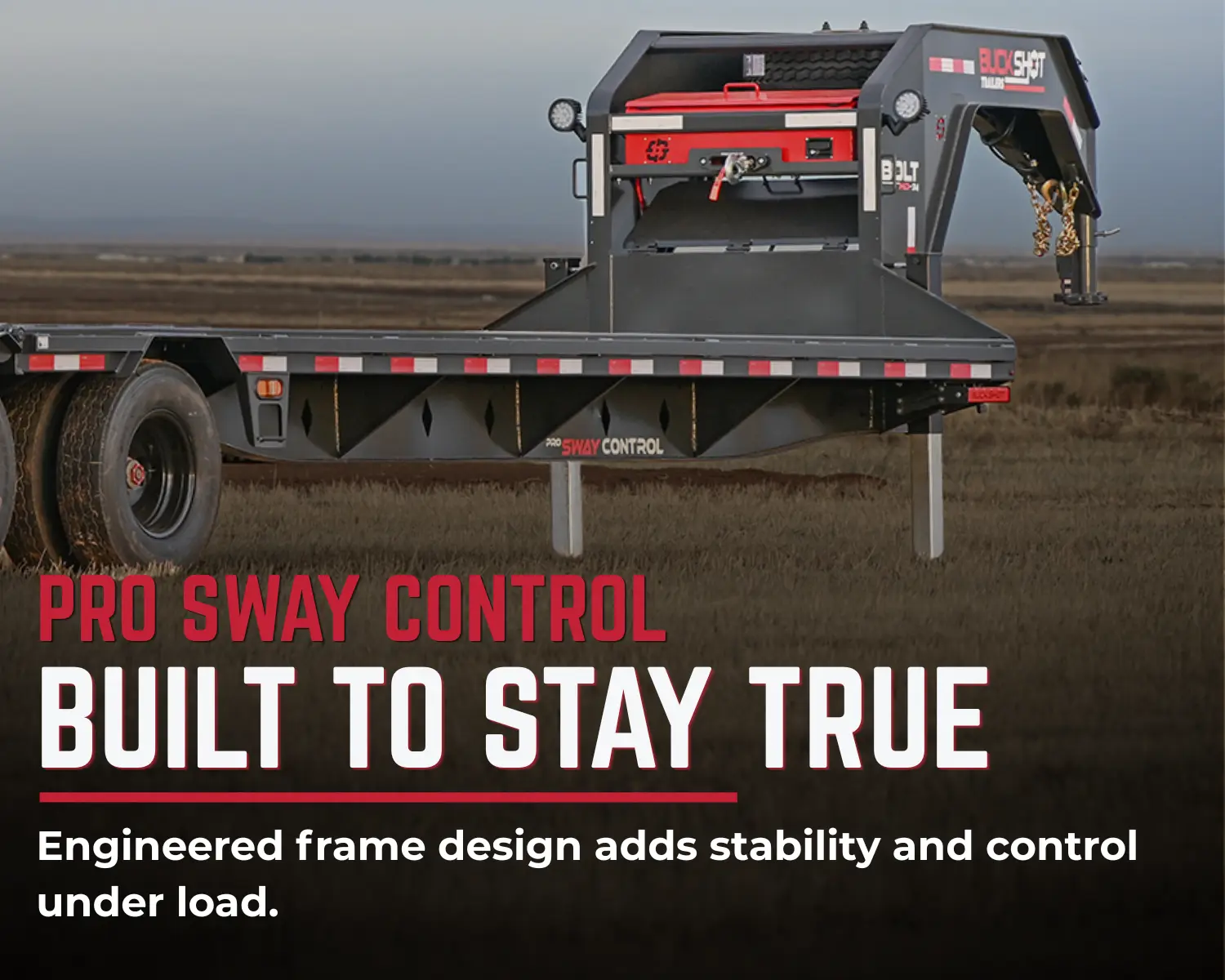

  • BOLT-HD deckover trailer construction detail

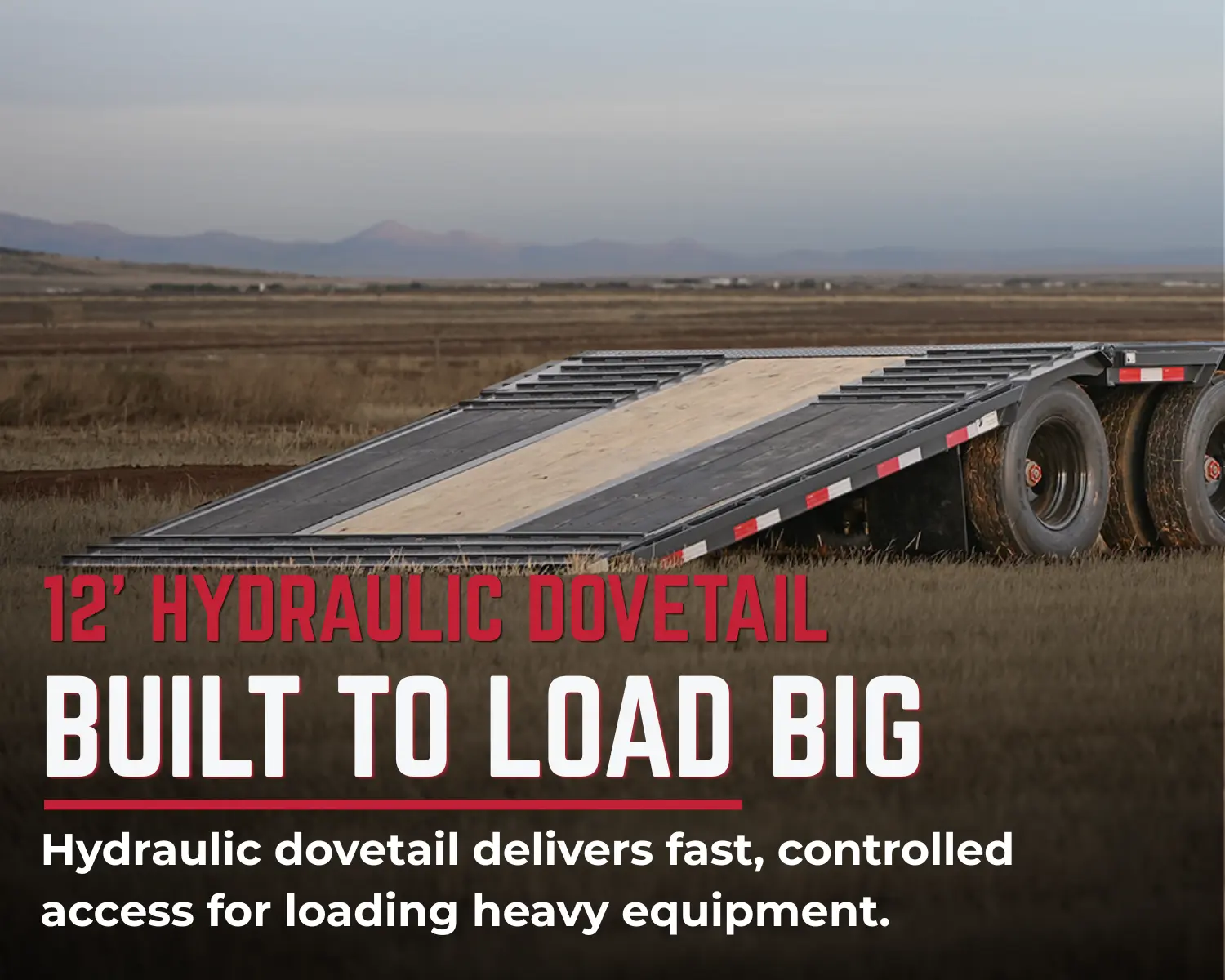

  • BOLT-HD heavy-duty tandem axle and running gear detail

Buckshot Titan Series Bolt HD: Built for power, Engineered for Heavy Hauling!

Introducing the Buckshot Titan Series BOLT HD, the standard of strength and innovation in the trailer industry. Constructed with a re-engineered 3/16 metal gooseneck and a heavy-duty engineered frame, this trailer delivers unmatched stability and performance for the toughest jobs. Its 34” deck height with a 1/4” diamond plate low-profile design ensures a durable and reliable platform for your cargo.

Versatility is enhanced with a Hydraulic Dovetail powered by dual 14” bore cylinders, combined with retractable steps, stake pockets, and pipe chain spools for maximum functionality. For secure transport, the trailer features a lockable Mega Toolbox, along with a 30,000 lb adjustable 2-5/16” coupler and dual 12,000 lb drop-leg jacks.

On-road performance is guaranteed with 16K electric brake axles, HDSS adjustable suspension, and 215/75 R17.5 18-ply radial tires mounted on 17.5” black mod steel wheels. The Titan Series is fully equipped with lifetime LED lighting, a molded sealed wiring harness, and a 7-way plug with adapter, all DOT-compliant.

Sandblasted and powder-coated for maximum durability, the Titan Series BOLT HD is your most reliable partner for transporting heavy loads with confidence and ease. 🚚💥

Standard Features


Frame and Structure
Model Bolt HD – Titan Series (Hydraulic Dovetail)
Length 30', 32', 34', 36', 38', 40'
Gooseneck 3/16" Re-engineered Metal Gooseneck
Frame Engineered Beam Frame with Torque Tubes
Flooring 2" Treated Pine Lumber Deck
Crossmembers 3" Channel on 16" Centers
Fenders Diamond Plate Low-Pro Fenders
Stake Pockets Additional stake pockets for secure cargo options
Rub Rail 2" Rub Rail
Pipe Chain Spools Included
Hitching and Towing
Coupler 2-5/16" 30K Adjustable Coupler
Jacks (2) 12K Drop-Leg Jacks
Deck and Ramp Features
Dovetail 12' Hydraulic Dovetail with Blackwood Inserts
Steps Retractable steps on both sides
Tie-Downs Flat iron rails with stake pockets
Wheels and Suspension
Axles (2) 16K Electric Brake Axles with EZ-Lube Hubs
Suspension HDSS Adjustable Suspension
Tires 215/75 R17.5 Radial Tires on 17.5" Black Mod Wheels
Spare Tire Mount Included
Electrical and Lighting
Lights DOT Approved LED Lights
Wiring All Weather Proof Wire Harness 7Way RV
Toolbox and Storage
Toolbox Lockable Mega Toolbox (standard)
Finish and Paint
Finish Steel Blasted
Paint Powder Coated
Add-on Options
• Electric/Hydraulic Winches (14K, 18K, 20K)
• Side-mounted LED Pod Lights
• Slide Track System
• Hydraulic Jacks or 2-Speed Jacks
• Undermount Toolbox (45” x 13”)
• Top Riser Toolbox
• Custom Colors
• Axle Upgrades: 12K / 16K / 20K
• Brake Options: Electric / Hydraulic
• Spare Tire

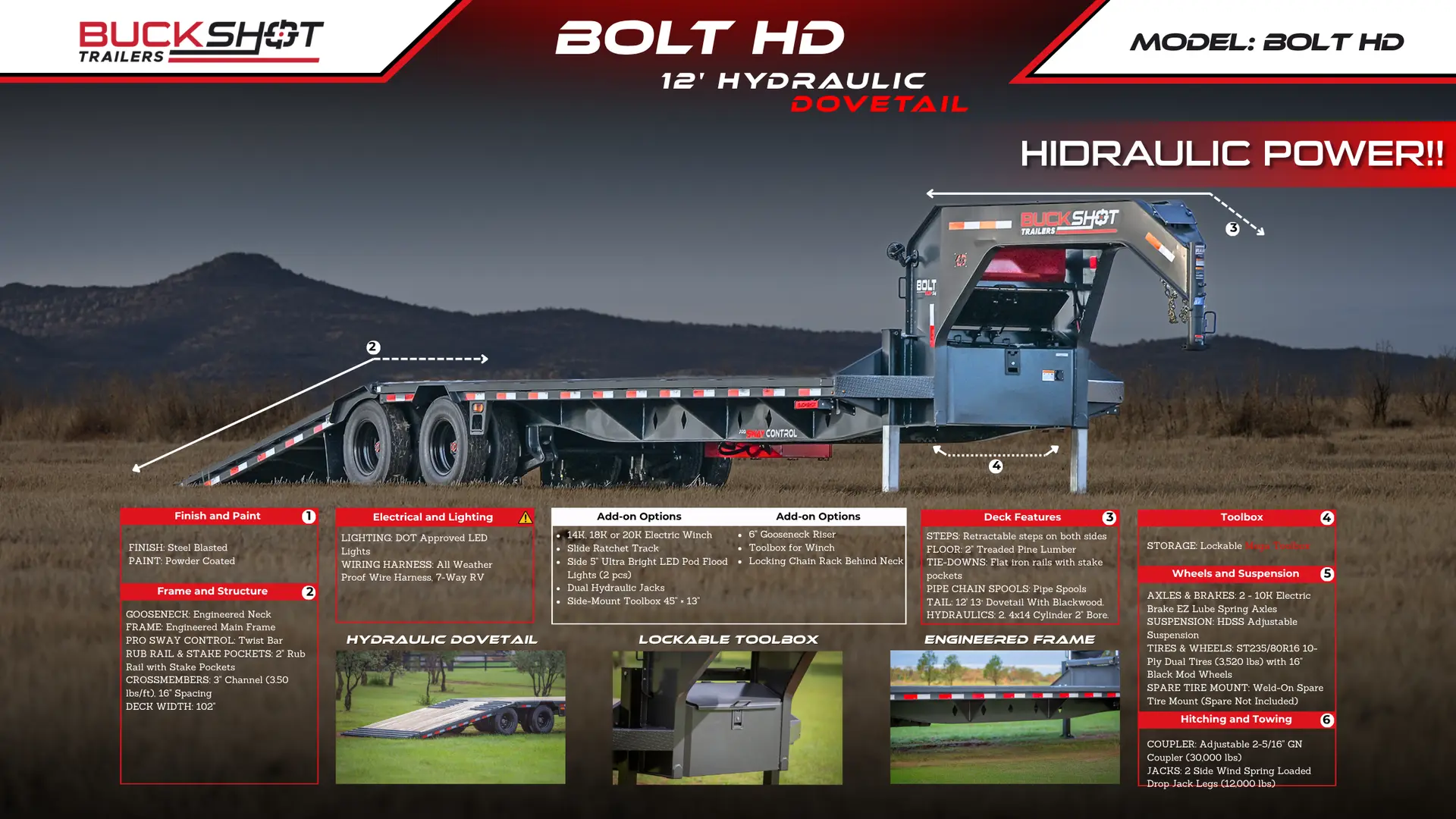

Brochure
