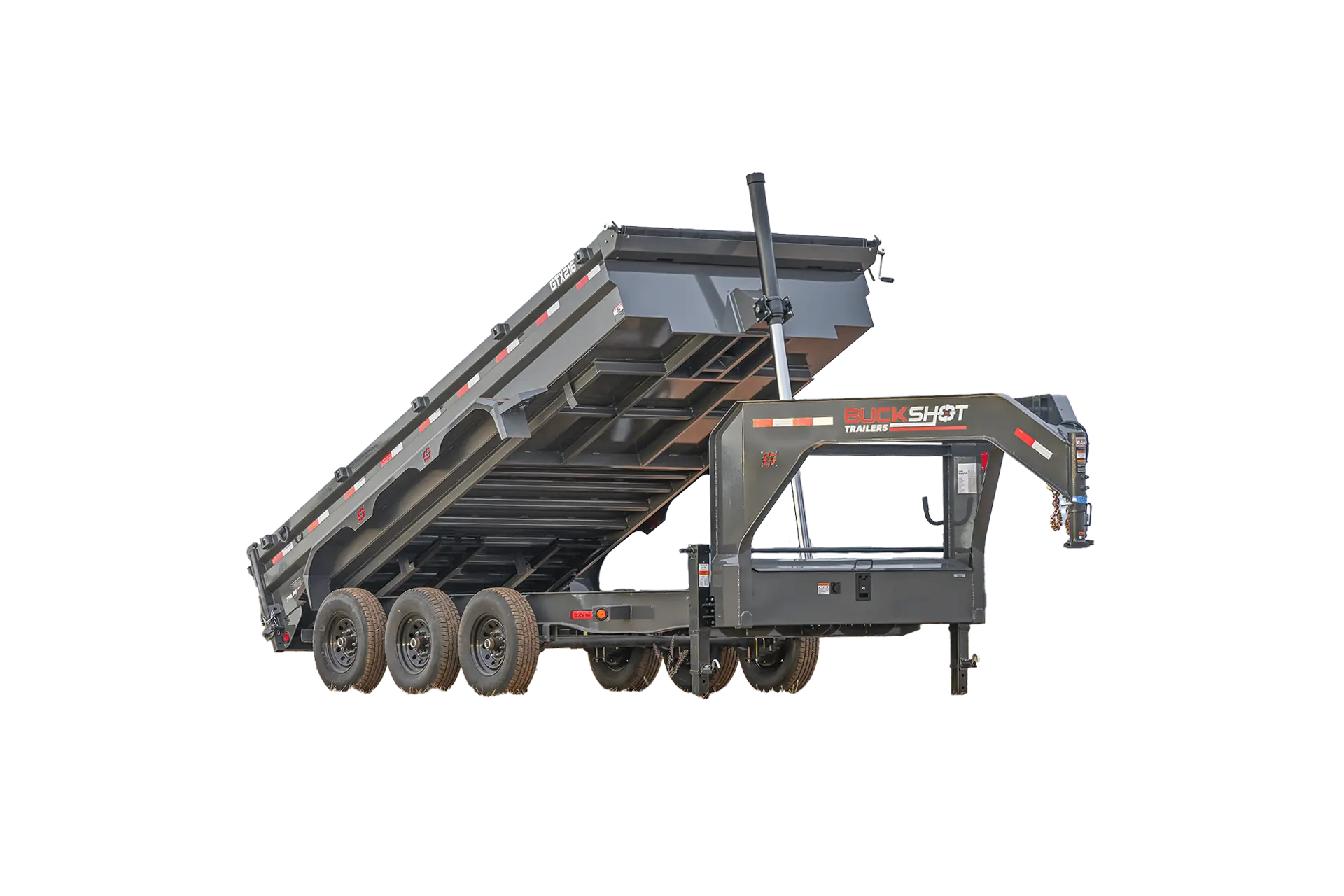

GTX216 360 view
Drag to explore ↔






GOOSENECK DUMP TRAILER

WITH 7K AXLES

MODEL: GTI

LENGTHS: 14', 16', 18'

GVWR:

GAWR: 22,400 LBS

The GTX Trailer—Built for Tough Jobs!

With an 8" engineered I-beam frame with an 11" belly and a 7-gauge one-piece floor, this trailer is built to handle demanding loads. Triple 7K electric brake EZ Lube spring axles and ST235/75R17.5 18-ply tires provide the strength and stability needed for serious work. For lifting, it features a powerful 5-stage telescopic cylinder and 12V hydraulic power up/power down system. Dual side-wind spring-loaded drop jack legs and 6' heavy-duty slide-in ramps make loading and transport more efficient. The GTX Trailer—tough, reliable, and ready for heavy-duty jobs.


Find a Dealer


Contact Us

GOOSENECK DUMP TRAILER

WITH 7K AXLES

MODEL: GTI

LENGTHS: 12', 14', 16'

GVWR:

GAWR: 14,000 LBS

Find a Dealer

BrochureGalleryStandard FeaturesVideo

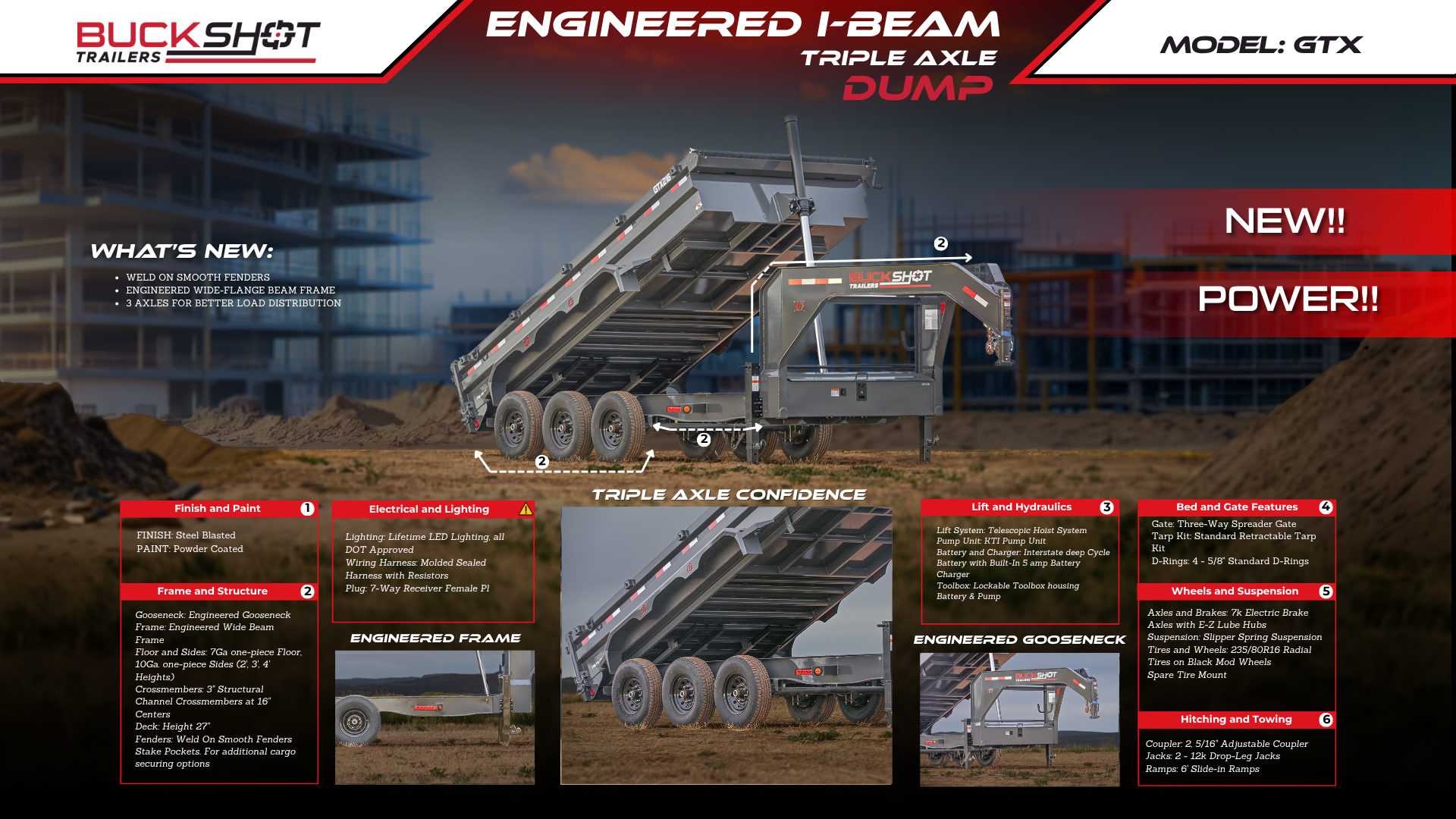

Brochure

Brochure Link
Brochure Preview Download

Gallery

To be successful your content needs to be useful to your readers.

VIEW FULL GALLERY


GTX Gooseneck Dump Trailer – Heavy-Duty Strength, Built to Perform!

The GTX Gooseneck Dump Trailer from Buckshot is engineered for serious durability and dependable performance. Built with an engineered neck and an 8" engineered I-beam frame with an 11" belly, this trailer is designed for heavy-duty work. Its 7-gauge one-piece floor, 10-gauge formed sides, and 83" bed width deliver the strength and versatility needed for demanding loads.

A 5-stage telescopic cylinder and 12V hydraulic power up/power down system provide strong, reliable dumping performance. Towing is made easy with an adjustable 2-5/16" gooseneck coupler and dual side-wind spring-loaded drop jack legs, while 6' heavy-duty slide-in ramps help simplify loading.

Durability and control are reinforced with triple 7K electric brake EZ Lube spring axles, slipper spring suspension, and ST235/75R17.5 18-ply tires. The trailer is finished with a steel-blasted powder coat, and equipped with DOT-approved LED lights and an all-weather-proof 7-way RV wire harness for long-lasting reliability. 🚛💥

​VIEW BROCHURE​

Standard Features

Frame and Structure
Gooseneck Engineered Gooseneck
Frame Engineered I Beam Frame
Floor and Sides 7 Gauge one-piece Floor, 10Ga. one-piece Sides (2', 3', 4' Heights)
Crossmembers 3" Structural Channel Crossmembers at 16" Centers
Deck Height 27"
Fenders Weld On Smooth Fenders
Stake Pockets For additional cargo securing options
Hitching and Towing
Coupler 2, 5/16" Adjustable Coupler
Jacks 2 - 10k Drop-Leg Jacks
Ramps 6' Slide-in Ramps
Bed and Gate Features
Gate Three-Way Spreader Gate
Tarp Kit Standard Retractable Tarp Kit
D-Rings 4 - 5/8" Standard D-Rings
Lifting and Hydraulics
Lift System Telescopic Cylinder
Pump Unit KTI Pump Unit
Battery and Charger Interstate deep Cycle Battery with Built-In 5 amp Battery Charger
Toolbox Lockable Toolbox housing Battery & Pump
Wheels and Suspension
Axles and Brakes 7k Electric Brake Axles with E-Z Lube Hubs
Suspension Multi-leaf Slipper Spring Suspension
Tires and Wheels 235/80R16 Radial Tires on Black Mod Wheels
Spare Tire Mount
Electrical and Lighting
Lighting Lifetime LED Lighting, all DOT Approved
Wiring Harness Molded Sealed Harness with Resistors
Plug 7-Way Receiver Female Plug with Adapter
Finish and Paint
Finish Sand Blasted
Paint Powder Coated
ADD-ON OPTIONS
Tongue
Hydraulic Jacks (Dual)
6" Gooseneck Riser
Dump
24" Side Extensions for 14' Dump
24" Side Extensions for 16' Dump
24" Side Extensions for 18' Dump
Upgrade to IronTarp Kit
Rear Support Legs (Qty. 2) with Pins
Lift System
Tuff Wireless Remote – 2 Button
Tuff Wireless Remote – 4 Buttons
Running Gear
235/80R16 14 Ply (6 Wheels)
235/80R16 10 Ply with Aluminum Rims (6 Wheels)
235/80R16 14 Ply with Aluminum Rims (6 Wheels)
Spare 235/80R16 10 Ply 8-6.5
Spare 235/80R16 14 Ply 8-6.5
Aluminum Spare 235/80R16 10 Ply 8-6.5
Aluminum Spare 235/80R16 14 Ply 8-6.5
(3) 8K Electric Brake Oil Bath Torsion Axles with 235/80R16 14 Ply Tires (Kit)
Upgrade to 215/75R17.5 16 Ply (6 Wheels)
Spare 215/75R17.5 16 Ply 8-6.5
Electrical and Lighting
Side 5" Ultra Bright LED Pod Flood Lights (2 Pcs)
Solar Battery Charge – 7.5 Watt Solar Panel
