AR X

Triple Axle Gooseneck • Drive-Over Fender

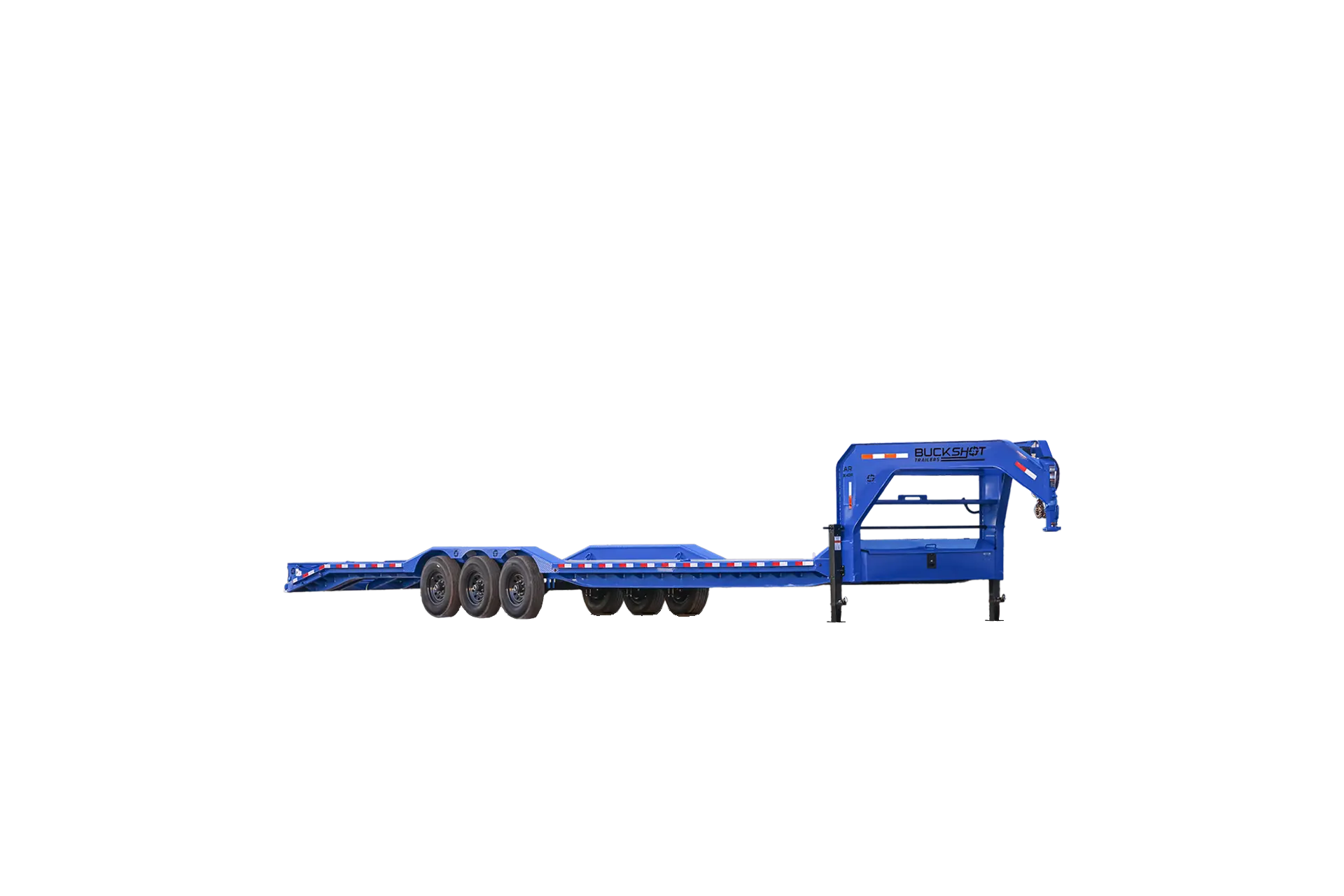

AR X40R triple-axle gooseneck equipment trailer in Blue Ribbon

AR - X

Product Highlights

GOOSENECK TILT DECK

WITH 7K AXLES

MODEL: AR TILT

LENGTHS: 20', 22', 24'.

GVWR: 14,000 LBS

Find a Dealer

Standard Features

Frame and Structure
Gooseneck	Engineered Neck
Main Frame	8" Engineered I-Beam with 10"–14" Belly
Flooring	Treated Pine Lumber Deck
Sides	3/16" Formed Plate with 2" Rub Rail
Crossmembers	3" Channel (3.50 lbs/ft) at 16" Spacing
Deck Height	27"
Deck Width	102"
Width Between Fenders	83"
Fenders	3/16" Diamond Plate Steel – Drive Over
Ramps	AR Ramps (Mega Ramps)
D-Rings	4 D-Rings Welded In Between Fenders
Tie-Down Slots	E-Track Ratchet Slots for Tie-Downs
Hitching and Towing
Coupler	Adjustable 2-5/16" Gooseneck Coupler – 30,000 lbs
Jacks	2 Side-Wind Spring-Loaded Drop Jack Legs – 12,000 lbs
Safety Chains	3/8" Grade 70 Safety Chains with Clevis Hooks
Toolbox	Lockable Toolbox
Winch Plate	Winch Plate Behind Neck – Winch Not Included
Spare Tire Mount	Weld-On Spare Tire Mount – Spare Not Included
Wheels and Suspension
Axles	Triple Axle Configuration
Suspension	Slipper Springs
Tires	ST235/80R16 10-Ply Tires – 3,520 lbs
Wheels	16" Black Mod Wheels
Bolt Pattern	8 on 6.5"
Electrical and Lighting
Lighting	DOT Approved LED Lights
Wiring	All Weather-Proof Wire Harness
Plug	7-Way RV
Finish and Paint
Finish	Steel Blasted
Paint	Powder Coated
Warranty
Structural	3 Years
Paint	1 Year

AR-R Triple Axle Equipment Trailer – Built for Serious Hauling!

The AR-R Triple Axle Gooseneck Equipment Trailer from Buckshot Trailers is built for demanding equipment hauling where added capacity, deck space, and stability matter most.

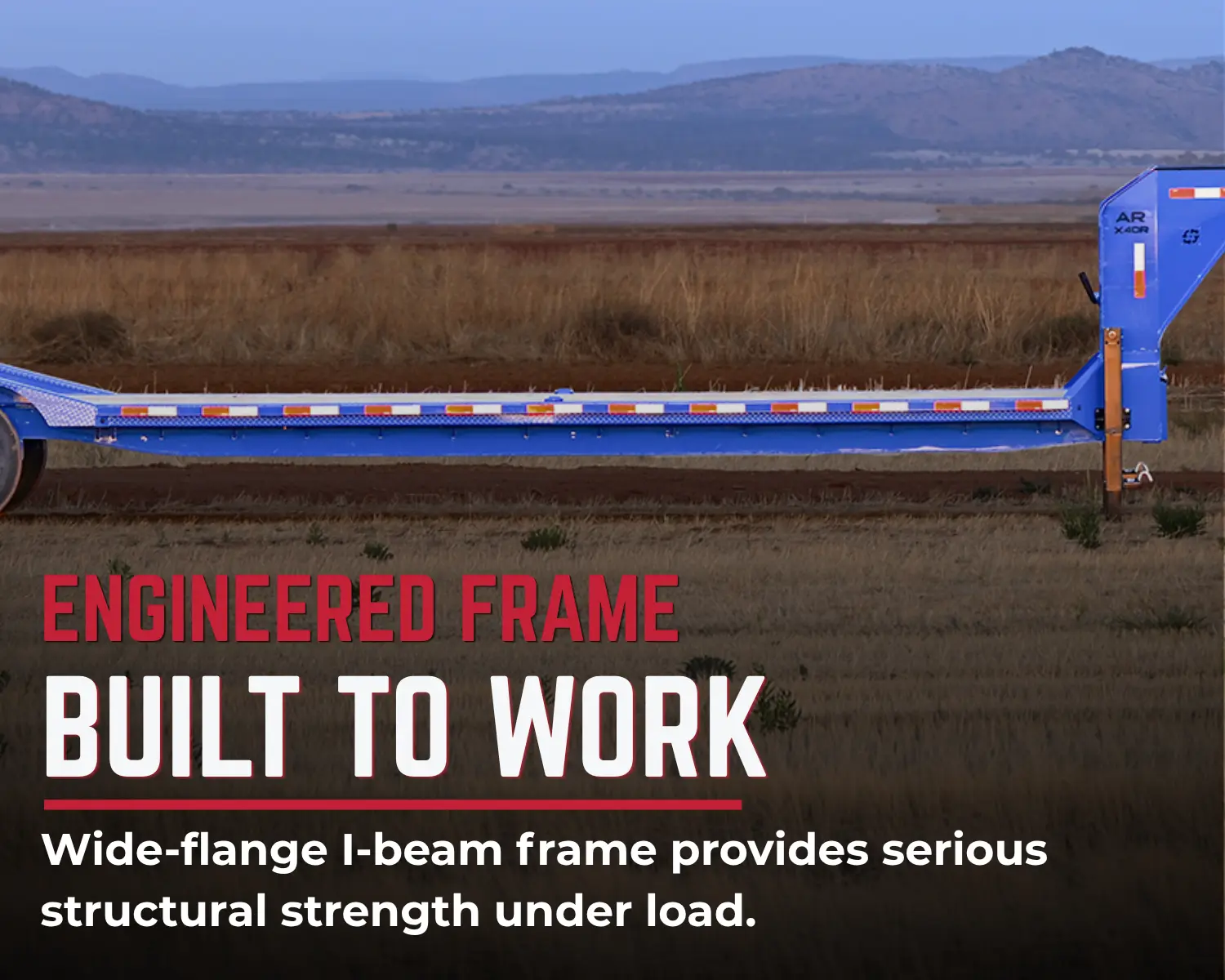

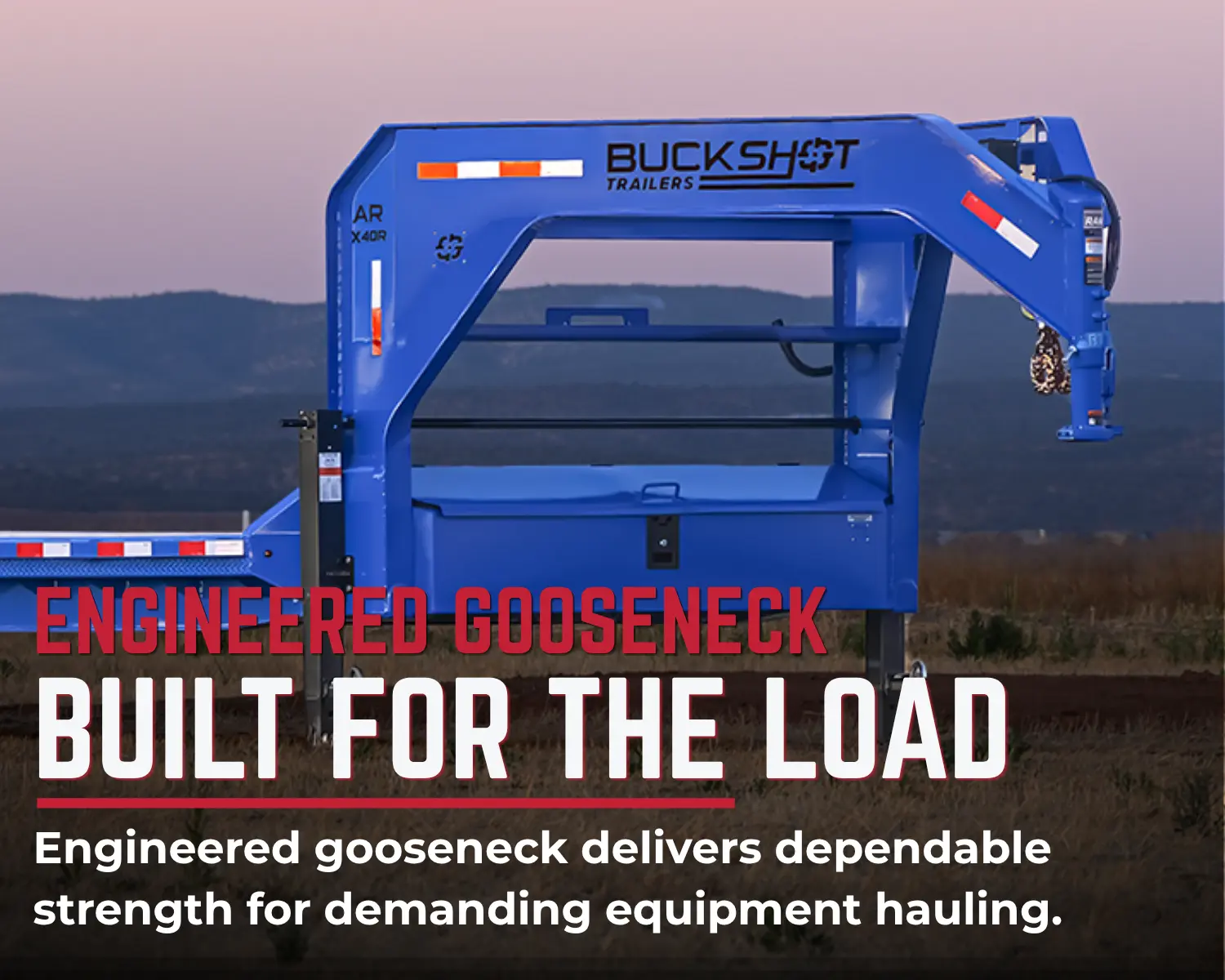

Its 8" engineered I-beam main frame with a 10"–14" belly and engineered gooseneck provide a heavy-duty foundation, while the 102" deck, 3/16" diamond plate drive-over fenders, and 83" width between fenders make loading wide equipment simple and practical.

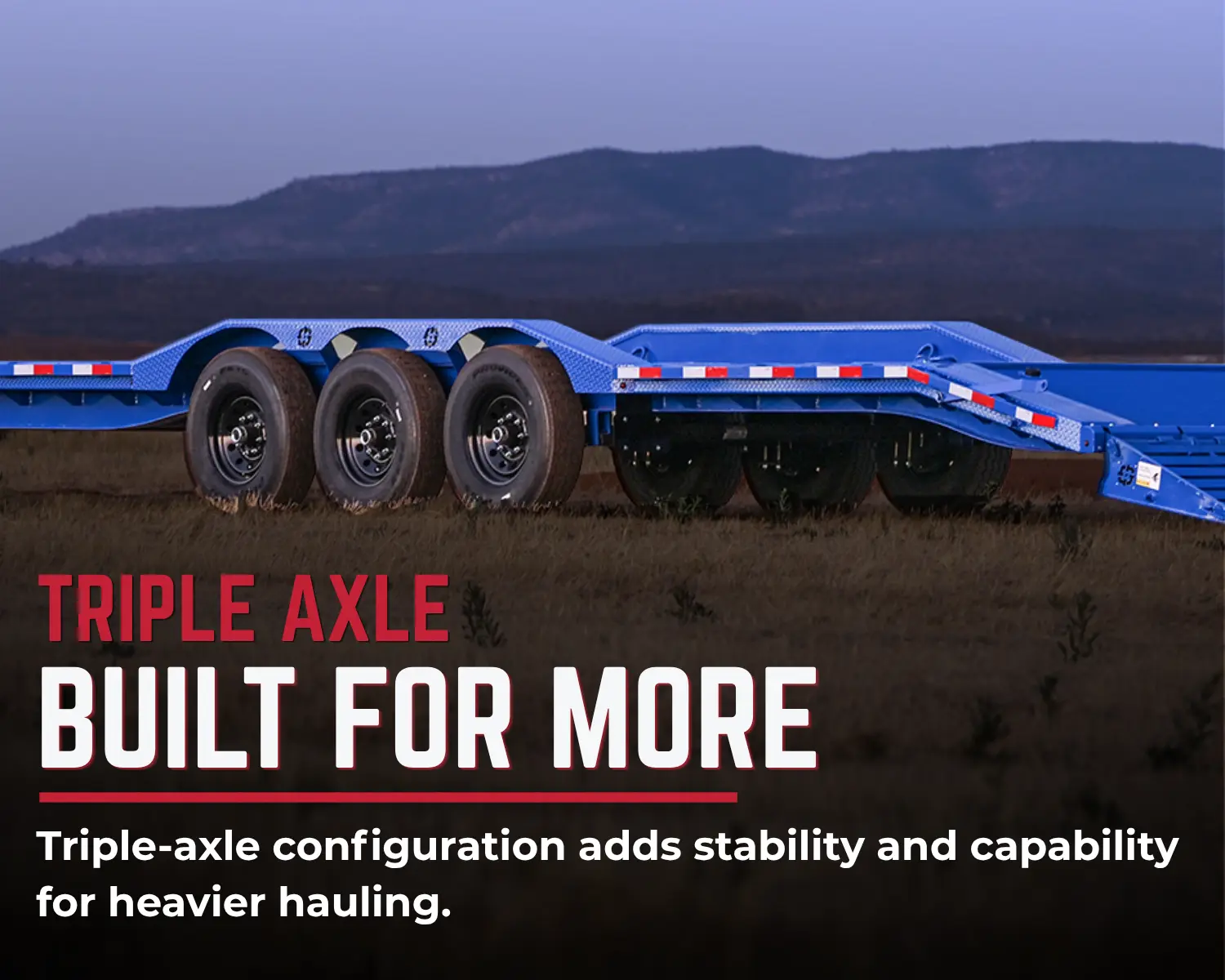

With a 27" deck height, 23,100 lb GVWR, triple axle configuration, slipper spring suspension, and dual 12,000 lb spring-loaded drop-leg jacks, the AR-R delivers the strength and support needed for serious hauling applications.

The trailer also features AR Mega Ramps, a treated pine lumber deck, E-track ratchet tie-down slots, DOT-approved LED lighting, and an all-weather wire harness. Finished with a steel-blasted, powder-coated exterior, the AR-R is built Buckshot tough from front to back.
