| Frame and Structure |
| Gooseneck |
Engineered Gooseneck |
| Frame |
Engineered I Beam Frame |
| Floor and Sides |
7 Gauge one-piece Floor, 10Ga. one-piece Sides (2', 3', 4' Heights) |
| Crossmembers |
3" Structural Channel Crossmembers at 16" Centers |
| Deck Height |
27" |
| Fenders |
Weld On Smooth Fenders |
| Stake Pockets |
For additional cargo securing options |
| Hitching and Towing |
| Coupler |
2, 5/16" Adjustable Coupler |
| Jacks |
2 side wind spring loaded drop jack legs |
| Ramps |
6' Slide-in Ramps |
| Bed and Gate Features |

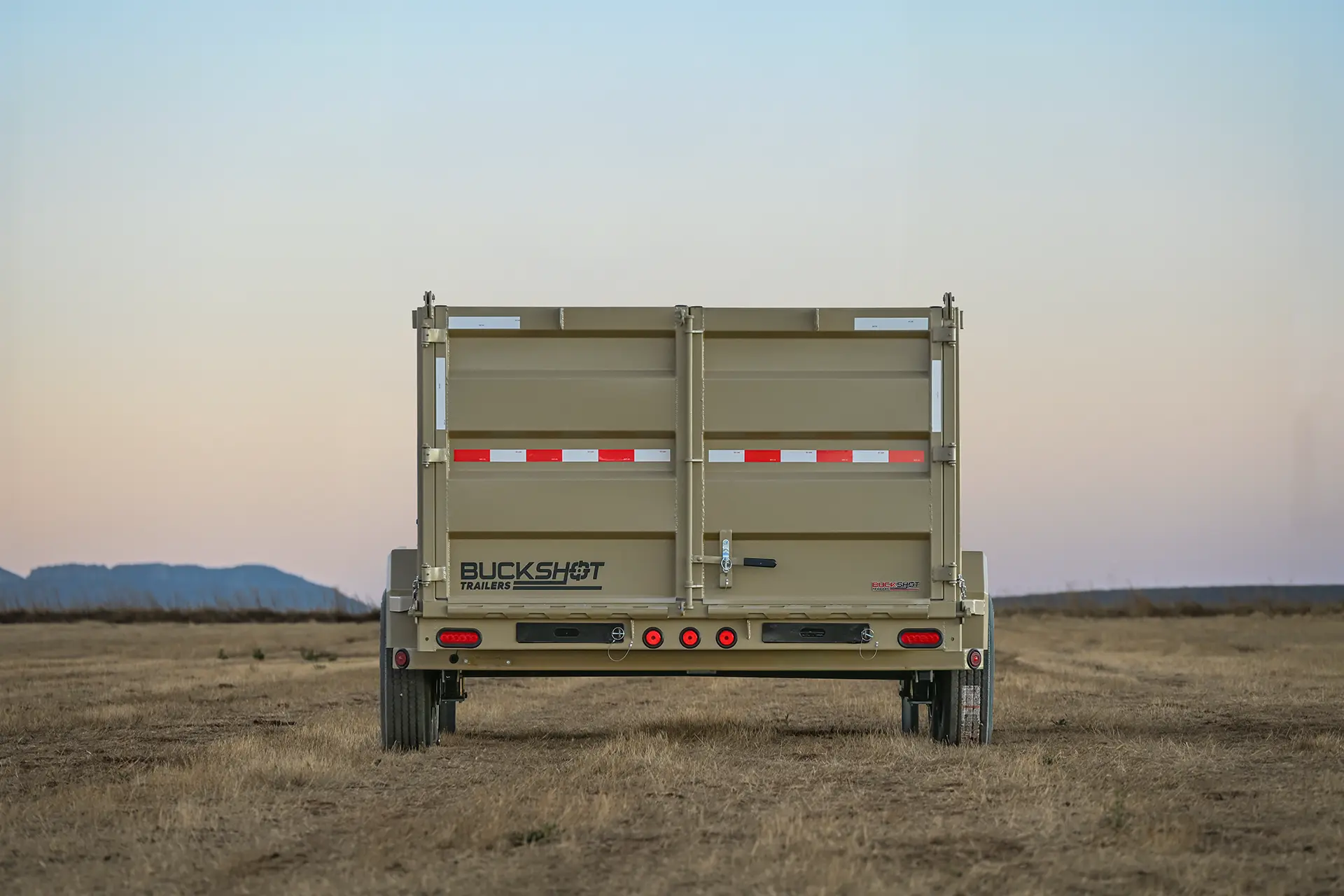

| Gate |
Three-Way Spreader Gate |
| Tarp Kit |
Standard Retractable Tarp Kit |
| D-Rings |
4 - 5/8" Standard D-Rings |
| Lifting and Hydraulics |

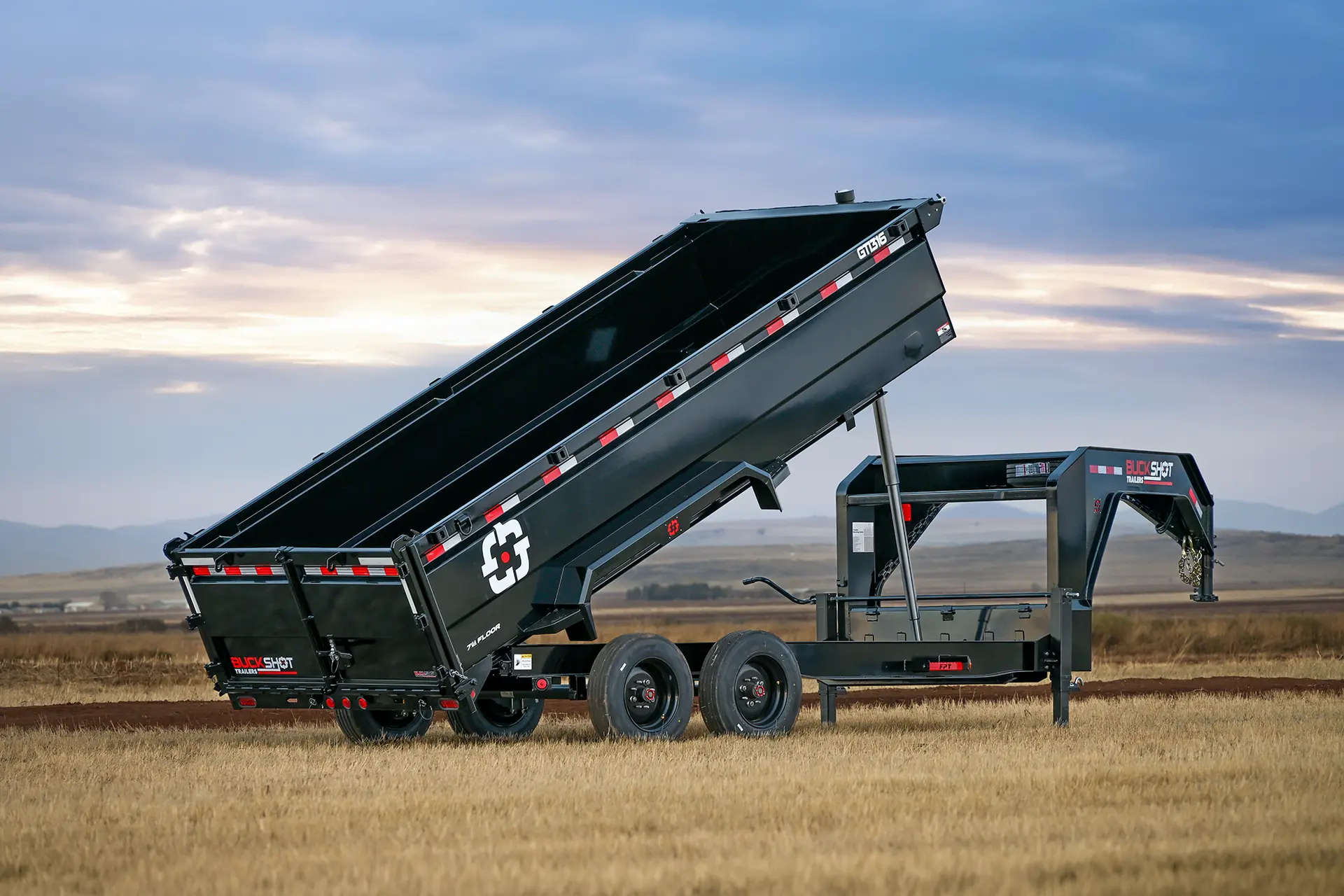

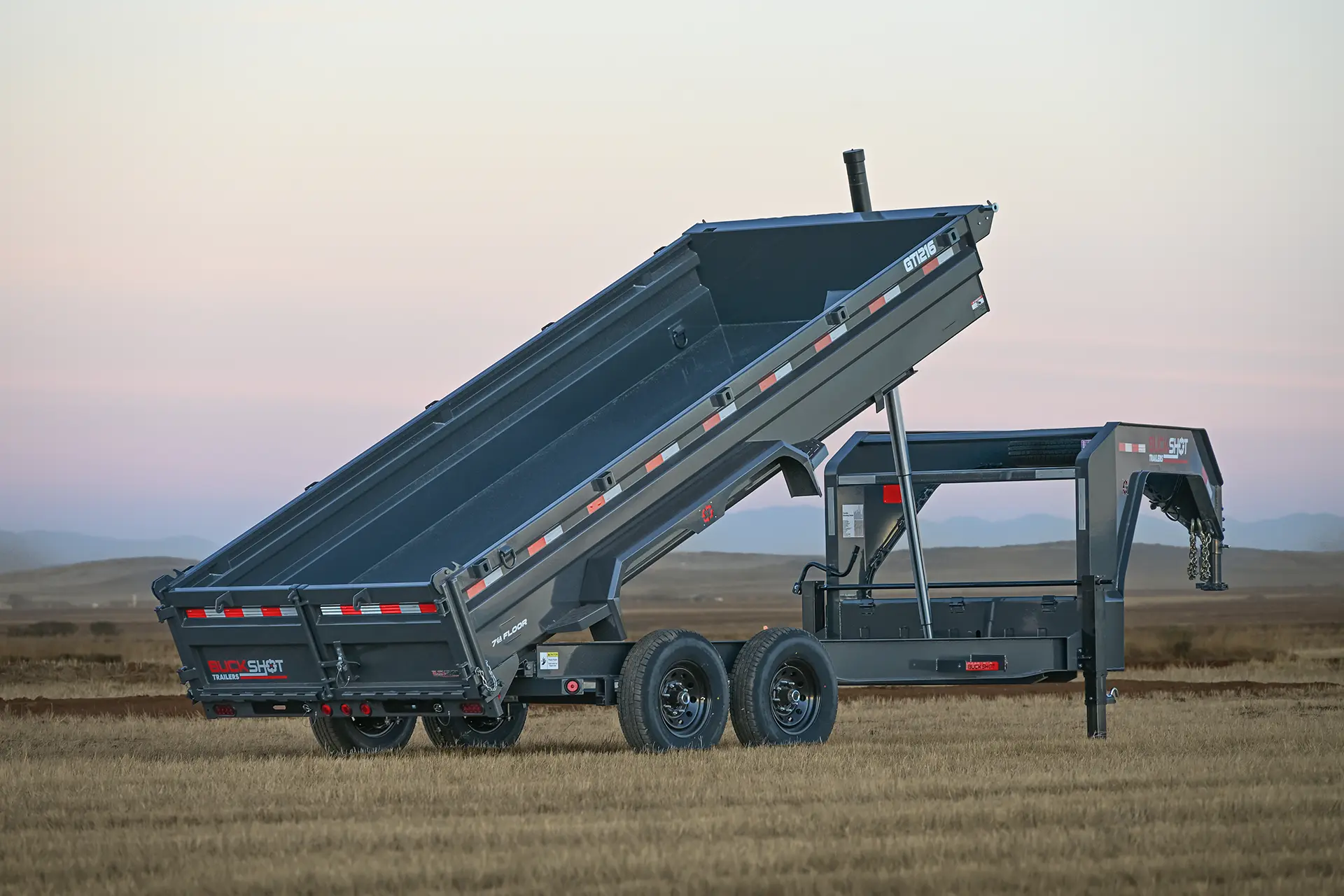

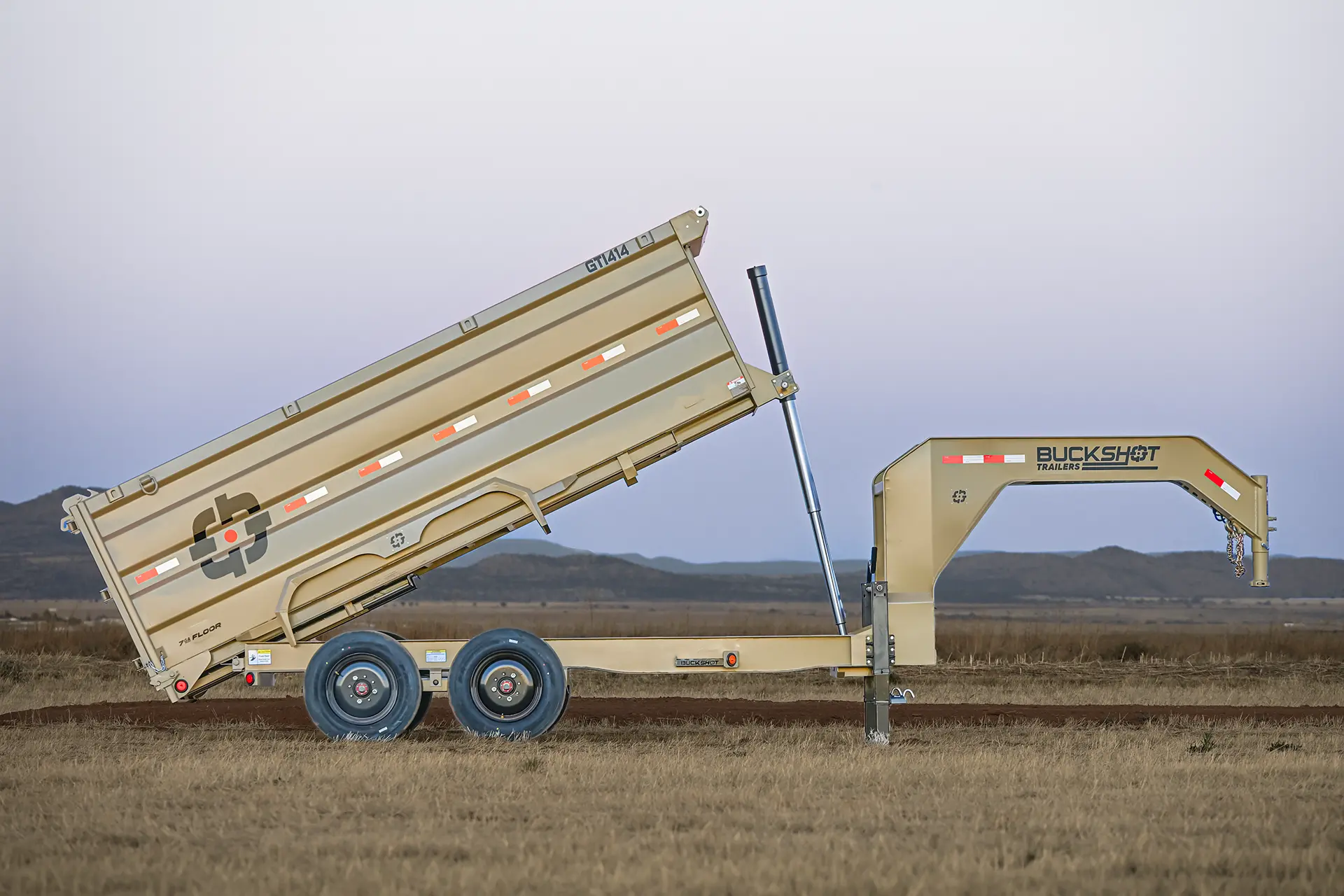

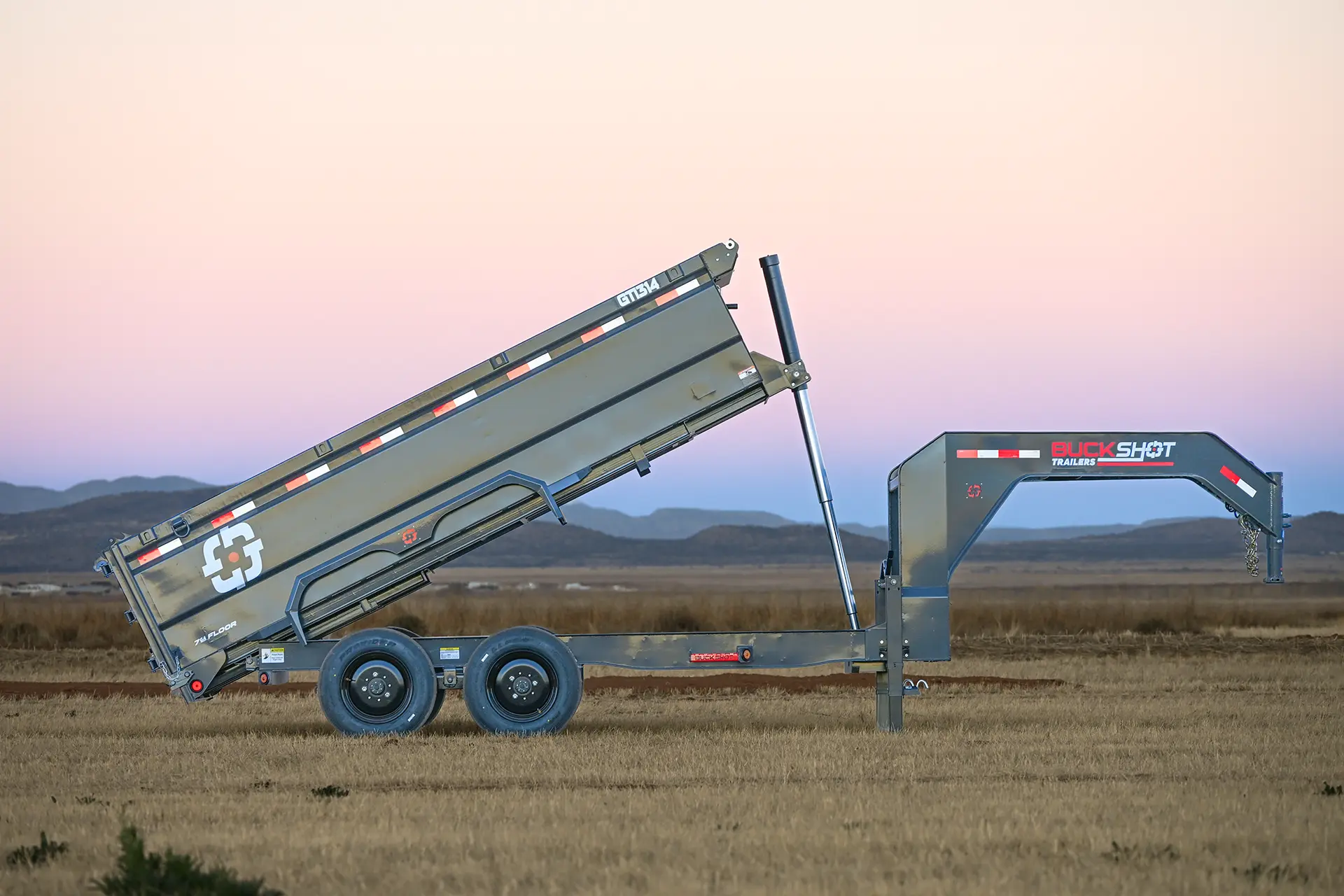

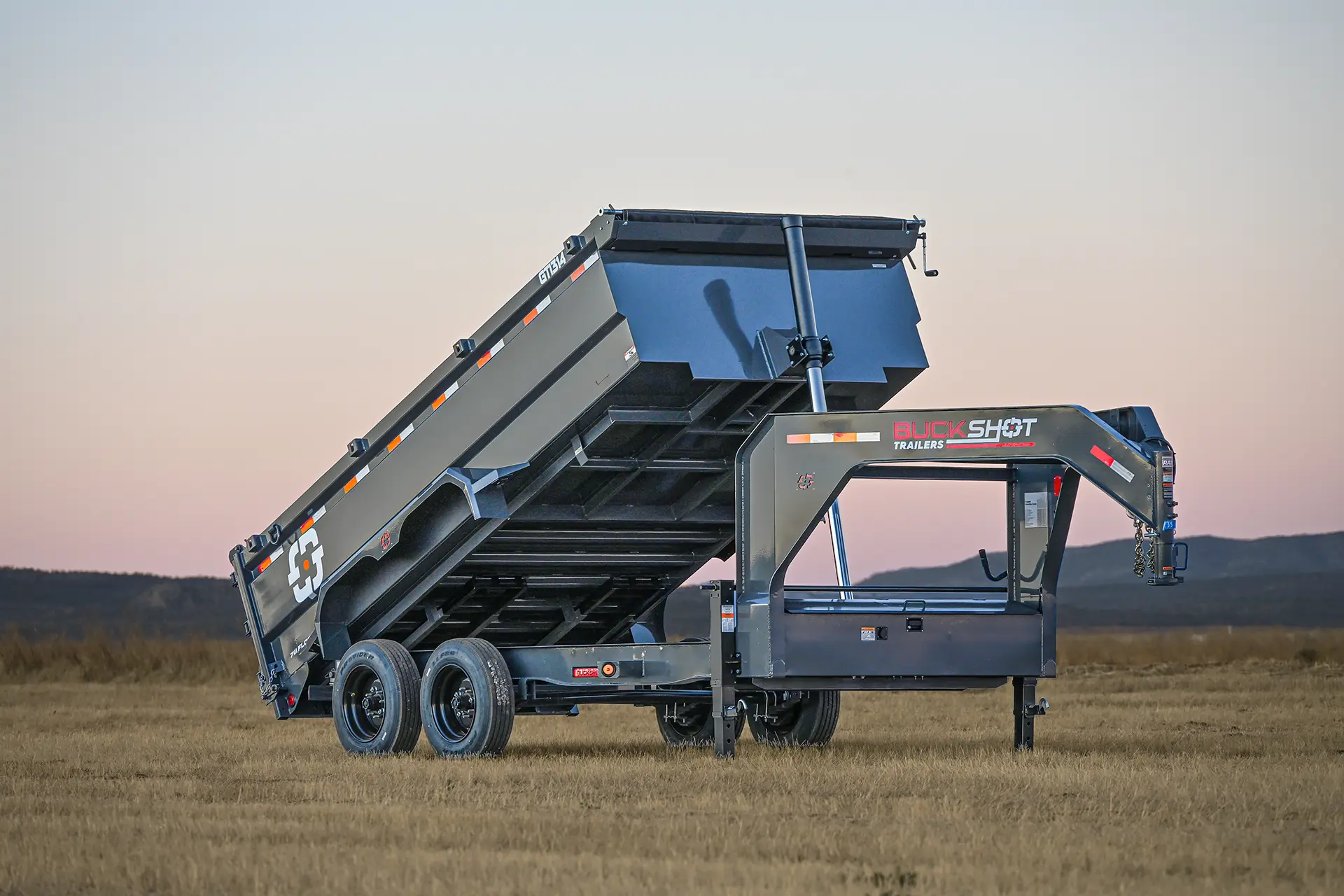

| Lift System |

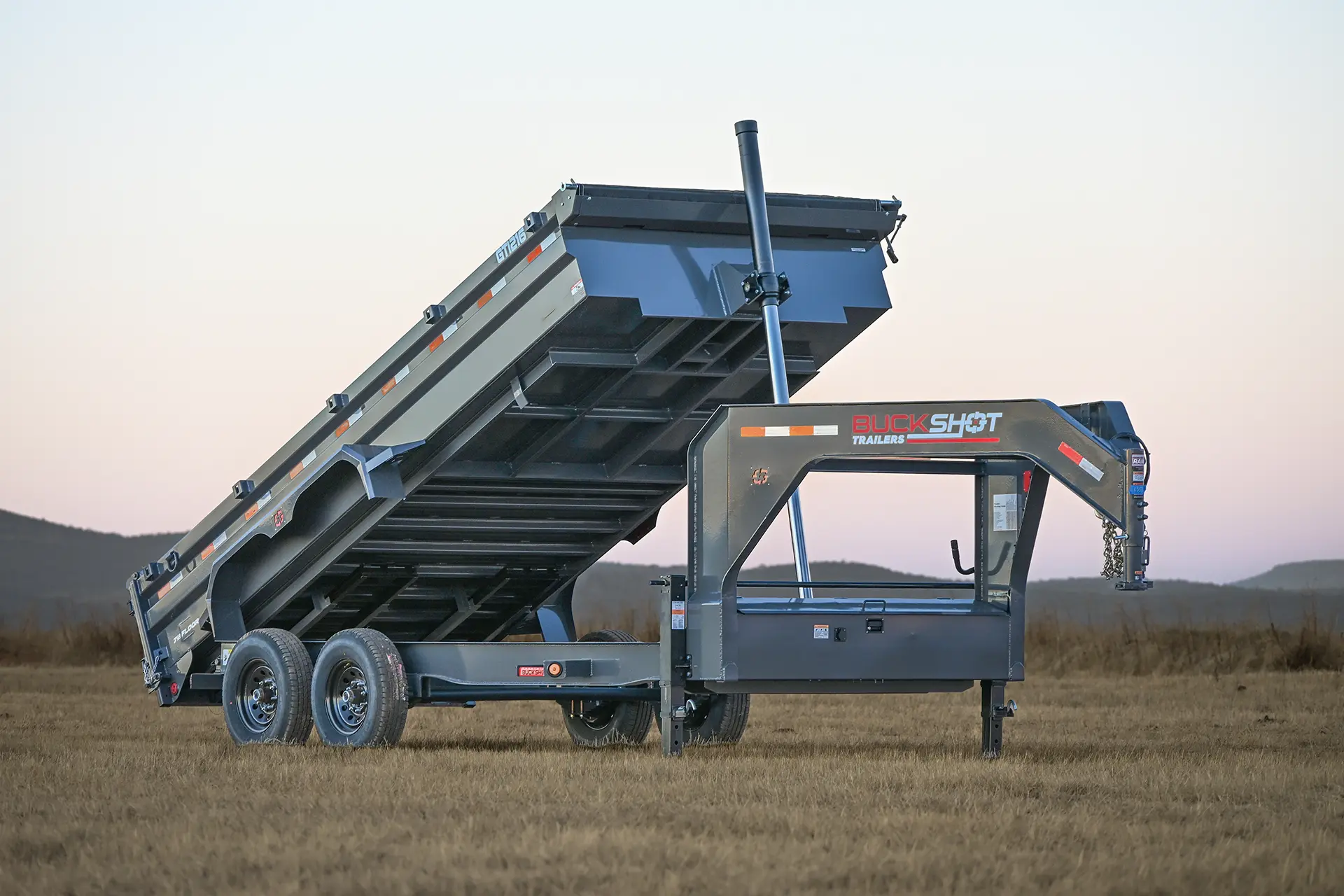

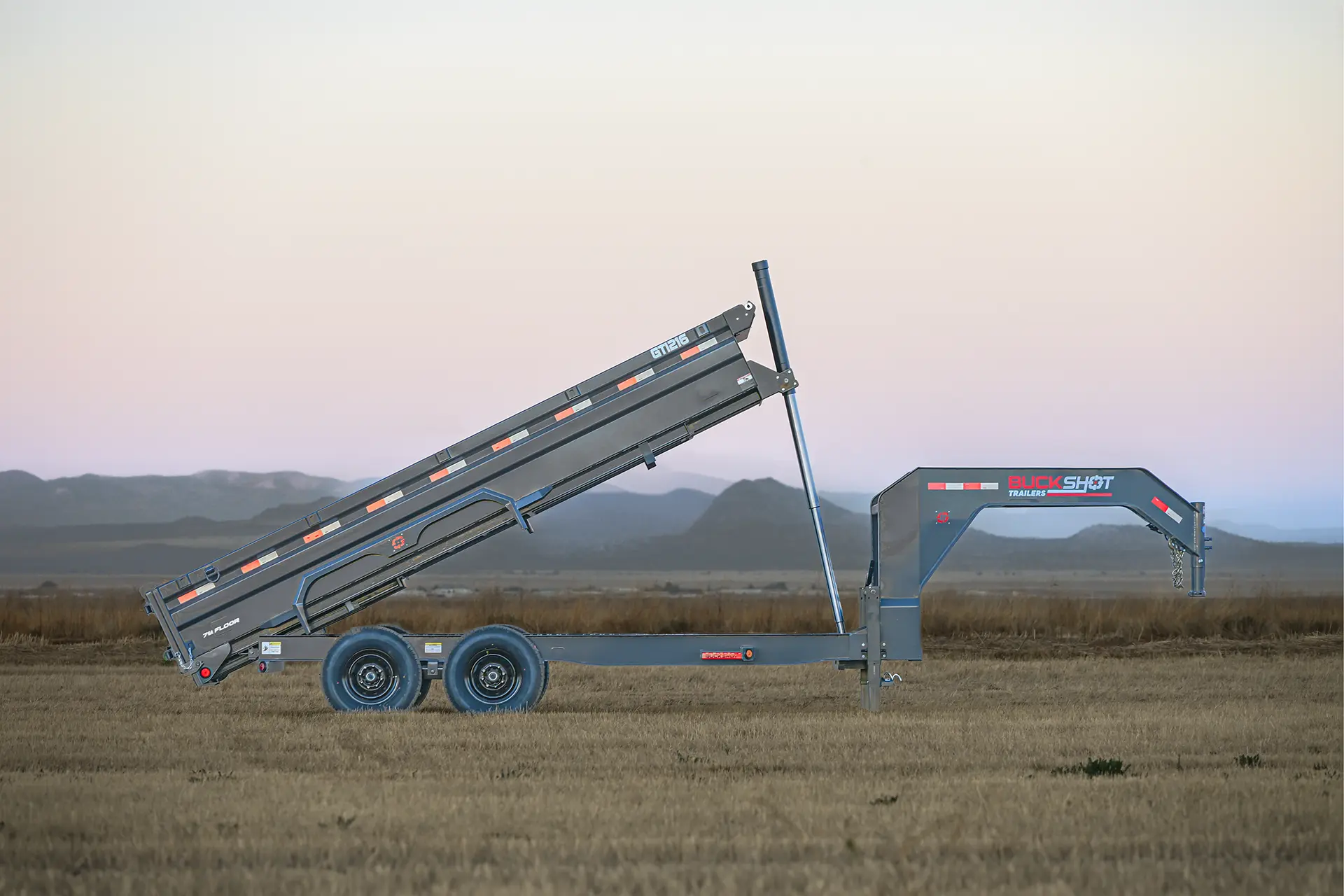

Telescopic Cylinder |
| Pump Unit |
KTI Pump Unit |
| Battery and Charger |
Interstate deep Cycle Battery with Built-In 5 amp Battery Charger |
| Toolbox |
Lockable Toolbox housing Battery & Pump |
| Wheels and Suspension |
| Axles and Brakes |
7k Electric Brake Axles with E-Z Lube Hubs |
| Suspension |
Multi-leaf Slipper Spring Suspension |
| Tires and Wheels |
235/80R16 Radial Tires on Black Mod Wheels |
| Spare Tire Mount |
|
| Electrical and Lighting |
| Lighting |
Lifetime LED Lighting, all DOT Approved |
| Wiring Harness |
Molded Sealed Harness with Resistors |
| Plug |
7-Way Receiver Female Plug with Adapter |
| Finish and Paint |
| Finish |
Sand Blasted |
| Paint |
Powder Coated |
|
ADD-ON OPTIONS
|
|
Tongue
|
|
Hydraulic Jacks (Dual) |
|
6" Gooseneck Riser |
|
Dump
|
|
24" Side Extensions for 14' Dump |
|
24" Side Extensions for 16' Dump |
|
Upgrade to heavy duty ramps |
|
Upgrade to IronTarp Kit |
|
Rear Support Legs (Qty. 2) with Pins |
|
Lift System
|
|
Tuff Wireless Remote – 2 Button |
|
Tuff Wireless Remote – 4 Buttons |
|
Running Gear
|
|
235/80R16 14 Ply (4 Wheels) |
|
235/80R16 10 Ply with Aluminum Rims (4 Wheels) |
|
235/80R16 14 Ply with Aluminum Rims (4 Wheels) |
|
Spare 235/80R16 10 Ply 8-6.5 |
|
Spare 235/80R16 14 Ply 8-6.5 |
|
Aluminum Spare 235/80R16 10 Ply 8-6.5 |
|
Aluminum Spare 235/80R16 14 Ply 8-6.5 |
|
(2) 8K Electric Brake Oil Bath Torsion Axles with 235/80R16 14 Ply Tires (Kit) |
|
Upgrade to 215/75R17.5 16 Ply (4 Wheels) |
|
Spare 215/75R17.5 16 Ply 8-6.5 |
|
Electrical and Lighting
|
|
Side 5" Ultra Bright LED Pod Flood Lights (2 Pcs) |
|
Solar Battery Charge – 7.5 Watt Solar Panel |
